ROYAL EX310 Exacta Forsendelses- og Postvægt Brugermanual

1. Introduktion

Tak for købetasing the ROYAL EX310 Exacta Shipping and Postal Scale. This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your new scale. Please read these instructions carefully before use and retain them for future reference.

2. Sikkerhedsoplysninger

To ensure safe and effective operation, please observe the following safety guidelines:

• Ensure the scale is placed on a stable, flat, and level surface to guarantee accurate measurements.
• Do not overload the scale beyond its maximum capacity of 310 pounds (140 kg). Overloading can damage the internal sensors.
• Keep the scale away from extreme temperatures, high humidity, and direct sunlight.
• Avoid dropping the scale or subjecting it to strong impacts, as this can affect its accuracy and functionality.
• Use only the specified power adapter (120VAC to 3VDC) for operation. Using an incorrect adapter may cause damage or malfunction.
• Forsøg ikke selv at skille vægten ad eller reparere den. Kontakt kvalificeret servicepersonale for eventuelle reparationer.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• ROYAL EX310 Exacta Shipping and Postal Scale Unit (Platform and Display)
• Power Adapter (120VAC to 3VDC)
• Brugervejledning (dette dokument)

4. Opsætning

Follow these steps to set up your ROYAL EX310 scale:

1. Pak forsigtigt alle komponenter ud af emballagen.
2. Place the scale platform on a firm, level, and stable surface. Ensure there are no vibrations or drafts that could affect readings.
3. Connect the coiled cable from the digital display unit to the designated port on the scale platform.
4. Connect the power adapter to the scale's power input port, then plug the adapter into a standard electrical outlet.
5. Position the display unit for easy viewing. The coiled cable allows for flexible placement.

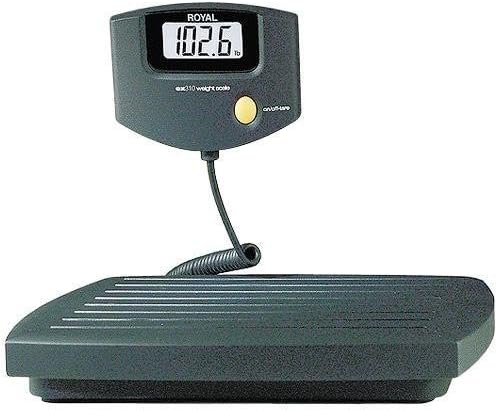

Figur 1: The ROYAL EX310 Exacta Shipping and Postal Scale. This image shows the complete scale unit, featuring a dark gray platform with a ribbed surface and a separate digital display unit connected by a coiled cable. The display unit shows '102.6 lb' and has a yellow 'on/off/tare' button.

5. Betjeningsvejledning

Learn how to use your scale for accurate measurements:

• Tænd/sluk: Press the yellow 'on/off/tare' button briefly to turn the scale on. To turn the scale off, press and hold the 'on/off/tare' button until the display turns off.
• Nulstilling af skalaen: Before placing any item on the scale, ensure the display reads '0.0'. If it does not, press the 'on/off/tare' button briefly to zero the scale. This ensures accurate measurement.
• Weighing an Item: Gently place the item to be weighed on the center of the scale platform. Wait for the digital display to stabilize and show the final weight.
• Tara funktion: To weigh items in a container, first place the empty container on the scale. Press the 'on/off/tare' button to zero the display. Then, place the items to be weighed into the container. The display will now show only the net weight of the items, excluding the container's weight.
• Enhedskonvertering: The scale can measure in pounds (lb) or kilograms (kg). The display will indicate the current unit. If a dedicated unit conversion button is present (not explicitly visible in the main image), press it to switch between 'lb' and 'kg'.

6. Vedligeholdelse

Proper care will extend the life and accuracy of your scale:

• Rensning: Rengør vægten med en blød, let damp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler, og nedsænk ikke vægten i vand.
• Opbevaring: Store the scale in a dry, cool place away from direct sunlight and extreme temperatures when not in use.
• Strømadapter: Periodically inspect the power adapter and its cable for any signs of damage. Discontinue use if damage is found and replace with an approved adapter.

7. Fejlfinding

Hvis du støder på problemer med din vægt, kan du se følgende almindelige problemer og løsninger:

• Skalaen tænder ikke:
  • Ensure the power adapter is securely connected to both the scale and a working electrical outlet.
  • Kontroller om stikkontakten fungerer ved at tilslutte en anden enhed.
• Unøjagtige eller svingende aflæsninger:
  • Verify that the scale is placed on a completely stable, level, and vibration-free surface.
  • Ensure no objects are touching the scale platform or the display unit other than the item being weighed.
  • Perform a zeroing operation before weighing.
• Display shows 'Err' or 'OL':
  • This typically indicates an overload. Remove the item from the scale immediately. The scale's maximum capacity is 310 pounds.
  • If the error persists after removing the item, power cycle the scale (turn off, then on).

8. Specifikationer

9. Garanti og support

For warranty information, technical support, or service inquiries, please refer to the documentation included with your original purchase or visit the official Royal webwebsted. Gem din købsbevis til garantikrav.
