1. Introduktion
Thank you for choosing the Wharfedale Diamond 8 Center Channel Speaker. This manual provides essential information for the proper setup, operation, and maintenance of your speaker, ensuring optimal performance and longevity. Please read this manual thoroughly before using your speaker.
2. Sikkerhedsoplysninger
To prevent fire, electric shock, and damage, please observe the following safety precautions:
- Udsæt ikke højttaleren for regn eller fugt.
- Bloker ikke nogen ventilationsåbninger.
- Må ikke installeres i nærheden af varmekilder såsom radiatorer, varmeapparater, komfurer eller andre apparater (inklusive ampløftere), der producerer varme.
- Brug kun tilbehør/tilbehør specificeret af producenten.
- Overlad al service til kvalificeret servicepersonale.
- Ensure proper speaker wire polarity when connecting.
3. Pakkens indhold
Kontroller venligst, at din pakke indeholder følgende varer:
- Wharfedale Diamond 8 Center Channel Speaker
- Brugervejledning (dette dokument)
- Speaker Grille (pre-installed or separate)
4. Nøglefunktioner
The Wharfedale Diamond 8 Center Channel Speaker is designed to deliver clear and dynamic dialogue for your home theater system. Its key features include:
- 2-way, compact, high-performance center channel perfectly matched with other Diamond series speakers.
- Wired internally with premium Monster Cable XP speaker cable for superior signal integrity.
- Twin 5.25-inch Kevlar bass and midrange drive units with phase plugs and nitrile rubber surrounds.
- 1-inch silk fabric dome tweeter, ferrofluid cooled with neodymium magnet.
- Measures 17.75 x 7 x 7.1 inches (W x H x D).
5. Opsætning
5.1 Højttalerplacering
The center channel speaker is crucial for dialogue clarity in a surround sound system. Place the speaker directly above or below the center of your television or projection screen. Ensure it is at approximately the same height as your main left and right speakers for a cohesive soundstage. Avoid placing it inside enclosed cabinets that could impede sound dispersion or cause overheating.

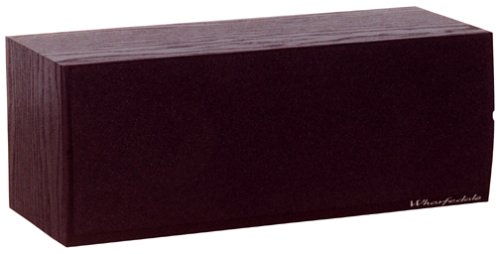

Figure 1: Wharfedale Diamond 8 Center Channel Speaker, showcasing its compact design and black ash finish. This image illustrates the speaker's rectangular form factor, suitable for placement above or below a display.
5.2 Forbindelse til din Amplivligere/modtager
Før du foretager nogen tilslutninger, skal du sørge for din ampFjernsynet/modtageren er slukket og taget ud af stikkontakten.
- Identificer terminaler: Locate the speaker terminals on the back of your Wharfedale Diamond 8 speaker and on your amplifier/receiver. You will see red (+) and black (-) terminals.
- Forbered højttalerledning: Afisoler cirka 12 mm isolering fra enderne af din højttalerledning. Sno de bare tråde stramt.
- Forbind positiv: Connect the positive (red) terminal of the speaker to the positive (red) center channel output terminal on your amplifier/modtager.
- Forbind negativ: Connect the negative (black) terminal of the speaker to the negative (black) center channel output terminal on your amplifier/modtager.
- Sørg for sikker forbindelse: Make sure there are no stray wire strands that could short circuit the terminals.
Vigtig: Maintaining correct polarity (red to red, black to black) is crucial for proper sound reproduction and phase alignment within your home theater system.
6. Betjening af din højttaler
Once connected, your Wharfedale Diamond 8 Center Channel Speaker will function as part of your home theater system. Ensure your amplifier/receiver is configured to output audio to the center channel. Most modern receivers have an auto-calibration feature that will optimize the speaker's settings (level, distance, crossover frequency) for your listening environment. Refer to your amplifier/receiver's manual for detailed setup and calibration instructions.
The speaker is designed for clear dialogue reproduction. Adjust the volume on your amplifier/receiver to a comfortable listening level. Avoid excessively high volumes for prolonged periods to prevent potential damage to the speaker drivers.
7. Vedligeholdelse
To keep your Wharfedale Diamond 8 Center Channel Speaker in optimal condition:
- Rensning: Use a soft, dry, lint-free cloth to wipe the cabinet. For stubborn marks, a slightly damp cloth can be used, but avoid excessive moisture. Do not use abrasive cleaners, waxes, or solvents.
- Vedligeholdelse af gitter: The speaker grille can be gently removed for cleaning if necessary. Use a soft brush or vacuum cleaner with a brush attachment to remove dust.
- Miljø: Undgå at placere højttaleren i direkte sollys, i nærheden af varmekilder eller i områder med høj luftfugtighed.
- Førerbeskyttelse: Avoid touching the speaker drivers (cones and tweeter dome) as this can cause damage.
8. Fejlfinding
If you experience issues with your speaker, consult the following common troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd fra højttaleren | Forkert ledningsføring; Amplifier/receiver settings; Amplyden på/modtageren er slukket eller på lydløs. | Check speaker wire connections for correct polarity and secure fit. Verify amplifier/receiver is on, not muted, and center channel output is enabled. |
| Forvrænget lyd | Overdriving speaker; Loose connections; Damaged speaker wire. | Reduce volume. Check all connections for tightness. Inspect speaker wire for damage and replace if necessary. |
| Dialogue unclear or muffled | Incorrect placement; Amplifier/receiver calibration issues. | Ensure speaker is optimally placed (e.g., at ear level, unobstructed). Re-run amplifier/receiver's auto-calibration or manually adjust center channel levels and crossover frequency. |
If the problem persists after trying these solutions, please contact Wharfedale customer support or a qualified service technician.
9. Specifikationer
The following are the technical specifications for the Wharfedale Diamond 8 Center Channel Speaker:
- Modelnavn: Diamant 8
- Højttalertype: Center kanal
- Anbefalede anvendelser: Til Surround Sound-systemer
- Subwoofer diameter: 5 Inches (referring to bass/midrange drivers)
- Surround Sound Kanalkonfiguration: 1 (for the center channel itself)
- Farve: Sort Ask
- Produktmål (D x B x H): 18D x 45.1B x 17.8H centimeter (7.1D x 17.75B x 7H tommer)
- Varens vægt: 4.99 kg (11 lbs)
- Mærke: Wharfedale
- Højttalers maksimale udgangseffekt: 120 watt
- Forbindelse teknologi: Kablet
- Lydudgangstilstand: Omgive
- Monteringstype: Bordplademontering
- Fabrikant: Wharfdale
- Vare modelnummer: Diamond8CenterBlack
10. Garantioplysninger
Wharfedale products are manufactured to the highest standards. This product is covered by a limited warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Wharfedale webwebsted. Gem din købsbevis til garantikrav.
11. Kundesupport
For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact Wharfedale customer support. Contact information can typically be found on the official Wharfedale webwebstedet eller på produktemballagen.
You may also find additional resources, FAQs, and product registration options on the official Wharfedale webwebsted: www.wharfedale.co.uk
