1. Produktet er slutview
The Shop-Vac 9030433 Cartridge Filter is designed for general household filtration in Shop-Vac wet/dry vacuums with large filter cages. This filter is suitable for both wet and dry pickup applications, providing efficient debris collection.

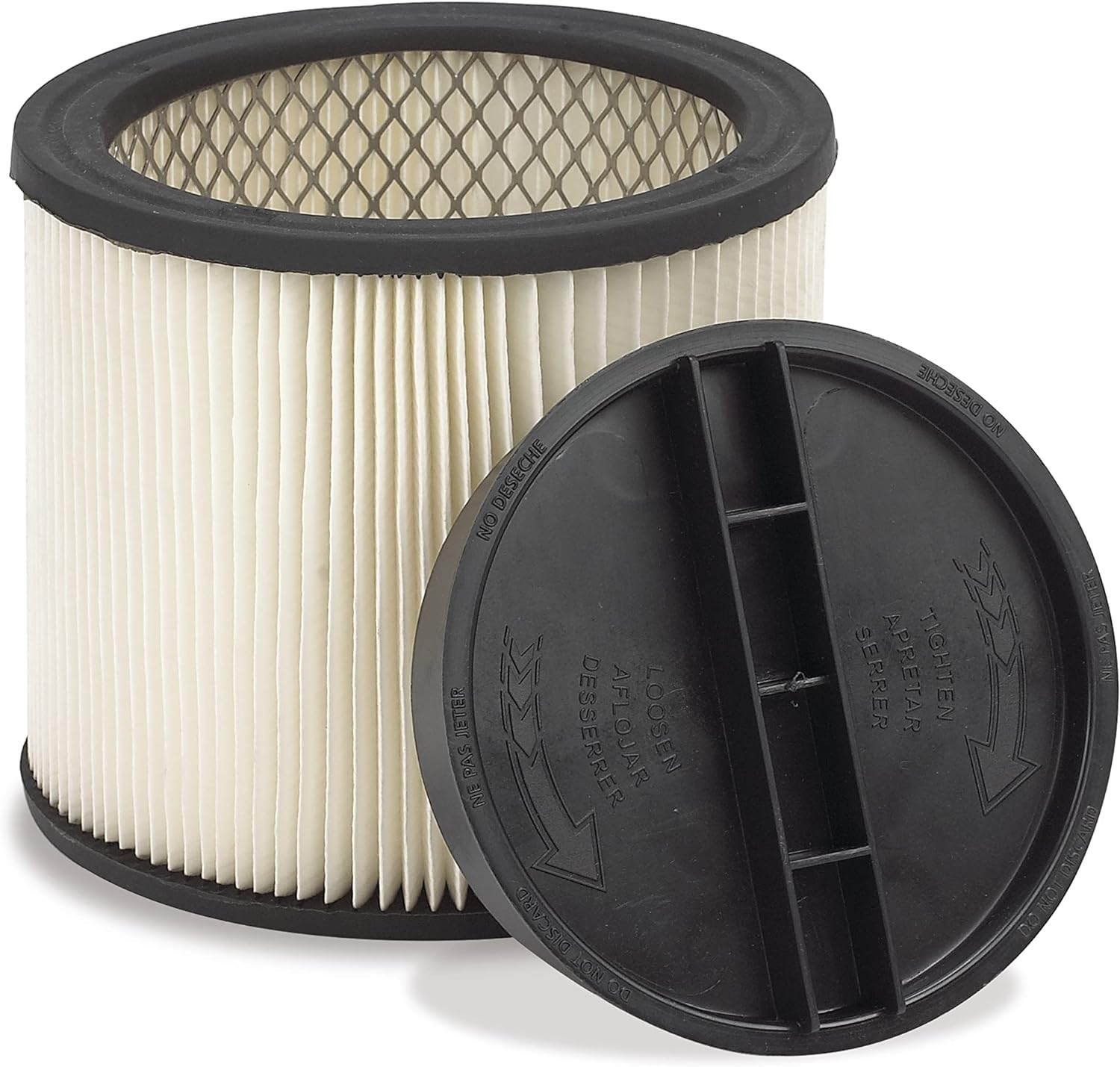

Image 1: The Shop-Vac 9030433 Cartridge Filter shown with its black retainer cap.
Image 2: Key features of the filter, highlighting general filtration capabilities and the reusable dry filter disc with mounting ring.
2. Opsætning og installation
Proper installation of the cartridge filter is crucial for optimal performance and to prevent damage to your vacuum cleaner.
- Forbered støvsugeren: Ensure your Shop-Vac is unplugged from the power source before beginning installation. Remove the motor head from the collection tank.
- Fjern gammelt filter (hvis relevant): If replacing an old filter, carefully remove it and dispose of it according to local regulations. Clean any debris from the filter cage and motor head area.
- Install the Cartridge Filter:
- Turn the lid cage (the underside of the motor head) upside down.
- Slide the new cartridge filter onto the lid cage, ensuring it sits securely over the filter cage.
- Apply the retainer ring over the top of the filter.
- Turn the retainer ring clockwise to tighten and secure the filter firmly in place.
- Saml igen: Place the motor head back onto the collection tank and secure it with the latches.

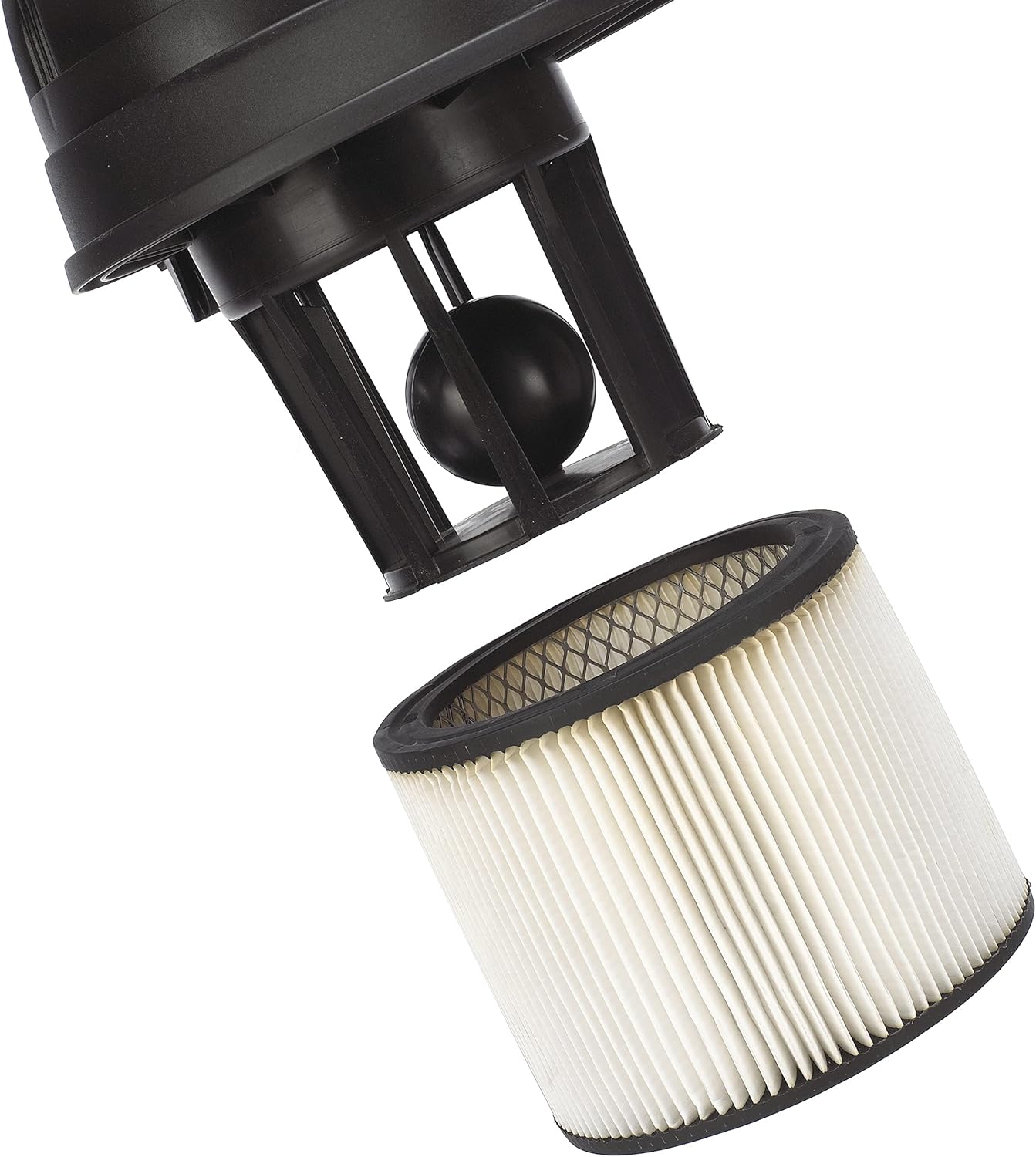

Image 3: A hand placing the cartridge filter onto the filter cage located on the underside of the vacuum's motor head.
Image 4: Visual instructions detailing how to slide the filter onto the lid cage, apply the retainer ring, and tighten it clockwise.
3. Betjeningsvejledning
The Shop-Vac 9030433 Cartridge Filter is designed for versatile use with your Shop-Vac wet/dry vacuum.
- Tør afhentning: For dry debris such as sawdust, dirt, and general household dust, ensure the filter is clean and properly installed. The filter efficiently captures fine particles.
- Våd opsamling: This filter is suitable for wet pickup applications. When vacuuming liquids, the filter will prevent larger debris from entering the motor. After wet pickup, it is recommended to clean and thoroughly dry the filter before subsequent dry use to maintain efficiency and prevent mold or mildew growth.
Image 5: A user operating a Shop-Vac to clean up wood shavings and construction debris from a floor.
Image 6: A user demonstrating wet pickup by vacuuming liquid from a kitchen sink with a Shop-Vac.
4. Vedligeholdelse
Regular cleaning of your cartridge filter extends its lifespan and maintains vacuum performance. While the filter is generally considered disposable, it can be cleaned for extended use.
- Fjern affald: Carefully remove the filter from the vacuum. Tap the filter gently on the side of a trash can to dislodge loose dirt and debris.
- Skylning (valgfrit): For a more thorough cleaning, rinse the filter with clean water. Ensure water flows through the pleats to remove embedded particles.
- Tør grundigt: After rinsing, allow the filter to air dry completely for at least 24 hours before reinstallation. Do not use the filter while it is wet or damp for dry pickup, as this can damage the filter and reduce efficiency.
- Undersøg for skader: Before each use, inspect the filter for tears, holes, or excessive wear. Replace the filter if any damage is found.
Image 7: Visual guide demonstrating how to tap the filter to remove debris and rinse it with water for cleaning, followed by drying.
5. Fejlfinding
If you encounter issues with your Shop-Vac filter or vacuum performance, consider the following:
- Reduceret sugning:
- Årsag: Clogged filter, improper installation, or full collection tank.
- Løsning: Clean or replace the filter. Ensure the filter is securely installed and the retainer ring is tightened. Empty the collection tank.
- Støvudslip:
- Årsag: Damaged filter, improperly seated filter, or missing retainer ring.
- Løsning: Inspect the filter for damage and replace if necessary. Reinstall the filter, ensuring it is seated correctly and the retainer ring is tight.
- Filterskade:
- Årsag: Vacuuming sharp objects, excessive force during cleaning, or prolonged use without maintenance.
- Løsning: Replace the filter immediately. Avoid vacuuming sharp objects that could puncture the filter material.
6. Specifikationer
- Mærke: Shop-Vac
- Modelnummer: 9030433
- Materiale: Papir
- Kompatible enheder: Shop-Vac Wet/Dry Vacuums 5 gallons and above, Handheld Vacuums, Canister Stick Upright
- Produktdimensioner: Approximately 19.7L x 19.7W x 20.3H Centimetres (7.75 x 7.75 x 8 inches)
- Varens vægt: 363 g (0.8 lbs)
- Varepakkemængde: 1
- Inkluderede komponenter: Filter
- Oprindelsesland: USA
7. Garanti og support
This Shop-Vac cartridge filter comes with a 1-års garanti fra producenten.
For technical assistance, warranty claims, or further inquiries, please refer to the contact information provided with your Shop-Vac vacuum cleaner or visit the official Shop-Vac website. Always ensure you have your product model number (9030433) available when contacting support.
