Intermatic TN811C Programmerbar Lamp og apparatur

Indledning

The Intermatic TN811C Programmable Lamp and Appliance Timer is designed to provide automated control over your lighting and appliances, enhancing safety, security, and convenience. This timer features two on/off settings per day and utilizes non-removable trippers for programming. It has a 15 Amp capacity, suitable for controlling various electrical devices, and includes a manual override switch for immediate control.

Sikkerhedsoplysninger

• Læs alle instruktioner før brug.
• Nedsænk ikke timeren i vand, og udsæt den ikke for overdreven fugtighed.
• Overskrid ikke den maksimale elektriske kapacitet på 15 Amps eller 1750 watt.
• Sørg for, at timeren er tilsluttet en stikkontakt med jordforbindelse.
• Unplug the timer from the outlet before cleaning or performing any maintenance.
• This timer is intended for indoor use only. If used in a protected outdoor location, ensure it is shielded from direct weather exposure.

Produkt overview

The Intermatic TN811C timer is a compact, white, cube-shaped device with a central rotating dial for time setting and programming. It features a standard two-prong plug for wall outlets and a three-prong receptacle for the appliance to be controlled.

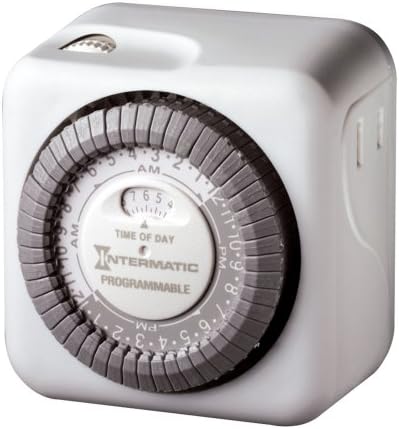

Front view of the Intermatic TN811C timer, showing the central programming dial and manual override switch.

Side view of the Intermatic TN811C timer, illustrating the appliance receptacle.

Nøglekomponenter:

• Time Dial: The large central dial used to set the current time and program on/off cycles.
• Turister: Small, non-removable pins around the time dial that are pushed in or pulled out to set specific on/off times.
• Manuel tilsidesættelseskontakt: A small switch, typically located on the top or side, allowing you to manually turn the connected appliance on or off, overriding the programmed settings.
• Udtagsbeholder: The socket on the timer where you plug in your lamp eller apparat.

Opsætning

1. Indstil aktuel tid: Rotate the large central dial clockwise until the current time aligns with the "TIME OF DAY" indicator arrow. The dial is marked with AM and PM hours.
2. Program TIL/FRA-tider: The dial has small, non-removable trippers around its circumference. Each tripper represents a specific time interval. To set an "ON" time, push the corresponding tripper(s) inward. To set an "OFF" time, pull the corresponding tripper(s) outward. The timer allows for 48 on/off settings per day.
3. Tilslut timer: Sæt timeren i en almindelig 120V stikkontakt.
4. Tilslut apparat: Tilslut lamp or appliance you wish to control into the outlet receptacle on the timer.

Drift

Automatisk drift:

Once the current time is set and the on/off trippers are programmed, the timer will automatically turn the connected appliance on and off according to your settings. The dial will continuously rotate, advancing the time.

Manuel tilsidesættelse:

The timer is equipped with a manual override switch. This switch allows you to temporarily turn the connected appliance on or off, regardless of the programmed settings. Be aware that on some models, using the manual override switch may advance the internal time setting. If you notice the programmed times shifting, re-verify and reset the current time as needed.

Opretholdelse

• Rensning: Unplug the timer from the wall outlet. Wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Opbevaring: If storing the timer for an extended period, unplug it and keep it in a cool, dry place away from direct sunlight.
• Inspektion: Periodically inspect the timer and its cord for any signs of damage, such as frayed wires or cracked casing. Hvis der konstateres skader, skal brugen af ​​enheden ophøre, og enheden skal udskiftes.

Fejlfinding

• Apparatet tænder/slukker ikke på programmerede tidspunkter:
  • Sørg for, at timeren er tilsluttet en stikkontakt med strøm.
  • Verify the appliance is properly plugged into the timer and is in working order.
  • Check that the current time is correctly set on the dial.
  • Confirm that the ON/OFF trippers are correctly pushed in or pulled out for the desired times.
  • Ensure the manual override switch is not in a position that is overriding the programmed settings.
• Timer dial is not moving:
  • Ensure the timer is plugged into a live electrical outlet.
  • The timer may be faulty and require replacement.
• Appliance turns ON/OFF at incorrect times:
  • Re-check the current time setting and adjust if necessary.
  • Re-verify the positions of the ON/OFF trippers.
  • If the manual override was recently used, it might have advanced the time. Reset the current time.

Specifikationer

Garanti og support

Garantioplysninger:

The Intermatic TN811C Programmable Lamp and Appliance Timer comes with a 1 års begrænset garantiDenne garanti dækker materiale- og fabrikationsfejl ved normal brug. Gem venligst din købsbevis i tilfælde af garantikrav.

Kundesupport:

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please visit the official Intermatic website or contact their customer service department. You can often find contact information and additional resources on the manufacturer's webhjemmeside eller gennem den forhandler, hvor du købte produktet.
