SEGA Dreamcast-konsol HKT-3020 brugsanvisning

1. Introduktion

The SEGA Dreamcast is a 128-bit video game console designed for interactive entertainment. It features advanced graphics capabilities, an integrated modem for online connectivity, and support for various peripherals to enhance your gaming experience. This manual provides essential information for setting up, operating, and maintaining your Dreamcast console.

Figur 1.1: Øverst view of the SEGA Dreamcast Console.

2. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• SEGA Dreamcast Console (Gray unit)
• Modem
• Controller
• Strømkabel
• Stereo A/V Cable

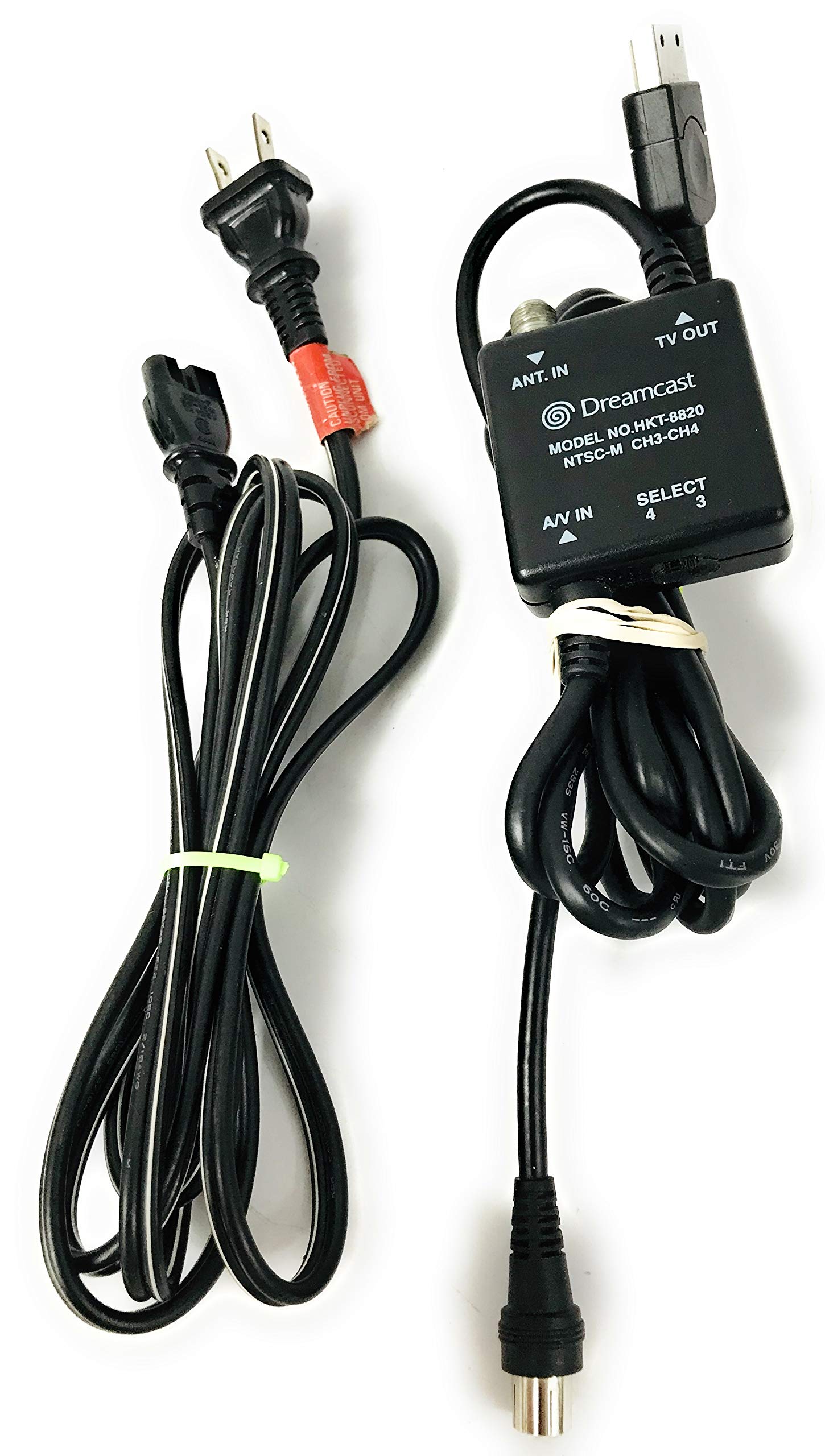

Figure 2.1: Included power and A/V cables for the Dreamcast console.

3. Opsætningsvejledning

Follow these steps to connect your SEGA Dreamcast console:

1. Tilslut strømkablet: Insert the power cable into the "AC IN" port on the back of the console and plug the other end into a standard electrical outlet.
2. Connect the A/V Cable: Insert the stereo A/V cable into the "AV OUT" port on the back of the console. Connect the yellow (video) and red/white (audio) RCA connectors to the corresponding input jacks on your television.
3. Connect the Modem (Optional): If you plan to use online features, connect the modem cable to the "LINE" port on the back of the console and to a telephone line jack.
4. Tilslut controlleren: Plug the Dreamcast controller into one of the four controller ports (labeled A, B, C, D) on the front of the console.

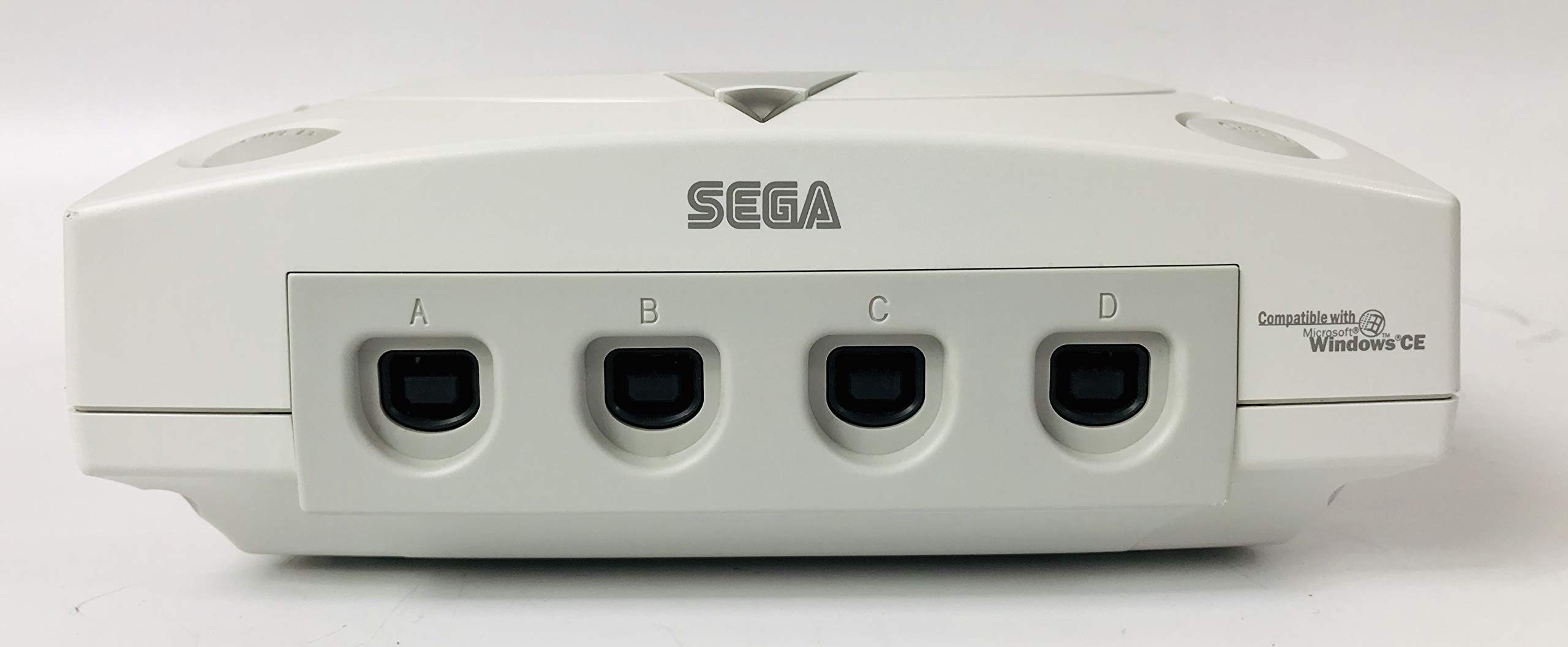

Figur 3.1: Forside view of the Dreamcast console showing controller ports A, B, C, and D.

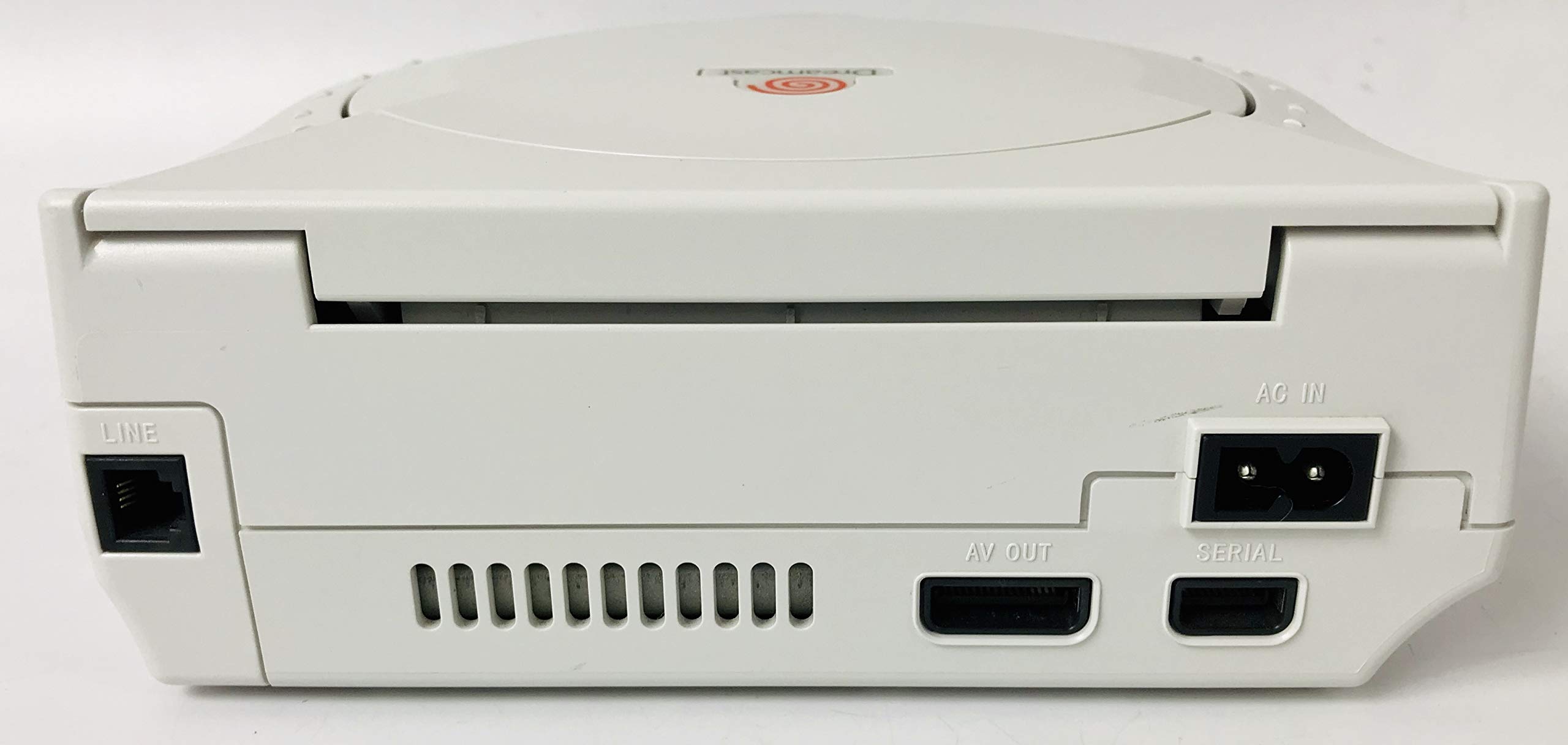

Figur 3.2: Bagside view of the Dreamcast console displaying the AC IN, AV OUT, and LINE ports.

4. Betjeningsvejledning

This section details the basic operation of your Dreamcast console.

4.1 Tænd/sluk

• To power on the console, press the MAGT button located on the top-left front of the unit.
• To power off the console, press the MAGT knappen igen.

4.2 Inserting and Removing Games

1. Tryk på for at åbne diskskuffen ÅBEN button located on the top-right front of the unit. The disc cover will lift.
2. Carefully place a Dreamcast game disc onto the spindle in the disc tray, ensuring it is seated correctly.
3. Close the disc cover by gently pressing it down until it clicks into place.
4. To remove a disc, press the ÅBEN button, lift the disc, and then close the cover.

Figur 4.1: Øverst view of the Dreamcast console showing the POWER and OPEN buttons.

Figure 4.2: The Dreamcast console with its disc tray open, ready for game insertion.

4.3 Brug af controller

The Dreamcast controller features an analog stick, D-pad, action buttons (A, B, X, Y), start button, and two analog triggers. It also includes two expansion slots for accessories like the Visual Memory Unit (VMU) or a Rumble Pack.

• Insert VMUs or other accessories into the expansion slots on the top of the controller.
• Refer to individual game manuals for specific controller configurations and functions.

5. Vedligeholdelse

Proper care will ensure the longevity of your Dreamcast console.

5.1 Rengøring af konsollen

• Wipe the console's exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Ensure ventilation slots are free from dust and obstructions to prevent overheating.

5.2 Pleje af disken

• Handle game discs by their edges to avoid fingerprints and scratches.
• Opbevar diske i deres etuier, når de ikke er i brug.
• Rengør snavsede diske med en blød, fnugfri klud, og tør af fra midten og udad.

6. Fejlfinding

If you encounter issues with your Dreamcast console, refer to the following common problems and solutions:

• Ingen strøm: Ensure the power cable is securely connected to both the console and the electrical outlet. Try a different outlet.
• Ingen video/lyd: Verify that the A/V cable is correctly connected to both the console's "AV OUT" port and the television's input jacks. Ensure the TV is set to the correct input source.
• Fejl ved disklæsning: Check if the game disc is clean and free of scratches. Ensure the disc is properly seated in the disc tray and the cover is fully closed.
• Controller reagerer ikke: Confirm the controller is firmly plugged into one of the console's front ports. Try a different controller port or a different controller if available.

If problems persist, contact SEGA customer support with your console's model and serial number.

7. Specifikationer

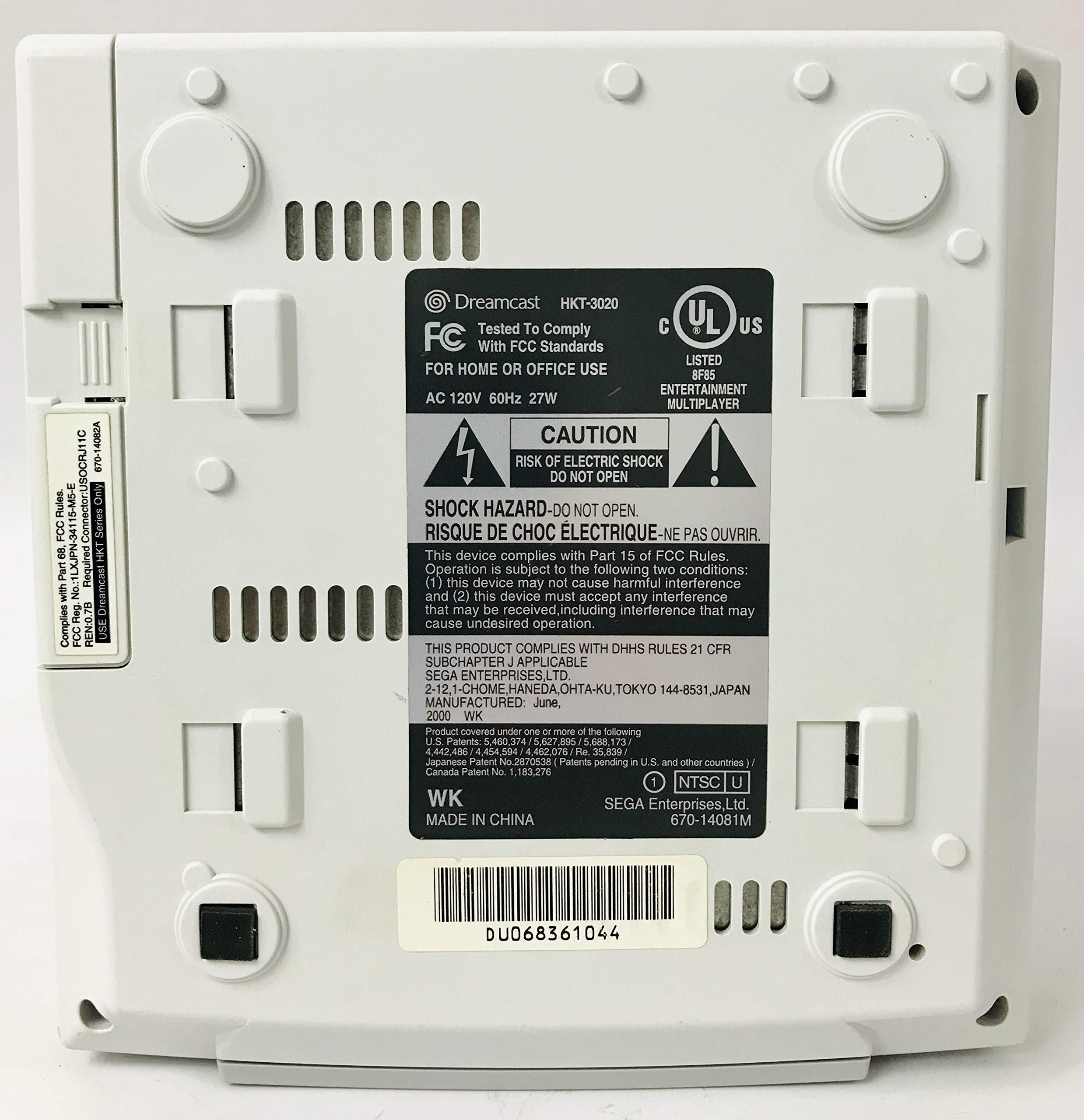

Figure 7.1: Bottom label of the Dreamcast console, showing model number and electrical specifications.

8. Garanti og support

For warranty information or technical support, please contact SEGA customer service. When contacting support, please have your console's model number (HKT-3020) and serial number (found on the bottom label) readily available.

Manufacturer: Sega of America, Inc.
