Neutrik NP3RX-BAG 3-Cond R/A 1/4-Inch Phone Plug

Indledning

The Neutrik NP3RX-BAG is a high-quality, 3-pole right-angle 1/4-inch professional phone plug designed for audio applications. It features nickel contacts and a durable black shell, providing reliable and robust connections for various audio equipment.

Figure 1: Assembled Neutrik NP3RX-BAG right-angle 1/4-inch phone plug.

Sikkerhedsoplysninger

• Always ensure power is disconnected from equipment before making or breaking connections.
• Handle with care to avoid damage to the plug or connected equipment.
• Do not expose the plug to excessive moisture or extreme temperatures.
• Opbevares utilgængeligt for børn.

Pakkens indhold

• 1 x Neutrik NP3RX-BAG 3-Cond R/A 1/4-Inch Phone Plug (unassembled components)

Opsætning og montering

The Neutrik NP3RX-BAG is designed for easy assembly onto a cable. Follow these steps for proper installation:

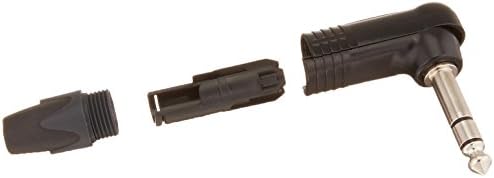

Figure 2: Disassembled components of the Neutrik NP3RX-BAG plug.

1. Forbered kablet: Strip the outer jacket of your audio cable to expose the conductors. Strip the insulation from each conductor to the appropriate length for soldering.
2. Thread Components: Slide the outer shell and the strain relief boot onto the cable in that order. Ensure they are oriented correctly.
3. Loddeforbindelser: Carefully solder the cable conductors to the corresponding solder pads on the plug's internal contacts. The NP3RX-BAG is a 3-conductor (TRS) plug, typically used for stereo audio or balanced mono signals. Ensure correct polarity (Tip, Ring, Sleeve).
4. Secure Strain Relief: Once soldering is complete and connections are verified, slide the strain relief boot forward to secure the cable. This prevents tension on the solder joints.
5. Assemble Shell: Carefully slide the outer shell over the plug body until it clicks or screws into place, fully enclosing the connections.

Figur 3: Nærbillede view of the plug's internal structure, highlighting solder points.

Operation

Once assembled, the Neutrik NP3RX-BAG functions as a standard 1/4-inch right-angle audio plug. Insert it firmly into compatible 1/4-inch jacks on audio equipment such as guitars, keyboards, mixers, amplifiers, or audio interfaces. The right-angle design helps save space and reduce strain on cables in tight setups.

Opretholdelse

• Rensning: Use a dry, lint-free cloth to wipe the plug's exterior. For contacts, a specialized electronic contact cleaner can be used sparingly if necessary.
• Inspektion: Periodically inspect the plug for any signs of wear, damage, or loose connections. Ensure the cable's strain relief is still effective.
• Opbevaring: Store the plug and connected cable in a clean, dry environment away from direct sunlight and extreme temperatures.

Fejlfinding

Specifikationer

• Model: NP3RX-BAG
• Connector Type: 1/4-inch (6.35 mm) Phone Plug, Right-Angle
• polakker: 3 (TRS - Tip, Ring, Sleeve)
• Kontaktpersoner: Nikkel
• Skal: Sort
• Dimensioner (omtrentlige): 2 x 3 x 2 tommer (5.08 x 7.62 x 5.08 cm)
• Vægt (omtrentlig): 0.317 ounce (9 gram)

Garanti og support

Neutrik products are manufactured to high standards and are designed for durability. For specific warranty information or technical support, please refer to the official Neutrik webwebstedet eller kontakt din autoriserede forhandler. Gem din købskvittering som købsbevis.

Online ressourcer: For additional information, product updates, and detailed technical drawings, visit the official Neutrik webwebsted: www.neutrik.com
