DoCred 1350W Multifunctional Spa Heater Pump (Model G3TUB-JX) Instruction Manual

Indledning

Welcome to your DoCred G3TUB-JX Heater Pump. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your multifunctional spa heating, filtration, and bubble unit. This unit is designed exclusively for use with DoCred inflatable hot tubs.

Sikkerhedsforanstaltninger

For at sikre sikker drift og forhindre personskade eller beskadigelse, bedes du overholde følgende sikkerhedsretningslinjer:

• Tilslut altid enheden til en jordforbundet stikkontakt.
• Ensure the standard GFCI plug is used for outdoor applications to prevent electrical hazards.
• Brug ikke pumpen, hvis den er beskadiget eller ikke fungerer korrekt.
• Hold børn væk fra enheden under drift.
• The unit features overheating protection, leakage prevention, and dry burn resistance. However, regular inspection is recommended.
• This heater pump is only suitable for DoCred inflatable hot tubs.

Image: Safety features of the DoCred heater pump, including overheat protection, overload protection, and GFCI plug compatibility.

Produkt overview og funktioner

The DoCred G3TUB-JX Heater Pump is an all-in-one unit designed to enhance your inflatable hot tub experience. It integrates heating, water filtration, and bubble massage functions into a single compact device.

• Alt-i-en Design: Combines heating, bubble massage, and water filtration.
• Højtydende opvarmning: A 1350W heating core provides stable and fast water heating.
• Digital kontrolpanel: Easy-to-use LED touch panel for temperature and function adjustments.
• Effektiv filtrering: Circulating filtration system keeps spa water clean.
• Soothing Bubble Function: Provides a relaxing bubble massage.

Billede: Overview of the DoCred heater pump, illustrating its integrated filtration, heating, and bubble functions with numbered connection points.

Billede: Detaljeret view of the multifunctional heater pump, highlighting the control panel buttons for bubble, lock, temperature adjustment, heater, and filter functions.

Opsætning og installation

The DoCred G3TUB-JX Heater Pump features a plug-and-play design for straightforward installation. It is intended as a replacement or primary unit for DoCred inflatable hot tubs.

1. Placering: Position the heater pump on a stable, level surface near your DoCred inflatable hot tub. Ensure adequate space for ventilation and access.
2. Forbindelse: Connect the pump's inlet and outlet ports to the corresponding connections on your inflatable hot tub. Refer to your hot tub's instruction manual for specific connection details. The connections are typically color-coded (e.g., red for outlet, blue for inlet).
3. Strømtilslutning: Plug the GFCI power cord into a suitable, grounded electrical outlet. Ensure the outlet meets the power requirements specified in the Technical Specifications section.
4. Indledende kontrol: Before filling the hot tub, ensure all connections are secure to prevent leaks.

No additional tools are typically required for installation.

Betjeningsvejledning

The digital LED touch control panel allows for easy management of the heater pump's functions.

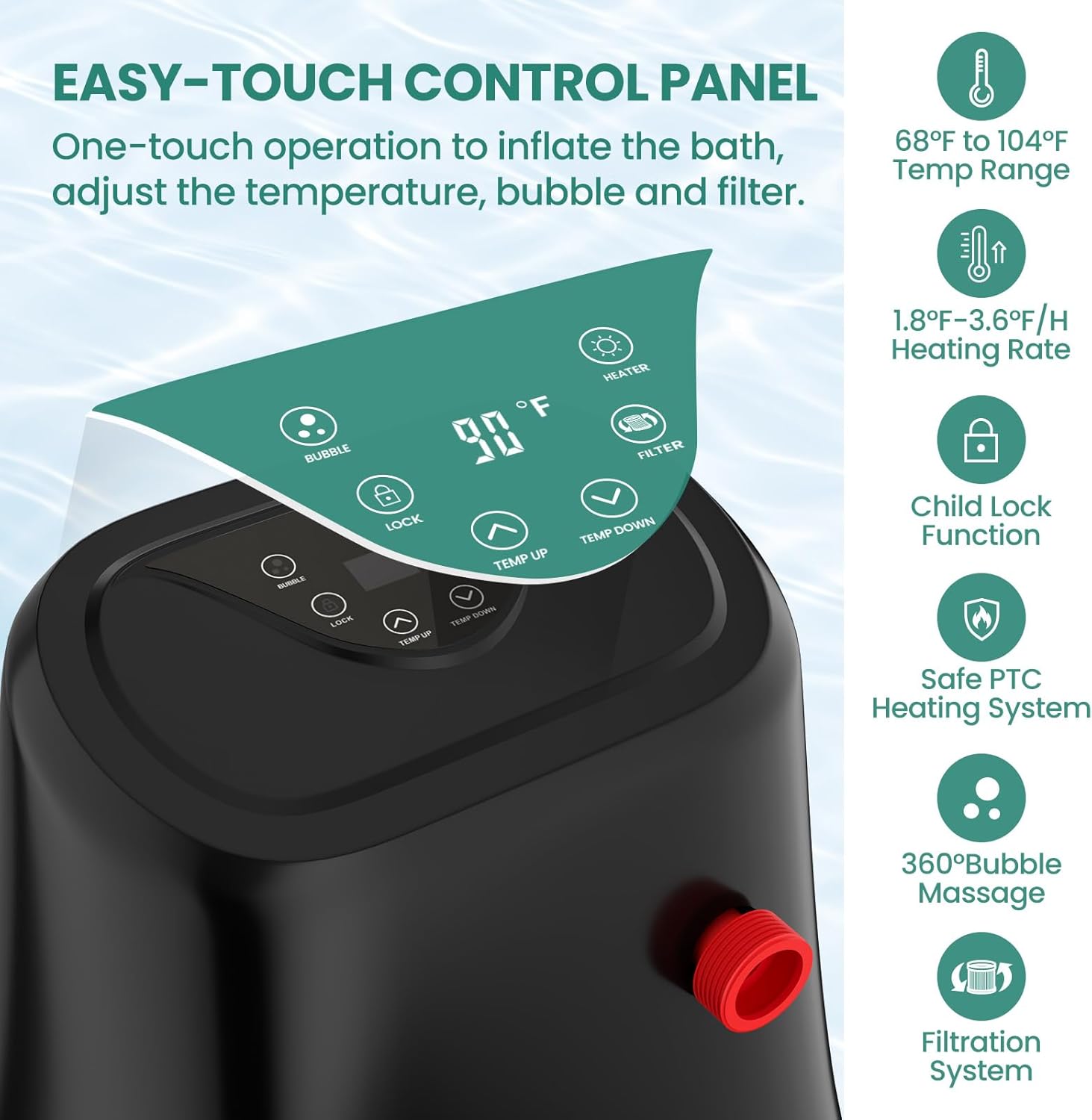

Image: The easy-touch control panel of the DoCred heater pump, displaying temperature settings and function buttons.

1. Tænd/sluk: Press the power button (if available, or plug in) to activate the unit.
2. Temperaturjustering: Brug TEMP OP og TEMP. NED buttons to set your desired water temperature. The adjustable range is 68°F to 104°F (20°C to 40°C). The digital display will show the current temperature.
3. Opvarmningsfunktion: Tryk på VARMEAPPARAT button to activate the heating element. The unit will work to reach and maintain the set temperature.
4. Boblemassage: Tryk på BUBBLE button to activate the bubble massage function. Press again to turn off.
5. Filtreringssystem: De FILTER button controls the circulating filtration system. It is recommended to run the filter regularly to maintain water quality.
6. Børnelås: Tryk på LÅSE button to engage the child lock, preventing accidental changes to settings. Press again to unlock.
7. Timing Heating: The unit may include a timing heating function to preset heating schedules. Refer to the specific hot tub manual for detailed instructions on setting timers.

Vedligeholdelse og pleje

Regular maintenance ensures the longevity and optimal performance of your heater pump.

• Rengøring/udskiftning af filterpatron: The unit features a detachable filter cartridge. Regularly remove and clean the filter cartridge to remove debris. Replace the cartridge every few weeks, or as needed, depending on usage and water quality.
• Vandkvalitet: Maintain proper water chemistry in your hot tub as per your hot tub's guidelines. This will reduce strain on the filtration system and prolong the life of the pump.
• Udvendig rengøring: Tør pumpens ydre af med adamp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: If storing the unit for an extended period, ensure it is clean, dry, and stored in a protected environment away from extreme temperatures.

Billede: Eksample of spa filter cartridges, which require regular cleaning and replacement.

Fejlfinding Guide

If you encounter issues with your DoCred G3TUB-JX Heater Pump, refer to the following common solutions:

• Enheden tænder ikke: Check the power connection and ensure the GFCI plug is reset. Verify the electrical outlet is functional.
• Ingen opvarmning: Ensure the heater function is activated on the control panel and the desired temperature is set above the current water temperature. Check for sufficient water flow.
• Svage bobler: Ensure the bubble function is active. Check for any obstructions in the air jets or pump.
• Poor Filtration: Clean or replace the filter cartridge. Ensure the filter function is active.
• Fejlkoder: If the control panel displays an error code, consult your hot tub's specific manual or contact customer support for interpretation and resolution.

For persistent issues not resolved by these steps, please contact DoCred customer support.

Tekniske specifikationer

Below are the technical specifications for the DoCred G3TUB-JX Heater Pump:

Image: Technical specifications and dimensions of the DoCred heater pump.

Garantioplysninger

For detailed warranty information regarding your DoCred G3TUB-JX Heater Pump, please refer to the warranty card included with your purchase or visit the official DoCred webwebsted. Gem din købsbevis til garantikrav.

Kundesupport

If you have any questions, require technical assistance, or need to report an issue, please contact DoCred customer support. You can find contact information on the official DoCred webhjemmeside eller gennem den forhandler, hvor du købte produktet.
