tectake Metal Display Cabinet 406418 - Assembly and User Manual

Indledning

This manual provides comprehensive instructions for the safe assembly, proper use, and maintenance of your tectake Metal Display Cabinet, model 406418. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Ensure all components are present and undamaged before proceeding.

Sikkerhedsinstruktioner

• Voksensamling påkrævet: Dette produkt indeholder små dele og kræver samling af voksne. Hold børn og kæledyr væk under samlingen.
• Brug passende værktøjer: Ensure you have the necessary tools for assembly (e.g., screwdriver, hammer if needed).
• Stabil overflade: Assemble the cabinet on a clean, flat, and stable surface to prevent damage or injury.
• Anti-tip beskyttelse: Always install the provided anti-tip hardware to secure the cabinet to a wall. This prevents accidental tipping, which can cause serious injury.
• Vægtfordeling: Distribute weight evenly on shelves. Do not exceed the maximum load capacity per shelf (25 kg). Place heavier items on lower shelves.
• Undgå overbelastning: Do not overload the cabinet. Overloading can compromise stability and cause damage.
• Håndtering af glas: Handle glass components with care to avoid breakage and injury. Wear protective gloves if necessary.
• Regelmæssig kontrol: Kontrollér regelmæssigt alle fastgørelseselementer for at sikre, at de forbliver stramme. Efterspænd efter behov.

Pakkens indhold

Before beginning assembly, please verify that all the following components are present and undamaged:

• Metal Display Cabinet components (frame, panels, doors)
• Adjustable glass shelves (2 pieces)
• Anti-tip hardware
• Monteringsudstyr (skruer, bolte osv.)
• Monteringsvejledning

If any parts are missing or damaged, please contact tectake customer support before proceeding with assembly.

Specifikationer

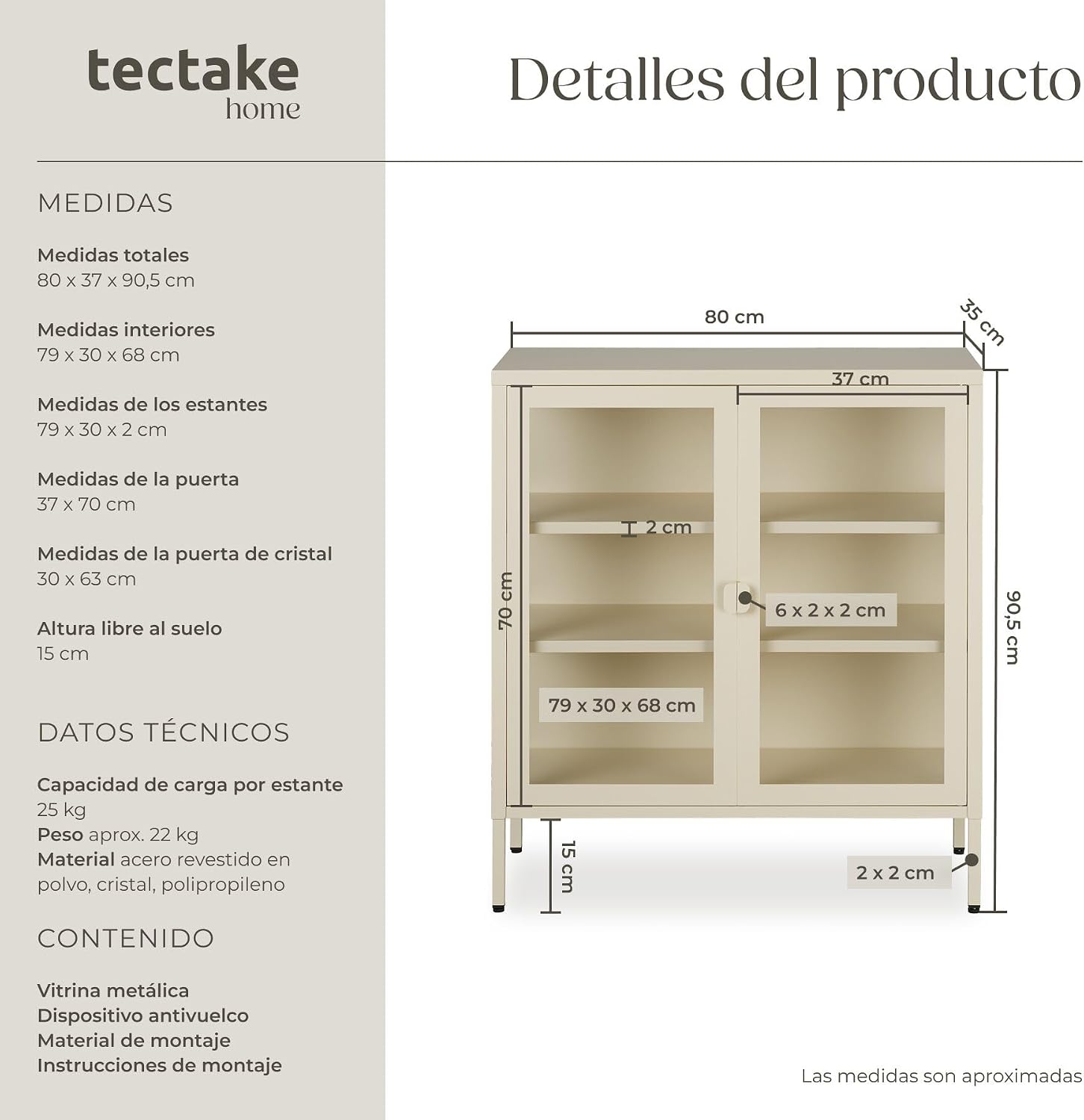

Figur 1: Product dimensions overview. All measurements are approximate.

Monteringsvejledning

Follow these steps carefully to assemble your tectake Metal Display Cabinet. It is recommended to have two people for assembly.

1. Forbered området: Ryd et rummeligt, rent og fladt område til montering. Læg et tæppe eller pap ud for at beskytte skabsdelene og gulvet.
2. Identificer komponenter: Unpack all components and compare them with the package contents list. Familiarize yourself with the different parts.
3. Saml rammen: Begin by connecting the main frame components (side panels, top, and bottom panels) using the provided screws and fasteners. Ensure all connections are secure but do not overtighten initially.
4. Fastgør bagpanelet: Carefully slide or attach the back panel into its designated grooves or mounting points. Secure it with the appropriate fasteners.
5. Installer justerbare fødder: Screw the adjustable feet into the bottom corners of the cabinet. These can be adjusted later to level the cabinet on uneven floors.
6. Install Door Hinges and Doors: Attach the hinges to the cabinet frame and then to the glass doors. Carefully mount the doors onto the cabinet. Ensure the doors swing freely and align correctly. The magnetic closures should engage properly.


Figur 2: Detail of adjustable shelves, magnetic door closure, and ergonomic handles.

7. Insert Glass Shelves: The cabinet features adjustable shelf supports. Insert the shelf pins into the desired height slots. Carefully place the glass shelves onto these supports. Ensure they are stable before placing items on them.
8. Installer anti-tip-beslag: This is a critical safety step. Securely attach the anti-tip hardware to the top rear of the cabinet and then to a wall stud using appropriate wall anchors (not always included, check local building codes). This prevents the cabinet from tipping over.
9. Endelige justeringer: Once assembled, gently move the cabinet to its final position. Adjust the feet to ensure the cabinet is level and stable. Check all screws and fasteners for tightness.

Figur 3: Fully assembled cabinet with doors open, illustrating storage capacity.

Betjeningsvejledning

• Åbning og lukning af døre: Gently pull the door handles to open the glass doors. The magnetic closure will release. To close, push the doors firmly until the magnets engage.
• Justering af hylder: To adjust the height of the glass shelves, carefully remove all items from the shelf. Lift the shelf slightly and remove the shelf pins from their current slots. Reinsert the pins into the desired new slots, ensuring they are level and secure. Then, carefully place the glass shelf back onto the pins.
• Indlæser varer: Place items carefully onto the shelves, ensuring weight is distributed evenly. Do not exceed the maximum load capacity of 25 kg per shelf.

Figur 4: Cabinet in use, displaying various items.

Opretholdelse

• Rengøring af kabinettet: Tør metaloverfladerne af med en blød,amp cloth. Avoid abrasive cleaners or harsh chemicals, as they can damage the powder coating.
• Rengøring af glaspaneler: Use a standard glass cleaner and a soft, lint-free cloth to clean the glass doors and side panels.
• Støvning: Regularly dust the cabinet and its contents to maintain its appearance. The elevated ground clearance facilitates easy cleaning underneath the cabinet.
• Kontroller fastgørelseselementer: Periodically inspect all screws and connections to ensure they are tight. Retighten if necessary to maintain stability.

Figur 5: Easy maintenance due to elevated design.

Fejlfinding

Cabinet is wobbly or unstable:

Ensure all assembly screws are tightened. Adjust the leveling feet at the bottom of the cabinet to compensate for uneven flooring. Verify that the anti-tip hardware is securely installed to a wall stud.

Dørene lukker ikke ordentligt eller er forkert justeret:

Check the hinge alignment and adjust if necessary. Ensure the magnetic closures are properly positioned and free from obstruction. Verify that the cabinet itself is level.

Glass shelves are not level:

Ensure the shelf pins are inserted into corresponding slots on both sides of the cabinet at the same height. Check that the cabinet is level using the adjustable feet.

Manglende eller beskadigede dele:

Do not proceed with assembly. Contact tectake customer support immediately for assistance and replacement parts.

Garanti og support

For warranty information, technical support, or to order replacement parts, please refer to the contact information provided with your purchase documentation or visit the official tectake webwebsted. Hav venligst dit modelnummer (406418) og købsdatoen klar, når du kontakter support.
