Safecourt Slow Juicer SJ500 User Manual

1. Introduktion

Thank you for choosing the Safecourt Slow Juicer SJ500. This appliance is designed to extract maximum juice from fruits and vegetables with minimal waste, preserving nutrients and flavor. Its powerful motor, extra-large feed chute, and cold-press technology make juicing efficient and convenient. This manual provides essential information for safe operation, assembly, use, maintenance, and troubleshooting to ensure optimal performance and longevity of your juicer.

2. Vigtige sikkerhedsinstruktioner

Læs venligst alle instruktioner omhyggeligt, inden apparatet tages i brug, og gem dem til senere brug.

• Sørg altid for, at juiceren er korrekt samlet inden brug.
• Brug ikke apparatet med en beskadiget ledning eller et beskadiget stik. Hvis ledningen eller stikket er beskadiget, skal du kontakte kundesupport.
• Hold hænder og redskaber væk fra indføringstragten under brug for at forhindre skader. Brug altid den medfølgende fødevareskubber.
• Unplug the juicer from the power outlet before cleaning, assembling, disassembling, or when not in use.
• Nedsænk ikke motorbasen i vand eller anden væske.
• Dette apparat er ikke beregnet til brug af personer med nedsatte fysiske, sensoriske eller mentale evner, eller manglende erfaring og viden, medmindre de er under opsyn eller har fået instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.
• Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
• Brug ikke apparatet udendørs.
• Sørg for, at apparatet er placeret på en stabil, plan og tør overflade under brug.
• Undgå kontakt med bevægelige dele.

3. Produktet er slutview

The Safecourt Slow Juicer SJ500 is designed for efficient and easy juicing. Familiarize yourself with its components before use.

Image 3.1: Safecourt Slow Juicer SJ500 with included accessories.

Hvad er inkluderet:

• 1 x Safecourt Slow Juicer (Motor Base, Juicing Chamber, Auger, Filter, Lid)
• 1 x Juice Container (700 ml)
• 1 x Pulp Container (700 ml)
• 1 x Food Pusher
• 1 x rengøringsbørste

Image 3.2: The Safecourt Slow Juicer SJ500 with its accompanying juice container, pulp container, and cleaning brush.

4. Opsætning og montering

Follow these steps to correctly assemble your Safecourt Slow Juicer SJ500 before first use.

1. Placer motorbasen på en stabil, plan overflade.
2. Align the juicing chamber with the motor base and rotate it clockwise until it locks securely into place.
3. Insert the filter into the juicing chamber, ensuring it sits correctly.
4. Place the auger (screw) into the center of the filter.
5. Attach the lid to the top of the juicing chamber, aligning the arrows and rotating clockwise until it locks. Ensure the lid is fully locked for the juicer to operate.
6. Position the juice container under the juice spout and the pulp container under the pulp spout.

Image 4.1: Visual guide for assembling the juicer components onto the motor base.

Image 4.2: The fully assembled Safecourt Slow Juicer SJ500, ready for use.

5. Betjeningsvejledning

Follow these steps to operate your Safecourt Slow Juicer SJ500.

1. Forberedelse: Wash fruits and vegetables thoroughly. For most items, pre-cutting is not necessary due to the 125mm XL feed chute. Harder items like carrots or celery can be cut into smaller pieces if desired, but the stainless steel pre-cutter is designed to handle whole fruits and vegetables.
2. Tænd: Plug the juicer into a grounded electrical outlet. Turn the control knob to the 'ON' position.
3. Juicing: Slowly feed ingredients into the feed chute. Use the food pusher to gently guide ingredients down. Do not force ingredients into the chute. The powerful motor and cold-press technology will extract the juice.
4. Omvendt funktion: If ingredients get clogged, turn the control knob to the 'REV' (Reverse) position for a few seconds to clear the blockage, then return to 'ON' to continue juicing.
5. Færdiggør juicen: Once all ingredients are juiced, turn the control knob to 'OFF' and unplug the appliance.

Image 5.1: Demonstrating the large feed chute, allowing whole fruits to be juiced without pre-cutting.

Image 5.2: The juicer in operation, showing fresh juice being dispensed into a glass.

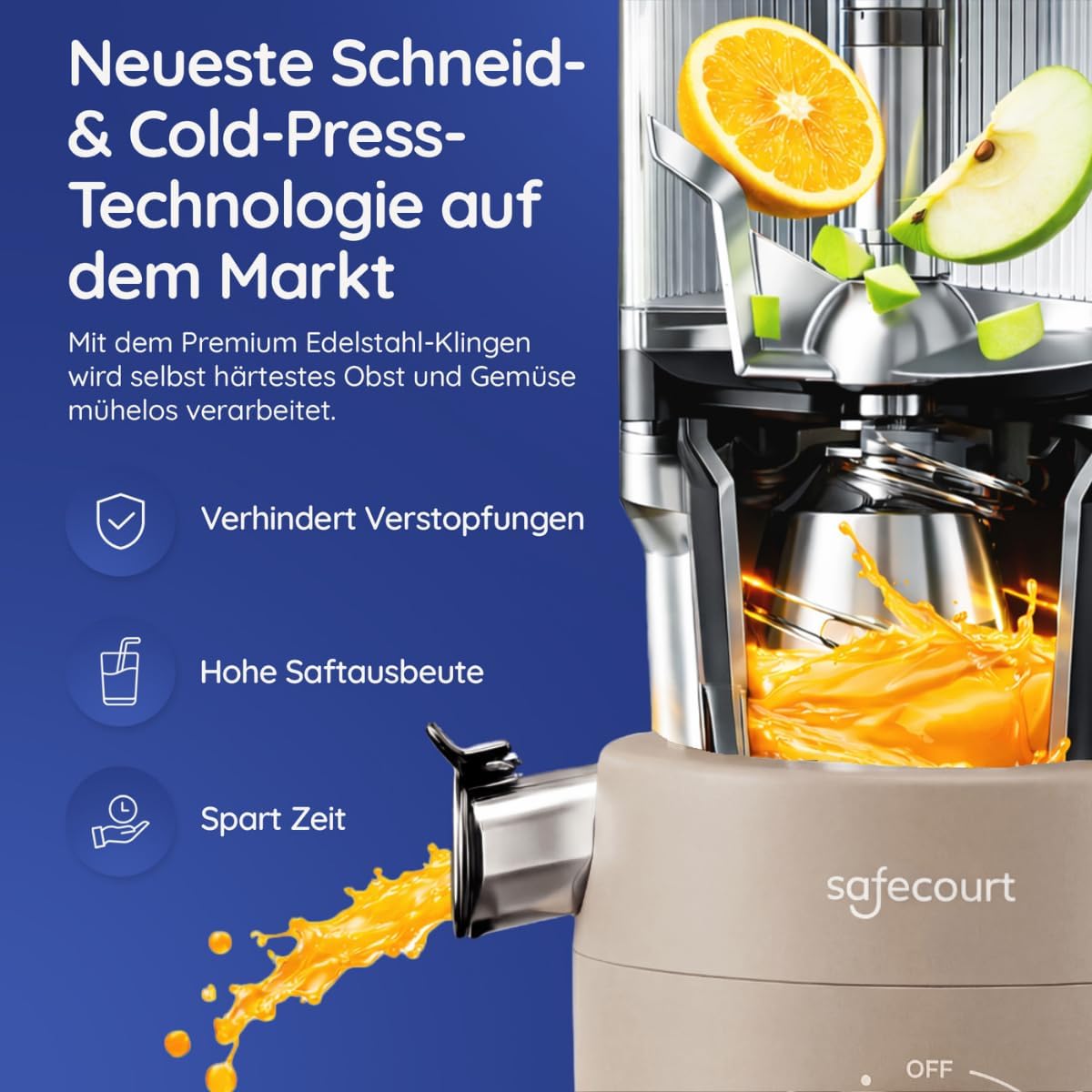

Billede 5.3: En detaljeret view of the stainless steel pre-cutter technology inside the juicing chamber.

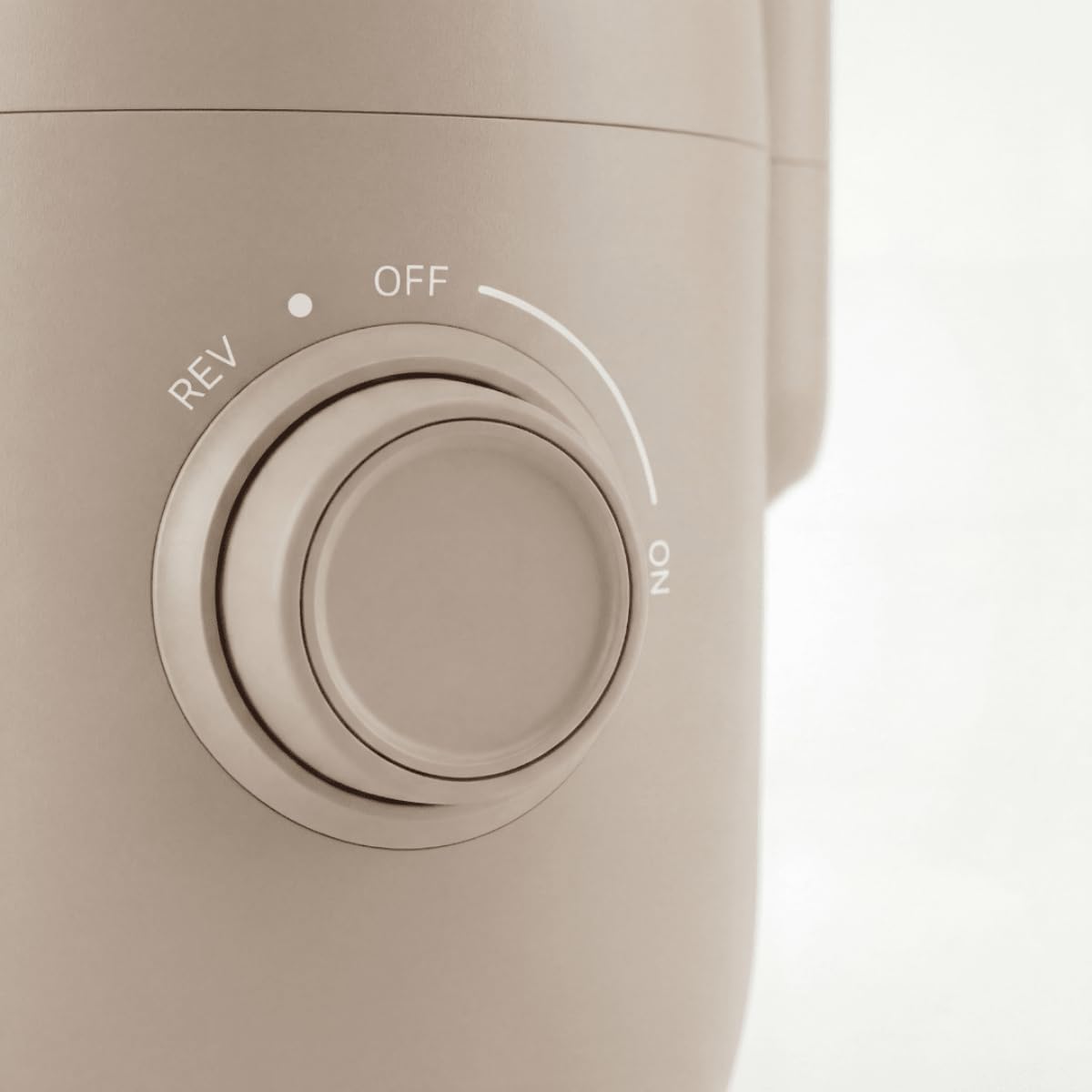

Image 5.4: The control knob for operating the juicer, featuring ON, OFF, and Reverse (REV) settings.

6. Vedligeholdelse og rengøring

Regular cleaning ensures the longevity and hygienic operation of your Safecourt Slow Juicer SJ500. All removable parts are dishwasher safe for convenience.

1. Demontering: After unplugging the juicer, disassemble the parts in reverse order of assembly: remove the lid, then the auger, filter, and juicing chamber from the motor base.
2. Skylning: Rinse all removable parts under running water to remove any large pulp residue.
3. Børstning: Use the provided cleaning brush to thoroughly clean the filter and any other parts with stubborn pulp.
4. Vask: All removable parts can be washed by hand with warm, soapy water or placed in the dishwasher.
5. Tørring: Lad alle dele lufttørre helt, før de samles eller opbevares igen.
6. Motorbase: Tør motorbasen af ​​med adamp klud. Motorbasen må aldrig nedsænkes i vand.

Image 6.1: Hand-washing a juicer component under a faucet to remove pulp residue.

Image 6.2: Removable parts of the juicer placed in a dishwasher for easy cleaning.

7. Fejlfinding

If you encounter any issues with your Safecourt Slow Juicer SJ500, refer to the following common problems and solutions.

8. Specifikationer

9. Garanti og support

The Safecourt Slow Juicer SJ500 comes with a 10 års garanti på motoren, reflecting our commitment to quality and durability. For any questions, technical support, or warranty claims, please contact Safecourt Kitchen customer service through your retailer or the official Safecourt Kitchen webwebsted.
