1. Vigtige sikkerhedsinstruktioner
Before operating the SQUATZ 2-in-1 Walking Pad Treadmill, please read and understand all safety instructions. Retain this manual for future reference.
- Placer altid løbebåndet på en flad, stabil overflade.
- Sørg for tilstrækkelig plads omkring løbebåndet under brug.
- Keep children and pets away from the treadmill while it is in use.
- Do not operate the treadmill if it has a damaged power cord or plug.
- Brug passende sportssko under brug.
- Rådfør dig med en læge, før du starter et nyt træningsprogram.
- Den maksimale brugervægtkapacitet er 120 kg.
2. Produktet er slutview
The SQUATZ 2-in-1 Walking Pad Treadmill is designed for versatile home or office fitness. It functions as both a walking pad and a treadmill with an integrated handlebar and vibration plates.

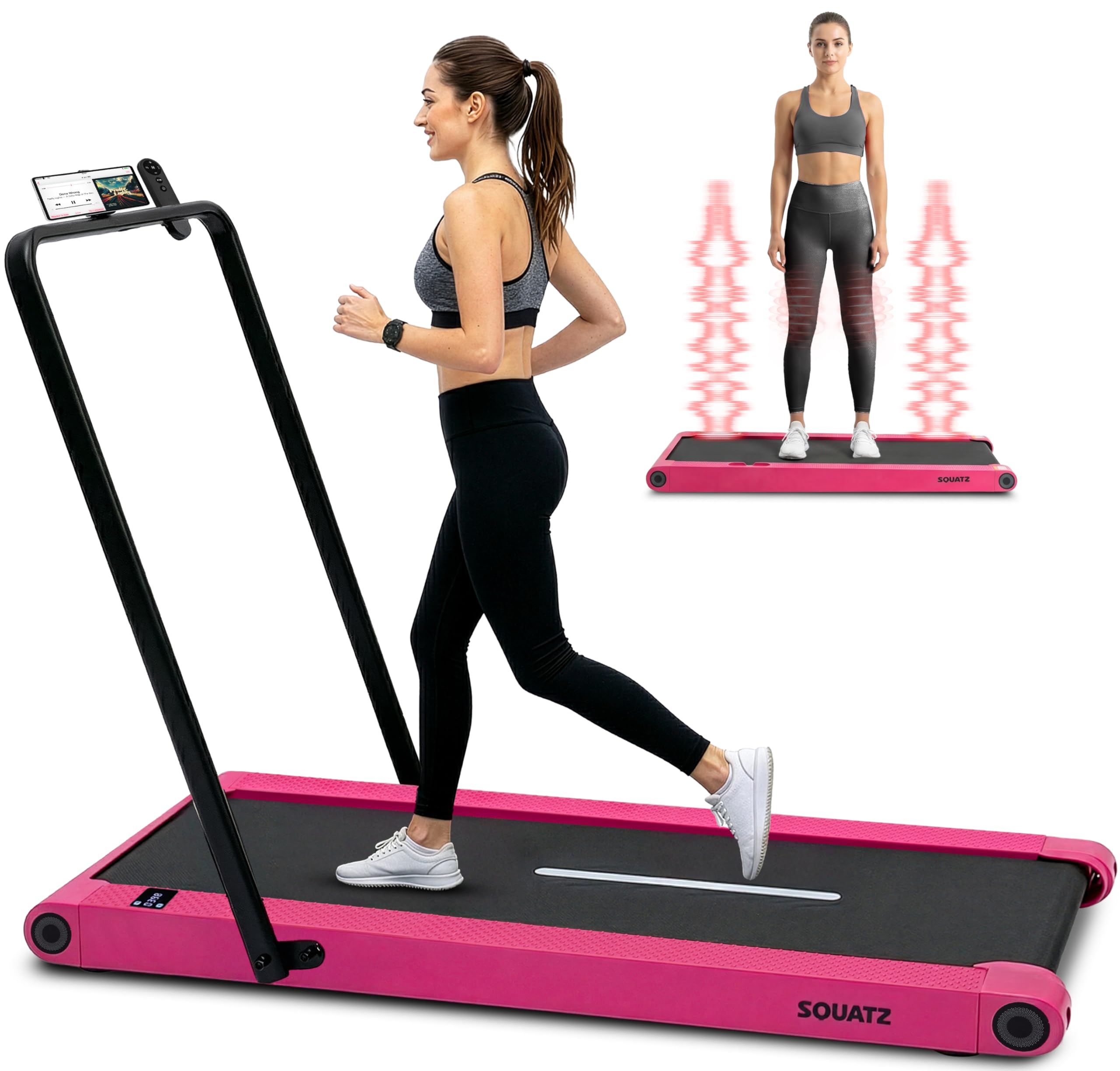

Figure 2.1: SQUATZ 2-in-1 Walking Pad Treadmill with Handlebar and Vibration Plates.
Nøglefunktioner:
- 2-i-1 design: Functions as a walking pad (without handlebar) and a treadmill (with handlebar).
- Integrated Vibration Plates: For muscle activation, balance training, and recovery.
- Sammenklappeligt styr: Provides stability and includes a device holder.
- Quiet 1.0HP Motor: Operates at ≤45 dB for a low-noise experience.
- LED display: Tracks time, calories, speed, and distance.
- Fjernbetjening: For quick adjustments during use.
- Kompakt design: Easy to move and store, suitable for small spaces.
- Anti-Slip Belt: Multi-layer running belt for safety and durability.
Figure 2.2: The treadmill's compact design and dimensions (42.5" L x 21.6" W x 4.3" H when folded, 41.34" handlebar height).
Figure 2.3: Illustration of the multi-layer anti-slip running belt, designed to support up to 264 lbs.
Figur 2.4: Intern view highlighting the 1.0 HP low-noise motor and shock absorber system for smooth operation.
3. Opsætning
The SQUATZ 2-in-1 Walking Pad Treadmill arrives fully assembled, requiring minimal setup before first use.
3.1 Udpakning og placering
- Tag forsigtigt løbebåndet ud af emballagen.
- Place the treadmill on a firm, level surface. Ensure there is at least 2 feet (60 cm) of clear space behind the treadmill and 1 foot (30 cm) on each side.
- Unfold the handlebar if you intend to use the treadmill in upright mode. Ensure it clicks securely into place.
3.2 Tilslutning af strøm
- Locate the power cable (US / Canada Plug) included in the package.
- Plug the power cable into the treadmill's power input port.
- Sæt den anden ende af strømkablet i en jordet stikkontakt.
3.3 Medfølgende komponenter
Pakken indeholder:
- SQUATZ 2-in-1 Walking Pad Treadmill
- L Spanner
- Power Cable with US / Canada Plug
- Fjernbetjening
- Silicone Oil (for belt lubrication)
4. Betjeningsvejledning
The treadmill offers various modes and controls for a customized workout experience.
4.1 Tænd/sluk
- To power on, press the power button on the treadmill's LED display panel or the remote control.
- For at slukke skal du trykke på og holde tænd/sluk-knappen nede, indtil skærmen slukker.
4.2 driftstilstande
Figure 4.1: Visual representation of Walking Mode (0.5 MPH min. speed), Running Mode (3.7 MPH max. speed), and Vibration Mode (4 adjustable modes).
- Gåtilstand: When the handlebar is folded down, the treadmill operates as a walking pad with a speed range of 0.5 to 3.7 MPH.
- Løbstilstand: When the handlebar is upright, the treadmill can be used for running, with a maximum speed of 3.7 MPH.
- Vibrationstilstand: The integrated vibration plates can be activated independently or during a workout. There are 4 adjustable vibration modes.
Figure 4.2: Depiction of the four adjustable vibration levels: Gentle, Moderate, Strong, and Intense Vibration.
4.3 LED Display and Remote Control

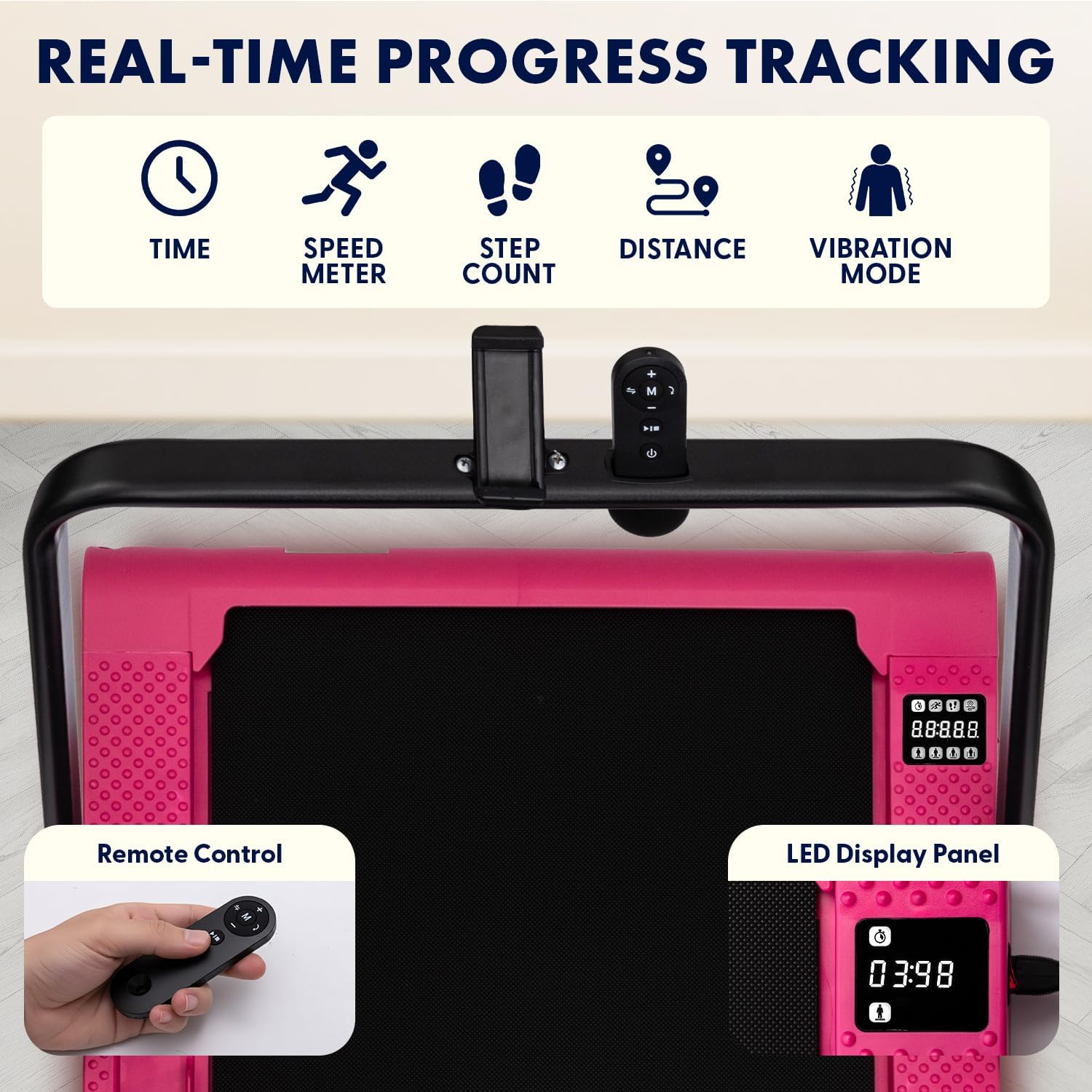

Figure 4.3: Close-up of the LED display panel showing metrics and the remote control for adjusting settings.
The LED display panel provides real-time tracking of:
- Tid
- Hastighed
- Skridttælling
- Afstand
- Vibration Mode (if active)
Use the remote control to:
- Start/Stop the treadmill.
- Adjust speed (increase/decrease).
- Vælg forudindstillede programmer.
- Kontroller vibrationsintensiteten.
4.4 Forudindstillede programmer
The treadmill features 12 preset programs designed to vary speed and intensity for different workout goals. Refer to the remote control or display panel for program selection and details.
4.5 Bluetooth & App Integration
Figure 4.4: Screenshot of a mobile application interface showing goal tracking, heart rate, and session statistics, indicating Bluetooth connectivity.
The treadmill supports Bluetooth connectivity for integration with compatible fitness applications. This allows for enhanced tracking of workout data, setting goals, and personalized training sessions. Refer to the app's instructions for pairing and usage.
5. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer dit løbebånds levetid og optimale ydeevne.
5.1 Rengøring
- Daglig: Tør skærmen og rammen af med en blød kludamp klud efter hver brug for at fjerne sved og støv.
- Ugentlig: Vacuum around and under the treadmill to prevent dust and debris from accumulating in the motor area.
- Do not use abrasive cleaners or solvents, as they may damage the treadmill's finish or electronic components.
5.2 Smøring af rem
The running belt requires periodic lubrication to reduce friction and extend its lifespan. Use the provided silicone oil.
- Sluk og tag stikket ud af løbebåndet.
- Loosen the rear roller bolts using the L spanner to slightly lift the belt.
- Apply a small amount of silicone oil evenly under the center of the running belt.
- Tighten the rear roller bolts, ensuring the belt is centered and tensioned correctly.
- Plug in the treadmill and run it at a low speed (e.g., 1 MPH) for 5 minutes to distribute the lubricant.
Frekvens: Smør hver 3. måned eller efter 50 timers brug, alt efter hvad der kommer først.
6. Fejlfinding
Hvis du støder på problemer med dit løbebånd, kan du bruge følgende almindelige løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Løbebåndet tænder ikke | Power cable not connected; Power outlet issue; Main power switch off | Ensure power cable is securely plugged in; Test outlet with another device; Check main power switch on treadmill. |
| Løbebåndet glider eller tøver | Belt too loose; Insufficient lubrication | Adjust belt tension using the rear roller bolts; Apply silicone oil as per maintenance instructions. |
| Usædvanlig støj under drift | Loose components; Debris under belt; Motor issue | Check all visible bolts and tighten if loose; Clean under the belt; If noise persists, contact customer support. |
| Fjernbetjeningen reagerer ikke | Dead batteries; Obstruction; Pairing issue | Replace remote control batteries; Ensure no obstructions between remote and treadmill; Re-pair remote if necessary (refer to specific pairing instructions if available). |
If the problem persists after attempting these solutions, please contact SQUATZ customer support.
7. Specifikationer
Detailed technical specifications for the SQUATZ 2-in-1 Walking Pad Treadmill.
| Feature | Specifikation |
|---|---|
| Modelnummer | SQWPVH15PK |
| Produktmål (D x B x H) | 108D x 54.9B x 105H centimeter (42.5 x 21.6 x 41.34 tommer) |
| Varens vægt | 30.86 pund (14 kg) |
| Maksimal vægtanbefaling | 264 pund (120 kg) |
| Motor hestekræfter | 1.0 HK |
| Maksimal hastighed | 3.7 miles i timen (6 km/t) |
| Hastighedsområde | 0.5 - 3.7 mph |
| Antal programmer | 12 Forudindstillede programmer |
| Målte metrikker | Speed, Distance, Time, Calories |
| Materiale | Polypropylene (PP), Powder Coated Steel |
| Rammemateriale | Stål |
| Montering påkrævet | Ingen |
| Speciel funktion | Adjustable Speed, Vibration Plates, Foldable Handlebar |
| Målgruppe | Voksen |
| Oprindelsesland | Kina |
8. Garanti og support
8.1 Garantioplysninger
This SQUATZ 2-in-1 Walking Pad Treadmill comes with a 1 års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og materialefejl ved normal brug. Den dækker ikke skader forårsaget af misbrug, ulykker, uautoriserede ændringer eller forkert vedligeholdelse.
Gem venligst dit købsbevis for garantikrav.
8.2 Kundesupport
For technical assistance, warranty claims, or any questions regarding your SQUATZ product, please contact our customer support team:
- Webwebsted: www.squatz.com/support (Eksamp(linket, erstat med det faktiske, hvis det er muligt)
- E-mail: support@squatz.com (Eksampe-mail, erstat med faktisk hvis tilgængelig)
- Telefon: 1-800-XXX-XXXX (f.eks.ample number, replace with actual if available)
When contacting support, please have your model number (SQWPVH15PK) and proof of purchase ready.
