DEWALT 16 Gallon STEALTHSONIC Wet/Dry Vacuum DXV16P-QTA User Manual

1. Introduktion

Tak for købetasing the DEWALT 16 Gallon STEALTHSONIC Poly Wet/Dry Vacuum. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your vacuum. Please read this manual thoroughly before use and retain it for future reference.

Image 1.1: The DEWALT 16 Gallon STEALTHSONIC Wet/Dry Vacuum, showcasing its 16-gallon capacity, 6.5 peak HP motor, and 20-foot power cord.

2. Sikkerhedsoplysninger

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This vacuum is designed for household and workshop use. Do not use it for commercial or industrial purposes unless specified.

Generelle sikkerhedsadvarsler:

• Læs alle instruktioner, før du bruger støvsugeren.
• Efterlad ikke apparatet uden opsyn, når det er tilsluttet. Tag stikket ud af stikkontakten, når det ikke er i brug, og før servicering.
• Må ikke bruges udendørs eller på våde overflader.
• Må ikke bruges som legetøj. Omhyggelig opmærksomhed er nødvendig, når den bruges af eller i nærheden af ​​børn.
• Brug kun som beskrevet i denne manual. Brug kun producentens anbefalede tilbehør.
• Undlad at trække eller bære i snoren, bruge snoren som håndtag, lukke en dør på snoren eller trække snoren rundt om skarpe kanter eller hjørner. Kør ikke apparatet over ledningen. Hold ledningen væk fra opvarmede overflader.
• Tag ikke stikket ud ved at trække i ledningen. For at tage stikket ud skal du tage fat i stikket, ikke i ledningen.
• Håndter ikke stikket eller apparatet med våde hænder.
• Stik ikke genstande ind i åbninger. Må ikke bruges med blokerede åbninger; holdes fri for støv, fnug, hår og alt, hvad der kan reducere luftstrømmen.
• Hold hår, løstsiddende tøj, fingre og alle dele af kroppen væk fra åbninger og bevægelige dele.
• Tag ikke noget op, der brænder eller ryger, såsom cigaretter, tændstikker eller varm aske.
• Må ikke bruges til at opsamle brændbare eller brændbare væsker, såsom benzin, eller brug i områder, hvor de kan være til stede.
• Må ikke bruges uden filtre på plads.
• Sluk for alle knapper, før du trækker stikket ud.
• Vær ekstra forsigtig ved rengøring på trapper.
• Dette apparat er forsynet med dobbeltisolering. Brug kun identiske reservedele.

3. Pakkens indhold

Verify that all items listed below are included in your package. If any parts are missing or damaged, contact DEWALT customer service.

• DEWALT Wet/Dry Vac (1)
• 2-1/2” Crush-resistant hose (1)
• Forlængerstave (2)
• Gulvmundstykke (1)
• Rund børste (1)
• Accessory bag (1)
• Engangsstøvpose (1)
• Utility nozzle (1)
• Washable cartridge filter (1)
• Spaltemundstykke (1)

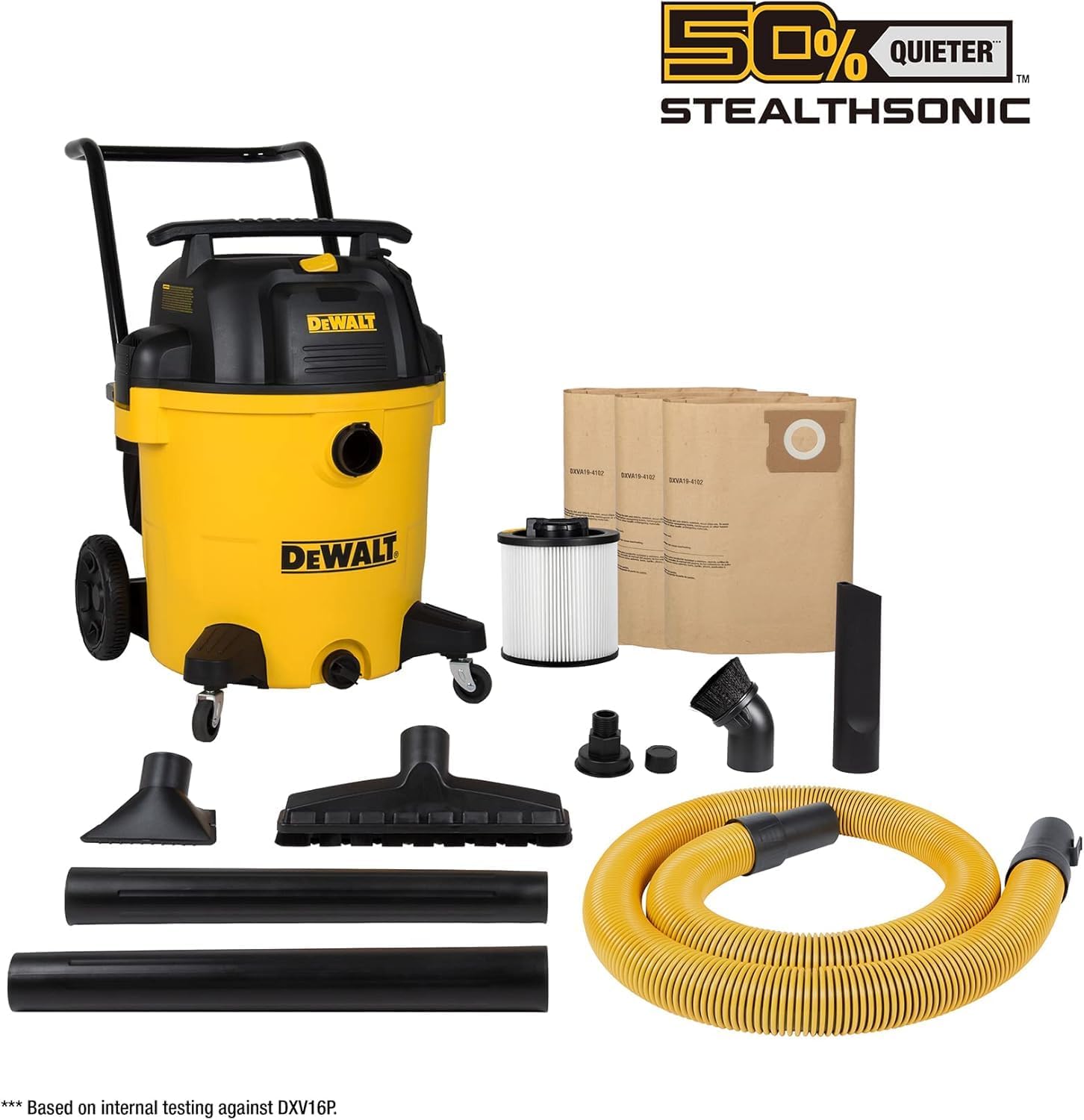

Image 3.1: All components included with the DEWALT 16 Gallon STEALTHSONIC Wet/Dry Vacuum, including various nozzles, hose, and filters.

4. Samling og opsætning

Follow these steps to assemble your DEWALT Wet/Dry Vacuum before first use.

4.1 Attaching the Casters and Wheels

1. Invert the vacuum drum.
2. Insert the caster stems into the designated holes on the bottom of the drum. Push firmly until they click into place.
3. Attach the larger rear wheels to the axle mounts, ensuring they are securely fastened.

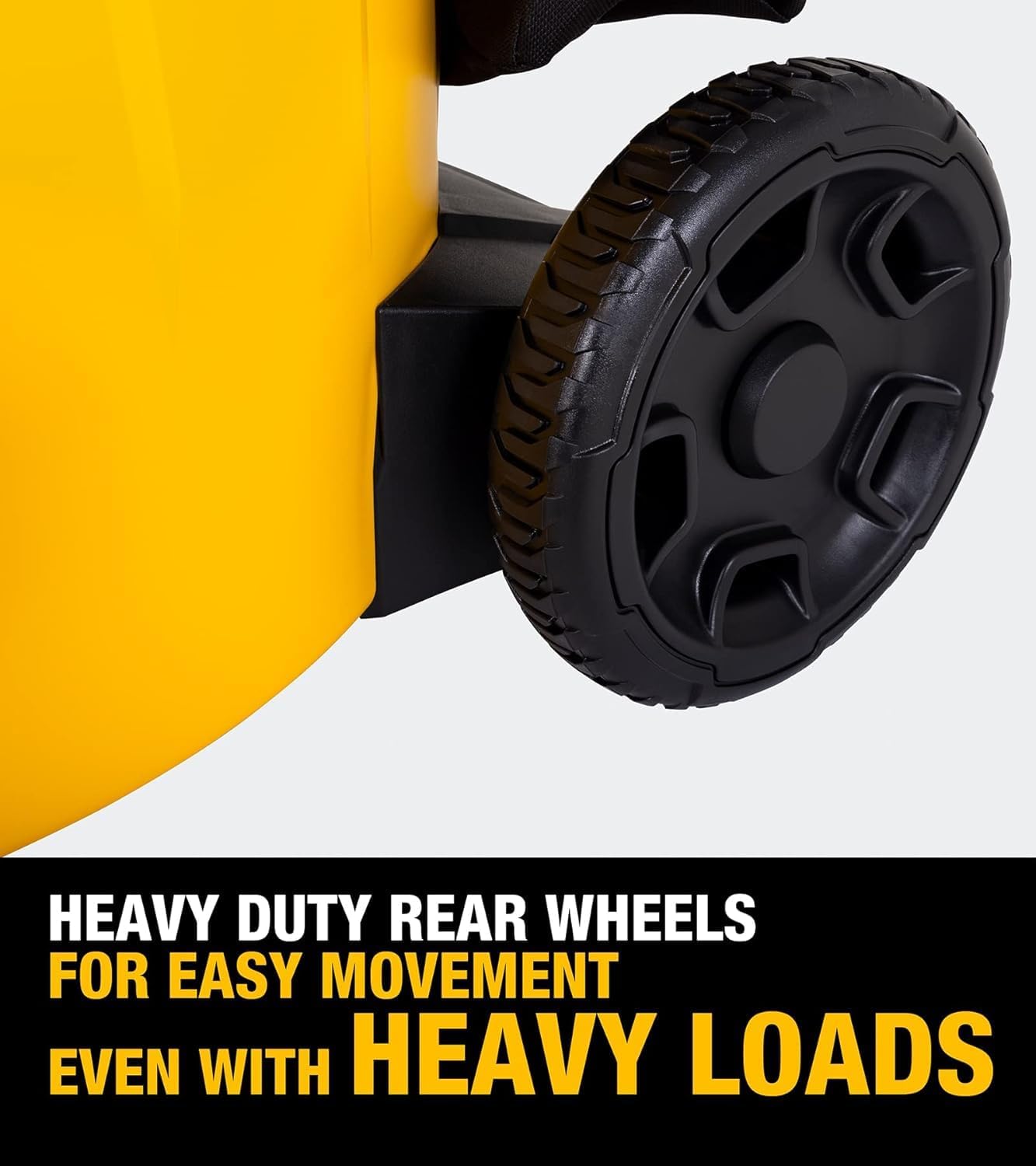

Image 4.1: Detail of the heavy-duty rear wheels designed for easy movement, even with a full tank.

4.2 Installation af filteret

The washable cartridge filter is essential for dry vacuuming. For wet vacuuming, remove the cartridge filter and install a foam filter (sold separately) if desired, or operate without a filter for large liquid spills.

1. Remove the power head from the drum by unlatching the side clips.
2. Place the cartridge filter over the filter cage, ensuring it fits snugly.
3. Secure the filter with the filter nut or retainer provided, turning clockwise until tight.
4. Replace the power head, ensuring the clips are securely latched.

Image 4.2: An exploded diagram illustrating the main components, including the washable cartridge filter and the motor assembly.

4.3 Tilslutning af slange og tilbehør

1. Insert the large end of the crush-resistant hose into the inlet port on the vacuum drum. Twist to secure.
2. Attach the desired accessory (e.g., floor nozzle, crevice nozzle, utility nozzle) to the other end of the hose or to the extension wands.
3. For extended reach, connect the two extension wands together before attaching the nozzle.

Image 4.3: The vacuum with its hose neatly wrapped around the top handle and side wraps, demonstrating its compact design for storage.

5. Betjeningsvejledning

Your DEWALT STEALTHSONIC Wet/Dry Vacuum is designed for efficient cleaning of both wet and dry messes.

5.1 Tørstøvsugning

1. Ensure the cartridge filter is clean and properly installed. For fine dust, consider using a disposable dust bag inside the drum for easier disposal and to protect the filter.
2. Sæt netledningen i en jordet stikkontakt.
3. Tænd støvsugeren ved hjælp af tænd/sluk-knappen på strømhovedet.
4. Begin vacuuming dry debris. The STEALTHSONIC technology ensures quieter operation.
5. Når du er færdig, skal du slukke støvsugeren og tage stikket ud.

Billede 5.1: Et nærbillede view of the power switch on the DEWALT STEALTHSONIC vacuum, highlighting its robust design.

5.2 Vådstøvsugning

1. Remove the cartridge filter. For wet pickup, a foam filter (sold separately) can be installed, or the vacuum can be used without a filter for large liquid spills.
2. Sæt netledningen i en jordet stikkontakt.
3. Tænd for vakuumet.
4. Vacuum liquids. The float mechanism will automatically shut off suction when the drum is full to prevent overflow.
5. Når du er færdig, skal du slukke støvsugeren og tage stikket ud.
6. Empty the drum by removing the power head and pouring out the liquid, or by using the drain port.

Billede 5.2: En detaljeret view of the drain port located at the bottom of the vacuum drum, allowing for easy liquid disposal.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.

6.1 Tømning af tromlen

Empty the drum when it is full or after each use, especially after wet vacuuming.

1. Tag støvsugeren ud af stikkontakten.
2. Unlatch the side clips and remove the power head.
3. Carefully lift and empty the drum contents into a suitable receptacle. For liquids, use the drain port.
4. Clean the inside of the drum if necessary and replace the power head.

6.2 Cleaning the Cartridge Filter

The cartridge filter should be cleaned regularly to maintain suction power. For optimal performance, replace the filter every 3-6 months depending on usage.

1. Frakobl støvsugeren.
2. Remove the power head and then remove the cartridge filter.
3. Gently tap the filter against a hard surface to dislodge loose dirt.
4. For a more thorough cleaning, rinse the filter under running water. Allow it to air dry completely before reinstallation. Do not use heat to dry.
5. Reinstall the dry filter and replace the power head.

Image 6.1: The washable cartridge filter, suitable for both wet and dry debris collection.

6.3 Cord and Accessory Storage

Wrap the 20-foot power cord around the integrated cord wraps on the top handle and side of the vacuum. Store accessories in the provided accessory bag or on the onboard storage points.

7. Fejlfinding

Hvis du støder på problemer med din støvsuger, kan du se følgende almindelige problemer og løsninger.

8. Specifikationer

• Model: DXV16P-QTA
• Kapacitet: 16 gallons
• Motor: 6.5 hestekræfter på højeste niveau
• Luftstrøm: 135 CFM
• Strømkilde: Elektrisk med ledning
• Strømkabellængde: 20 fod
• Slange diameter: 2-1/2 tommer
• Støjreduktion: STEALTHSONIC Technology (50% quieter than current model)
• Filtertype: Vaskbart patronfilter
• Indendørs/udendørs brug: Indendørs, Udendørs

9. Garanti og support

DEWALT products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official DEWALT website. For technical support, replacement parts, or service inquiries, please contact DEWALT customer service.

Gem din købskvittering som købsbevis i tilfælde af garantikrav.
