1. Opsætning
1.1 Unboxing Your TCL X11L TV
The TCL X11L TV is delivered in a protective wooden crate to ensure its safety during transit. Carefully remove the outer plastic wrapping using a utility knife. The crate is designed for easy disassembly by removing side clips and panels. Due to the TV's size and weight (approximately 168.4 lbs without the crate), it is highly recommended to have at least two people for safe unboxing and installation.
Video: TCL X11L Overview - Denne video giver et generelt overblikview of the TCL X11L TV, including its unboxing process and key features. It demonstrates the careful steps required to unpack the TV from its protective crate.
1.2 Pakkens indhold
Upon opening the packaging, ensure all the following items are present:
- TCL 85 Inch Class X11L TV
- Strømkabel
- Fjernbetjening (2 AAA-batterier medfølger)
- Brugervejledning (dette dokument)
- Garantikort
- TV-stativer (2 stk.)
- Skruer til TV stativer
Image: Package Contents and Dimensions - This image displays the TCL 85 Inch Class X11L TV along with its remote control and a diagram illustrating the product's dimensions and listing the items included in the box.
1.3 Fysiske dimensioner
The dimensions of the TCL 85X11L TV are as follows:
- TV with Stand: 74.00 cm B x 45.30 cm H x 15.00 cm D
- TV without Stand: 74.00 cm B x 43.50 cm H x 0.80 cm D
- Skærmstørrelse: 85 tommer (84.6" diagonalt)
1.4 Montering af stativ
Sådan monterer du TV-stativer:
- Carefully lay the TV screen-down on a soft, clean surface to prevent damage.
- Juster hver stander med de tilsvarende skruehuller i bunden af tv'et.
- Secure each stand using the provided screws. Ensure they are tightened firmly but do not overtighten.
1.5 Vægmontering
The TCL 85X11L TV supports VESA wall mounting. The VESA mount standard is 600 x 400 mm. Ensure you use a compatible wall mount that can support the TV's weight (168.4 lbs without stand). The mounting holes are located on the upper portion of the TV's back panel. Consult a professional installer if you are unsure about the wall mounting process.
Image: TV Back Panel - This image shows the back of the TCL 85X11L TV, highlighting the VESA mounting points and the textured panel design.
1.6 Tilslutning af eksterne enheder
The TV features a variety of ports for connecting external devices:
- HDMI-porte: 4 HDMI 2.1 ports, supporting 4K@144Hz and 1080p/288Hz gaming. One port supports eARC for enhanced audio return.
- USB-porte: 1 USB 3.0 port and 1 USB 2.0 port for media playback from flash drives.
- LAN (Ethernet): Til kablet internetforbindelse.
- Kabel/ANT: Til tilslutning af antenne eller kabel-tv.
- Lydudgang (optisk): For digital audio output to soundbars or receivers.
- Trådløs forbindelse: Bluetooth and Wi-Fi for wireless connections.

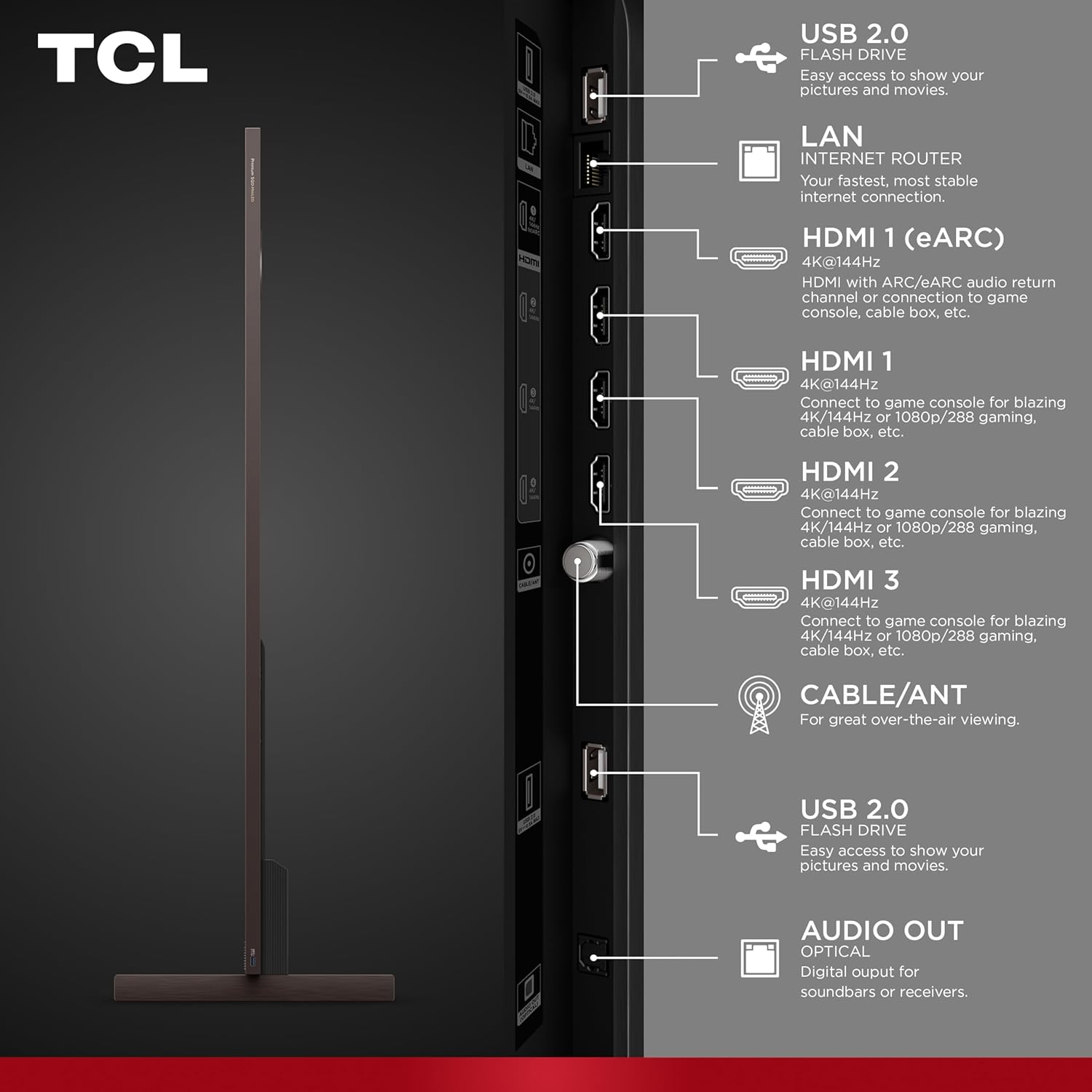

Image: TV Side Ports - This image provides a close-up view of the side-mounted input/output ports on the TCL 85X11L TV, including HDMI, USB, LAN, and Cable/ANT connections.
2. Operating Your TCL X11L TV
2.1 Fjernbetjeningsfunktioner
The included remote control provides intuitive navigation and quick access to various TV functions. Key features include:
- Power knap: Tænder/slukker tv'et.
- Navigationsplade: Til menunavigation og valg.
- Stemmekontrolknap: Activates Google Gemini for voice commands.
- Picture Mode Button: Quickly cycles through various picture presets.
- Brightness Up/Down Buttons: Adjusts screen brightness directly.
- Dedikerede app-knapper: Hurtig adgang til populære streamingtjenester.
2.2 Google TV with Gemini AI
The TCL X11L runs on Google TV, offering a personalized and integrated entertainment experience. Gemini AI enhances this by providing interactive assistance:
- Personlige anbefalinger: Discover movies and shows based on your viewing vaner.
- Stemmekommandoer: Use your voice to search for content, control smart home devices, and get information.
- AI Generative Responses: Gemini can provide information and creative content based on your prompts.
Image: Google Gemini AI Interface - This image shows the TCL 85X11L TV displaying the Google Gemini AI interface, demonstrating its interactive capabilities for search and content discovery.
2.3 Billedindstillinger og kvalitet
The X11L TV incorporates advanced display technologies for superior picture quality:
- SQD-Mini LED: Combines Super Quantum Crystals (Super QLED) with the TCL Halo Control System for vivid colors and precise dimming.
- TCL Deep Color System: Utilizes Super QLED for 100% BT.2020 Color, an UltraColor Filter, and an Advanced Color Purity Algorithm for accurate and vibrant colors.
- WHVA 2.0 Ultra Panel: Giver bred viewing angles and high static contrast with an anti-reflective ZeroBorder™ design.
- LD20000 Præcis dæmpningsserie: Up to 20,000+ local dimming zones for pure black levels and minimal blooming.
- 10,000 Peak Nits: Delivers exceptional brightness for HDR content in various lighting conditions.
- New TSR AI Processor: Dynamically optimizes picture clarity, contrast, color, motion, upscaling, and backlighting.
- HDR-understøttelse: Dolby Vision IQ, HDR10+, and HDR10 for enhanced dynamic range.
Image: SQD-Mini LED Technology - This image illustrates the SQD-Mini LED technology of the TCL 85X11L TV, emphasizing its role in delivering ultimate performance.
Image: TCL Deep Color System - This image demonstrates the TCL Deep Color System, showcasing its ability to produce more vivid images with 100% BT.2020 Color*.
Image: WHVA 2.0 Ultra Panel - This diagram illustrates the layers of the WHVA 2.0 Ultra Panel, highlighting the Ultra Color Filter, Butterfly-patterned Liquid Crystal, and Low Reflection Film for wide viewing vinkler.
Image: Brightness Comparison - This image compares the brightness of the TCL 85X11L TV (10,000 nits peak brightness) against 5,000 nits brightness and a conventional display, illustrating brighter, deeper, and more realistic pictures.
Image: New TSR AI Processor - This image features the TSR AI Processor chip, representing how AI elevates viewing experiences by finely controlling picture quality.
2.4 Sound Settings and Quality
The X11L TV features an Expandable Home Theater Audio system by Bang & Olufsen:
- Integrated Spatial Sound: Complete with built-in subwoofers, surround channels, and a center channel.
- Dolby Atmos-understøttelse: Giver en fordybende lydoplevelse.
- Beosonic: Allows personalized sound profiles (Bright, Relaxed, Energetic, Warm).
- Equalizer: Adjust treble, bass, center speaker, and surround speaker levels.
- Lydstyrkejustering: Dynamically adjusts volume to avoid sudden changes.
Image: Expandable Home Theater Audio - This image shows a living room setup with the TCL 85X11L TV and an expandable home theater audio system by Bang & Olufsen, emphasizing immersive sound.
2.5 Spilfunktioner
For gamers, the TCL X11L offers the TCL Game Pack:
- Game Accelerator 288 VRR: Eliminates screen tearing and lag for smoother motion.
- Spilbar: Provides quick access to game settings.
- AMD FreeSync Premium Pro: Ensures a responsive and immersive gaming experience.
- Automatisk spiltilstand (ALLM): Automatically enables game mode for lowest input lag.
- 144Hz indbygget panelopdateringshastighed: For best-in-class motion clarity.
Image: TCL Game Pack in Action - This image shows the TCL 85X11L TV displaying a fast-paced video game, illustrating the benefits of the TCL Game Pack for smoother motion and lower latency.
Video: TCL_Hughes Brothers Challenge - This video features the Hughes brothers discussing the TCL TV's gaming and smart features, highlighting its performance for sports and entertainment.
3. Vedligeholdelse
3.1 Generel pleje og rengøring
To ensure the longevity and optimal performance of your TCL X11L TV, follow these maintenance guidelines:
- Rengøring af skærm: Tør forsigtigt skærmen af med en blød, fnugfri klud. Tør forsigtigt genstridige mærker afampRengør kluden med vand eller et specialiseret skærmrensemiddel. Undgå at bruge skrappe kemikalier, alkohol eller slibende materialer.
- Ramme og bagpanel: Brug en blød, tør klud til at rengøre tv-rammen og bagpanelet.
- Ventilation: Sørg for, at TV'ets ventilationsåbninger ikke er blokerede for at forhindre overophedning.
- Strømledning: Kontrollér regelmæssigt netledningen for skader. Hvis den er beskadiget, skal du ophøre med at bruge den og kontakte kundesupport.
- Undgå væsker: Sprøjt ikke væsker direkte på tv'et.
4. Fejlfinding
If you encounter issues with your TCL X11L TV, refer to the following common troubleshooting steps:
- Ingen strøm: Ensure the power cable is securely connected to both the TV and a working power outlet. Try plugging another device into the outlet to confirm it has power.
- Intet billede/lyd: Bekræft, at den korrekte inputkilde er valgt. Kontroller alle kabelforbindelser (HDMI, lyd) for løse eller beskadigede.
- Fjernbetjeningen virker ikke: Kontrollér batterierne i fjernbetjeningen, og udskift dem om nødvendigt. Sørg for, at der ikke er nogen forhindringer mellem fjernbetjeningen og tv'ets IR-sensor.
- Dårlig billedkvalitet: Check the resolution settings of your input source. Ensure the TV's picture mode is set appropriately (e.g., Standard, Movie, Game).
- Ingen internetforbindelse: Verify your Wi-Fi network is active or the Ethernet cable is properly connected. Restart your router/modem.
- Lydforvrængning: Check the TV's sound settings and ensure no audio enhancements are causing distortion. If using external audio, check its connections and settings.
- Blooming/Halos: While the TCL Halo Control System minimizes these, if observed, ensure your content is high quality and try adjusting local dimming settings if available.
For persistent issues, please refer to the full user manual available online or contact TCL customer support.
5. Specifikationer
| Feature | Specifikation |
|---|---|
| Skærmstørrelse | 85 tommer |
| Mærke | TCL |
| Displayteknologi | Mini LED, QLED |
| Opløsning | 4K (3840 x 2160) |
| Opdateringshastighed | 144 Hz (Native), 288 VRR (Game Accelerator) |
| Maximum Display Brightness | 10,000 Nits (Peak) |
| Dæmpningszoner | Op til LD20000 præcis dæmpningsserie |
| HDR-format understøttet | Dolby Vision IQ, HDR10+, HDR10 |
| Processor | New TSR AI Processor |
| Operativsystem | Google TV with Gemini AI |
| Forbindelsesteknologi | Bluetooth, HDMI, Wi-Fi |
| Total Number of HDMI Ports | 4 (HDMI 2.1, 1 med eARC) |
| Samlet USB-porte | 2 (1 USB 3.0, 1 USB 2.0) |
| Lydsystem | Audio by Bang & Olufsen, Dolby Atmos, 5.1 Channels |
| VESA-monteringsstandard | 600 x 400 mm |
| Produktmål (D x B x H) | 0.8 cm D x 74 cm B x 43.5 cm H (uden stativ) |
| Modelnummer | 85X11L |
| Model årgang | 2026 |
6. Garanti og support
6.1 Producentens garanti
The TCL 85 Inch Class X11L TV comes with a 1 års begrænset producentgaranti. This warranty covers defects in materials and workmanship under normal use. Please refer to the Warranty Card included in your package for full terms and conditions.
6.2 Udvidede beskyttelsesplaner
Optional extended protection plans are available for purchase to provide additional coverage beyond the standard manufacturer's warranty. For exampLea 4-årig beskyttelsesplan is available for $329.99.
6.3 Kundesupport
For technical assistance, troubleshooting, or warranty claims, please contact TCL Customer Support. Contact information can be found on the Warranty Card or the official TCL webwebsted.
