1. Introduktion
This manual provides essential information for the proper use and maintenance of your Continental SecureContact AW All Weather tire. The SecureContact AW is a premium, all-weather touring tire designed for passenger cars, crossovers, and SUVs, allowing for year-round use. It incorporates Continental's EcoPlus Technology for improved fuel efficiency, optimized range, shorter wet braking distances, and extended tread life. This tire also features the 3-Peak Mountain Snowflake symbol, indicating its suitability for severe winter conditions.

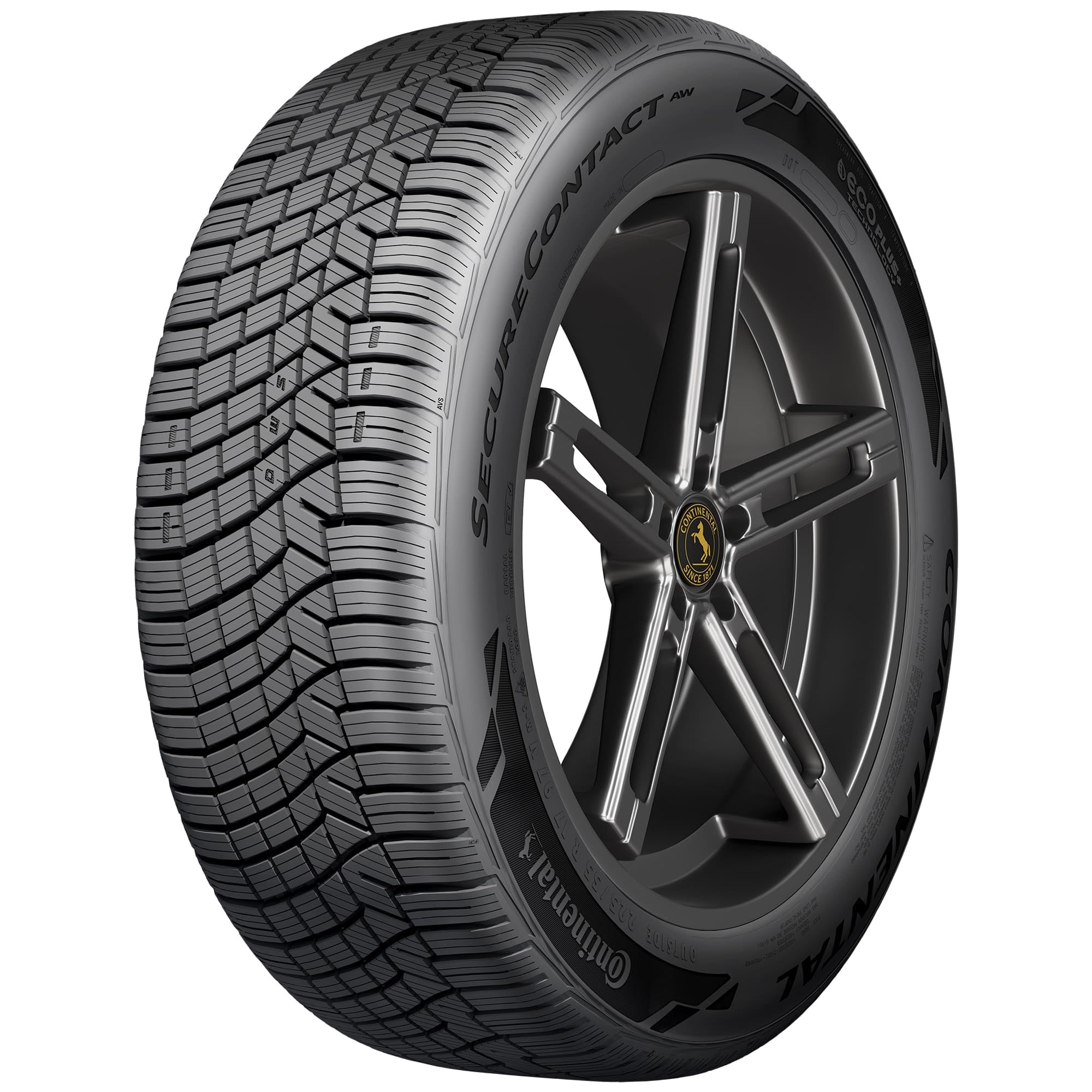

Image 1.1: The Continental SecureContact AW All Weather tire, showcasindens design.
2. Opsætning og installation
Dækmontering bør altid udføres af en kvalificeret fagmand med passende udstyr. Forkert montering kan føre til dækskader, køretøjets ustabilitet og alvorlig personskade.
2.1 Kontrol før installation
- Bekræft dækstørrelse: Ensure the tire size (265/50R20) matches your vehicle's specifications as recommended by the vehicle manufacturer.
- Inspicer dæk: Before mounting, visually inspect each tire for any manufacturing defects or shipping damage.
- Check Rim Compatibility: Ensure the rim is clean, undamaged, and compatible with the tire size.
2.2 Montering og afbalancering
Mounting should be done carefully to avoid damage to the tire beads. After mounting, tires must be properly balanced to prevent vibrations and ensure even wear. Use new valve stems with every tire replacement.
2.3 Inflation
Inflate tires to the pressure recommended by your vehicle manufacturer, typically found on a placard inside the driver's side door jamb, glove compartment, or owner's manual. Do not exceed the maximum pressure indicated on the tire sidewall (51 psi for this model).
Image 2.1: A Continental SecureContact AW tire properly mounted on a wheel.
3. Driftsvejledninger
Korrekt betjening sikrer sikkerhed og maksimerer dækkenes levetid.
3.1 Kørselsforhold
- Præstation i al slags vejr: The SecureContact AW is designed for balanced performance on dry, wet, and snowy roads, indicated by the 3-Peak Mountain Snowflake symbol.
- Wet Roads: Features EcoPlus Technology for shorter stopping distances on wet surfaces. Drive cautiously and reduce speed in wet conditions.
- Snow/Ice: While rated for severe winter conditions, always exercise extreme caution on ice and deep snow. Adjust driving style to conditions.
3.2 Speed Rating
This tire has a speed rating of V, meaning it is certified for speeds up to 149 mph (240 km/h). Always adhere to legal speed limits and adjust speed according to road and weather conditions.
3.3 Lastkapacitet
The load index of 111 indicates a maximum load capacity of 2469 lbs (1120 kg) per tire. Do not exceed your vehicle's Gross Vehicle Weight Rating (GVWR) or Gross Axle Weight Rating (GAWR).
Video 3.1: Officiel videovisningasing the performance of Continental SecureContact AW tires in various conditions. This video highlights the tire's capabilities in wet braking and handling.
4. Vedligeholdelse
Regular maintenance is crucial for tire longevity, safety, and optimal performance.
4.1 Dæktryk
- Tjek regelmæssigt: Check tire pressure at least once a month, and before long trips, using a reliable pressure gauge. Check when tires are cold.
- Correct Pressure: Maintain the pressure recommended by your vehicle manufacturer. Under-inflation or over-inflation can lead to premature wear, reduced fuel efficiency, and compromised handling.
4.2 Dækskift
Rotate tires every 5,000 to 7,500 miles (8,000 to 12,000 km) or as recommended by your vehicle manufacturer. This promotes even wear across all four tires.
4.3 Tread Depth
Regularly inspect tread depth. The minimum legal tread depth is 2/32 inch (1.6 mm). The SecureContact AW features HurtigtView Indikatorer in the tread that visually inform drivers of the tire's performance level. Replace tires when they reach the wear indicators.
Billede 4.1: Detaljeret view of the asymmetrical tread pattern on the SecureContact AW tire, designed for balanced performance.
4.4 Alignment and Balancing
Have your vehicle's wheel alignment checked annually or if you notice uneven tire wear or steering issues. Re-balance tires if you notice vibrations.
5. Fejlfinding af almindelige problemer
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Ujævnt slidbaneslid | Forkert oppumpning, forkert justerede hjul, ubalancerede dæk, slidte affjedringskomponenter. | Check tire pressure, perform wheel alignment and balancing, inspect suspension. |
| Vibrations at Speed | Unbalanced tires, bent rim, worn suspension parts. | Have tires re-balanced, inspect rims for damage, check suspension. |
| Excessive Road Noise | Uneven wear, improper inflation, tire design (less likely for this model due to low noise design). | Check for uneven wear, ensure correct tire pressure. This model is designed for low road noise. |
| Tab af lufttryk | Puncture, faulty valve stem, bead leak, damaged rim. | Inspect tire for punctures, check valve stem, have tire professionally inspected for leaks. |
For any persistent issues, consult a certified tire professional.
6. Tekniske specifikationer
| Specifikation | Værdi |
|---|---|
| Mærke | Continental |
| Modelnavn | SecureContact AW |
| Størrelse | 265/50R20 |
| Fælg størrelse | 20 tommer |
| Sektionsbredde | 26.5 centimeter |
| Tire Aspect Ratio | 50 |
| Indlæs indeks | 111 |
| Hastighed vurdering | V |
| Belastningskapacitet | 2469 lbs (1120 kg) |
| Slidbanedybde | 11/32 tommer |
| Slidbanetype | Asymmetrisk |
| Maksimalt tryk | 51 psi |
| Belastningsområde | XL (Extra Load) |
| Konstruktionstype | Radial |
| Årstider | Year Round (All Weather) |
| Ply | 10-lags |
| Dækdiameter | 30.4 tommer |
| Varens vægt | 33 pund |
| UPC | 051342272457 |
| Modelnummer | 15582370000 |
7. Garantioplysninger
The Continental SecureContact AW tire is backed by Continental's Total Confidence Plan, which includes:
- 60,000-mile Limited Manufacturer Tread Life Coverage: This warranty covers the tire against premature tread wear under normal operating conditions.
- 60-Day Customer Satisfaction Trial: Allows you to try the tires for 60 days and return them if not completely satisfied.
- 3-Year Roadside Assistance: Provides assistance for flat tires and other tire-related issues for three years from the date of purchase.
For full details and terms of the warranty, please refer to the official Continental warranty documentation or visit the Continental webwebsted.
Billede 7.1: Overview of the Continental Total Confidence Plan, highlighting mileage warranty, satisfaction trial, and roadside assistance.
8. Kundesupport
If you have any questions or require further assistance regarding your Continental SecureContact AW tires, please contact Continental customer service or visit their official webwebsted.
- Officiel Webwebsted: For detailed product information, warranty registration, and dealer locator, please visit the Continental Tires webwebsted.
- Autoriserede forhandlere: For professional installation, maintenance, and service, locate an authorized Continental tire dealer near you.
