plplaaoo FS8233 Digital Multimeter User Manual

1. Produktet er slutview

The plplaaoo FS8233 is an ultra-thin, full-screen intelligent automatic digital multimeter designed for electricians, engineers, and technicians. It features intelligent auto-ranging technology for precise detection of voltage, current, resistance, and continuity without manual adjustments. Built with durable ABS and silicone materials, it offers reliable performance in various environments.

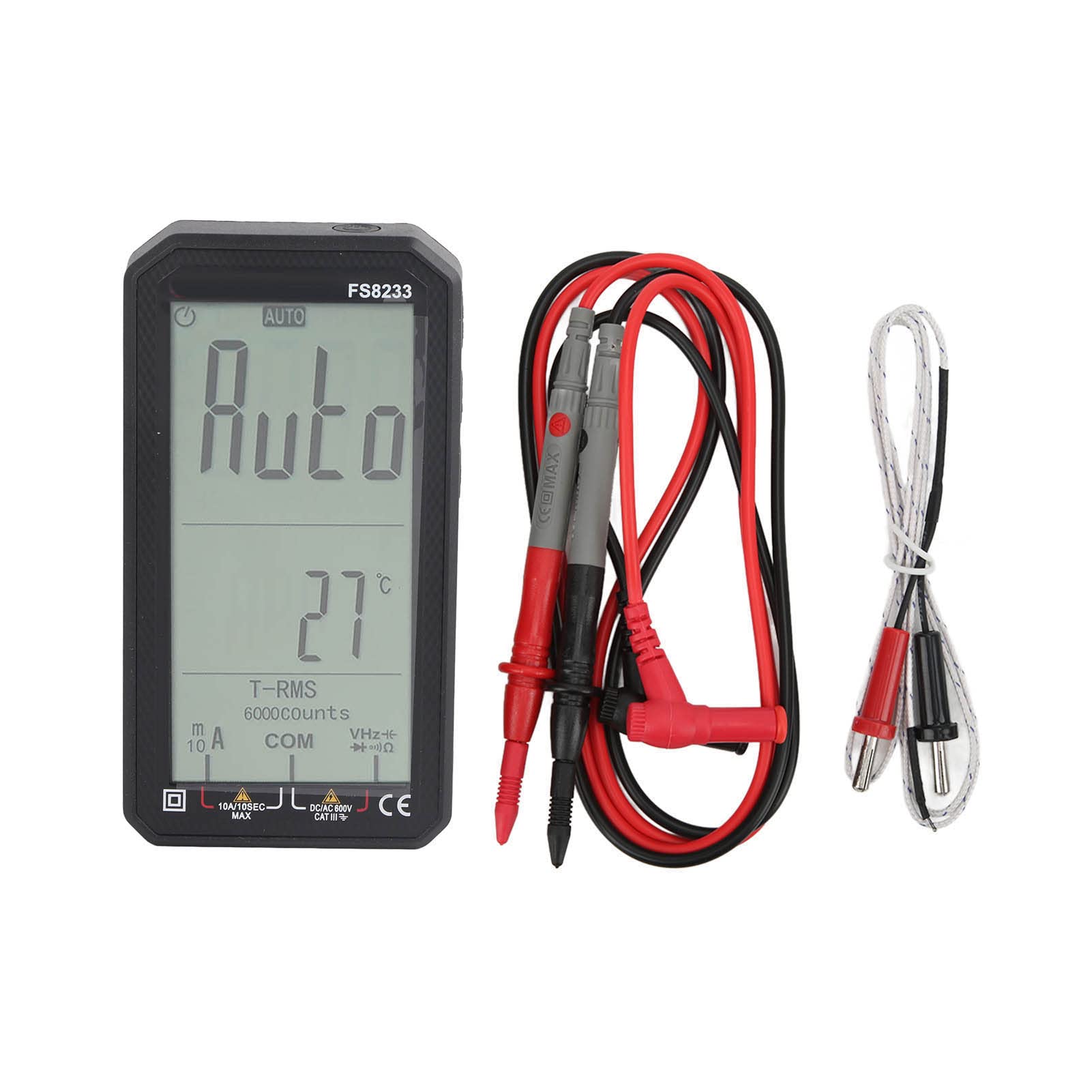

Billede 1.1: Forside view of the plplaaoo FS8233 Digital Multimeter, showcasing dens fuldskærmsvisning.

Nøglefunktioner:

• Automatic Testing: Intelligent auto-ranging for voltage, strøm, modstand og kontinuitet.
• Høj nøjagtighed: Advanced chip ensures ±0.5% DC voltage nøjagtighed.
• Holdbar konstruktion: Made from premium ABS and wear-resistant silicone for industrial-grade durability.
• Multifunktionel: Mål AC/DC voltage (up to 600V), current (10A max), resistance (60MΩ), capacitance (60mF), and temperature.
• Sikkerhedsfunktioner: Anti-burn protection and 600V CAT III safety rating.
• Brugervenligt design: Large backlit screen for clear readings in low-light conditions.

2. Sikkerhedsoplysninger

Always adhere to safety precautions when using electrical testing equipment. Failure to do so may result in injury or damage to the device or equipment being tested.

• Sørg for, at multimeteret er i god stand før brug.
• Overskrid ikke de maksimale inputværdier, der er angivet for hver funktion.
• Verify the correct function and range are selected before making measurements.
• Brug passende personlige værnemidler (PPE) såsom isolerede handsker og sikkerhedsbriller.
• Avoid touching exposed conductors or circuit components during measurements.
• Udskift batterierne med det samme, når indikatoren for lavt batteri vises, for at sikre nøjagtige aflæsninger.
• The device has a 600V CAT III safety rating. Always respect this rating and do not use it in circuits exceeding this category.

3. Opsætning

3.1 Batteriinstallation

The FS8233 multimeter requires two 1.5V AAA batteries (not included) for operation.

1. Find batteridækslet på bagsiden af ​​multimeteret.
2. Brug en skruetrækker til at åbne batterirummet.
3. Isæt to AAA-batterier, og sørg for at polerne vender korrekt (+ og -).
4. Luk dækslet til batterirummet forsvarligt.

3.2 Tilslutning af testledninger

The multimeter comes with two test leads. Connect them to the appropriate input jacks:

• Indsæt sort testledning ind i KOM (fælles) stik.
• Indsæt rød testledning ind i VHzΩmA jack for most voltage, resistance, frequency, capacitance, and current measurements (up to 600mA).
• For high current measurements (up to 10A), insert the rød testledning ind i 10A stik.

Billede 3.2: Bund view of the multimeter, illustrating the input jacks for test lead connection.

4. Betjeningsvejledning

The FS8233 features intelligent auto-ranging, simplifying most measurements. Power on the device and it will automatically detect the measurement type.

4.1 Tænd/sluk

• Press the power button (usually marked with a circle and a vertical line) to turn the multimeter on.
• Press and hold the power button to turn the multimeter off.

Image 4.1: The multimeter display indicating 'AUTO' mode, ready for automatic measurement.

4.2 Automatic Measurement

In auto mode, the multimeter will automatically identify and measure AC/DC voltage, resistance, and continuity. Simply connect the test leads to the circuit or component you wish to measure.

4.3 Specifikke målinger

While the device is largely auto-ranging, it supports specific measurements:

• Voltage (AC/DC): Connect test leads in parallel to the circuit. The multimeter will automatically detect AC or DC voltage.
• Strøm (AC/DC): Connect test leads in series with the circuit. Ensure the red lead is in the correct current jack (mA or 10A).
• Modstand: Tilslut testledninger på tværs af komponenten. Sørg for, at komponenten er spændingsløs.
• Kapacitans: Tilslut testledningerne over kondensatoren. Sørg for, at kondensatoren er afladet før test.
• Temperatur: Connect the included temperature probe to the appropriate jacks (usually VΩmA and COM) and place the probe tip on the object to be measured.

Image 4.3: An electrician using the FS8233 multimeter to perform tests on an electrical panel, demonstrating practical application.

4.4 Aflæsning af displayet

The large backlit screen displays readings clearly. The unit of measurement (V, A, Ω, F, °C) will be shown alongside the numerical value. The 'AUTO' indicator confirms auto-ranging is active.

Billede 4.4: Nærbillede view of the multimeter's display, showing a clear numerical reading and measurement units.

5. Vedligeholdelse

5.1 Rengøring

To maintain the multimeter's performance and appearance:

• Tør casing med annonceamp klud og mildt rengøringsmiddel. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Ensure no moisture enters the device through the input jacks or seams.

5.2 Udskiftning af batteri

When the low battery indicator appears on the display, replace the batteries as described in Section 3.1. Always use fresh 1.5V AAA batteries.

5.3 Opbevaring

Store the multimeter in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, remove the batteries to prevent leakage.

6. Fejlfinding

If you encounter issues with your FS8233 Digital Multimeter, refer to the following common troubleshooting steps:

• Ingen skærm/enhed tænder ikke:
  • Kontroller, om batterierne er korrekt installeret og har tilstrækkelig opladning. Udskift om nødvendigt.
  • Sørg for, at tænd/sluk-knappen er trykket fast.
• Incorrect or Unstable Readings:
  • Verify that the test leads are securely connected to the correct input jacks.
  • Ensure good contact between the test probes and the circuit/component being measured.
  • Check for damaged test leads and replace if necessary.
  • Ensure the component being measured is within the multimeter's specified range.
• 'OL' eller overbelastningsindikation:
  • This indicates the measured value exceeds the current range. Ensure the red test lead is in the appropriate high-current jack (10A) if measuring high current, or that the voltage/resistance is within the device's maximum limits.

7. Specifikationer
