HOCANFLO 700PRO Upflush Macerating Toilet System

1. Introduktion

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your HOCANFLO 700PRO Upflush Macerating Toilet System. This system is designed to manage wastewater from a toilet and other fixtures in locations where gravity drainage is not feasible, such as basements, garages, or room additions. It features a powerful macerator pump and a dual-flush toilet for optimal performance and water conservation.

2. Sikkerhedsoplysninger

Please read all safety warnings and instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

• Afbryd altid strømmen, før du udfører service eller vedligeholdelse.
• Sørg for, at alle elektriske forbindelser overholder lokale forskrifter og bestemmelser.
• Betjen ikke enheden, hvis en del er beskadiget.
• This system is designed for domestic wastewater only. Do not flush foreign objects, harsh chemicals, or excessive tissue.
• Hold børn væk fra enheden under drift.

3. Komponenter inkluderet

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• One-Piece Toilet
• 700-watt Macerator Pump Unit
• Monteringshardware
• Installationsvejledning (dette dokument)
• Elbow with check valve
• Sealing cover for toilet connection hole
• 90-100mm clamps (x2)
• Clamps (x3)
• Activated carbon cap
• Gummi ring
• Slanger (x3)
• Aktivt kul
• Stoppers (x2)

Figure 3.1: All included mounting accessories for the HOCANFLO 700PRO system.

4. Opsætning og installation

The HOCANFLO 700PRO system allows for flexible installation in various environments. The macerator pump can lift waste vertically up to 29.8 feet and pump horizontally up to 320 feet.

4.1. Connecting Fixtures

The 700PRO macerator pump features 5 separate inlets, allowing connection to multiple fixtures:

• Toilet inlet
• Two water inlets for sinks (kitchen/bathroom)
• One water inlet for a washing machine
• One water inlet for a laundry unit or shower

Ensure unused inlets are sealed with the provided caps to prevent leaks.

Figure 4.1: Diagram showing the 5 available inlets on the macerator pump for various connections.

4.2. Discharge Pipe Routing

The system can pump waste vertically and horizontally. Ensure the discharge pipe has a minimum slope of 2-3% for horizontal runs to facilitate flow. Refer to the diagram for typical pumping distances.

Figure 4.2: Illustration of the HOCANFLO 700PRO macerating system's vertical and horizontal pumping capabilities.

Figur 4.3: Eksamples of flexible installation for the HOCANFLO 700PRO system, showing connections for toilets and main drains, or standalone pump operation.

5. Betjeningsvejledning

The HOCANFLO 700PRO system operates automatically once installed and connected to power.

5.1. Toilet Operation

The toilet features a dual-flush mechanism for water efficiency. Press the appropriate button for a partial or full flush. The macerator pump will automatically activate to grind and pump waste when water enters the unit.

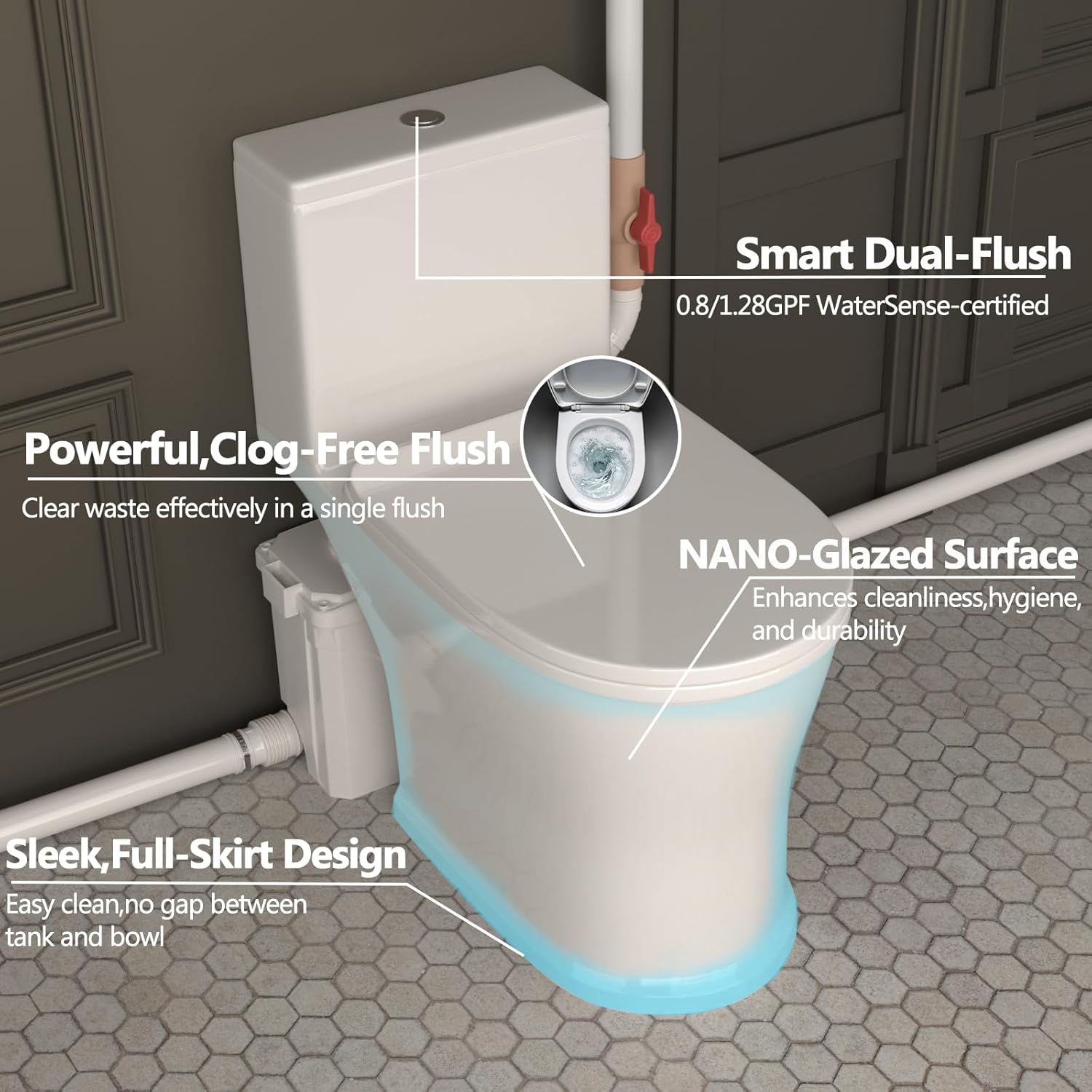

Figure 5.1: Features of the HOCANFLO toilet, including smart dual-flush, powerful clog-free flush, and nano-glazed surface.

Figure 5.2: Close-up of the dual water flush buttons on the toilet tank.

Figure 5.3: Visual representation of the powerful 360-degree flush action.

5.2. Macerator Pump Operation

The macerator pump automatically activates when wastewater from connected fixtures (toilet, sink, shower, washing machine) reaches a certain level. The powerful copper motor and grinder blades process solid waste and pump it through the discharge pipe.

Figur 5.4: Intern view of the macerator pump highlighting the durable 100% pure copper motor for enhanced performance and longevity.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your HOCANFLO 700PRO system.

6.1. Deodorization System

The macerator pump includes a built-in deodorization system with activated carbon to keep your bathroom odor-free. Replace the activated carbon periodically as needed.

Figure 6.1: Illustration of the built-in deodorization system, featuring a fully enclosed housing and sealed water inlets/outlets.

6.2. Access and Cleaning

The pump unit features a top access repair panel for easy inspection and maintenance. In case of a blockage or issue, this panel allows for direct access to the grinder mechanism.

Figur 6.2: View of the top access repair panel on the macerator pump for convenient maintenance.

6.3. Kontraventil

The system includes a built-in check valve to prevent backflow of wastewater into the fixtures.

Figure 6.3: Close-up of the built-in check valve within the system.

6.4. Emergency Manual Drain

I tilfælde af en magt outage or pump malfunction, an emergency manual drain is available to prevent overflow.

Figure 6.4: Location of the emergency manual drain on the macerator pump.

7. Fejlfinding

If you encounter issues with your HOCANFLO 700PRO system, refer to the following common problems and solutions:

• Pumpen aktiveres ikke: Check power supply. Ensure the water level switch is not obstructed.
• Høj støj under drift: This could indicate a foreign object in the grinder. Disconnect power and inspect the grinder through the top access panel.
• Slow drainage or no drainage: Check for blockages in the inlet pipes or discharge pipe. Ensure the check valve is functioning correctly.
• Lugt: Replace the activated carbon in the deodorization system. Ensure all connections are sealed properly.

Ved vedvarende problemer, kontakt kundesupport.

8. Specifikationer

Figure 8.1: Key specifications and features of the HOCANFLO 700PRO Macerating Toilet System.

Figure 8.2: Detailed dimensions of the HOCANFLO 700PRO toilet and macerator pump unit.

9. Garanti og support

This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical assistance, troubleshooting, or warranty claims, please contact HOCANFLO customer support.

Kundesupport: For assistance, please visit the HOCANFLO store on Amazon or contact the seller directly through your purchase platform.
