Indledning
This manual provides detailed instructions for the assembly, operation, and maintenance of your Rolanstar Queen Bed Frame. This bed frame features a soft padded headboard, a built-in charging station, customizable RGB LED lighting, and ample under-bed storage. Please read this manual thoroughly before beginning assembly or operation to ensure proper use and longevity of your product.
Sikkerhedsoplysninger
- Følg altid monteringsvejledningen nøje.
- Sørg for, at alle skruer og fastgørelseselementer er forsvarligt fastspændt før brug. Kontroller regelmæssigt og efterspænd efter behov.
- Overskrid ikke den maksimale vægtkapacitet på 1200 lbs.
- Hold små dele væk fra børn under montering.
- Brug kun den medfølgende strømadapter til ladestationen og LED-lysene.
- Undgå at udsætte elektriske komponenter for fugt.
Inkluderede komponenter
Verify that all components are present before starting assembly. Refer to the parts list provided in your packaging.
- Sengegavl
- Bed Frame (metal components and slats)
- Installationsmanual
- Monteringshardware (skruer, bolte, værktøj)
- LED Light Strip and Remote Control
- Ladestationsenhed
Opsætning og montering
Assembly is designed to be straightforward, typically taking around 30 minutes. It is recommended to assemble the bed frame with two people.
- Udpak og identificer dele: Lay out all components on a clean, soft surface to prevent scratches. Identify each part using the included parts list.
- Saml hovedgærdet: Attach the padded sections to the headboard frame. Ensure the LED light strip and charging station are correctly positioned and secured.
- Tilslut sideskinner: Fastgør sideskinnerne til hovedgærdet og fodgærdet. Vigtig: Do not fully tighten all screws until the entire frame is assembled. This allows for minor adjustments.
- Installer støtteben: Securely attach all support legs to the frame.
- Placering af metallameller: Position the metal slats across the frame. The embedded design ensures a secure fit for your mattress, preventing sliding.
- Endelig stramning: Når alle komponenter er på plads og justeret, skal alle skruer og fastgørelseselementer strammes helt.
- Tilslut strøm: Plug in the power adapter for the LED lights and charging station to a suitable power outlet.
Image: Components for quick assembly.
Image: Embedded design for secure mattress fit.
Video: Overståetview of the Rolanstar Bed Frame with Charging Station, demonstrating features and ease of setup.
Betjeningsvejledning
LED Bed Lighting
The bed frame features customizable RGB LED lights with 20 colors and 21 dynamic modes. Use the included remote control to adjust settings:
- Power knap: Tænd/sluk lys.
- Farveknapper: Vælg mellem 20 statiske farver.
- Mode knap: Cycle through 21 dynamic lighting modes.
- Hastighed +/-: Adjust the speed of dynamic modes (8 settings).
- Bright +/-: Adjust the brightness of static colors or dynamic modes (8 levels).
- Demoknap: Activate a demonstration of various colors and modes.
Image: LED lighting options controlled by remote.
Video: Demonstration of the Rolanstar Soft Padded Headboard bed frame, highlighting the LED lights and design.
Indbygget ladestation
The headboard includes a convenient charging station with 2 USB ports and 1 Type-C port.
- Connect your devices (phones, tablets, etc.) to the available USB or Type-C ports.
- Ensure the bed frame's power adapter is plugged into a live electrical outlet for the charging station to function.
Image: Built-in charging station with USB and Type-C ports.
Opretholdelse
- Rensning: Tør metalrammen af med reklameamp cloth and mild detergent. For the upholstered headboard, use a fabric cleaner suitable for the material. Avoid harsh chemicals.
- Regelmæssig kontrol: Kontrollér regelmæssigt alle bolte og skruer for at sikre, at de forbliver stramme. Spænd dem efter behov for at opretholde stabilitet og forhindre støj.
- Elektriske komponenter: Keep the charging station and LED lights free from dust and debris. Do not attempt to repair electrical components yourself.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Sengerammen er vaklende eller støjende. | Løse skruer eller bolte. | Check and tighten all assembly hardware. Ensure all parts are correctly aligned. |
| LED-lys virker ikke. | Power cable disconnected; remote control battery low; LED strip damaged. | Ensure the power adapter is securely plugged into the wall and the bed frame. Replace remote control battery. If still not working, contact customer support. |
| Ladestationen virker ikke. | Power cable disconnected; device not compatible; charging station faulty. | Verify the bed frame's power adapter is plugged in. Test with a different device and cable. If issue persists, contact customer support. |
| Delene flugter ikke under samling. | Screws tightened prematurely; incorrect orientation of parts. | Loosen all screws, re-align parts, and then tighten gradually. Double-check the manual for correct part orientation. |
Specifikationer
- Størrelse: Dronning
- Modelnummer: hq-chj005-14
- Produktmål (L x B x H): 85.4 cm x 60 cm x 43 cm
- Materiale: Engineered Wood (Headboard), Heavy-Duty Metal (Frame)
- Farve: Sort
- Vægt: 61.1 lbs
- Maksimal vægtanbefaling: 1200 lbs
- Compatible Mattress Thickness: 6-10 inches (No Box Spring Needed)
- Ladestation: 2 USB ports (5V/2.4A), 1 Type-C port (5V/3A)
- LED lys: RGB, 20 colors, 21 dynamic modes, 8 brightness levels, 8 speed settings

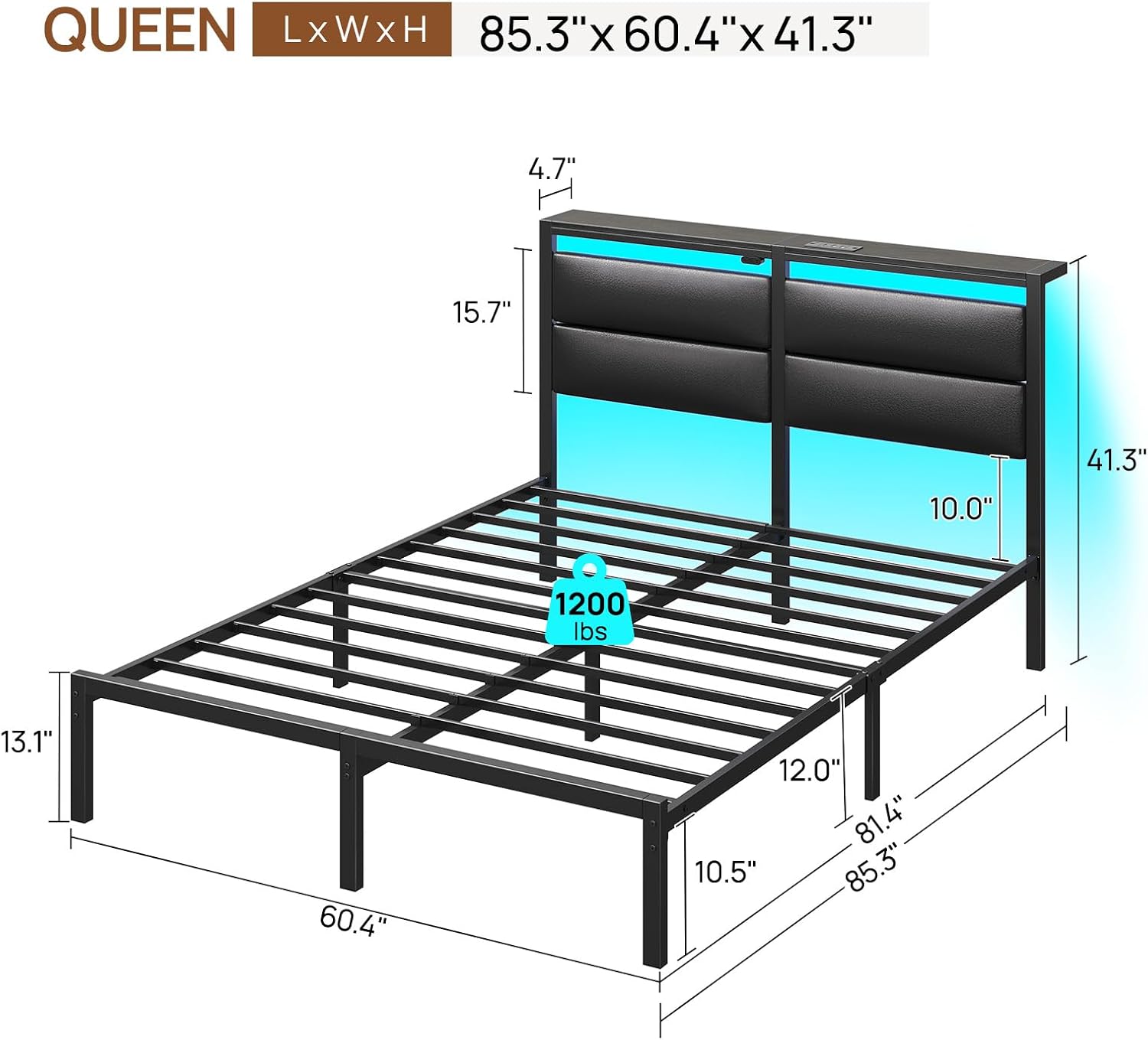

Image: Queen bed frame dimensions and weight capacity.
Image: Heavy-duty metal frame construction.
Image: Under-bed storage space.
Garanti og support
For warranty information or technical support, please refer to the warranty card included with your product or contact Rolanstar customer service directly. Keep your purchase receipt for warranty claims.
