1. Introduktion
This manual provides instructions for the proper use and maintenance of your plplaaoo SC12022D wired 1D and 2D barcode scanner. This device is designed for fast and accurate scanning of both printed and screen-based barcodes, suitable for various retail, warehouse, and office environments.
Image 1.1: The plplaaoo SC12022D barcode scanner in operation, held by a user scanning a package. This illustrates the ergonomic design and typical use case of the device.
2. Sikkerhedsoplysninger
Læs og følg disse sikkerhedsretningslinjer for at sikre sikker betjening og for at forhindre skader på enheden eller personskade.
- Lasersikkerhed: Do not stare directly into the scanning window or point the laser beam at eyes. This device uses a visible light laser.
- Miljøforhold: Operate the scanner within the specified temperature range of 20℃ to +60℃. Avoid exposure to extreme temperatures, humidity, or dust.
- Håndtering: Håndter enheden forsigtigt. Undgå at tabe den eller udsætte den for hårde stød.
- Rensning: Brug en blød, tør klud til rengøring. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- plplaaoo SC12022D Barcode Scanner
- USB Cable (attached or separate)
- Brugervejledning (dette dokument)
4. Produktet er slutview
The plplaaoo SC12022D is a handheld, gun-style barcode scanner designed for comfortable and efficient use. It features a high-resolution sensor for precise reading of various barcode types.

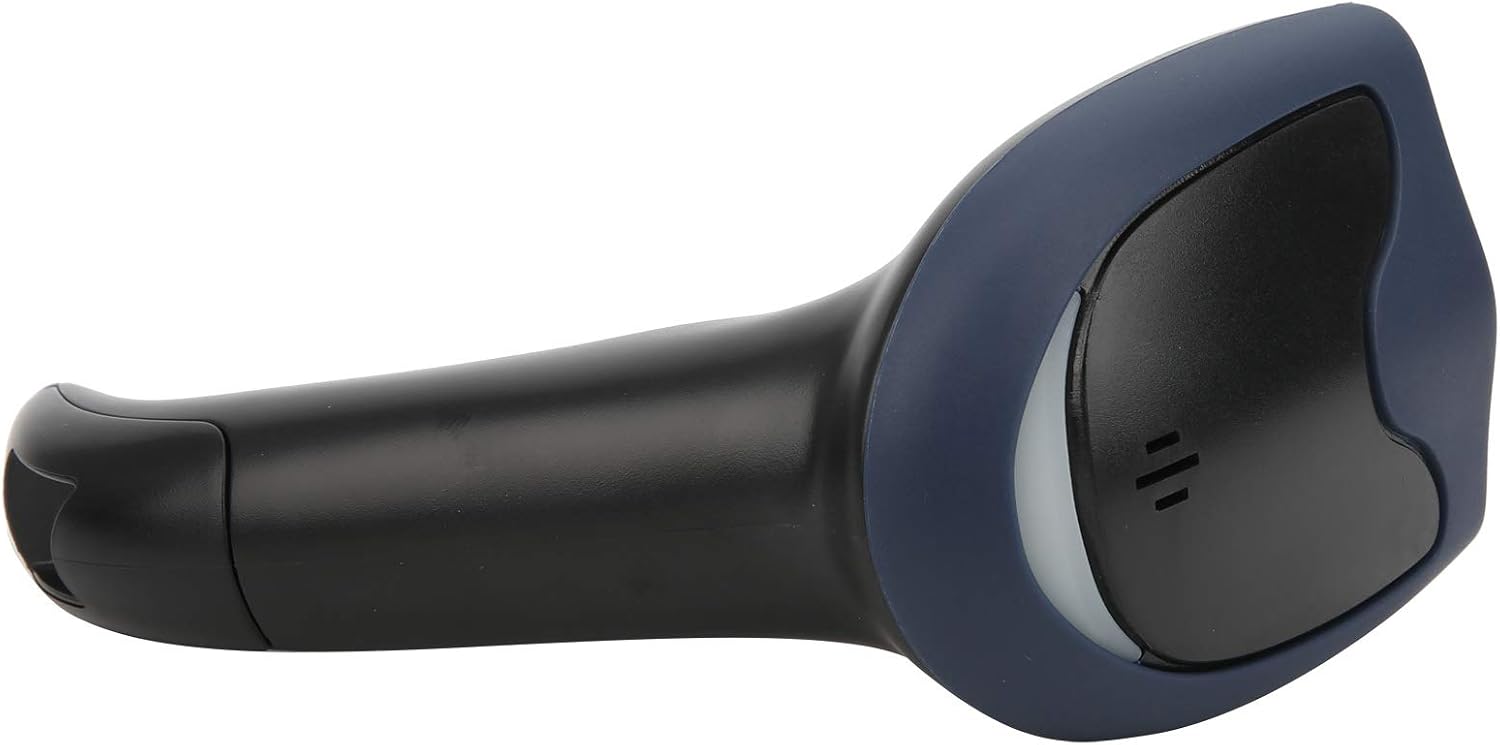

Billede 4.1: Forside view of the barcode scanner, highlighting the scanning window and the comfortable grip design.
Billede 4.2: Side view of the barcode scanner, illustrating its contoured shape and the placement of the trigger button.
Billede 4.3: En detaljeret view of the scanning window, where the laser beam is emitted and barcodes are read.
5. Opsætning
The plplaaoo SC12022D barcode scanner is designed for plug-and-play convenience. No driver installation is typically required for most operating systems.
- Tilslut USB-kablet: Locate the USB cable. If it is detachable, connect the smaller end to the port on the base of the scanner.
- Plug into Computer/POS System: Insert the standard USB-A end of the cable into an available USB port on your computer or Point-of-Sale (POS) system.
- Systemgenkendelse: Your operating system should automatically detect and install the necessary generic drivers. The scanner will typically emit a beep or flash an indicator light to confirm it is ready for use.
Image 5.1: The USB cable provided with the scanner, featuring a USB-A connector for the host device and a proprietary connector for the scanner.
Image 5.2: The USB cable securely connected to the port on the underside of the scanner's handle.
6. Betjeningsvejledning
Once connected, the scanner functions as a keyboard wedge, inputting scanned data directly into any active text field.
- Sigte: Point the scanning window towards the barcode you wish to read.
- Scan: Press and hold the trigger button. A red laser line or aiming pattern will appear. Position the laser line across the entire barcode.
- Bekræftelse: Upon successful scan, the scanner will emit a beep and/or the indicator light will flash. The barcode data will then appear in your active application.
- Scanning Performance: The scanner is capable of reading both 1D and 2D barcodes from paper and digital screens, even if they are poorly printed or slightly damaged.
Image 6.1: A user actively scanning a barcode on a box, demonstrating the scanner's application in a typical work environment.
Image 6.2: The barcode scanner displayed alongside icons representing diverse environments such as retail, logistics, and office settings, illustrating its broad compatibility.
7. Vedligeholdelse
Korrekt vedligeholdelse sikrer din stregkodescanners lange levetid og optimale ydeevne.
- Rengøring af scanningsvinduet: Rengør regelmæssigt scanningsvinduet med en blød, fnugfri klud. Tør let ved genstridige pletter.ampen the cloth with water or a mild, non-abrasive cleaner. Ensure the window is dry before use.
- Generel rengøring: Wipe the exterior of the scanner with a soft, dry cloth. Avoid using harsh chemicals or solvents that could damage the plastic.
- Opbevaring: Når scanneren ikke er i brug, skal den opbevares et rent og tørt sted, væk fra direkte sollys og ekstreme temperaturer.
8. Fejlfinding
Hvis du støder på problemer med din scanner, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Scanneren tænder ikke eller reagerer ikke. | USB-kablet er ikke korrekt tilsluttet, eller USB-porten er defekt. | Ensure the USB cable is securely connected to both the scanner and the computer. Try a different USB port or computer. |
| Scanneren bipper, men der sendes ingen data. | No active text field or incorrect keyboard layout. | Ensure a text input field is active (e.g., Notepad, Word document, browser search bar). Check your computer's keyboard language settings. |
| Unable to scan certain barcodes. | Barcode type not supported, damaged barcode, or poor lighting. | Refer to the Specifications section for supported symbologies. Try scanning a different, known-good barcode. Ensure adequate lighting and proper aiming. |
| Scanner is slow or inconsistent. | Snavset scanningsvindue eller interferens. | Clean the scanning window as described in the Maintenance section. Ensure no obstructions are near the scanning area. |
9. Specifikationer
- Model: SC12022D
- Scanningsteknologi: 1D/2D Wired
- Interface: USB
- Understøttede symbologier: QR, Micro QR, PDF417, Maxicode, Data Matrix, AztecCode, UPC, EAN, Code 128, and more than 20 other types.
- Driftstemperatur: 20℃ til +60℃
- Beskyttelse mod elektrostatisk afladning (ESD): Up to ±15 KV
- Design: Ergonomic handheld gun style
10. Garantioplysninger
This product comes with a standard manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty typically covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or operation outside the specified environmental conditions.
11. Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your retailer or the manufacturer directly. Refer to the product packaging or the manufacturer's official webwebsted for kontaktoplysninger.
