Kenmore Dryer Heating Element Heater (Part Number 11063952102) Instruction Manual

Indledning

This document provides essential information regarding the Kenmore Dryer Heating Element Heater, part number 11063952102. It is designed to assist users with understanding the product, its installation, and general maintenance. This heating element is a replacement part compatible with specific Kenmore dryer models. Please read all instructions carefully before attempting any installation or repair.

Sikkerhedsoplysninger

ADVARSEL: Risiko for elektrisk stød og personskade.

• Always disconnect power to the dryer at the circuit breaker or fuse box before attempting any repairs or installation.
• Brug passende personlige værnemidler, herunder handsker og øjenbeskyttelse.
• Dryer repairs, especially those involving electrical components, can be complex and should ideally be performed by a qualified technician. If you are unsure about any step, consult a professional.
• Sørg for, at alle forbindelser er sikre og korrekt isolerede efter installationen.
• Hold børn og kæledyr væk fra arbejdsområdet.

Produkt overview

The heating element is a critical component within an electric dryer, responsible for generating the heat required to dry clothes. This replacement part, identified as 11063952102, is designed to restore heating functionality to compatible Kenmore dryer models when the original element fails. Appliance parts can appear similar; always verify compatibility with your specific dryer model number before purchase and installation.

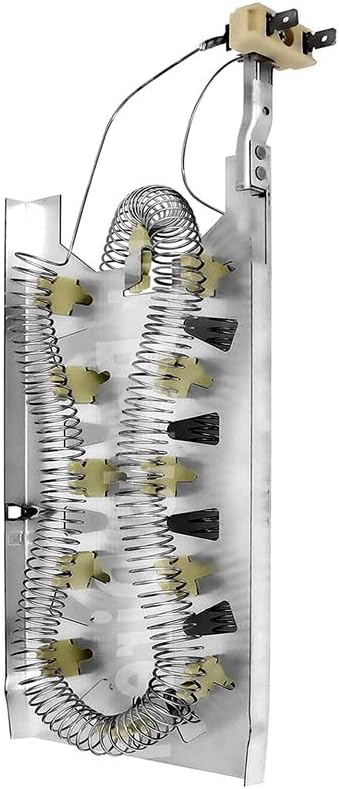

Figure 1: Kenmore Dryer Heating Element Heater (Part Number 11063952102). This image displays the complete heating element assembly, including the coiled heating wire, ceramic insulators, and mounting bracket.

Opsætning og installation

Replacing a dryer heating element typically involves disassembling parts of the dryer to access the heating chamber. Due to variations in dryer designs and the electrical nature of this component, detailed step-by-step instructions for every model are beyond the scope of this general manual. The following are general guidelines:

1. Afbryd strømmen: Ensure the dryer is unplugged or the circuit breaker is off.
2. Adgang til varmeelementet: This usually requires removing the back panel of the dryer. Some models may require accessing from the front or top.
3. Dokumentforbindelser: Take photos or make notes of how the wires are connected to the old heating element and any associated thermostats or thermal fuses.
4. Fjern gammelt element: Carefully detach the wiring and mounting screws/clips holding the old heating element in place.
5. Installer nyt element: Position the new heating element (part number 11063952102) in the same manner as the old one. Secure it with screws/clips.
6. Tilslut ledningerne igen: Attach the wires to the new heating element, ensuring they match your documentation. Double-check all connections for tightness.
7. Saml tørretumbleren igen: Replace any panels or components removed during disassembly.
8. Prøve: Restore power to the dryer and run a short cycle to confirm proper heating. Monitor for any unusual smells or sounds during the initial test.

It is highly recommended to consult your specific dryer's service manual or seek professional assistance for accurate and safe installation.

Drift

Once the Kenmore Dryer Heating Element Heater (part number 11063952102) is correctly installed, your dryer should resume normal operation, providing heat for drying clothes. Operate your dryer according to its original manufacturer's instructions. If the dryer does not heat or exhibits other issues after installation, refer to the troubleshooting section.

Opretholdelse

The heating element itself typically does not require routine maintenance. However, to ensure the longevity of your dryer and its components, including the heating element, consider the following general maintenance practices:

• Rens fnugfilter: Rengør fnugfilteret før eller efter hver vask for at opretholde korrekt luftgennemstrømning og forhindre overophedning.
• Inspektion af udluftning: Periodically check and clean the dryer's exhaust vent system to prevent lint buildup, which can restrict airflow and cause the dryer to overheat or work inefficiently.
• Undgå overbelastning: Do not overload the dryer, as this can strain components and reduce drying efficiency.

Fejlfinding

If your dryer is not heating after replacing the element, consider these common troubleshooting steps:

• Tjek strøm: Ensure the dryer has power and the circuit breaker has not tripped.
• Bekræft forbindelser: Re-check all electrical connections to the heating element, thermal fuse, and thermostats for tightness and correct placement. Loose connections can prevent heating.
• Thermal Fuse/Thermostat: A faulty thermal fuse or thermostat (often located near the heating element) can prevent the element from receiving power. These components are designed to trip or fail if the dryer overheats. They may need to be tested for continuity or replaced if defective.
• Heating Element Continuity: If you have a multimeter, you can test the new heating element for continuity. A lack of continuity indicates a faulty element.
• Andre komponenter: Issues with the timer, control board, or motor can also affect heating.

If troubleshooting does not resolve the issue, professional appliance repair service is recommended.

Specifikationer

• Varenummer: 11063952102
• Producentens varenummer: FENE-MJP-HEA-PL-121125-12295
• Mærke: Generic (Compatible with Kenmore)
• Størrelse: Fast
• Farve: White/Black/Gray (referring to component colors)
• Varepakkemængde: 1
• Antal stykker: 1
• ASIN: B0G38FNBPB
• Dato først tilgængelig: 21. november 2025

Garanti og support

For information regarding the warranty of this replacement heating element, please refer to the seller or manufacturer directly. Specific warranty terms and conditions are typically provided at the point of purchase or on the manufacturer's official website. For technical support or further assistance, contact the seller or a qualified appliance repair professional.
