COFaR 67-inch Tall Metal Storage Cabinet with Glass Doors

Indledning

Thank you for choosing the COFaR 67-inch Tall Metal Storage Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new cabinet. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

Sikkerhedsoplysninger

• Always use proper lifting techniques when assembling and moving the cabinet to prevent injury.
• Be cautious of pinch points during assembly, especially when attaching panels and doors.
• Always follow the assembly instructions provided step-by-step.
• Sørg for, at skabet er placeret på en plan og stabil overflade for at forhindre, at det vælter.
• Utilize the included anti-tip kit to securely fasten the cabinet to a wall, especially in households with children or pets.
• Do not overload shelves beyond their maximum weight capacity of 100 lbs per shelf.

Pakkens indhold

Before assembly, verify that all components are present and undamaged. Refer to the parts list in your included physical instruction manual for specific component identification. The package typically includes:

• Metal panels (sides, top, bottom, back, shelves)
• Glass doors and solid doors
• Adjustable shelf clips
• Handles and magnetic door catches
• Monteringsudstyr (skruer, bolte osv.)
• Tip-tip sæt

Monteringsvejledning

For a detailed visual guide, please refer to the official installation video below. Ensure you have a screwdriver or power drill ready for assembly.

1. Udpak og identificer dele: Carefully unpack all components and lay them out. Match each part to the corresponding letter or number in the instruction manual.
2. Saml bundrammen: Connect the bottom panel (C) to one side panel (A) using screws (N). Ensure proper alignment.
3. Attach Second Side Panel: Connect the other side panel (B) to the bottom panel (C) using screws (N).
4. Installer tværstænger: Secure the crossbars (J, M) between the side panels using screws (N) to reinforce the structure. Pay attention to the hole positions for correct placement.
5. Assemble Top Section: Attach the top panel (H) to the upper section of the side panels using screws (R).
6. Installer bagpaneler: Slide the back panels (G, E) into the designated grooves on the side panels. Secure with screws (N).
7. Insert Shelf Clips: Place the adjustable shelf clips (O) into the desired slots on the side panels. There are 12 clips for three adjustable shelves.
8. Place Adjustable Shelves: Carefully slide the adjustable shelves (I) onto the installed shelf clips.
9. Fastgør døre: Install the magnetic catches (Q) to the cabinet frame. Attach the doors (K) to the cabinet using hinges and secure them.
10. Installer håndtag: Attach the handles (T) to the doors using screws (U).
11. Sikres med anti-tip-sæt: For safety, attach the anti-tip kit to the top of the cabinet and secure it to a wall stud.

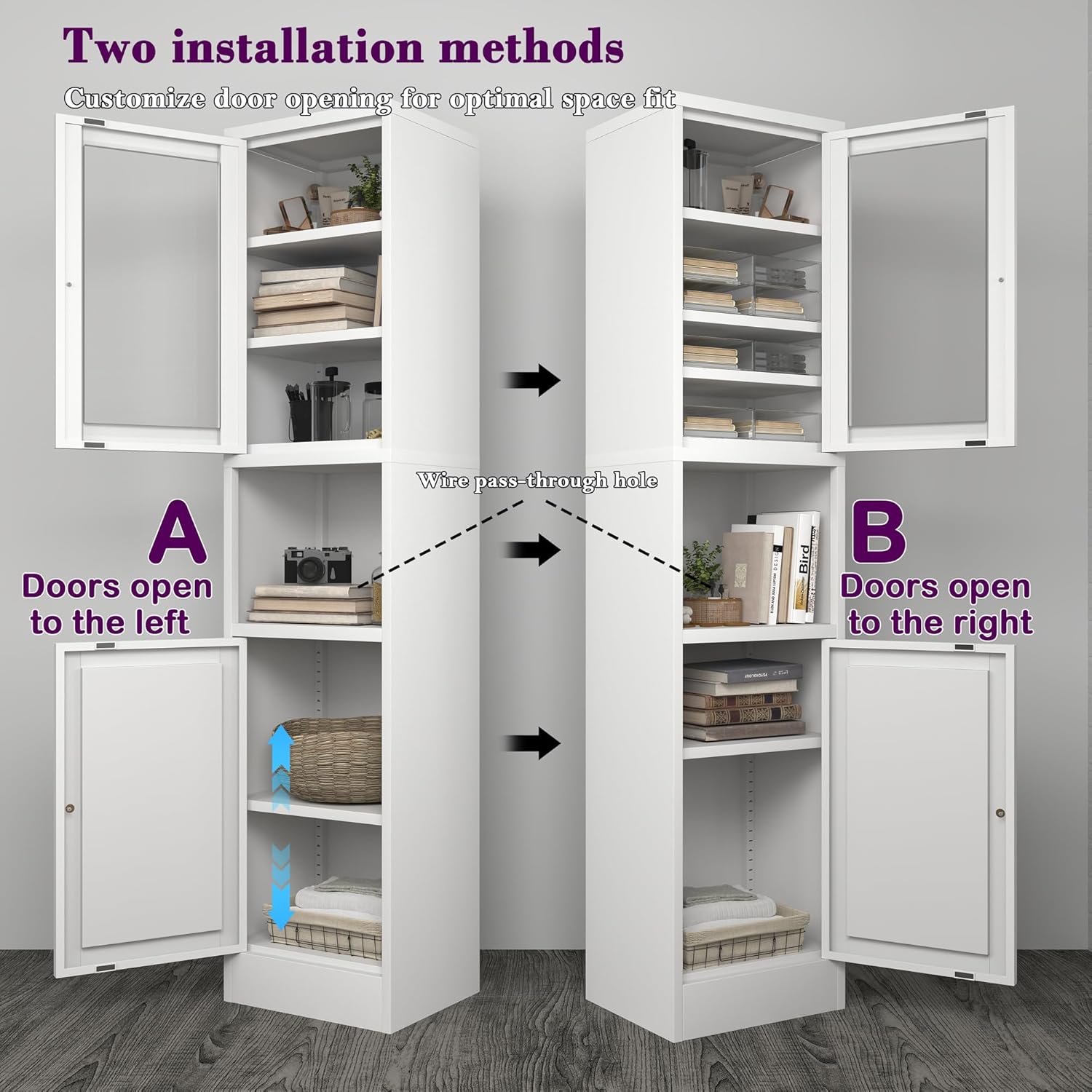

Billede: Two installation methods for doors, allowing customization for left or right opening.

Funktioner

• 6-Tier Storage Space: This narrow storage cabinet features two cabinets with doors and an open compartment, providing versatile storage.
• Justerbare hylder: Three adjustable shelves allow for customized interior space to accommodate items of various sizes. Each shelf supports up to 100 lbs.
• Unique Door Design: Doors can be configured to open to the left or right, offering flexibility for any space layout.
• Pladsbesparende design: With dimensions of 11.8" D x 15.75" W x 67" H, it is ideal for small areas in bathrooms, living rooms, or other tight corners.
• Stable and Durable Construction: Made from metal with an environmentally friendly powder coating, ensuring protection against scratches and rust. Magnetic door catches provide quiet closure.

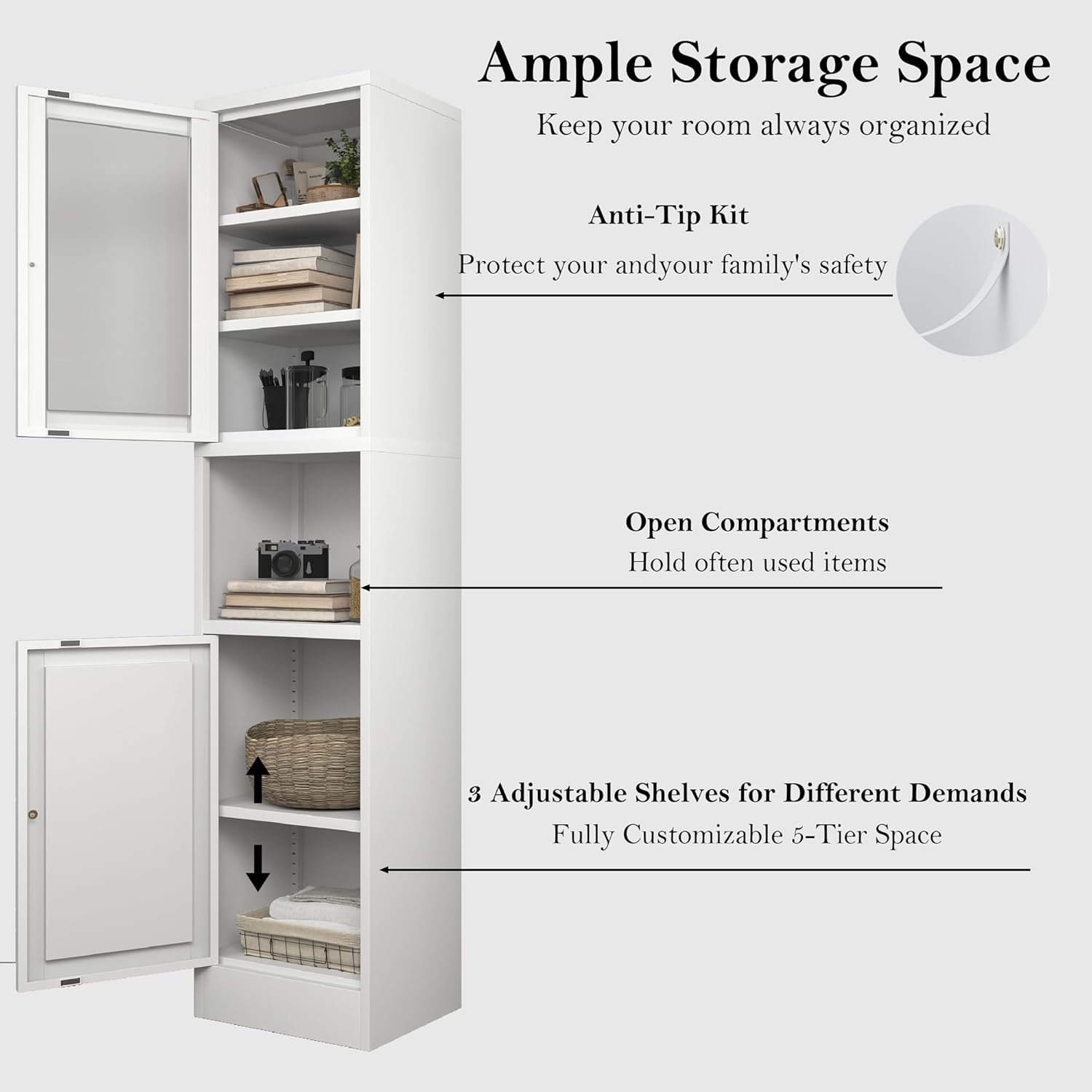

Billede: Indre view highlighting adjustable shelves, anti-tip kit, and open compartments.

Betjeningsvejledning

• Åbning/lukning af døre: Gently pull the handle to open the door. Push the door firmly until the magnetic catch engages to close it securely.
• Justering af hylder: To adjust a shelf, first remove all items from it. Lift the shelf slightly and remove the four shelf clips (O) supporting it. Reinsert the clips into the desired slots at the new height, ensuring they are level and securely seated. Then, place the shelf back onto the clips.
• Indlæsning af kabinettet: Distribute weight evenly on the shelves. Do not exceed the maximum weight capacity of 100 lbs per shelf. Place heavier items on lower shelves for better stability.

Opretholdelse

• Rensning: Tør kabinettets overflader af med en blød,amp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the powder coating.
• Inspektion: Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver fastspændte. Efterspænd om nødvendigt.
• Rustforebyggelse: The cabinet features a rust-resistant powder coating. However, avoid prolonged exposure to excessive moisture to maintain its finish.

Fejlfinding

• Kabinettet er vakkelvornt: Ensure all screws are tightened. Check that the cabinet is on a level surface. Adjust feet if applicable, or place shims under the base.
• Døre lukker ikke ordentligt: Verify that the magnetic catches are correctly installed and aligned. Check hinges for proper attachment and adjustment.
• Vanskeligheder med at justere hylder: Ensure shelf clips are fully inserted into the slots. Do not force shelves; if they are stuck, recheck clip placement.

Specifikationer

Billede: Detailed dimensions and shelf capacity of the cabinet.

Garanti og support

COFaR products are designed for quality and durability. For specific warranty information, please refer to the documentation included with your purchase or contact COFaR customer support directly. If you encounter any issues or have questions regarding assembly, operation, or parts, please reach out to our professional after-sales service team.

Billede: Professional After-Sales Service for technical assistance and installation support.
