1. Introduktion
Welcome and thank you for choosing the Vivid Green Kitchen Machine. This appliance is designed to assist you with various culinary tasks, offering powerful performance and versatile functionality. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new kitchen machine. Please read it thoroughly before first use and keep it for future reference.
2. Vigtige sikkerhedsinstruktioner
For at sikre sikker betjening og forhindre skader på apparatet eller personskade, bedes du overholde følgende sikkerhedsforanstaltninger:
- Læs alle instruktioner omhyggeligt, før du bruger apparatet.
- Motorenheden må ikke nedsænkes i vand eller andre væsker. Rengør kun med annoncer.amp klæde.
- Tag altid stikket ud af stikkontakten før montering, adskillelse, rengøring eller når apparatet ikke er i brug.
- Keep hands, hair, clothing, as well as spatulas and other utensils, away from moving parts during operation to prevent injury.
- Supervise children closely when the appliance is in use or stored within their reach. This appliance is not intended for use by children.
- Brug ikke et apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt, er blevet tabt eller beskadiget på nogen måde. Kontakt kundesupport for at få hjælp.
- Brug kun tilbehør og tilbehør, der anbefales eller sælges af producenten.
- Brug ikke apparatet udendørs.
- Sørg for, at apparatet er placeret på en stabil, flad og tør overflade under drift.
- Efterlad aldrig apparatet uden opsyn, mens det er i drift.
- Undgå kontakt med varme overflader.
3. Produktet er slutview
The Vivid Green Kitchen Machine VG001639 is a powerful 2000W appliance designed for various kitchen tasks such as mixing, kneading, and whipping. It features a 6.2-liter stainless steel mixing bowl and a smart display with timer functions.
3.1 Hovedkomponenter
Figure 1: Vivid Green Kitchen Machine VG001639
The main components include the motor unit, a 6.2-liter stainless steel mixing bowl, a tilt-head mechanism for easy access, a control panel with a digital display, and a speed dial. The robust construction ensures stability during operation.
3.2 Inkluderet tilbehør
Figure 2: Tilt-head and Dishwasher-Safe Attachments
Your kitchen machine comes with three essential, dishwasher-safe attachments:
- Dejkrog: Ideel til æltning af tunge blandinger som brøddej, pizzadej og pastadej.
- Flad piskeris: Suitable for medium-heavy mixtures such as cake batter, cookie dough, frostings, and mashed potatoes.
- Piskeris: Designed for light mixtures like whipping cream, egg whites, and light batters.

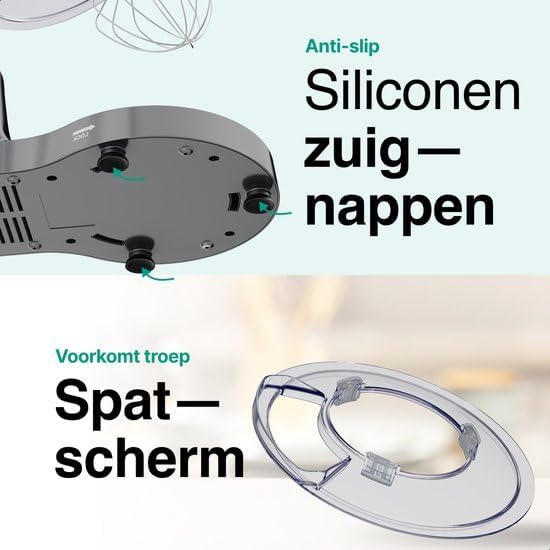

Figure 3: Anti-slip Suction Cups and Splash Guard
A transparent splash guard is also included to prevent ingredients from splashing out of the bowl during operation, keeping your workspace clean.
4. Opsætning
Follow these steps for the initial setup of your kitchen machine:
- Pakker ud: Fjern forsigtigt alle komponenter fra emballagen. Gem emballagen til senere opbevaring eller transport.
- Ren: Before first use, wash the mixing bowl, splash guard, and all attachments (dough hook, flat beater, whisk) in warm soapy water, then rinse and dry thoroughly. Wipe the motor unit with a damp klæde.
- Placering: Place the motor unit on a clean, dry, stable, and level surface. Ensure there is enough space around the appliance for ventilation and operation. The machine is equipped with anti-slip silicone suction cups on its base for enhanced stability.
- Fastgør blandeskål: Place the stainless steel mixing bowl onto the base of the motor unit and turn it clockwise until it locks securely into place.
- Vedhæft tilbehør: Lift the tilt-head by pushing the release lever. Select the desired attachment (dough hook, flat beater, or whisk) and insert it into the attachment shaft, turning it until it clicks into place. Lower the tilt-head until it locks.
- Fastgør stænkskærm: If desired, place the splash guard over the mixing bowl, ensuring it fits snugly.
5. Betjeningsvejledning
5.1 Generel drift
- Ensure the appliance is correctly assembled and the tilt-head is locked down.
- Tilsæt dine ingredienser til blandeskålen.
- Sæt netledningen i en passende stikkontakt.
- Use the speed dial to select the desired speed. Start with a lower speed and gradually increase as needed to prevent splashing.
- The digital display will show the current speed and function.
- To stop the machine, turn the speed dial to the 'P' (Pulse) position and then to '0' (Off), or simply unplug the appliance.
5.2 Speed Settings Guide
The machine offers 6 speed settings and a pulse function for precise control:
| Hastighed | Anbefalet brug | Vedhæftet fil |
|---|---|---|
| 1-2 (lav) | Kneading heavy dough (bread, pizza), mixing thick batters. | Dejkrog |
| 3-4 (Mellem) | Mixing cake batters, cookie dough, frostings, mashing potatoes. | Flad Beater |
| 5-6 (høj) | Whipping cream, egg whites, light batters, sauces. | Pisk |
| P (Puls) | Short bursts of maximum power for quick mixing or incorporating ingredients. | Alle vedhæftede filer |
5.3 Brug af timerfunktionen

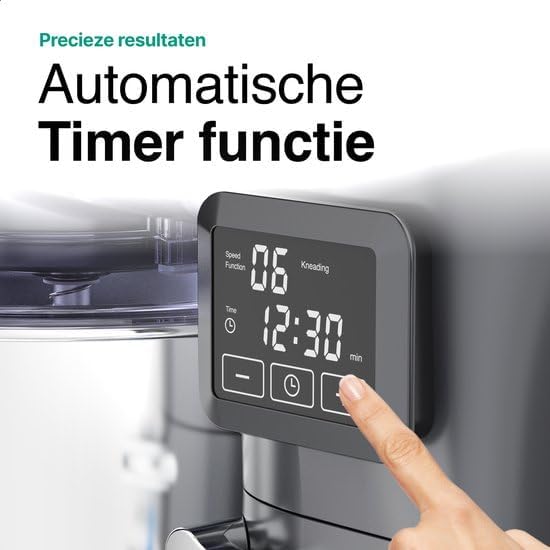

Figure 4: Automatic Timer Function Display
The digital display includes an automatic timer function for precise control over your mixing tasks. Refer to the specific instructions in the full manual for setting and utilizing the timer and automatic programs.
5.4 Planetary Mixing Action
The Vivid Green Kitchen Machine utilizes a planetary mixing action, where the attachment rotates on its own axis while simultaneously orbiting around the inside of the bowl. This ensures thorough and even mixing of all ingredients, reaching all areas of the bowl.
Figure 5: Kitchen Machine in Operation with Whisk
6. Vedligeholdelse og rengøring
Regular cleaning and maintenance will prolong the life of your kitchen machine.
- Tag altid stikket ud af stikkontakten apparatet før rengøring.
- Motorenhed: Tør motorenheden af med en blød, damp klud. Brug ikke slibende rengøringsmidler, og nedsænk ikke enheden i vand.
- Blandeskål og tilbehør: The stainless steel mixing bowl, dough hook, flat beater, and whisk are dishwasher-safe for easy cleaning. Alternatively, they can be washed by hand in warm soapy water, then rinsed and dried thoroughly.
- Splash Guard: The splash guard is also dishwasher-safe or can be hand-washed.
- Sørg for, at alle dele er helt tørre, før du samler eller opbevarer apparatet igen.
7. Fejlfinding
If you encounter any issues with your Vivid Green Kitchen Machine, please refer to the following table for common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Apparatet tændes ikke. | Not plugged in; power outlet faulty; tilt-head not locked. | Ensure power cord is securely plugged in. Test outlet with another appliance. Ensure tilt-head is fully lowered and locked. |
| Motor struggles or stops during operation. | Overloaded with ingredients; mixture too thick; incorrect speed setting. | Reduce the amount of ingredients. Add liquid if mixture is too thick. Use a lower speed for heavy mixtures. |
| Usædvanlig støj under drift. | Attachment not properly secured; bowl not locked; foreign object in bowl. | Ensure attachment and bowl are securely locked. Unplug and check for any foreign objects. |
| Ingredienserne blandes ikke jævnt. | Insufficient mixing time; incorrect attachment for mixture. | Increase mixing time. Ensure the correct attachment is used for the type of mixture. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.
Figure 6: Quiet Operation of the Kitchen Machine
8. Tekniske specifikationer
- Model: VG001639
- Magt: 2000W
- Voltage: [Standardvolumentage, e.g., 220-240V ~ 50/60Hz] (Not specified in input, placeholder)
- Blandeskålens kapacitet: 6.2 liter
- Dimensioner (L x B x H): 38.7 x 23.8 x 31.4 cm
- Materiale: Rustfrit stål, plast
- Antal hastigheder: 6 + pulsfunktion
- Særlige funktioner: Automatic Timer, Planetary Mixing Action, Pulse Function, Stir Function, Turbo Feature
- Farve: Antracit
9. Garanti og support
Your Vivid Green Kitchen Machine is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and how to make a claim.
For technical support, spare parts, or any questions regarding your appliance, please contact Vivid Green customer service. Contact details can typically be found on our official webwebstedet eller på produktemballagen.
