1. Produktet er slutview
The EAZYRC FMS FCX24 TOYOTA TACOMA 1/24 RC Crawler is an officially licensed scale model designed for off-road enthusiasts. This Ready-To-Run (RTR) vehicle features a durable chassis, a 2-speed transmission, and a high-torque motor, providing robust performance for various terrains.
Figure 1.1: FMS FCX24 Toyota Tacoma RC Crawlers in various colors.
Nøglefunktioner:
- Official TOYOTA TACOMA Scale Design: Features an ABS hard body with metal powder paint for a realistic appearance.
- Advanced FCX24M Chassis: Equipped with a heavy-duty metal ladder frame for enhanced structural durability.
- 2-trins gearkasse: Allows switching between high speed for flat surfaces and low gear for technical crawling.
- Exceptional Off-Road Performance: Counter-rotating transmission structure for improved stability and large-diameter tires for increased ground clearance.
- Ready-to-Run (RTR): Includes a 4WD system, 050 brushed motor, all-metal bearings, R3A 10A 2-in-1 ESC (splash-proof), and a 2S 7.4V 380mAh battery.
Figur 1.2: Detaljeret views of the FMS FCX24 Toyota Tacoma RC Crawler.
2. Pakkens indhold
Verify that all items listed below are included in your package. If any items are missing or damaged, please contact your retailer or EAZYRC customer support.
- FMS FCX24 TOYOTA TACOMA 1/24 RC Crawler (assembled)
- Fjernbetjeningssender
- 2S 7.4V 380mAh Lithium-Ion Battery
- Opladningsadapter
- Skruetrækker sæt
- Replaceable Front Grille
- Replaceable Front Bumper
- Produktmanual (dette dokument)
Figur 2.1: Inkluderede komponenter i produktpakken.
3. Opsætning
3.1 Batteriinstallation
- Ensure the RC crawler and transmitter are powered off.
- Locate the battery compartment on the RC crawler. The body shell can be quickly released for access.
- Connect the 2S 7.4V 380mAh Lithium-Ion battery to the ESC (Electronic Speed Controller) connector.
- Secure the battery within its compartment, ensuring wires are not pinched.
- For the transmitter, install the required 9V battery (included) into its designated compartment.
Figure 3.1: Quick-release body structure for easy access to internal components.
3.2 Opladning af batteriet
Use the provided charging adapter to charge the 2S 7.4V 380mAh Lithium-Ion battery. Follow the instructions provided with the charging adapter for safe and proper charging. Do not overcharge the battery.
3.3 Senderbinding
Your RC crawler and transmitter should be pre-bound from the factory. If re-binding is necessary, refer to the specific instructions in the separate transmitter manual or contact customer support. Generally, the process involves powering on the transmitter, then the vehicle, and pressing a bind button on both devices within a short timeframe.
4. Betjeningsvejledning
4.1 Grundlæggende kontroller
- Gashåndtag: Use the trigger on the transmitter to control forward and reverse movement. Pull for forward, push for reverse.
- Styretøj: Use the steering wheel on the transmitter to control left and right turns.
4.2 2-Speed Transmission Operation
The FCX24 TOYOTA TACOMA features a 2-speed transmission, allowing you to adapt to different driving conditions. A button on your transmitter allows you to switch between high and low gear.
- Lavt gear: Provides maximum torque and control for technical crawling over obstacles.
- Højt gear: Offers higher speed for traversing flatter terrain.
Figure 4.1: The 2-speed transmission allows for versatile driving.
4.3 Køretips
- Start in low gear for precise control when navigating challenging obstacles.
- Maintain a steady throttle input to prevent rollovers on inclines or uneven surfaces.
- Practice in open areas before attempting complex maneuvers.
Video 4.1: Official product video demonstrating the FMS FCX24M TACOMA 1/24 RC Crawler's features and performance. This video showcases the vehicle's design, counter-rotating transmission, quick-release body mount, metal drivetrain, and 2-speed transmission in action.
5. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your RC crawler.
5.1 Rengøring
- After each use, especially in dusty or muddy conditions, clean the vehicle with a soft brush or compressed air.
- Undgå at bruge vand direkte på elektroniske komponenter. Brug om nødvendigt vand.amp kluden, og sørg for, at komponenterne er helt tørre, inden de tages i brug igen.
5.2 Komponentinspektion
- Kontrollér regelmæssigt alle skruer og fastgørelseselementer for fastspænding.
- Inspect the metal frame, gears, and ball bearings for any signs of wear or damage. Replace worn parts as needed.
- Check tires for cuts or excessive wear.

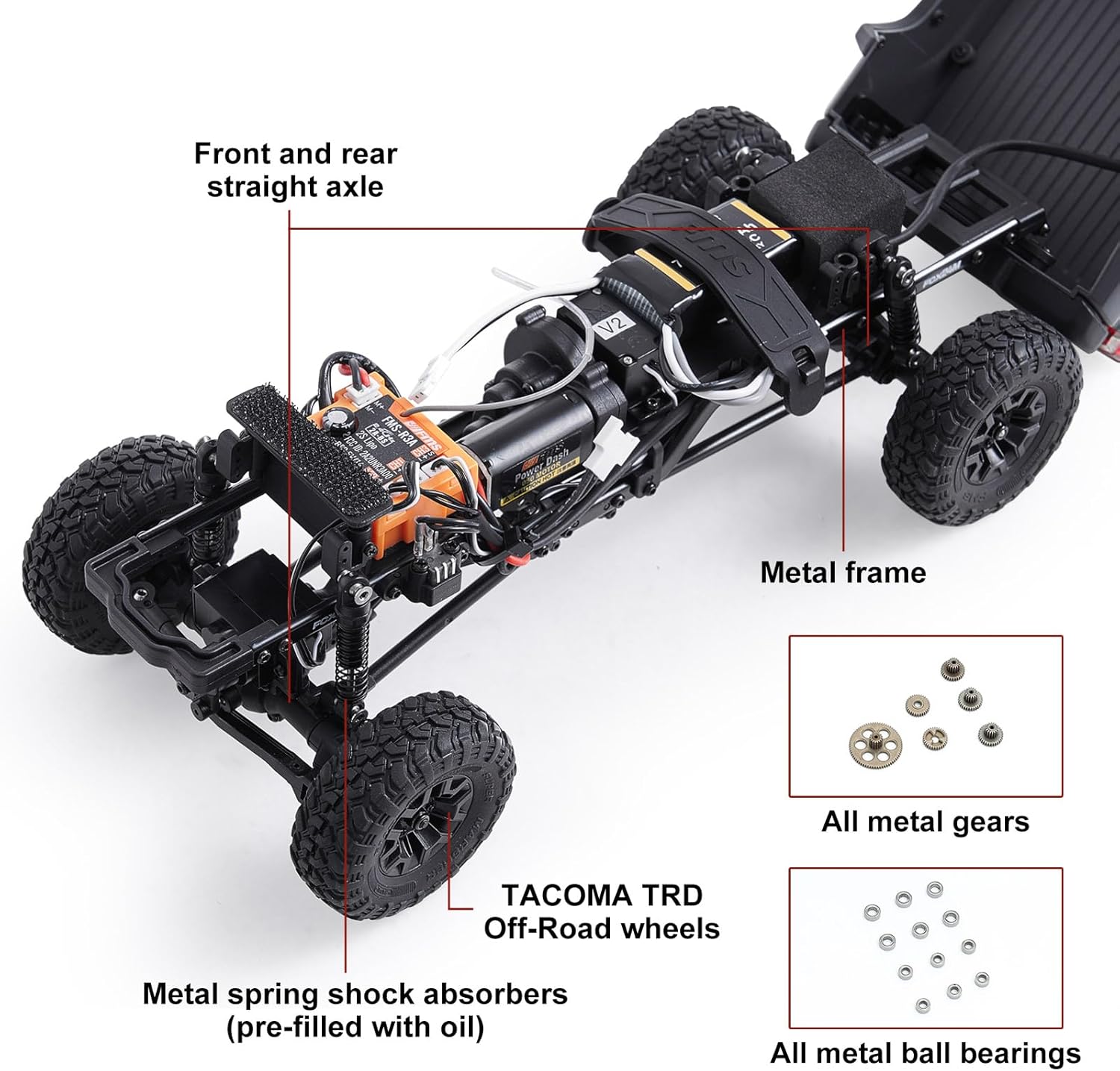

Figur 5.1: View of the durable metal chassis and drivetrain components.
5.3 Pleje af batterier
- Opbevar batterier på et køligt, tørt sted væk fra direkte sollys.
- Do not store fully charged or completely discharged batteries for extended periods. Charge to storage voltage if storing for more than a few days.
6. Fejlfinding
If you encounter issues with your FMS FCX24 TOYOTA TACOMA, refer to the following common troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køretøjet reagerer ikke på senderen. | Lavt batteri i køretøj eller sender; ikke bundet; strømafbryder slukket. | Charge vehicle battery; replace transmitter battery; ensure both power switches are ON; re-bind transmitter and vehicle. |
| Køretøjet kører langsomt eller mangler kraft. | Low vehicle battery; debris in drivetrain; motor issue. | Charge vehicle battery; clean drivetrain components; inspect motor for damage. |
| Styringen er uregelmæssig eller reagerer ikke. | Servo issue; loose steering linkages; transmitter trim settings. | Check servo connections; tighten linkages; adjust steering trim on transmitter. |
| Vehicle stops working after a short period. | Battery depletion; overheating of electronics. | Ensure battery is fully charged; allow vehicle to cool down if used continuously for long periods. |
If the problem persists after attempting these solutions, please contact EAZYRC customer support for further assistance.
7. Specifikationer
Detailed technical specifications for the FMS FCX24 TOYOTA TACOMA 1/24 RC Crawler.
| Feature | Detalje |
|---|---|
| Mærkenavn | EAZYRC |
| Modelnavn | FMS FCX24M TOYOTA TACOMA |
| Producentens varenummer | FMS12451RTR |
| Skala | 1: 24 skala |
| Varedimensioner (L x B x H) | 10 x 4.1 x 4.1 tommer |
| Materiale Type | Acrylonitril Butadien Styren (ABS) |
| Strømkilde | Batteridrevet |
| Driftstilstand | Fjernbetjening |
| Batteritype (køretøj) | Lithium-Ion (2S 7.4V 380mAh) |
| Batterier medfølger | Yes (1 vehicle battery, 1 9V transmitter battery) |
| Er samling påkrævet | No (RTR) |
| Farve | Blå (variant) |
| UPC | 710329240772 |
Figure 7.1: Product dimensions and scale comparison.
8. Garanti og support
For warranty information, please refer to the documentation provided with your purchase or contact the retailer. For technical support, replacement parts, or any other inquiries, please reach out to EAZYRC customer service through their official channels.
