SUNVIVI Espresso Pod Machine ZEC008 User Manual

1. Vigtige sikkerhedsinstruktioner

Læs venligst alle instruktioner omhyggeligt, inden apparatet tages i brug. Gem denne manual til senere brug.

• Sørg for, at voltage-klassificeringen på apparatet stemmer overens med din lokale strømforsyning.
• Apparatet, netledningen eller stikket må ikke nedsænkes i vand eller andre væsker.
• Tag stikket ud af stikkontakten, når den ikke er i brug, og før rengøring. Lad den køle af, før du tilføjer eller fjerner dele.
• Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Brug af tilbehør, der ikke er anbefalet af apparatets producent, kan resultere i brand, elektrisk stød eller personskade.
• Må ikke bruges udendørs.
• Lad ikke ledningen hænge ud over kanten af ​​et bord eller bord, eller rør ved varme overflader.
• Må ikke placeres på eller i nærheden af ​​en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
• Sæt altid stikket i apparatet først, og sæt derefter ledningen i stikkontakten. For at afbryde forbindelsen skal du slukke for en vilkårlig knap og derefter tage stikket ud af stikkontakten.
• Dette apparat er kun til husholdningsbrug.
• Vær yderst forsigtig, når du bruger varm damp.
• The appliance features an automatic energy-saving mode, shutting off after 9 minutes of inactivity.
• Built-in overheating and anti-dry burning protection are included for safety.

2. Produktet er slutview

Familiarize yourself with the components of your SUNVIVI Espresso Pod Machine.

This diagram illustrates the main components: the machine body, operating lever, capsule container, coffee buttons, coffee extraction nozzle, espresso coffee cup tray, lungo coffee cup tray, drip tray with removable cover, used capsule container, removable water tank & lid, and power cord.

The machine is designed for compact spaces, measuring approximately 13.5"D x 3.8"W x 9.5"H.

The machine's narrow design (3.8 inches wide) makes it suitable for various locations such as kitchens, offices, or during travel.

3. Opsætning

3.1 Udpakning

Carefully remove all packaging materials and ensure all components are present. Retain packaging for future transport or storage.

3.2 Installation og påfyldning af vandtank

The machine features a 22oz (650ml) removable water tank. Ensure it is correctly installed to prevent leaks.

• Fjern vandtanken fra bagsiden af ​​maskinen.
• Fill the tank with fresh, clean drinking water up to the MAX line.
• Insert the water tank back into the machine, ensuring it is seated tightly and aligned with the upside part. The round hole on the water tank cover should be close to the inner side to prevent leaks.

This image highlights the large capacity, removability, washability, and visual water level indicator of the water tank.

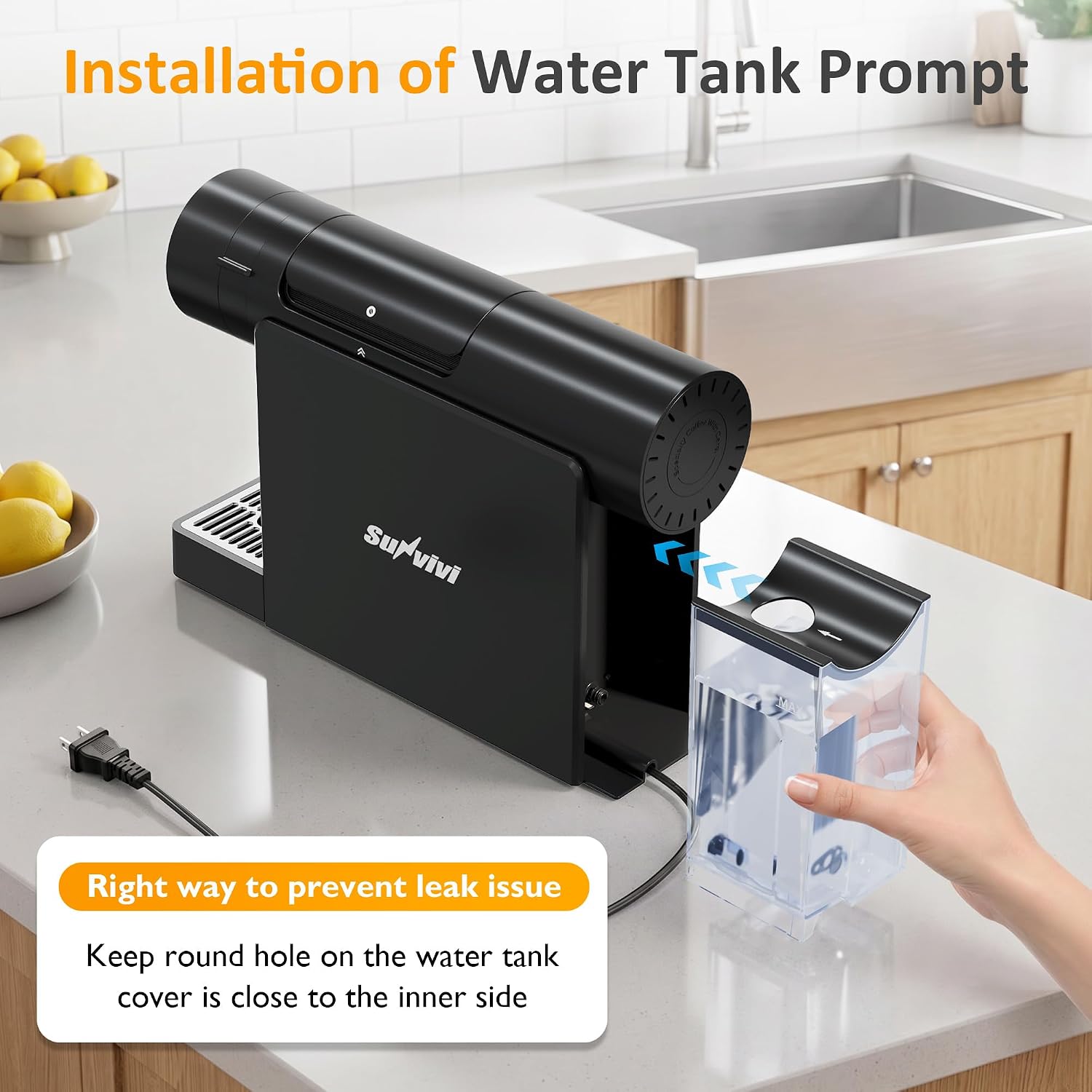

This image shows the proper way to insert the water tank, emphasizing the alignment of the round hole on the cover with the inner side.

3.3 Første skylning

Before first use or after a long period of inactivity, perform an initial rinse:

1. Sørg for, at vandtanken er fyldt.
2. Place an empty cup under the coffee extraction nozzle.
3. Tænd for maskinen.
4. Press the Lungo (80ml) button without inserting a capsule. The machine will dispense hot water, cleaning the internal system.
5. Gentag denne proces 2-3 gange.

4. Betjeningsvejledning

Your SUNVIVI Espresso Pod Machine is compatible with Nespresso OriginalLine capsules.

4.1 Grundlæggende betjeningstrin

The steps are: 1. Add Water, 2. Place Capsule, 3. Select the Mode, 4. Enjoy Your Coffee.

4.2 Adding a Capsule

1. Lift the operating lever to open the capsule compartment.
2. Insert a Nespresso OriginalLine capsule into the compartment.
3. Close the operating lever firmly.

The machine is designed for easy and effortless loading of compatible capsules.

4.3 Brewing Coffee (Espresso & Lungo)

The machine offers two pre-set programmable modes for different cup sizes:

• Espresso (40ml / 1.35 oz): Til et koncentreret shot kaffe.
• Lungo (80ml / 2.7 oz): Til en længere kaffe.

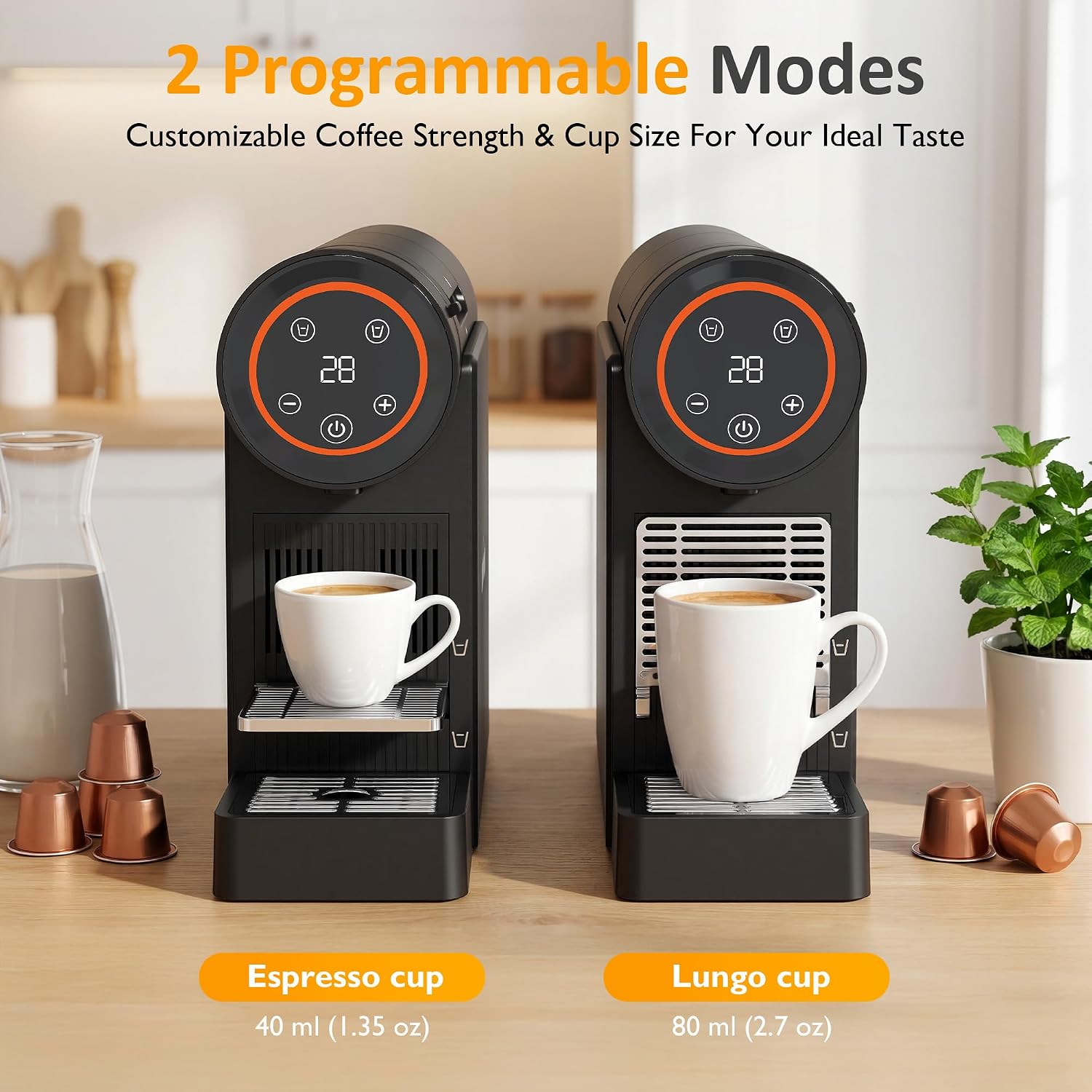

This image displays the machine preparing both an Espresso cup and a Lungo cup, indicating the respective volumes.

To brew:

1. Ensure the water tank is filled and a capsule is inserted.
2. Place your desired cup on the adjustable cup tray.
3. Press either the Espresso (small cup icon) or Lungo (large cup icon) button on the control panel. The machine will begin brewing.
4. The machine will automatically stop when the pre-set volume is reached.

4.4 Tilpasning af bryggemængde

You can adjust the brew volume for both Espresso and Lungo settings to match your preference.

1. Insert a capsule and place a cup.
2. Press and hold the desired coffee button (Espresso or Lungo).
3. Release the button when the desired volume of coffee has been dispensed into your cup. The machine will remember this setting for future brews of that type.
4. To reset to factory default, refer to the troubleshooting section or contact customer support.

The 20 bar professional pump ensures effective extraction for rich coffee aroma and thick, velvety golden crema.

5. Vedligeholdelse

Regular cleaning and maintenance ensure optimal performance and longevity of your espresso machine. All removable parts are designed for easy cleaning.

5.1 Rengøring af vandtanken

• Fjern vandtanken fra maskinen.
• Wash with mild detergent and rinse thoroughly with clean water.
• Må ikke vaskes i opvaskemaskine.
• Dry completely before reattaching.

5.2 Cleaning the Drip Tray and Used Capsule Container

The drip tray and used capsule container are removable for easy cleaning.

• Carefully pull out the drip tray and the integrated used capsule container.
• Empty any liquid from the drip tray and discard used capsules from the container. The container holds 7-10 capsules.
• Wash both parts with mild detergent and rinse thoroughly.
• Dry completely before reassembling and placing back into the machine.

Dette billede giver en view of the used capsule container, highlighting its capacity and dimensions.

5.3 Afkalkning

Over time, mineral deposits can build up in your machine, affecting performance. Descaling is recommended every 3-6 months, depending on water hardness and usage.

1. Empty the water tank and fill it with a descaling solution (follow the descaling solution manufacturer's instructions for dilution).
2. Place a large container (at least 1 liter) under the coffee extraction nozzle.
3. Tænd for maskinen.
4. Run the entire descaling solution through the machine by repeatedly pressing the Lungo button until the tank is empty. Do not insert any capsules during this process.
5. Skyl vandtanken grundigt, og fyld den med frisk vand.
6. Repeat the rinsing process by running several full tanks of fresh water through the machine to ensure all descaling solution is removed.

6. Fejlfinding

Se tabellen nedenfor for almindelige problemer og deres løsninger.

7. Specifikationer

8. Garanti og support

For warranty information and customer support, please refer to the product packaging or contact SUNVIVI customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, visit the official SUNVIVI webwebstedet eller kontakt deres supportteam via de kontaktoplysninger, der følger med dit produkt.
