Indledning
This manual provides detailed instructions for the proper installation and use of the TimberTech Cortex Collated Hidden Screws and Plug System. This system is designed to create a fastener-free surface for TimberTech composite decking, ensuring a clean aesthetic and secure hold.
Sikkerhedsoplysninger
Always prioritize safety when working with tools and construction materials. Read and understand all instructions before beginning installation. Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection. Ensure your work area is well-lit and clear of obstructions. Keep children and pets away from the work area. Use power tools according to their manufacturer's instructions.
Pakkens indhold
Verify that all components are present in your TimberTech Cortex Hidden Fastening System package:
- (240) Plugs: Color-matched composite plugs for concealing screw heads.
- (224) Screws: Collated screws designed for secure fastening.
- (2) Setting Tools: Tools to ensure screws are driven to the correct depth.

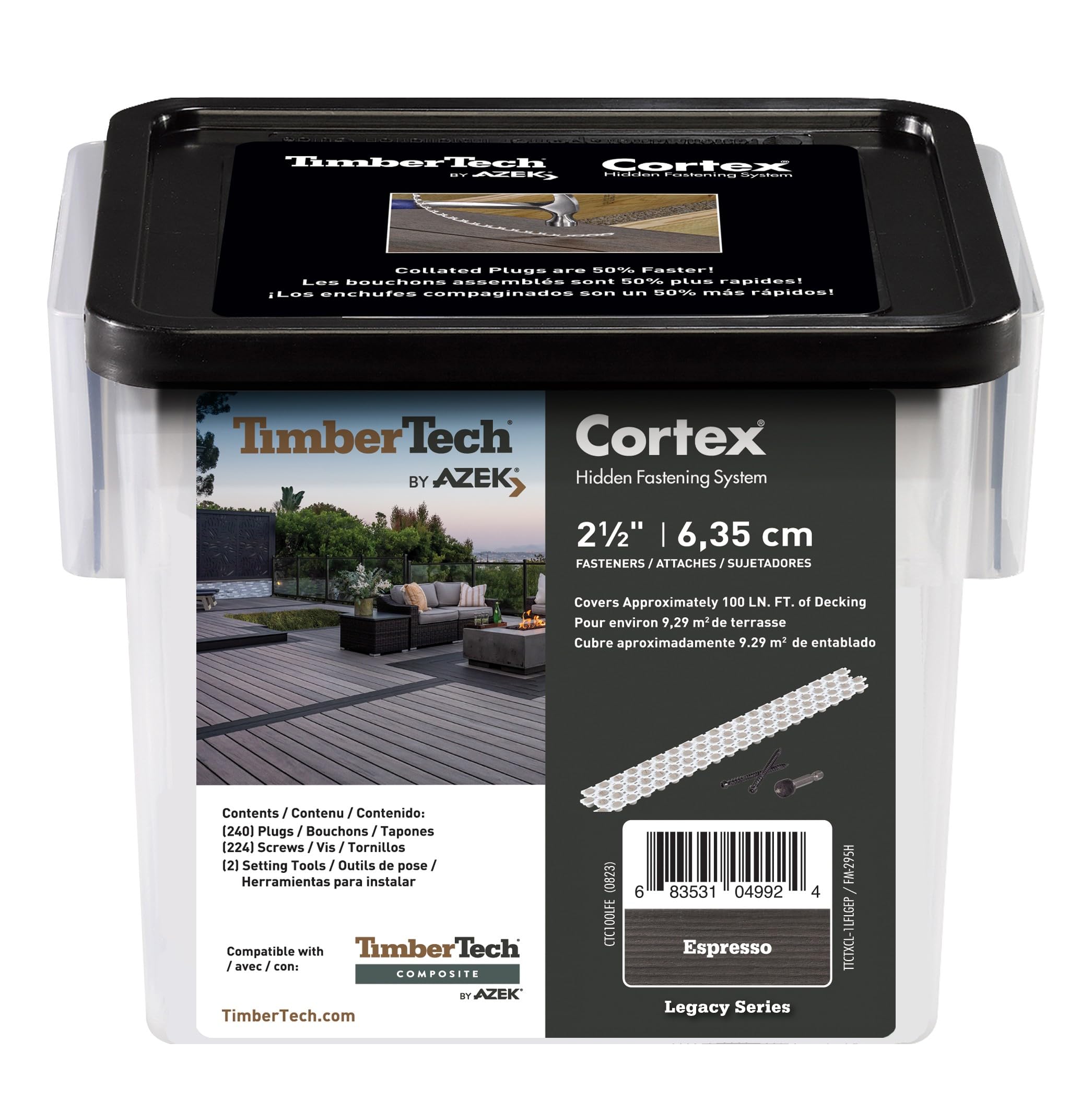

Image: The TimberTech Cortex Hidden Fastening System package. The label indicates contents including plugs, screws, and setting tools, designed for composite decking. The color of this specific package is Espresso.
Opsætning
Nødvendige værktøjer (ikke inkluderet):
- Akku boremaskine/skruemaskine
- Målebånd
- Blyant
- Sikkerhedsbriller og handsker
Forberedelse:
- Ensure your TimberTech composite decking boards are clean and free of debris.
- Lay out your decking boards according to your design plan, ensuring proper spacing and alignment.
- Familiarize yourself with the Cortex setting tool and the collated screw strips.
Operating (Installation)
Follow these steps for proper installation of the TimberTech Cortex Hidden Fastening System:
- Position the Decking Board: Place the first decking board onto the joists, ensuring it is properly aligned and spaced.
- Insert Screw into Setting Tool: Take one of the collated screw strips and insert a screw into the Cortex setting tool. The tool is designed to hold the screw at the correct angle and depth.
- Drive the Screw: Place the setting tool with the screw onto the decking board where you intend to fasten it. Using a cordless drill/driver, drive the screw through the decking board and into the joist. The setting tool will stop the screw at the precise depth, creating a perfect recess for the plug.
- Remove Setting Tool: Once the screw is fully driven and the setting tool has stopped, remove the tool. A clean, countersunk hole should be visible.
- Sæt stikket i: Take a color-matched Cortex plug from the collated strip. Insert the plug into the countersunk hole. The plug should fit snugly and sit flush with the decking surface. A light tap with a rubber mallet may be used if necessary, but avoid excessive force.
- Gentage: Continue this process for all required fastening points on the decking board. The collated strips of screws and plugs are designed for efficient, repetitive installation.
Billede: Et nærbillede view of the TimberTech Cortex collated plugs and screws. The plugs are arranged in strips for quick installation, and the screws are designed to create a precise recess for the plugs.
Opretholdelse
The TimberTech Cortex Hidden Fastening System requires minimal maintenance. Regular inspection of your deck is recommended.
- Rensning: Clean your TimberTech decking according to the manufacturer's guidelines. This will help maintain the appearance of the plugs.
- Inspektion: Periodically inspect the deck surface for any loose or dislodged plugs. While rare, if a plug becomes loose, it can typically be re-inserted or replaced.
- Skade: If a plug or screw is damaged, contact TimberTech support for guidance on replacement or repair.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Plug not sitting flush | Screw not driven to correct depth; debris in hole. | Ensure the setting tool is used correctly to drive the screw fully. Clear any debris from the hole before inserting the plug. |
| Screw not driving properly | Incorrect drill speed; worn drill bit; obstruction in joist. | Use appropriate drill speed. Ensure your drill bit is in good condition. Check for obstructions in the joist. |
| Stikket er løst | Insufficient force during insertion; damaged plug. | Ensure the plug is tapped firmly into place. Replace damaged plugs. |
Specifikationer
- Modelnummer: CTC100
- Materiale: Carbon Steel (screws), Composite (plugs)
- Farve: Espresso (for this variant)
- Varens vægt: 4.4 pund
- Dækning: Approximately 100 Linear Feet of Decking
- Indhold: 240 Plugs, 224 Screws, 2 Setting Tools
- UPC: 683531049962
Garantioplysninger
For detailed warranty information regarding the TimberTech Cortex Hidden Fastening System, please refer to the documentation included with your purchase or visit the official TimberTech webwebsted. Garantivilkår og -betingelser kan variere.
