Quntis ScreenLinear Curved Plus Monitor Light User Manual

Model: LI-HY-0213-GY | Brand: Quntis

Indledning

The Quntis ScreenLinear Curved Plus Monitor Light is designed to provide optimal illumination for both curved and flat monitors, enhancing your workspace with advanced lighting technology. This manual provides detailed instructions for setup, operation, and maintenance to ensure you get the most out of your device.

Pakkens indhold

Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke:

  • ScreenLinear Curved Plus Monitor Light (Main Unit) x 1
  • Trådløs fjernbetjening x 1
  • USB Type-C-kabel x 1
  • Strømadapter x 1
  • 3 AAA-batterier (til fjernbetjening)
  • Brugervejledning x 1
  • Remote Control Instruction Manual x 1
Package contents including monitor light, remote, cables, adapter, and manuals.
Image: All components included in the Quntis ScreenLinear Curved Plus package.

Opsætningsinstruktioner

  1. Installer batterier i fjernbetjeningen: Open the battery compartment on the back of the remote control and insert 3 AAA batteries, ensuring correct polarity.
  2. Attach Monitor Light to Monitor:
    • The light features a patented clamp design that supports monitors up to 8cm (3.15 inches) thick.
    • Juster clamp to fit your monitor's thickness. The dual-axis design allows for angle adjustment to match your viewvinkel.
    • Ensure the silicone pads firmly grip the monitor to prevent slipping. The counterweight helps maintain stability.
    Diagram showing the patented clamp mechanism for various monitor types: thin, thick, and special shapes.
    Billede: Detaljeret view of the patented clamp, showing its adjustability for different monitor thicknesses and shapes, including thin, thick, and special-shaped monitors.
    Monitor light attached to various monitor sizes (34, 32, 27 inches) and types (thin, thick, special shape) with a 66cm clamp bredde.
    Image: The monitor light is compatible with various monitor sizes (34, 32, 27 inches) and types, including thin, thick, and specially shaped monitors, thanks to its adjustable 66cm clamp.
  3. Tilslut strøm: Connect the USB Type-C cable to the monitor light and the power adapter. Plug the adapter into a power outlet.
  4. Adjust Light Bar Angle: The two arched LED light bars can be independently rotated to perfectly match your monitor's curvature (1000R to 3000R) and eliminate shadows or reflections. The light offers a 180-degree irradiation angle cover.
Diagram showing the curved foldable design of the monitor light, illustrating its compatibility with various monitor curvatures from 1000R to 3000R.
Image: The curved foldable design allows for seamless integration with curved monitors, supporting curvatures from 1000R to 3000R.
The monitor light's irradiation angle can be adjusted 180 degrees, allowing precise control over the light direction.
Image: The light bars can be rotated up to 180 degrees, providing flexible control over the illumination angle.

Betjeningsvejledning

The Quntis ScreenLinear Curved Plus offers intuitive control via its wireless remote control.

Fjernbetjeningsfunktioner

Detaljeret view of the 2.4GHz smart remote control with buttons for power, brightness adjustment, color temperature adjustment, backlight, and ambient light sensor toggle.
Image: The 2.4GHz smart remote control features clearly labeled buttons for main power, brightness adjustment, color temperature adjustment, backlight control, and ambient light sensor toggle.
  • Hovedstrømknap: Tryk for at tænde/slukke lyset.
  • Knap til justering af lysstyrke: Short press to cycle through preset brightness levels. Long press for continuous dimming.
  • Color Temperature Adjustment Button: Short press to cycle through 4 color temperature modes (3000K, 4000K, 5000K, 6500K). Long press for continuous adjustment.
  • Baggrundslys knap: Press to turn the monitor's backlight ON/OFF.
  • Ambient Light Sensor Toggle: Press to activate/deactivate the automatic dimming function.

Belysningstilstande

The monitor light offers various modes to suit different tasks:

  • Wide Angle Mode: Illuminates a broad desk area evenly.
  • Fokustilstand: Concentrates light on a specific area, ideal for detailed work.
Illustrations of three lighting modes: Work Mode for focused tasks, Immersion Mode for ambient lighting, and Design Mode for accurate color representation.
Image: The light offers three distinct modes: Work Mode for focused tasks, Immersion Mode for an enveloping ambient light, and Design Mode for precise color work.

Automatisk dæmpning

The built-in ambient light sensor automatically adjusts the brightness to maintain optimal illumination based on your surroundings, ensuring a comfortable viewoplevelse uden manuelle justeringer.

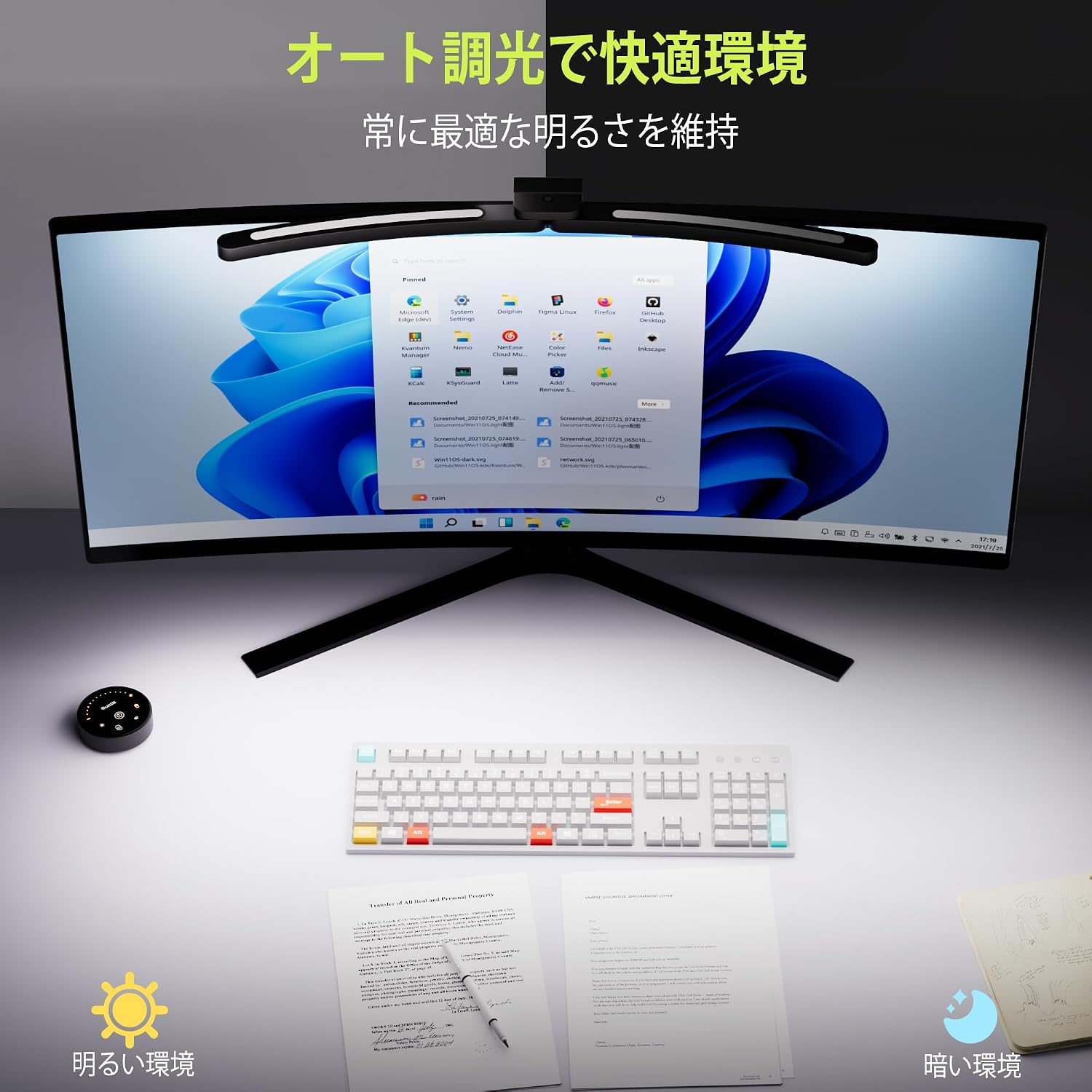

Monitor light with auto-dimming feature, showing how it maintains optimal brightness in both bright and dark environments.
Image: The auto-dimming feature ensures optimal brightness is maintained, adapting to both bright and dark ambient conditions for user comfort.

Nøglefunktioner

  • Curved & Large Monitor Compatibility: Specifically designed for 1000R to 3000R curved monitors and large displays exceeding 34 inches.
  • Dual Adjustable Light Bars: Two arched LED light bars can be independently rotated to perfectly fit your monitor's shape, eliminating shadows and reflections.
  • W-Illumination System: Combines front main illumination with a monitor backlight to reduce contrast glare and eye strain.
  • Asymmetric Light Distribution: Directs light onto your desk area, preventing direct reflection (glare) on the screen and protecting your eyes.
  • High Color Rendering (Ra98) & Full Spectrum: Equipped with 112 high-quality LEDs for front lighting and 78 for backlighting, achieving a Ra98 color rendering index for accurate color reproduction, crucial for design and photo editing.
  • Smart & Intuitive Operation: Features automatic brightness adjustment based on ambient light and a 2.4GHz wireless remote control for convenient operation from your seat.
  • Pladsbesparende Clamp Design: Utilizes a slide-type clamp that doesn't occupy desk space, compatible with monitor thicknesses up to approximately 8cm.
Comparison of traditional light vs. Quntis ScreenLinear Curved Plus showing asymmetric light distribution preventing screen glare.
Image: Asymmetric light design effectively cuts screen glare, providing a superior lighting experience that illuminates the desk without reflecting on the monitor.
Image demonstrating Ra98 high CRI for true color reproduction, comparing Quntis to other products.
Image: Ra98 High CRI ensures true color reproduction, faithfully rendering colors as they are, essential for professional creative work.

Opretholdelse

  • Rensning: Use a soft, dry cloth to wipe the surface of the monitor light and remote control. Do not use abrasive cleaners or solvents.
  • Opbevaring: Når enheden ikke er i brug i længere perioder, skal den opbevares et køligt og tørt sted.
  • Udskiftning af batteri: Replace the AAA batteries in the remote control when the indicator light dims or the remote becomes unresponsive.

Fejlfinding

ProblemMulig årsagLøsning
Lyset tændes ikke.No power connection. Remote control batteries are dead.Check USB cable and power adapter connection. Replace remote control batteries.
Fjernbetjeningen reagerer ikke.Low or dead batteries. Interference.Replace batteries. Ensure no obstructions between remote and light.
Lyse flimrer.Ustabil strømforsyning.Ensure the power adapter is connected to a stable power source.
Automatic dimming not working.Ambient light sensor is off.Press the ambient light sensor toggle button on the remote to activate.

Specifikationer

  • Modelnummer: LI-HY-0213-GY
  • Dimensioner (D x B x H): 2.5 x 66 x 1.5 cm (0.98 x 25.98 x 0.59 tommer)
  • Vægt: 300 gram (0.66 lbs)
  • Strømkilde: USB-strøm
  • Voltage: 5 volt
  • Wattage: 10 W
  • Lyskildetype: LED
  • farvegengivelsesindeks (CRI): Ra98
  • Farvetemperatur: 3000K-6500K (4 levels, continuous adjustment)
  • Kontrolmetode: Touch (on remote)
  • Monteringstype: Monitor Clamp
  • Max Clamp Tykkelse: Ca. 8 cm (3.15 tommer)
  • Materiale: ABS, Aluminum, Polycarbonate
  • Udfør type: Mat
  • Særlige funktioner: Curved monitor compatibility (1000R-3000R), Backlight W-illumination, High CRI Ra98, Independent adjustable dual light bars, Smart auto-dimming remote control.

Garanti og support

Quntis provides comprehensive after-sales support for this product:

  • Garanti: 1 års garanti fra købsdatoen.
  • Kundesupport: Our dedicated support team responds to inquiries and issues within 24 hours.
  • Returnering og ombytning: Free returns and exchanges within 30 days of purchase.

For any questions or issues, please contact our customer support team. We are committed to ensuring your long-term satisfaction.

Quntis brand logo and commitment to customer satisfaction.
Image: Quntis is dedicated to providing excellent customer service and support.
