Mars Gaming MC-Pulsar ATX Gaming Case Instruction Manual

1. Produktet er slutview

The Mars Gaming MC-Pulsar is an ATX gaming case designed for optimal performance and aesthetics. It features a panoramic tempered glass design and a front LCD display for real-time system monitoring. The chassis includes a Cablehatch system for efficient cable management and offers versatile connectivity options.

Figure 1: Mars Gaming MC-Pulsar ATX Gaming Case, front view.

Nøglefunktioner:

• Real-Time Front LCD Display: Monitor CPU/GPU temperatures and fan RPM directly on the case.
• Double Tempered Glass: Front and side panels provide a clear view af interne komponenter.
• Cablehatch System: Side cable bay with tool-free quick access for simplified cable management.
• Optimized Interior: Supports ATX, MicroATX, and Mini-ITX motherboards, with ample space for graphics cards and CPU coolers.
• Støtte til væskekøling: Accommodates liquid cooling radiators up to 240mm at the top and bottom, and 120mm at the rear.
• Moderne tilslutningsmuligheder: Includes USB-C, USB 3.0, USB 2.0, and HD audio ports on the I/O panel.

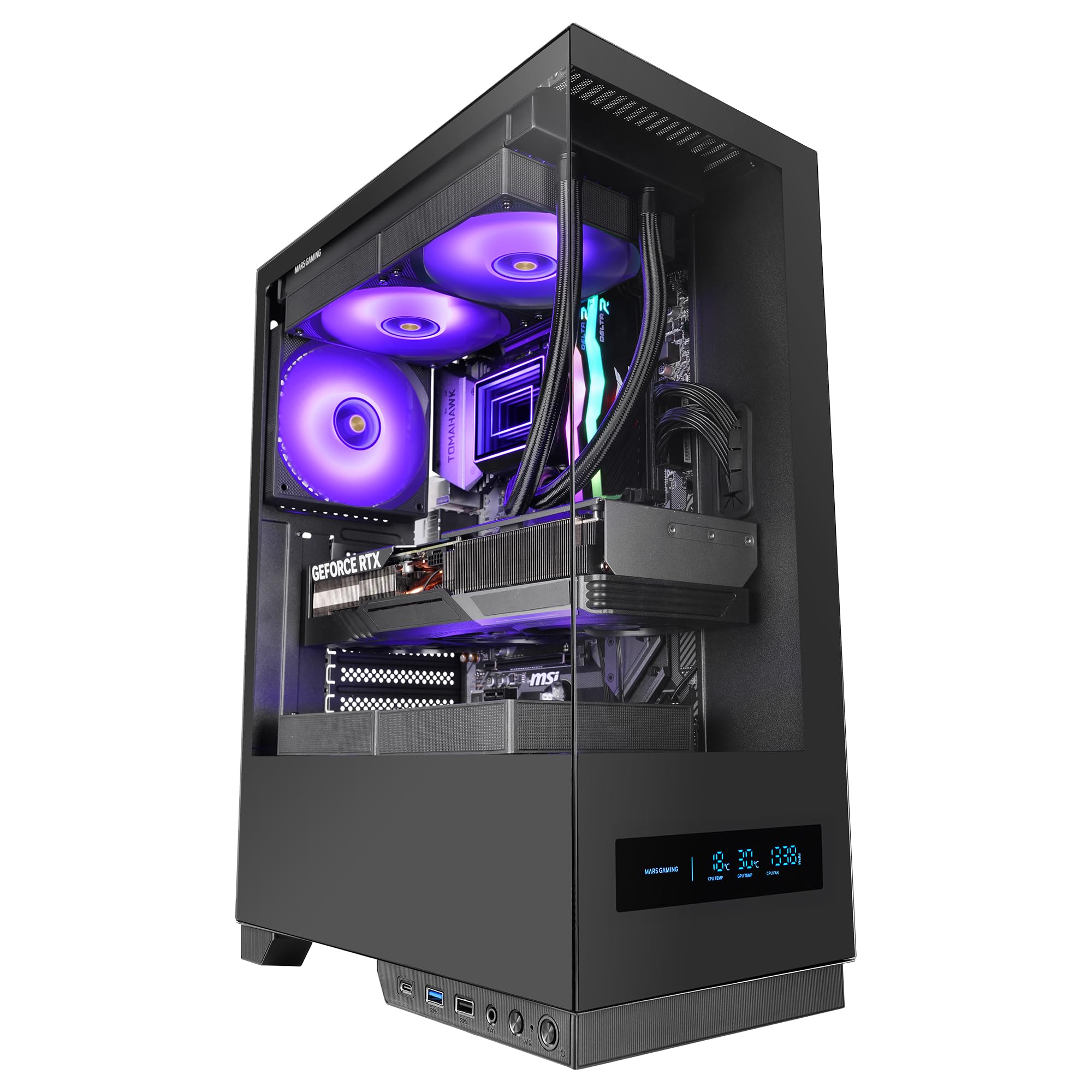

Figure 2: The MC-Pulsar case features dual tempered glass panels on the front and side.

2. Opsætning og installation

Follow these steps for proper installation of your computer components into the MC-Pulsar case.

2.1 Forberedelse af sagen

1. Unpack the MC-Pulsar case and place it on a stable, flat surface.
2. Carefully remove the tempered glass side panel by unscrewing the thumb screws, if present, or by releasing låsemekanismen.
3. Identify the internal layout for motherboard, power supply, and drive installation.

Figure 3: Internal layout showing maximum CPU cooler height (162mm), VGA length (332mm), and VGA width (152mm) clearances, along with fan and radiator mounting points.

2.2 Installation af bundkort

1. Install the necessary standoffs for your ATX, MicroATX, or Mini-ITX motherboard.
2. Place the motherboard into the case, aligning it with the standoffs and the I/O shield opening.
3. Fastgør bundkortet med skruer.

2.3 Installation af strømforsyning

• The power supply mounts at the bottom of the case. Slide the ATX power supply into its designated bay.
• Fastgør strømforsyningen med skruer fra bagsiden af ​​kabinettet.

2.4 Installation af lagerdrev

• Install 3.5" HDDs in the designated drive cage.
• Install 2.5" SSDs in their respective mounting points. The case supports 1x 3.5" HDD and 2x 2.5" SSDs.

2.5 Grafikkort og Udvidelseskort

• Remove the necessary expansion slot covers.
• Insert your graphics card (up to 332mm length, 152mm width) and other expansion cards into the PCIe slots on the motherboard.
• Fastgør kortene med skruer.

2.6 Installation af kølesystem

• Install CPU coolers (up to 162mm height).
• For liquid cooling, radiators up to 240mm can be installed at the top and bottom, and a 120mm radiator at the rear.
• Install additional fans as needed: top (2x 120mm or 2x 140mm), bottom (2x 120mm), rear (1x 120mm).

2.7 Kabelstyring

Utilize the Cablehatch system for organized cable routing. This side cable bay offers tool-free quick access to manage and hide cables, ensuring optimal airflow and a clean interior.

Figure 4: The Cablehatch system provides convenient side access for cable management without tools.

3. Betjening

This section details the operational aspects of your MC-Pulsar gaming case.

3.1 Front Panel Connectivity

The front I/O panel provides convenient access to various ports:

• USB-C-port: For modern peripherals and fast data transfer.
• USB 3.0-porte: Two ports for high-speed USB devices.
• USB 2.0-porte: Standard USB-tilslutning.
• HD-lydstik: Separate porte til mikrofon og hovedtelefoner.
• Power knap: For at tænde/slukke systemet.
• Nulstil knap: For at genstarte systemet.

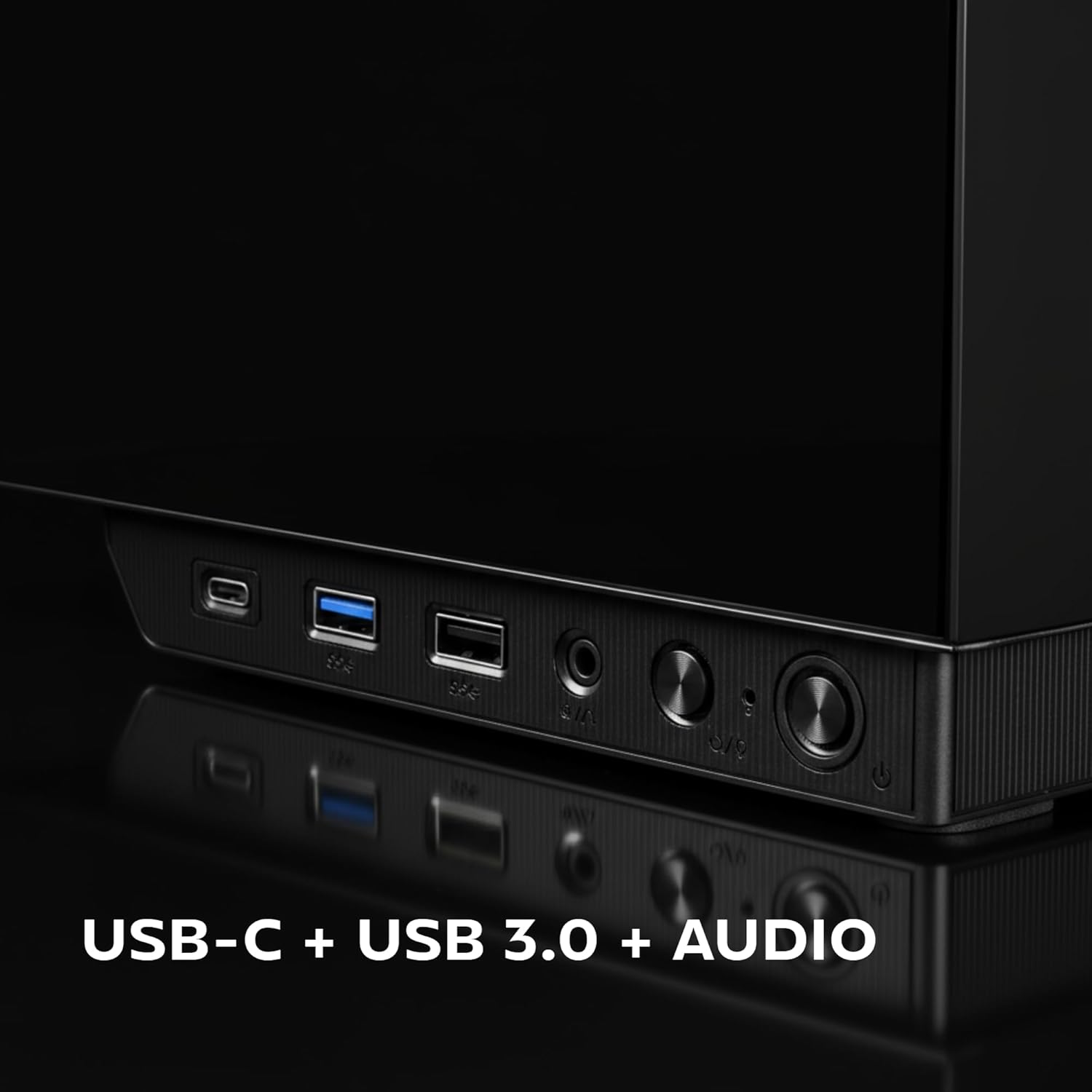

Figure 5: Close-up of the front I/O panel, showing USB-C, USB 3.0, and audio ports.

3.2 Front LCD Display

The integrated rectangular LCD display on the front panel provides real-time monitoring of critical system parameters. This includes:

• CPU Temperature: Displays the current temperature of your Central Processing Unit.
• GPU Temperature: Displays the current temperature of your Graphics Processing Unit.
• Fan RPM: Shows the rotational speed of your system fans.

Ensure the necessary internal connections from the case to your motherboard are made for the LCD display to function correctly. Refer to your motherboard manual for specific header locations.

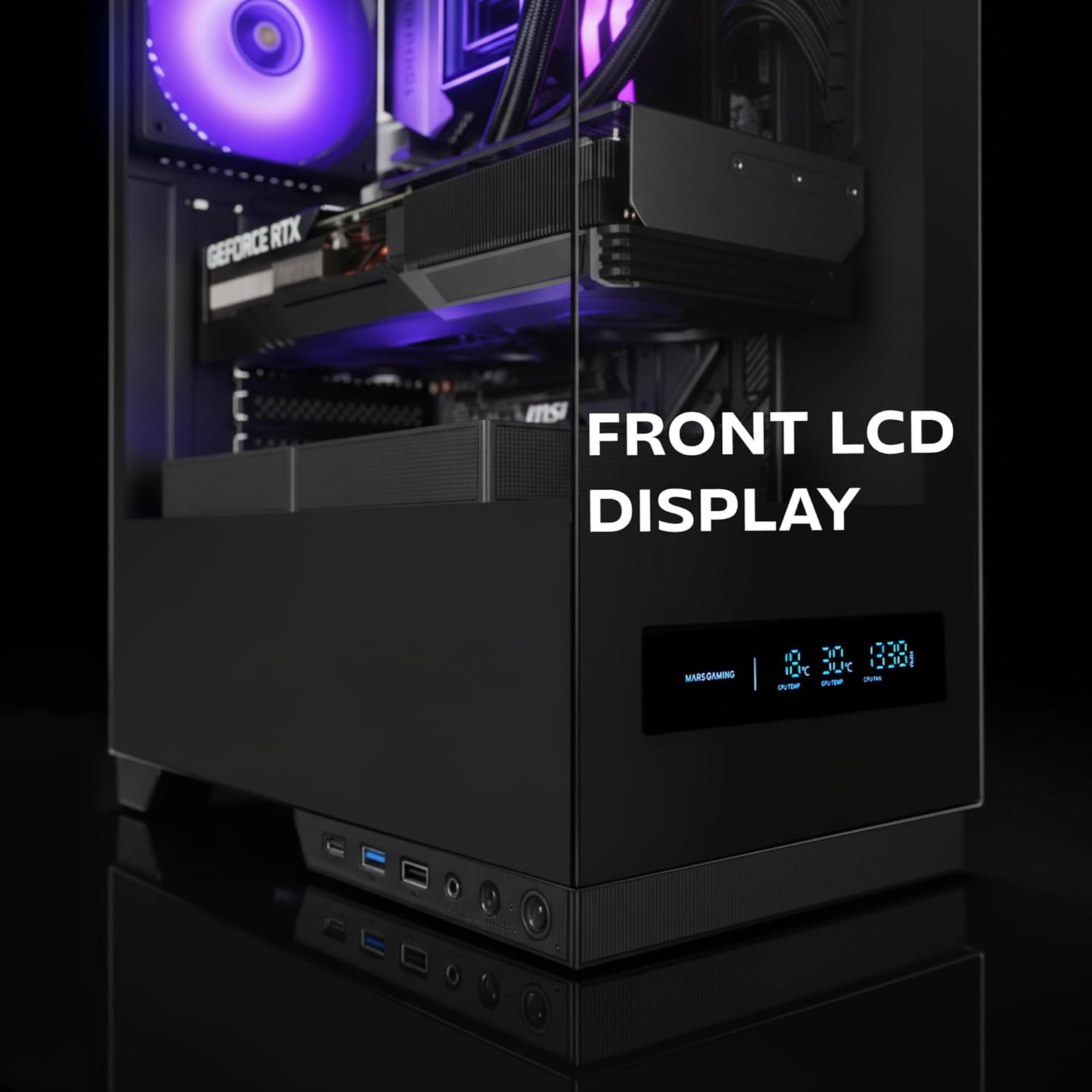

Figure 6: The front LCD display provides real-time system information.

4. Vedligeholdelse

Regular maintenance helps ensure the longevity and optimal performance of your MC-Pulsar case and its components.

4.1 Rengøring af støvfilter

• The MC-Pulsar case includes a magnetic dust filter at the top.
• Periodically remove and clean this filter to prevent dust buildup inside the case, which can impede airflow and component cooling.
• Rengør med trykluft eller en blød børste.

4.2 Indvendig rengøring

• With the system powered off and unplugged, carefully open the side panel.
• Use compressed air to remove dust from internal components and surfaces.
• Ensure all cables remain neatly managed using the Cablehatch system to maintain good airflow.

4.3 Pleje af hærdet glas

• Clean tempered glass panels with a soft, lint-free cloth and a non-abrasive glass cleaner.
• Avoid harsh chemicals or abrasive materials that could scratch the glass.

5. Fejlfinding

This section provides solutions to common issues you might encounter with your MC-Pulsar case.

5.1 Systemet tænder ikke

• Tjek strømforbindelser: Sørg for, at strømforsyningen er korrekt tilsluttet stikkontakten og bundkortet.
• Frontpanelstik: Verify that the power button cable from the case is correctly connected to the motherboard's front panel header. Refer to your motherboard manual.
• Strømforsyningskontakt: Confirm the power supply's main switch is in the "ON" position.

5.2 Front LCD Display Not Working

• Interne forbindelser: Ensure all necessary data and power cables for the LCD display are securely connected from the case to the motherboard or power supply.
• Software/Drivere: Check if any specific software or drivers are required for the display and install them if necessary (refer to Mars Gaming webwebsted).

5.3 USB-porte eller lydstik fungerer ikke

• Internal Header Connections: Verify that the USB and audio cables from the front I/O panel are correctly connected to the corresponding headers on your motherboard.
• Bundkortdrivere: Ensure your motherboard's USB and audio drivers are up to date.

5.4 Dårlig luftgennemstrømning eller overophedning

• Støvfiltre: Clean the magnetic dust filter and any other mesh areas regularly.
• Ventilatorretning: Ensure case fans are installed with correct airflow direction (intake/exhaust).
• Kabelstyring: Improve cable routing using the Cablehatch system to reduce obstructions to airflow.
• Komponentafstand: Verify that large components like CPU coolers or GPUs are not blocking critical airflow paths.

6. Tekniske specifikationer

Below are the detailed specifications for the Mars Gaming MC-Pulsar ATX Gaming Case.

Figure 7: External dimensions of the MC-Pulsar case.

7. Garanti og support

7.1 Garantioplysninger

Mars Gaming products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Mars Gaming webwebsted. Gem din købsbevis til garantikrav.

Note: A 30-day return policy may be available through your retailer. This is separate from the manufacturer's warranty.

7.2 Teknisk support

If you encounter any issues not covered in this manual or require further assistance, please contact Mars Gaming customer support through their official website. You may need to provide your product model (MCPULSAR) and serial number.

Officiel Webwebsted: www.marsgaming.eu
