ALITOVE 12V 3A 36W Universal AC Adapter Instruction Manual

1. Produktet er slutview

The ALITOVE 12V 3A 36W Universal AC Adapter (Model ALT-1203) is designed to provide stable 12-volt DC power to a wide range of electronic devices. It features a universal input voltage range (AC 100-240V) and comes with 14 interchangeable DC tips, ensuring compatibility with various devices such as LED strip lights, CCTV cameras, PC monitors, and DVD players. The adapter incorporates multiple safety features for reliable and secure operation.

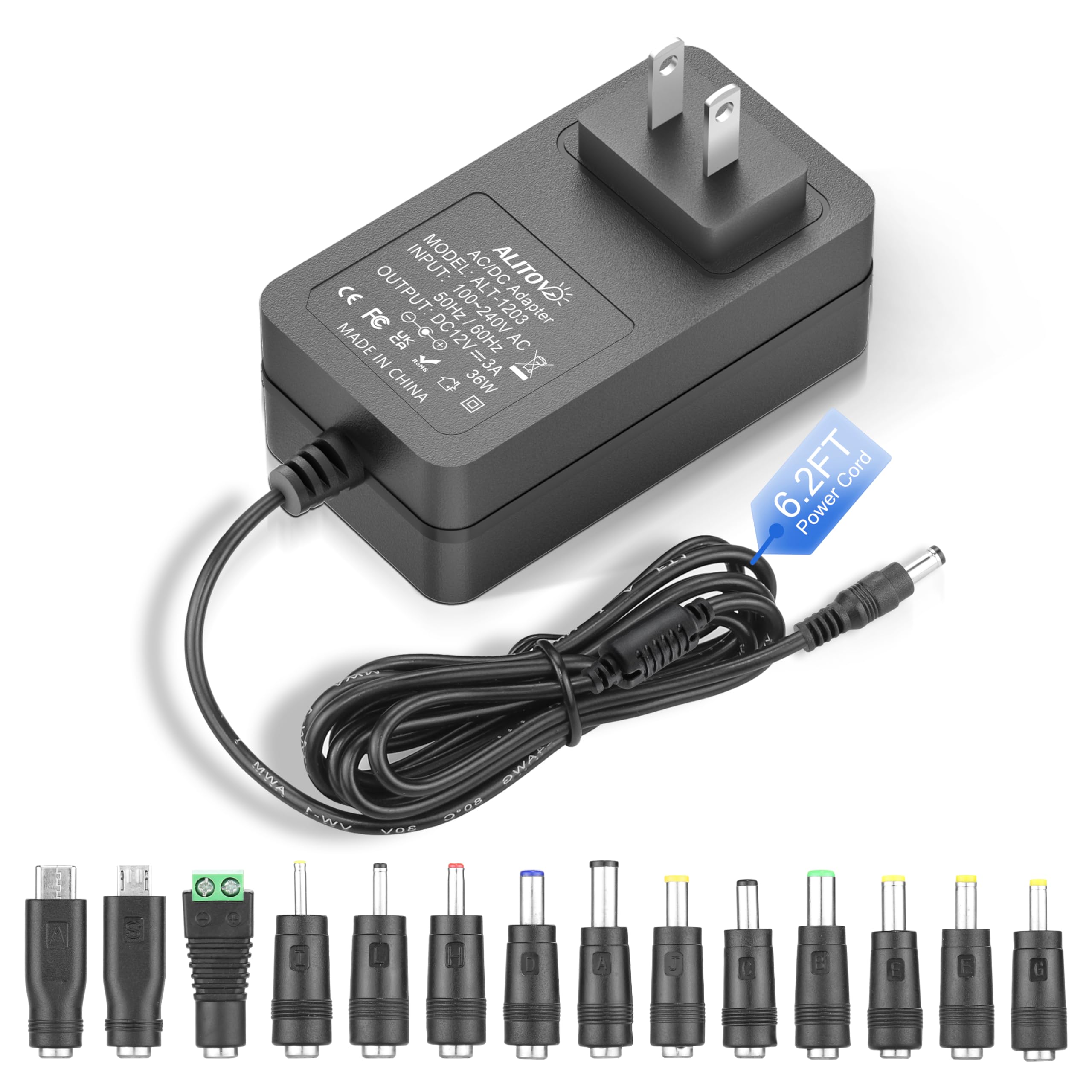

ALITOVE 12V 3A 36W Universal AC Adapter with 14 DC tips

Image 1.1: The ALITOVE 12V 3A 36W Universal AC Adapter with its included 14 DC tips, showcasindens alsidighed.

2. Vigtige sikkerhedsbemærkninger

Voltage og nuværende kompatibilitet: Before connecting, verify that your device's working voltage is 12V and its current requirement does not exceed 3A. Using the adapter with incompatible devices may cause damage.
Ikke en batterioplader: This product is a power supply adapter, not a battery charger. Do not use it for charging batteries.
Kun indendørs brug: This adapter is designed for indoor use. Do not expose it to water, moisture, or high humidity.
Ventilation: Sørg for tilstrækkelig ventilation omkring adapteren under drift for at forhindre overophedning. Adapteren må ikke tildækkes.
Skadeinspektion: Regularly inspect the power cord and adapter for any signs of damage. Do not use if damaged.
Børn og kæledyr: Keep the adapter and its components out of reach of children and pets.
Polaritet: The connector polarity is internal positive (+) and outer negative (-). Ensure this matches your device's requirements.

ALITOVE 12V 3A 36W Universal AC Adapter with 6-Point Safety System diagram

Image 2.1: Diagram illustrating the 6-point safety system of the ALITOVE power adapter, including short circuit, over voltage, over current, overload, anti-EMI, and surge protection.

3. Pakkens indhold

Tjek venligst pakken for følgende varer:

1x ALITOVE 12V 3A Power Supply Adapter
14x Universal DC Tips

ALITOVE 12V 3A 36W Universal AC Adapter and its 14 included DC tips

Image 3.1: The ALITOVE power adapter shown alongside its complete set of 14 interchangeable DC tips.

4. Opsætningsvejledning

Verify Device Requirements: Before connecting, confirm your device requires 12V DC power and draws no more than 3A (36W). Check your device's parameter label for this information.
Select Correct DC Tip: Identify the correct DC tip from the 14 included tips that matches your device's power input port. The adapter's original connector is 5.5x2.5mm. The included tips cover various sizes such as 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C, and a DC terminal connector.
Attach DC Tip: Firmly attach the selected DC tip to the adapter's output cable. Ensure a secure connection.
Opret forbindelse til enhed: Plug the DC tip into your device's power input port.
Tilslut til stikkontakten: Plug the AC adapter into a standard AC 100-240V wall outlet. The adapter features a 6.2ft power cord for flexible placement.
Tænd: Når den er tilsluttet, burde din enhed modtage strøm.

Diagram showing how to choose the correct power supply tip based on device voltage, strøm, wattage, and connector size

Image 4.1: Visual guide on how to select the appropriate DC tip by checking device parameters and power interface dimensions.

Close-up of the ALITOVE 12V 3A 36W Universal AC Adapter showing its dimensions and the 5.5x2.5mm DC connector

Billede 4.2: Detaljeret view of the adapter's dimensions and the standard 5.5x2.5mm DC connector, highlighting the inner positive and outer negative polarity.

5. Betjeningsvejledning

The ALITOVE 12V 3A 36W Universal AC Adapter is designed for straightforward operation. Once properly connected to your device and a power outlet, it will automatically supply stable 12V DC power. The adapter features an internal positive (+) and outer negative (-) polarity, which is standard for many 12V devices. Always ensure the adapter is used within its specified voltage and current limits to prevent damage to both the adapter and the connected device.

ALITOVE 12V 3A 36W Universal AC Adapter with its 6.2ft long power cord connected to a device in a room

Image 5.1: The adapter's 6.2ft power cord providing extended reach for flexible device placement.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your ALITOVE 12V 3A 36W Universal AC Adapter, follow these maintenance guidelines:

Rensning: Tag adapteren ud af stikkontakten og din enhed, inden du rengør den. Brug en blød, tør klud til at tørre ydersiden af. Brug ikke flydende rengøringsmidler eller opløsningsmidler.
Opbevaring: When not in use, store the adapter in a cool, dry place away from direct sunlight and extreme temperatures. Avoid tightly coiling the power cord to prevent damage.
Kabelpleje: Undgå at bøje, vride eller trække for meget i netledningen. Undgå at placere tunge genstande på ledningen.
Inspektion: Periodically inspect the adapter casing, power cord, and DC tips for any signs of wear, cuts, or damage. If any damage is observed, discontinue use and replace the adapter.

Close-up of the power cord undergoing a bending test, indicating durability for long-term use

Image 6.1: The power cord is designed for durability, having passed over 5000 bending tests for long-term reliability.

7. Fejlfinding

If you encounter issues with your ALITOVE power adapter, refer to the following common troubleshooting steps:

Problem	Mulig årsag	Løsning
Ingen strøm til enheden	Adapteren er ikke sat i Løs forbindelse Incorrect DC tip Device power requirements exceed adapter capacity Defekt strømudtag Beskadiget adapter eller kabel	Ensure adapter is fully plugged into a working wall outlet. Check all connections (adapter to tip, tip to device) are secure. Verify the selected DC tip matches your device's input port. Confirm your device's voltage is 12V and current is ≤3A. Test stikkontakten med en anden enhed. Inspect for visible damage. If damaged, replace the adapter.
Enheden fungerer ikke korrekt	Forkert voltage eller nuværende Forkert polaritet	Double-check device specifications for voltage (12V) and current (≤3A). Confirm the adapter's polarity (internal positive, outer negative) matches your device.
Adapteren føles varm	Normal drift (let varme) Overbelaste Dårlig ventilation	Lidt varme er normalt. Ensure the connected device does not exceed 3A. Provide adequate space around the adapter for airflow.

8. Produktspecifikationer

Feature	Detalje
Modelnummer	ALT-1203
Input bindtage	AC 100-240V, 50/60Hz
Udgang Voltage	DC 12V
Udgangsstrøm	3 Amps (maks.)
Output Wattage	36 Watt (Max)
Strømkabellængde	6.2 fod (ca. 1.9 meter)
Stik polaritet	Intern positiv (+), ydre negativ (-)
Included DC Tips	14 universal tips (e.g., 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C, DC terminal connector)
Sikkerhedsfunktioner	Automatic overload protection, over-voltage protection, over-current protection, over-temperature protection, short circuit protection, anti-EMI interference, surge protection.
Certificeringer	CE, FCC, RoHS
Farve	Sort
Fabrikant	Shenzhen ALITOVE Electronic Technology Co., Ltd

9. Garantioplysninger

The ALITOVE 12V 3A 36W Universal AC Adapter comes with a 24 måneders garanti from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation. Please retain your proof of purchase for warranty claims.

10. Kundesupport

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact ALITOVE customer support. Refer to the contact information provided with your product packaging or visit the official ALITOVE webwebstedet for de mest opdaterede supportoplysninger.

Online ressourcer: You may find additional information and FAQs on the ALITOVE brand store page on Amazon: ALITOVE Store

ALITOVE ALT-1203
