Mars Gaming MC-3TCORELCDM Micro-ATX Gaming Case Instruction Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Mars Gaming MC-3TCORELCDM Micro-ATX Gaming Case. This case features an integrated 7.2-inch IPS screen, triple tempered glass panels, and a dual-chamber structure designed to optimize airflow and provide a clean aesthetic for your PC build.

2. Opsætning og installation

Before beginning installation, ensure all components are compatible with the MC-3TCORELCDM case. This case supports Micro-ATX and Mini-ITX motherboards.

2.1. Internal Component Installation

The MC-3TCORELCDM case offers optimized internal space for various components:

• Bundkort kompatibilitet: Micro-ATX, Mini-ITX
• VGA (Graphics Card) Support: Up to 415mm length, 150mm width
• CPU kølerhøjde: Op til 160 mm
• Udvidelsespladser: 5
• Drive Bays: 2x 3.5" HDD / 3x 2.5" SSD (refer to diagram for specific locations)

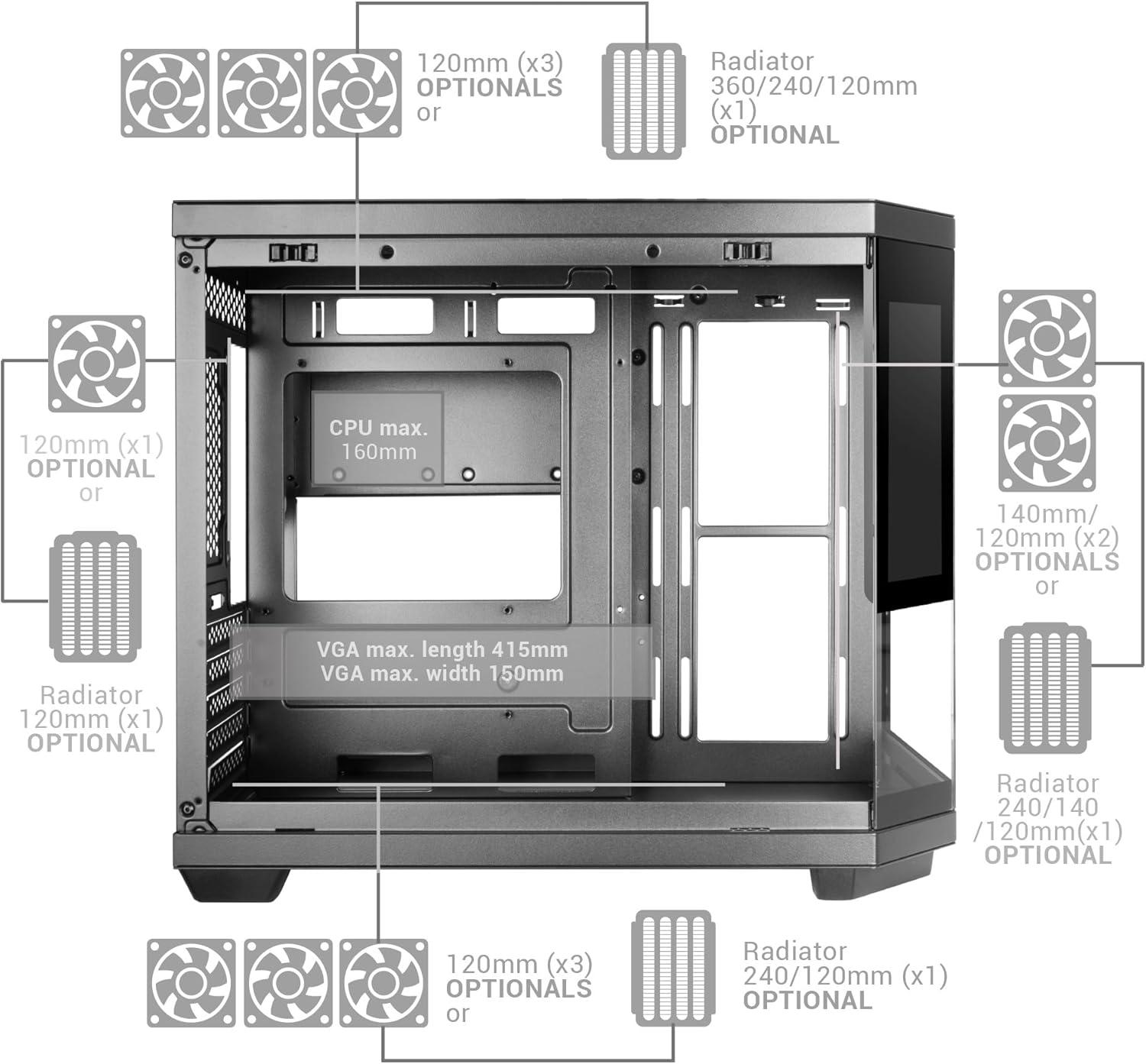

Figure 1: Internal layout diagram with component dimensions and optional cooling placements.

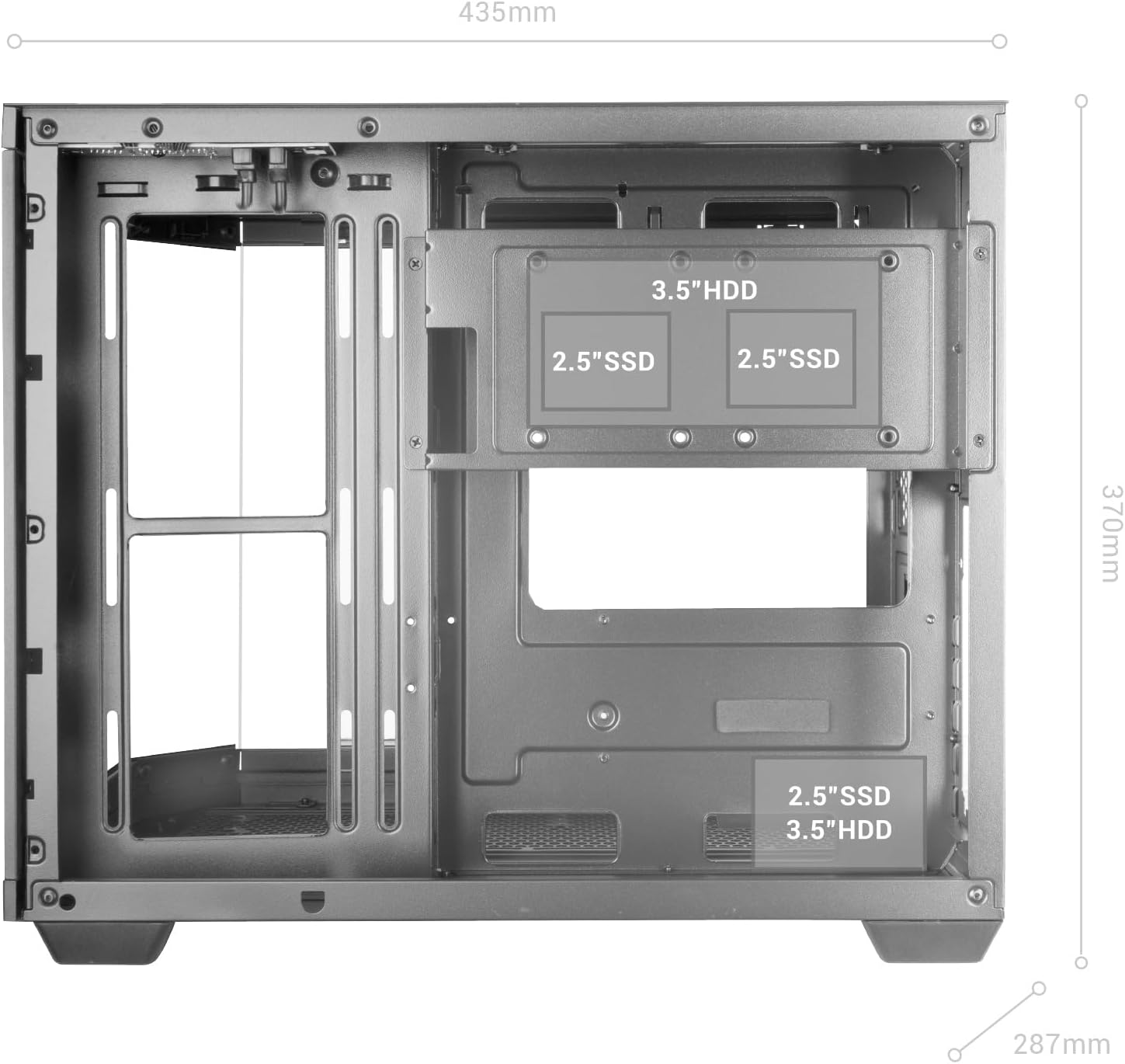

Figur 2: Detaljeret view of internal drive bay locations for 3.5" HDDs and 2.5" SSDs.

2.2. Installation af kølesystem

The case supports extensive cooling configurations:

• Ventilatorkapacitet: Up to 9x 120mm fans or 2x 140mm + 6x 120mm fans.
• Støtte til væskekøling: Up to 360mm radiators.

Figur 3: Eksample of liquid cooling installation within the MC-3TCORELCDM case, supporting up to 360mm radiators and multiple fans.

2.3. Dual Chamber Structure

The dual-chamber design separates the power supply unit (PSU) and cables from the main hardware components, improving airflow and cable management.

Figur 4: View of the double side chamber, illustrating space for cable routing and rear motherboard connectors.

3. Betjeningsvejledning

3.1. Integrated 7.2" IPS Screen

The MC-3TCORELCDM features a 7.2-inch IPS screen integrated into the central tempered glass panel. This screen can display system telemetry (temperatures, usage), custom images, animations, or videos using its dedicated control software.

Figure 5: The 7.2-inch IPS display showing real-time system information such as memory, CPU, disk, and GPU temperatures.

3.2. Top Panel Connectivity

The top panel provides convenient access to various ports for immediate connection of peripherals.

• 1x USB-C-port
• 1 x USB 3.0 port
• 1 x USB 2.0 port
• HD Audio + Microphone Jacks

Figure 6: Top panel connectivity options for easy access to peripherals.

4. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for dit pc-kabinet.

4.1. Støvfiltre

The MC-3TCORELCDM case includes magnetic dust filters on the top and bottom panels. Periodically remove and clean these filters to prevent dust buildup and maintain efficient airflow.

4.2. Tempered Glass Panels

The triple tempered glass panels can be cleaned with a soft, lint-free cloth and a mild glass cleaner. Avoid abrasive materials or harsh chemicals that could scratch or damage the glass.

Figur 7: Panorama view of the case highlighting the triple tempered glass panels.

5. Fejlfinding

If you encounter issues with your MC-3TCORELCDM case, consider the following general troubleshooting steps:

• Strømproblemer: Ensure all power cables are securely connected to the power supply, motherboard, and components. Verify the power supply switch is in the 'ON' position.
• Køleydelse: Check that all fans are spinning correctly and are free from obstructions. Ensure dust filters are clean. Verify liquid cooling pumps are operational if installed.
• Forbindelse: If USB or audio ports are not functioning, ensure the internal headers are correctly connected to the motherboard.
• IPS-skærm: If the IPS screen is not displaying correctly, check its power and data connections. Refer to the dedicated control software for display settings and troubleshooting.
• Komponenttilpasning: Double-check that all components are installed according to the specified dimensions and clearances.

For specific component-related issues, refer to the respective component manuals (e.g., motherboard, GPU, PSU).

6. Specifikationer

7. Garanti og support

Mars Gaming products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please visit the official Mars Gaming webwebstedet eller kontakt deres kundesupport direkte. Gem din købsbevis til garantikrav.
