rockspace AC2100 Dual Band WiFi Extender User Manual

1. Introduktion

This manual provides detailed instructions for setting up, operating, and maintaining your rockspace AC2100 Dual Band WiFi Extender. This device is designed to expand your existing Wi-Fi network coverage, eliminate dead zones, and provide a stable, high-speed internet connection throughout your home or office.

The rockspace AC2100 operates on both 2.4 GHz and 5 GHz bands, offering a combined speed of up to 2100 Mbps. It features strong wall penetration capabilities and a Gigabit Ethernet port for wired device connectivity.

Image: The rockspace AC2100 WiFi Extender illustrating its dual-band capabilities, with 300 Mbps for 2.4 GHz and 1734 Mbps for 5 GHz, suitable for various online activities.

2. Pakkens indhold

Kontroller venligst pakken omhyggeligt for følgende varer:

• rockspace AC2100 WiFi Extender (Repeater)
• Hurtig installationsvejledning (ikke inkluderet i denne digitale manual)
• Power Adapter (integrated into the device)

If any item is missing or damaged, please contact rockspace customer support.

3. Produktfunktioner

• Dual-band tilslutning: Supports 2.4 GHz (up to 300 Mbps) and 5 GHz (up to 1734 Mbps) for a combined speed of 2100 Mbps, ensuring optimal performance for various devices and activities.
• Udvidet dækning: Boosts Wi-Fi signal to cover areas up to 1292 sq.ft, effectively eliminating Wi-Fi dead zones.
• Smart Signal Switching: Utilizes 4T4R MU-MIMO technology to automatically select the best channel for a stable and reliable internet connection.
• Stærk væggennemtrængning: Designed to provide high-speed signal through walls, especially on the 5 GHz band, making it suitable for multi-story homes.
• Universal kompatibilitet: Works with any standard wireless Wi-Fi router, gateway, or access point.
• Gigabit Ethernet-port: Allows for a stable wired connection to devices such as smart TVs, gaming consoles, or PCs.
• Nem opsætning: Simple configuration via WPS button or web browser.
• Smart LED indikator: Provides visual feedback on signal strength for optimal placement.

Image: The rockspace AC2100 WiFi Extender emitting strong signals, illustrating its capability to penetrate walls and provide coverage in challenging environments.

Image: A close-up of the rockspace AC2100 WiFi Extender's Gigabit Ethernet port, highlighting its use for connecting wired devices directly to the extended network.

4. Opsætningsvejledning

There are two methods to set up your rockspace AC2100 WiFi Extender: using the WPS button or via a web browser.

4.1. WPS-metode (Wi-Fi Protected Setup)

1. Tænd: Plug the rockspace AC2100 WiFi Extender into an electrical outlet near your main router. Wait for the Power LED to turn solid.
2. Tryk på WPS på routeren: Within two minutes, press the WPS button on your main Wi-Fi router. Refer to your router's manual for the exact location of the WPS button.
3. Tryk på WPS på extenderen: Immediately after pressing the WPS button on your router, press the WPS button on the rockspace AC2100 WiFi Extender.
4. Vent på forbindelse: The Signal LED on the extender will blink during the connection process. Once connected successfully, the Signal LED will turn solid blue.
5. Flyt forlænger: Unplug the extender and move it to a location halfway between your router and the Wi-Fi dead zone. Ensure the Signal LED remains blue for optimal performance.

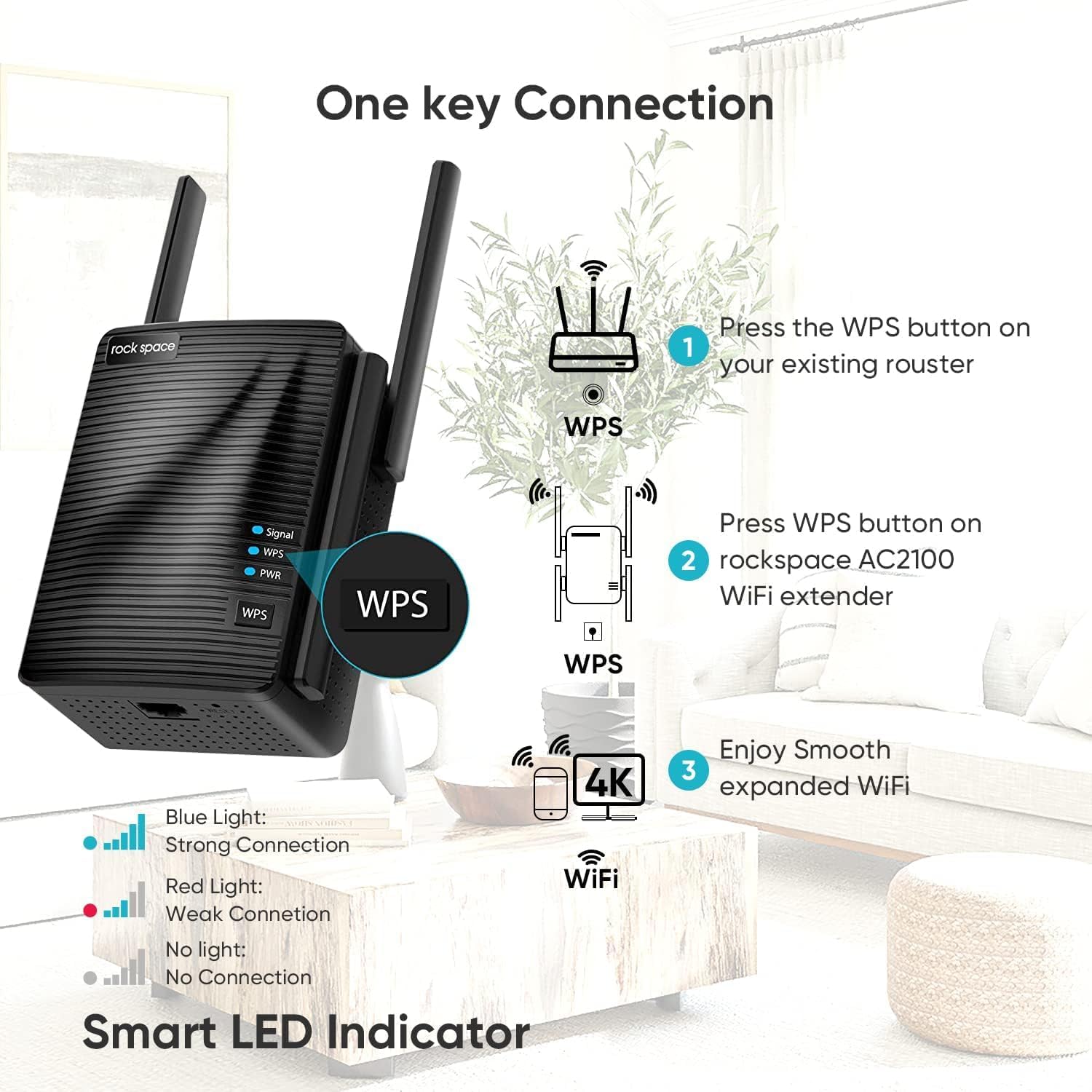

Image: Visual guide for WPS setup, showing the steps to press the WPS button on the router and then on the extender, along with the meaning of the LED indicators.

4.2. Web Browsermetode

1. Tænd: Plug the rockspace AC2100 WiFi Extender into an electrical outlet near your main router. Wait for the Power LED to turn solid.
2. Opret forbindelse til extenderens Wi-Fi: On your computer or mobile device, connect to the Wi-Fi network broadcast by the extender (e.g., "rockspace_EXT"). Do not connect to your main router's Wi-Fi at this step.
3. Adgangsopsætningsside: Åbn a web browser (e.g., Chrome, Firefox, Safari) and enter re.rockspace.local or 192.168.0.254 i adresselinjen.
4. Log ind: Opret en ny login-adgangskode, når du bliver bedt om det.
5. Vælg netværk: Follow the on-screen instructions to scan for available Wi-Fi networks. Select your main router's 2.4 GHz and 5 GHz networks.
6. Indtast adgangskode: Enter the Wi-Fi password for your main router's networks.
7. Konfigurer udvidet netværk: You can choose to keep the same network name (SSID) for the extended network or create new ones.
8. Komplet opsætning: Confirm your settings. The extender will restart. Once the Signal LED turns solid blue, the setup is complete.
9. Flyt forlænger: Unplug the extender and move it to a location halfway between your router and the Wi-Fi dead zone. Ensure the Signal LED remains blue for optimal performance.

5. Betjeningsvejledning

5.1. Tilslutning af enheder

After successful setup, your rockspace AC2100 WiFi Extender will broadcast an extended Wi-Fi network. You can connect your wireless devices (smartphones, tablets, laptops, etc.) to this extended network using the Wi-Fi name and password you configured during setup.

5.2. Brug af Ethernet-porten

The Gigabit Ethernet port on the bottom of the extender allows you to connect a wired device, such as a desktop computer, gaming console, or smart TV, to your extended network. This provides a stable and high-speed connection for devices that benefit from a direct link.

To use the Ethernet port:

1. Ensure the extender is powered on and successfully connected to your main router (Signal LED is blue).
2. Connect one end of an Ethernet cable to the Gigabit Ethernet port on the extender.
3. Connect the other end of the Ethernet cable to the Ethernet port on your wired device.
4. The device should automatically detect the wired connection and access the internet.

6. LED-indikatorer

The rockspace AC2100 WiFi Extender features several LED indicators to provide status information:

• Signal LED:
  • Ensfarvet blå: Good connection to the main router. Optimal placement.
  • Fast rød: Weak connection to the main router. Relocate the extender closer to the router.
  • Intet lys: No connection to the main router. Check power and setup.
  • Blinker: Connecting via WPS or during initial setup.
• WPS LED:
  • Blinker: WPS-parring er i gang.
  • Solid: WPS connection successful (may turn off after a short period).
• PWR (Power) LED:
  • Solid: Enheden er tændt.
  • Slukket: Enheden er slukket.

7. Fejlfinding

If you encounter issues with your rockspace AC2100 WiFi Extender, refer to the following common solutions:

8. Specifikationer

9. Vedligeholdelse

• Optimal placering: Ensure the extender is placed in a location where the Signal LED is solid blue for best performance. Avoid placing it near large metal objects, concrete walls, or appliances that emit electromagnetic interference (e.g., microwaves, cordless phones).
• Firmwareopdateringer: Periodically check the rockspace official website for firmware updates. Keeping your device's firmware up-to-date can improve performance, stability, and security.
• Rensning: Use a soft, dry cloth to clean the exterior of the extender. Do not use liquid cleaners or aerosols. Ensure the device is unplugged before cleaning.
• Nulstilling: If the extender becomes unresponsive or you wish to reconfigure it from scratch, perform a factory reset by pressing and holding the reset button for 8-10 seconds. Note that this will erase all custom settings.

10. Garanti og support

rockspace products come with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official rockspace webwebsted.

For technical support, troubleshooting assistance, or to inquire about warranty services, please contact rockspace customer support through their official channels. Contact information can typically be found on the rockspace webwebsted eller i produktemballagen.

Gem venligst din købskvittering af garantihensyn.
