Mankeel MK083 elektrisk scooter brugermanual

1. Introduktion

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Mankeel MK083 Electric Scooter. Please read this manual thoroughly before your first ride to ensure proper use and to maximize the lifespan of your scooter. Keep this manual for future reference.

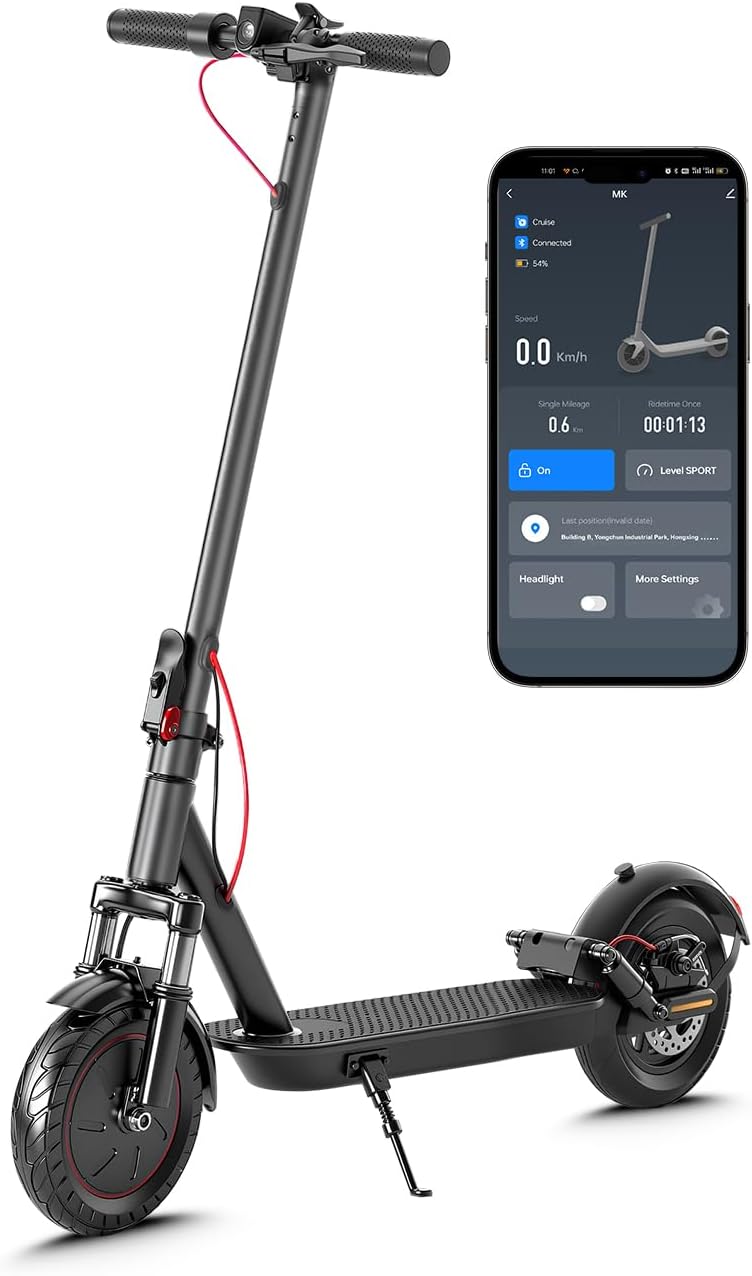

Image 1.1: The Mankeel MK083 Electric Scooter, showcasing its design and the accompanying mobile application interface for control and monitoring.

2. Sikkerhedsretningslinjer

Din sikkerhed er altafgørende. Brug altid hjelm og passende beskyttelsesudstyr, når du kører. Overhold lokale færdselslove og -regler. Undgå at køre i dårligt vejr eller på glatte overflader.

• Brug altid en godkendt hjelm og beskyttelsesudstyr (knæbeskyttere, albuebeskyttere).
• Rid ikke under påvirkning af alkohol eller stoffer.
• Sørg for, at alle komponenter er forsvarligt fastgjort før hver tur.
• Hold en sikker afstand til andre køretøjer og fodgængere.
• Undgå pludselige sving eller manøvrer ved høje hastigheder.
• The maximum weight limit for this scooter is 120 kg (264 lbs).

3. Produktet er slutview

Nøglefunktioner:

• Kraftig motor: Equipped with a 350W brushless motor for speeds up to 19 MPH and efficient hill climbing.
• Langtidsholdbart batteri: 36V 7.8Ah battery provides a range of up to 21 miles on a single charge.
• Dobbelt affjedringssystem: Front fork and rear spring suspension for enhanced ride comfort.
• Massive dæk: 8.5-inch solid rubber tires require no inflation and offer durability.
• Dobbelt bremsesystem: Features both electric and disc brakes for reliable stopping power.
• Sammenfoldeligt design: Lightweight (17 kg) and folds in approximately 3 seconds for portability.
• Smart App Control: Connects to a smartphone app for LED display control, cruise system, speed mode adjustment, and scooter locking.

Image 3.1: Detail of the scooter's dual suspension, featuring front fork and rear spring mechanisms designed for improved ride comfort over varied terrain.

Billede 3.2: En eksploderet view diagram of the 350W motor, showing its internal structure and power delivery capabilities for speeds up to 19 MPH and 15-degree uphill climbing.

4. Opsætning og montering

4.1 Udpakning og første inspektion

1. Fjern forsigtigt alle komponenter fra emballagen.
2. Kontroller, at alle dele, der er anført på pakkelisten, er til stede og ubeskadigede.
3. Report any missing or damaged parts to customer support immediately.

4.2 Monteringsvejledning

1. Fold scooteren ud: Release the folding mechanism and raise the handlebar stem until it locks into place. Ensure the locking lever is fully engaged.
2. Fastgør styret: Securely attach the handlebars to the stem, ensuring all cables are not pinched. Tighten any screws as instructed in the quick start guide (included in packaging).
3. Tjek forbindelser: Sørg for, at alle elektriske forbindelser er sikre.

4.3 Indledende opladning

Before your first ride, fully charge the scooter's battery. This typically takes 4-5 hours. Use only the provided charger.

1. Find ladeporten på scooteren.
2. Tilslut opladeren til scooteren, og sæt derefter opladeren i en stikkontakt.
3. The charging indicator light on the charger will change (e.g., red to green) when charging is complete.
4. Afbryd opladeren, når den er fuldt opladet.

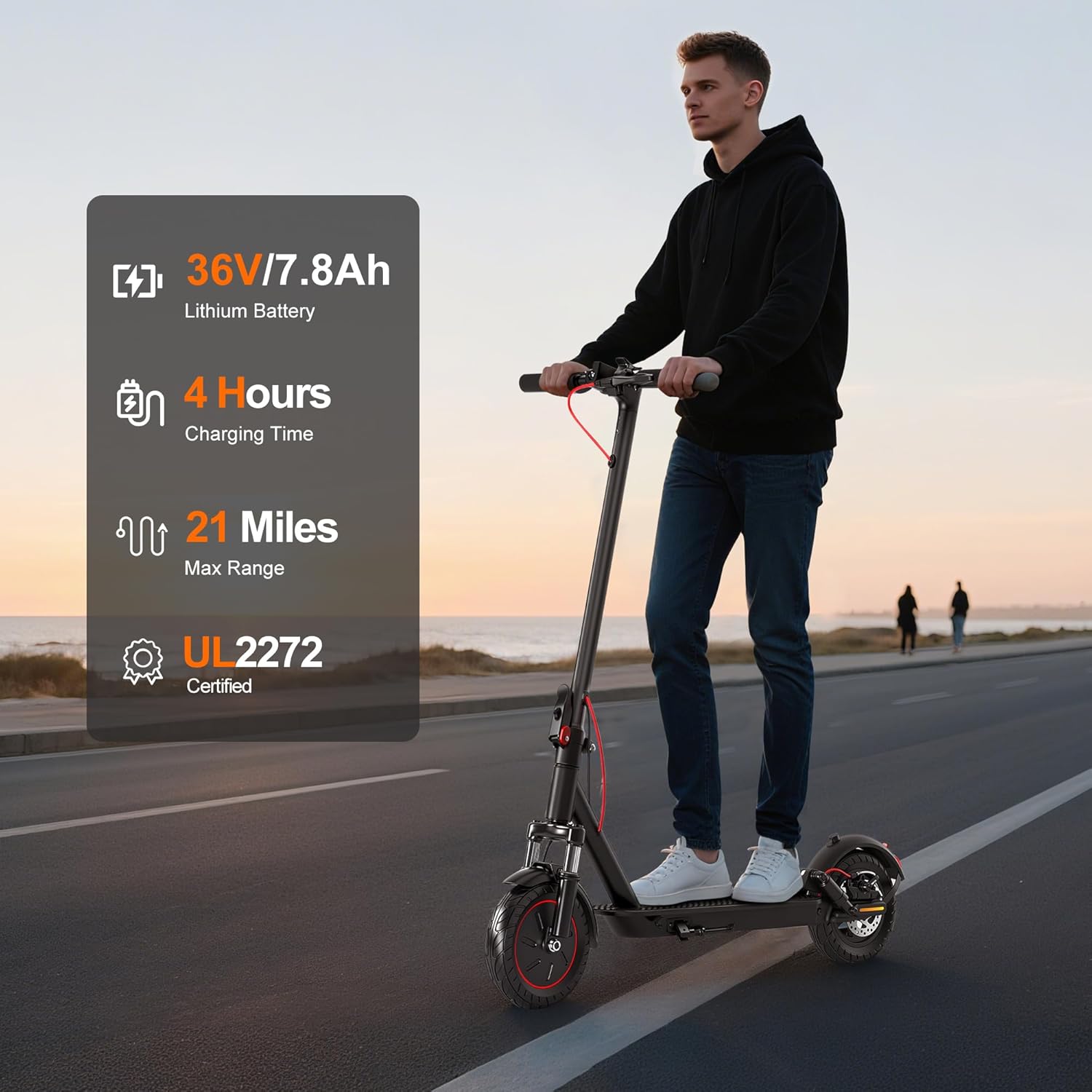

Image 4.1: Visual representation of the scooter's battery capacity and charging details, emphasizing the 36V/7.8Ah battery, 4-hour charging time, and 21-mile maximum range.

4.4 Appinstallation og parring

Download the official Mankeel app from your smartphone's app store. Follow the in-app instructions to pair your scooter via Bluetooth. The app allows you to:

• Monitor battery level, speed, and mileage.
• Control LED display settings.
• Activate cruise control.
• Adjust speed modes.
• Lock/unlock the scooter for security.

5. Betjeningsvejledning

5.1 Tænd/sluk

Tryk og hold tænd/sluk-knappen på displayet nede for at tænde eller slukke scooteren.

5.2 Starting Modes

The MK083 offers two starting modes:

• Glide Start Mode: Push off with your foot to gain initial momentum (slide for approximately 3 seconds), then press the accelerator to engage the motor. The scooter will maintain a constant speed.
• Electric Start Mode: Press the accelerator directly to engage the motor from a standstill.

5.3 Køretilstande

The scooter features three adjustable riding modes to suit different preferences and conditions:

• Øko-tilstand: Approximately 9 MPH (14 km/h) - For extended range and energy efficiency.
• Køretilstand: Approximately 12 MPH (19 km/h) - Balanced performance for daily commuting.
• Sportstilstand: Up to 19 MPH (30 km/h) - For maximum speed and power.

Switch between modes using the control panel or the mobile app.

Image 5.1: Illustration of the three distinct riding modes available on the scooter, allowing riders to select between Eco, Drive, and Sport for varying speeds and power outputs.

5.4 Bremsning

The scooter is equipped with a dual braking system for effective stopping:

• Elektrisk bremse: Activated by the brake lever, providing regenerative braking.
• Skivebremse: Mechanical brake for additional stopping power, also activated by the brake lever.

Always apply brakes smoothly and gradually to avoid skidding, especially on wet or uneven surfaces.

5.5 Foldning og bæring

Sådan foldes scooteren:

1. Sørg for, at scooteren er slukket.
2. Find håndtaget til foldemekanismen ved bunden af ​​​​styrfrempinden.
3. Release the lever and carefully fold the stem downwards until it clicks into place, securing it to the rear fender.

The lightweight design (17 kg) and compact folded size make it easy to carry for transport or storage.

Image 5.2: The scooter in its folded state, being carried by a person, highlighting its portability and ease of transport in public spaces.

5.6 Forlygte og baglygte

The scooter is equipped with a front headlight and rear taillight for visibility. Activate them via the control panel or the mobile app, especially when riding in low-light conditions.

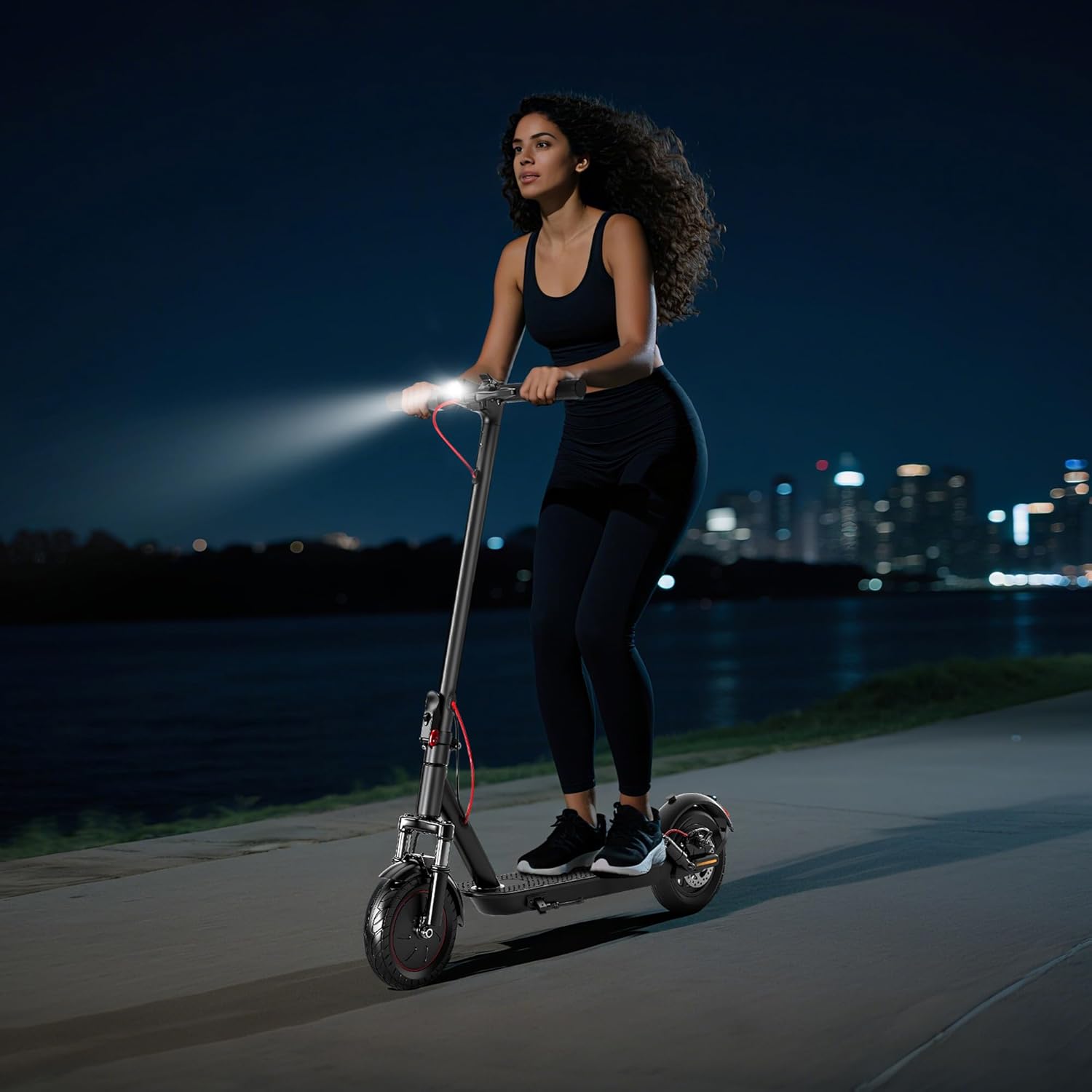

Image 5.3: The scooter being ridden at night, with its integrated headlight providing illumination for safe navigation in dark environments.

6. Vedligeholdelse

6.1 Generel pleje

• Rengør jævnligt scooteren med adamp klud. Undgå at bruge højtryksvandstråler.
• Inspect all screws and fasteners periodically and tighten if necessary.
• Opbevar scooteren et tørt, køligt sted væk fra direkte sollys og ekstreme temperaturer.

6.2 Batterivedligeholdelse

• Oplad batteriet helt efter hver brug, især hvis det opbevares i længere tid.
• If storing for more than 30 days, charge the battery to approximately 50-70% every month to prolong its lifespan.
• Batteriet må ikke overoplades eller tømmes helt.
• Use only the original charger provided by Mankeel.

6.3 Dækvedligeholdelse

The scooter is equipped with solid rubber tires, which are maintenance-free and do not require inflation or puncture repair. Regularly inspect them for excessive wear or damage.

6.4 Kontrol af bremsesystem

Periodically check the functionality of both the electric and disc brakes. Ensure the brake levers operate smoothly and the braking response is adequate. Adjust or replace brake components if necessary (consult a professional).

7. Fejlfinding

If you encounter issues with your Mankeel MK083 Electric Scooter, refer to the following common problems and solutions. The mobile app's fault detection system can also assist in identifying problems.

For issues not listed here or if solutions do not resolve the problem, please contact Mankeel customer support.

8. Specifikationer

9. Garanti og support

9.1 Garantioplysninger

The Mankeel MK083 Electric Scooter comes with a 1 års begrænset garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl ved normal brug. Den dækker ikke skader forårsaget af misbrug, ulykker, uautoriserede ændringer eller normal slitage.

Gem venligst dit købsbevis for garantikrav.

9.2 Kundesupport

For technical assistance, warranty claims, or any questions regarding your Mankeel MK083 Electric Scooter, please contact Mankeel customer support through the retailer where you purchased the product or visit the official Mankeel webwebsted for kontaktoplysninger.
