Hawkley Front Bumper Instruction Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Hawkley Front Bumper. This front bumper is designed for the Dodge Ram 1500 models from 2025 to 2026. Please read these instructions carefully before beginning installation to ensure proper fitment and functionality.

Important Note: This bumper is not compatible with Rebel, RHO, or Tungsten models of the Dodge Ram 1500.

2. Product Fitment

The Hawkley Front Bumper is specifically engineered for the Dodge Ram 1500 models manufactured in 2025 and 2026. It is crucial to verify your vehicle's model and trim level before installation. This bumper is not designed for Rebel, RHO, or Tungsten models.

Billede 2.1: Visual guide indicating compatible (top, red truck) and incompatible (bottom, blue, red, and maroon trucks labeled Rebel, RHO, Tungsten) Dodge Ram 1500 models for the front bumper. The bumper is suitable for 2025-2026 Ram 1500 models, but not for models with ACC.

3. Komponenter inkluderet

Your Hawkley Front Bumper package includes the following components:

• 1 x Front Bumper Main Body
• 2 x Side Wings (Type B)
• 1 x Bull Bar (Type B)
• 2 x 2-Inch Pod Lights
• 2 x D-ringe
• All necessary Mounting Hardware Kit

The modular design allows for various configurations. This specific package includes the Main Body, Side Wing B, and Bull Bar B.

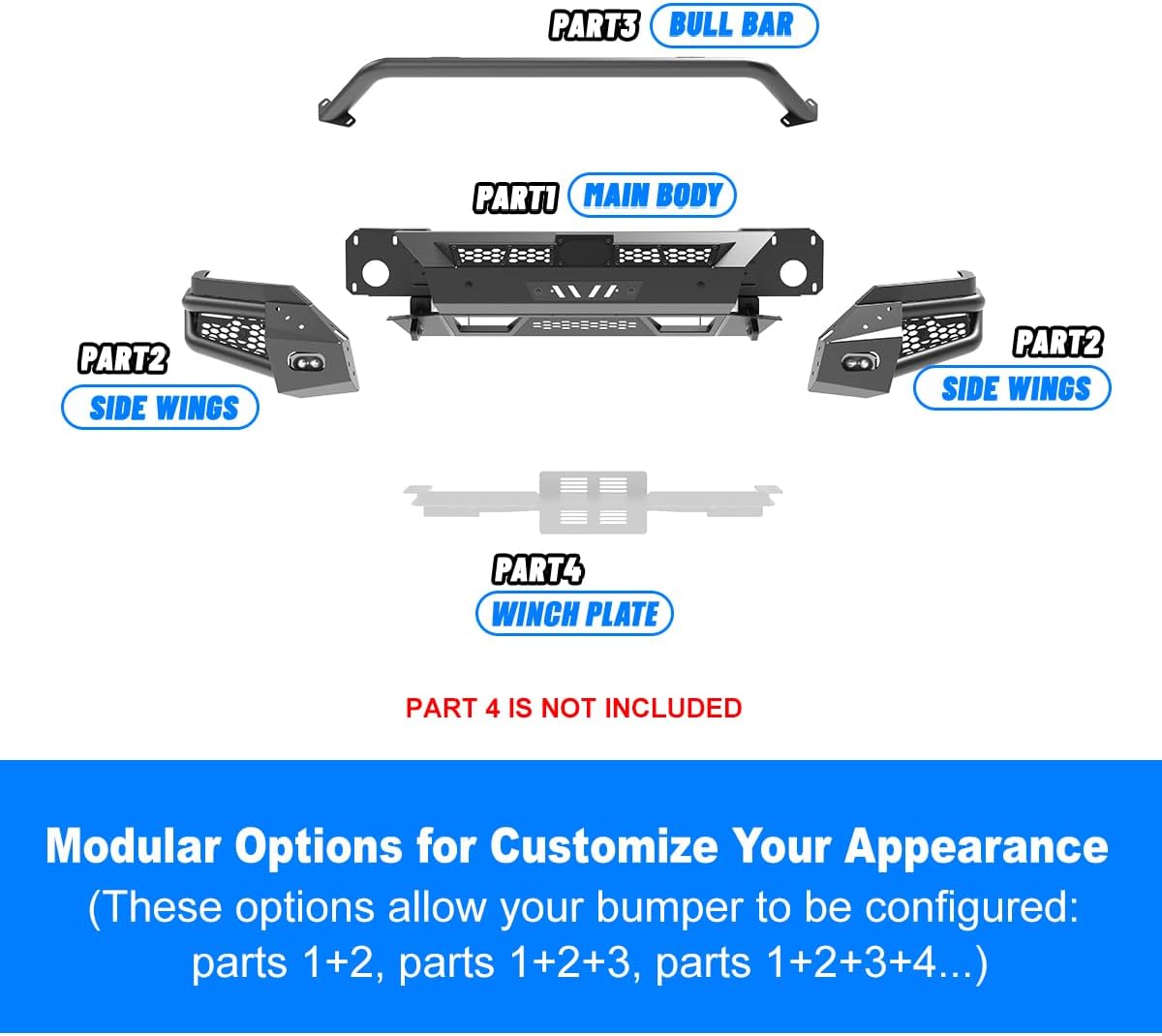

Billede 3.1: An exploded diagram showing the modular components of the front bumper: Part 1 (Main Body), Part 2 (Side Wings), Part 3 (Bull Bar), and Part 4 (Winch Plate, which is not included in this specific package). This illustrates how the bumper can be customized with different parts.

4. Opsætning og installation

The Hawkley Front Bumper is designed for a direct bolt-on installation, replacing your truck's original stock bumper. No cutting or drilling is required, as it utilizes existing factory mounting points. The modular design facilitates a quicker and easier installation process.

Installationstrin:

1. Carefully remove the original front bumper from your Dodge Ram 1500, following your vehicle's service manual for specific instructions.
2. Assemble the main body, side wings, and bull bar components of the Hawkley bumper using the provided mounting hardware.
3. Mount the assembled Hawkley Front Bumper onto the vehicle's frame, aligning with the factory mounting points.
4. Secure all bolts and fasteners firmly. Ensure all connections are tight and stable.
5. Install the included 2-inch pod lights into their designated mounting locations on the bumper.
6. Attach the D-rings to the shackle mounting brackets.

Billede 4.1: A comparison image showing a black Dodge Ram 1500 before (top) and after (bottom) the installation of the Hawkley Front Bumper. The 'After' image displays the new bumper with its bull bar and D-rings.

5. Driftsfunktioner

Your Hawkley Front Bumper is equipped with several functional features designed to enhance your vehicle's utility and appearance.

Front Bumper Details:

• Parking Sensor Holes: Integrated mounting holes for your vehicle's parking sensors.
• Winch Cable Guide Hole: A dedicated opening for guiding a winch cable, ensuring smooth operation.
• Winch Clutch Switch Operating Hole: Provides access for operating a winch clutch switch.
• D-Ring Mounts & D-Rings: Robust shackle mounting brackets with two included D-rings for recovery operations.
• Pod Light Mounting: Includes mounting points for the two 2-inch pod lights provided.
• Decorative Frames: Features detachable decorative frames and honeycomb nets.

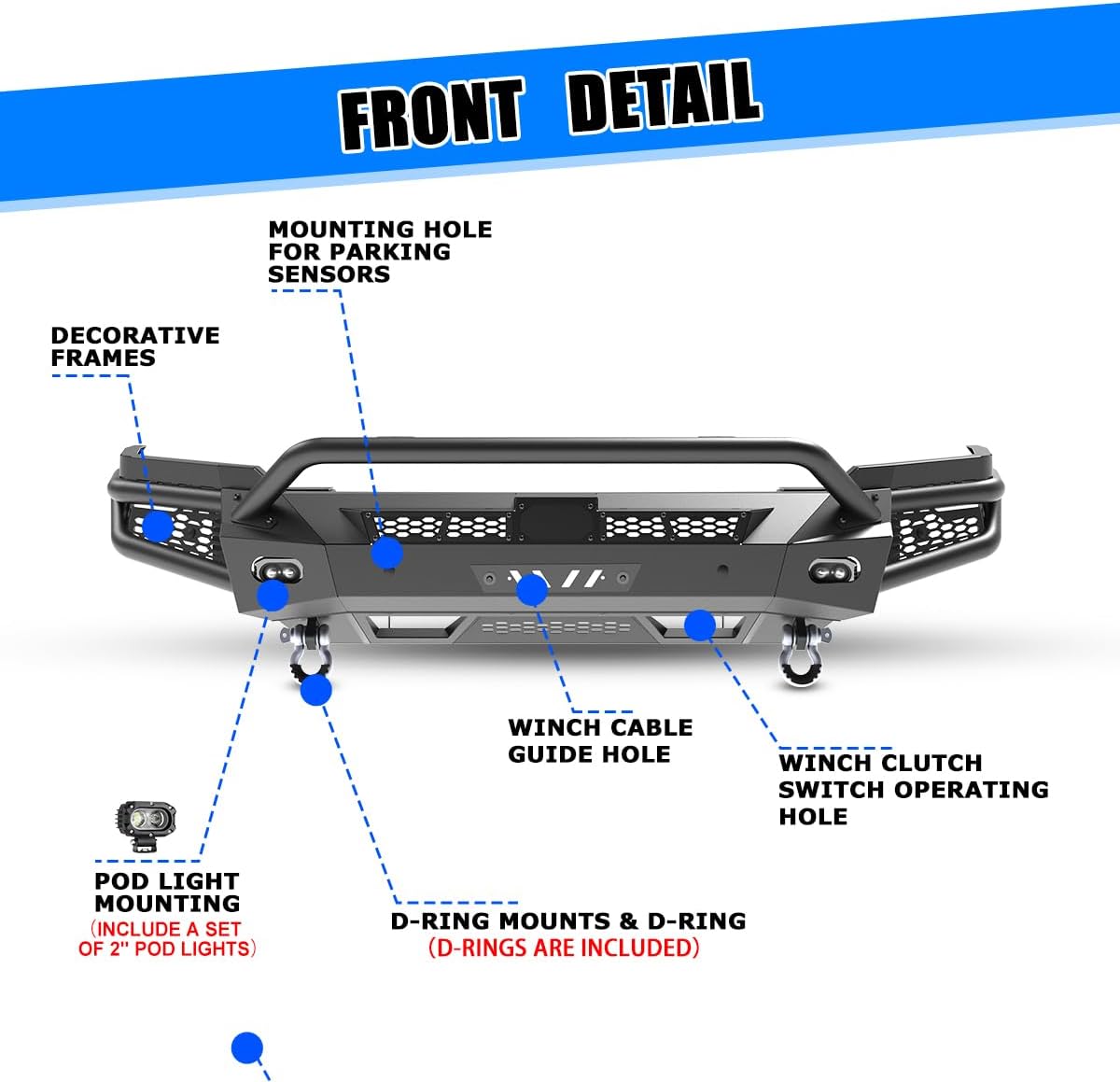

Billede 5.1: Et nærbillede view of the front bumper highlighting key features such as mounting holes for parking sensors, decorative frames, pod light mounting, D-ring mounts, winch cable guide hole, and winch clutch switch operating hole.

Light Bar Mounting:

The main body of the front bumper includes a light bar mounting bracket capable of accommodating a light bar up to 8 inches tall (light bar not included). The bull bar also features mounting brackets for a light bar or additional pod lights, with a hole distance of 24.5 inches.

Billede 5.2: A rear perspective of the bumper, illustrating the light bar mounting bracket designed to hold a light bar up to 8 inches in height. Note that the light bar itself is not included.

Billede 5.3: The bull bar component, showing mounting brackets suitable for a light bar or pod lights. The image indicates a hole distance of 24.5 inches for mounting. Lights are not included.

Parking Sensor Integration:

The bumper is equipped with 6 radar mounting holes for parking sensors, ensuring your vehicle's safety features remain fully functional. Please note that radar sensors are not provided with the bumper.

Billede 5.4: En detaljeret view of the front bumper's parking sensor mounting holes, showing six designated locations for radar sensors and a back view of the mounting position. Radar sensors are not included.

6. Vedligeholdelse

To ensure the longevity and appearance of your Hawkley Front Bumper, follow these maintenance guidelines:

• Rensning: Regularly clean the bumper with mild soap and water to remove dirt, grime, and road salt. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Finishbeskyttelse: The bumper features a premium powder-coated black finish, enhanced by pre-treatment for extreme resistance against wear. Inspect the finish periodically for any chips or scratches and touch up as needed to prevent rust.
• Hardwarekontrol: Periodically check all mounting bolts and fasteners to ensure they remain tight. Loose hardware can lead to rattling or structural instability.
• Tilpasning: The detachable decorative frame and honeycomb decorative net allow for DIY color spraying. If you choose to customize, ensure proper preparation and application techniques for a durable finish.

Billede 6.1: An illustration demonstrating the possibility of DIY color spraying for the bumper's decorative elements. The image shows the bumper with various colored light effects, indicating customization potential. The original product color is black.

7. Fejlfinding

If you encounter any issues during or after the installation of your Hawkley Front Bumper, consider the following common troubleshooting steps:

• Problemer med tilpasning: Double-check that your vehicle is a compatible Dodge Ram 1500 (2025-2026) and not a Rebel, RHO, or Tungsten model. Ensure all components are correctly oriented as per the instructions.
• Løse komponenter: If you notice any rattling or movement, re-tighten all mounting hardware. Over time, vibrations can cause bolts to loosen.
• Sensorfejl: If parking sensors are not functioning correctly after installation, ensure they are properly seated in their mounting holes and that all electrical connections are secure. Consult your vehicle's manual for sensor-specific troubleshooting.
• Light Issues: If the included pod lights or any aftermarket lights installed are not working, check their wiring connections, fuses, and ensure they are correctly grounded.

Hvis problemerne fortsætter efter at have forsøgt disse trin, bedes du kontakte kundesupport for yderligere assistance.

8. Specifikationer

9. Garanti og support

Garanti: Your Hawkley Front Bumper comes with a 365-day warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. Please retain your proof of purchase for warranty claims.

Kundesupport: If you have any questions regarding installation, operation, or require assistance with your product, please do not hesitate to contact us. We are committed to providing efficient and timely customer service and solutions.

For support, please refer to the contact information provided with your purchase or visit the official Hawkley brand store online.
