Generisk HS-DY4 3-lags 3D-printerstativ og filamentopbevaringsstativ brugermanual

1. Introduktion

This manual provides instructions for the assembly, operation, and maintenance of your Generic HS-DY4 3-Tier 3D Printer Stand and Filament Storage Rack. This multi-functional organizer is designed to provide a dedicated space for your 3D printer and efficient storage for filament spools, enhancing your workspace organization.

2. Sikkerhedsoplysninger

• Læs alle instruktioner omhyggeligt før montering og brug.
• Sørg for, at alle komponenter er forsvarligt fastgjort under monteringen for at forhindre ustabilitet.
• Do not overload the shelves beyond their intended capacity.
• Hold små dele og emballagematerialer væk fra børn.
• When moving the stand, ensure the casters are unlocked and move slowly to prevent tipping. Lock casters once in desired position.
• For the integrated power strip, ensure it is connected to a grounded outlet and do not exceed its electrical rating.

3. Pakkens indhold

Please verify that all the following components are present before beginning assembly:

• Carbon Steel Frame Components (vertical posts, horizontal bars, shelf supports)
• MDF Boards (3 shelves)
• Casters (4, typically 2 with locking mechanism)
• Integrated Power Strip with USB ports
• Assembly Hardware (screws, bolts, nuts, Allen wrench/screwdriver)
• Filament Spool Holders (rods or dividers)

4. Monteringsvejledning

Follow these steps to assemble your 3D Printer Stand and Filament Storage Rack. It is recommended to assemble on a soft, clean surface to prevent scratching components.

1. Fastgør hjul: Secure the four casters to the bottom of the base frame using the provided hardware. Ensure two locking casters are placed on the front for stability.
2. Saml bundrammen: Connect the horizontal base bars to the vertical posts, forming the lowest tier of the frame. Do not fully tighten screws until all major components are in place.
3. Installer nederste hylde: Place the first MDF board onto the assembled lower frame. Secure it with the appropriate hardware.
4. Assemble Middle and Upper Tiers: Continue by attaching the next set of vertical posts and horizontal bars to form the middle tier. Install the second MDF board. Repeat for the top tier and the third MDF board.
5. Install Filament Holders: Insert the filament spool holders or dividers into the designated slots on the middle and lower shelves.
6. Mount Power Strip: Attach the integrated power strip to the side or back of the upper frame, as indicated by the design, using the provided mounting hardware.
7. Endelig stramning: Once all components are in place and aligned, systematically tighten all screws and bolts to ensure the stand is stable and secure.

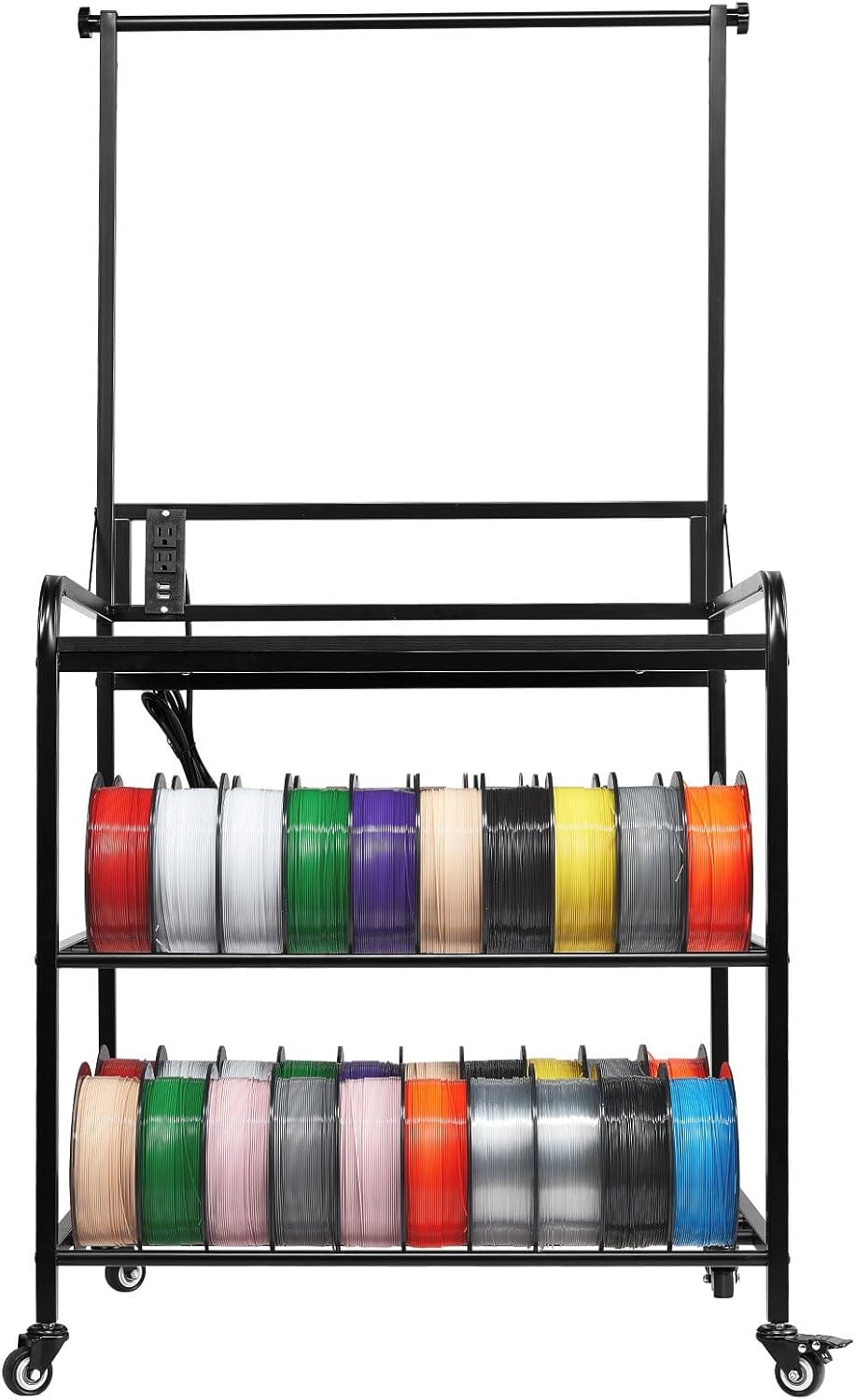

Figur 4.1: Fully assembled 3-tier 3D printer stand, showcasing the top platform for a printer, two lower shelves for filament storage, and an integrated power strip. The stand is equipped with casters for mobility.

5. Betjeningsvejledning

• Printerplacering: Place your 3D printer on the top shelf. Ensure it is centered and stable.
• Opbevaring af filamenter: Utilize the middle and lower shelves for organizing your 3D printer filament spools. The integrated holders are designed to keep spools neatly arranged and easily accessible.
• Power Strip Usage: Connect your 3D printer and other peripherals (e.g., laptop, tools) to the integrated power strip. This provides convenient power access directly at your workstation.
• Mobilitet: To move the stand, unlock the casters. Once the stand is in the desired location, lock the casters to prevent accidental movement and ensure stability during operation.

6. Vedligeholdelse

• Rensning: Wipe down the carbon steel frame and MDF boards with a soft, damp klud. Undgå slibende rengøringsmidler eller barske kemikalier, der kan beskadige overfladen.
• Hardwarekontrol: Kontrollér regelmæssigt alle skruer og bolte for at sikre, at de forbliver stramme. Spænd dem igen om nødvendigt for at bevare den strukturelle integritet.
• Hjulpleje: Keep casters free of dust and debris to ensure smooth movement.

7. Fejlfinding

• Stativet er vakkelvornt: Ensure all assembly hardware is fully tightened. Check that the stand is on a level surface.
• Hjul ruller ikke jævnt: Check for debris caught in the caster wheels. Ensure casters are unlocked when attempting to move the stand.
• Power Strip Not Working: Verify the power strip is plugged into a functional wall outlet. Check for tripped circuit breakers.

8. Specifikationer

9. Garanti og support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact the seller directly. Keep your purchase receipt as proof of purchase.
