Alpine BRV-S65C BassRev Component Speaker Set User Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Alpine BRV-S65C 6.5" BassRev Component Speaker Set. Designed for high-fidelity audio reproduction in automotive environments, these speakers feature advanced engineering to deliver enhanced bass response and clear sound quality. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your product.

The BRV-S65C speakers are part of the Alpine BassRev series, engineered to integrate seamlessly with Alpine's Optim8 amplifier (PXE-C80-88) for a fully optimized audio experience. This integration allows for precise tuning and enhanced performance, leveraging the amplifier's built-in Digital Signal Processor (DSP).

Pakkeindhold:

Two 6.5" BassRev Woofers
To diskanthøjttalere
Monteringshardware
Højttaler ledning
Brugervejledning (dette dokument)

2. Opsætning og installation

Proper installation is crucial for achieving the best sound quality and ensuring the safety of your vehicle's electrical system. It is recommended that installation be performed by a qualified professional. If you choose to install the speakers yourself, please follow these guidelines carefully.

2.1 Sikkerhedsforanstaltninger

Frakobl køretøjets negative batteripol, før du påbegynder elektrisk arbejde.
Sørg for, at alle ledninger er korrekt isoleret for at forhindre kortslutninger.
Mount speakers securely to prevent movement during vehicle operation.
Undgå at installere højttalere på steder, der blokerer airbags eller andre sikkerhedsfunktioner.

2.2 Komponent overview

Figur 2.2.1: Øverst view of the Alpine BRV-S65C 6.5-inch BassRev woofer, showcasing its metallic cone and ribbed rubber surround.

Figur 2.2.2: Et nærbillede view of the BRV-S65C woofer cone, highlighting the unique lapel shape and the High Excursion Design Gathered Edge (H.E.D.G.E.) rubber surround for increased output and low-frequency extension.

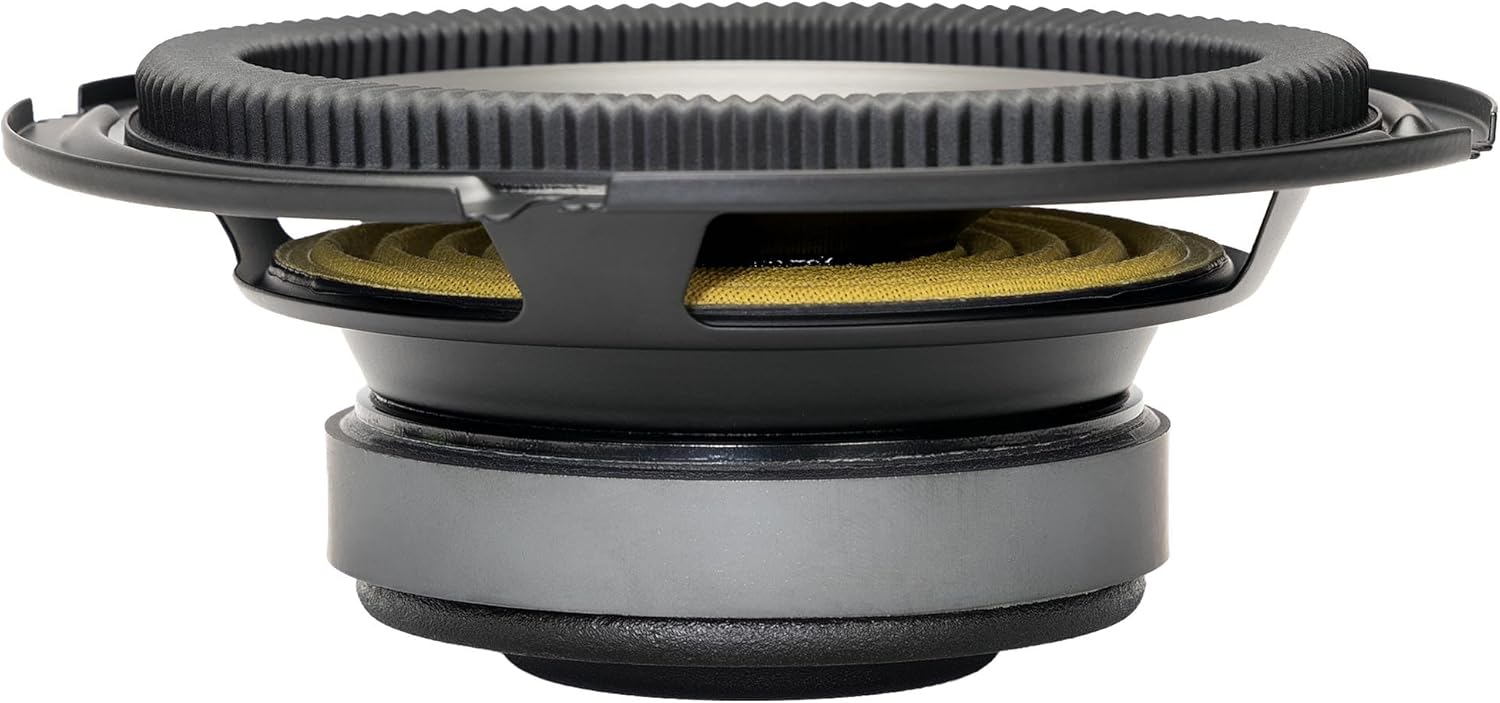

Figur 2.2.3: Sideprofile of the Alpine BRV-S65C woofer, showing its mounting depth and robust construction.

Figure 2.2.4: The tweeters included with the Alpine BRV-S65C component speaker set, designed for clear high-frequency reproduction.

2.3 Ledningsføring og tilslutning

The BRV-S65C component speakers are designed to run in a full active configuration, meaning they do not utilize a passive crossover. This design requires direct connection to a Digital Signal Processor (DSP) amplifier, such as the Alpine PXE-C80-88 Optim8 amplifier, for proper frequency division and tuning.

Connect the woofers and tweeters directly to the appropriate channels of your DSP amplivligere.
Sørg for korrekt polaritet (+ til + og - til -) for alle højttalertilslutninger.
Refer to your DSP amplifier's manual for specific wiring diagrams and channel assignments.

2.4 Montering

Mount the woofers and tweeters in suitable locations within your vehicle, typically in factory speaker locations or custom-fabricated mounts. Ensure adequate clearance behind the speakers and secure them firmly to prevent vibrations and rattles.

Use the provided mounting hardware.
Avoid mounting speakers where they will be exposed to excessive moisture or direct sunlight.

3. Betjeningsvejledning

Once installed and connected to a compatible DSP amplifier, your Alpine BRV-S65C speakers are ready for operation. Optimal performance is achieved through proper tuning of the DSP amplivligere.

3.1 DSP Tuning with Alpine Optim8 Amplivligere

The Alpine BassRev speaker line is specifically designed to work with the Alpine PXE-C80-88 Optim8 amplifier. Det her amplifier features built-in tuning presets for BassRev speakers, simplifying the setup process.

Video 3.1.1: En overview of the Alpine BassRev Series, demonstrating how the speakers are designed to integrate with the Optim8 amplifier for enhanced audio performance and simplified tuning. This video highlights the benefits of the integrated DSP for achieving optimal sound quality.

Access the tuning interface of your Alpine PXE-C80-88 amplifier (requires 3.0 or newer update).
Select the appropriate speaker size (6.5" component) from the pre-EQ selection options.
De amplifier will apply optimized crossover points, equalization, and time alignment settings for your BRV-S65C speakers.
Further fine-tuning can be done manually if desired, referring to the Optim8 amplifier's user manual.

The High Excursion Design Gathered Edge (H.E.D.G.E.) rubber surround and unique lapel cone shape contribute to increased output and extended low-frequency response, providing more mid-bass than traditional speakers of similar size.

4. Vedligeholdelse

Your Alpine BRV-S65C speakers are designed for durability and long-term performance with minimal maintenance. Follow these simple guidelines to keep them in optimal condition:

Rensning: Use a soft, dry cloth to wipe down the speaker grilles and cones. Avoid using harsh chemicals, abrasives, or excessive moisture, which can damage the materials.
Inspektion: Periodically check speaker mounts and connections to ensure they remain secure. Loose connections can lead to poor sound quality or intermittent operation.
Miljøbeskyttelse: While designed for automotive use, avoid prolonged exposure to extreme temperatures, direct sunlight, or excessive moisture when possible.

5. Fejlfinding

If you experience issues with your Alpine BRV-S65C speakers, consult the following table for common problems and solutions. For more complex issues, contact Alpine customer support or a certified installer.

Problem	Mulig årsag	Løsning
Ingen lyd fra højttalerne	Løse eller forkerte ledningsforbindelser. AmpLifieren er ikke tændt eller i beskyttelsestilstand. Forkerte DSP-indstillinger.	Tjek alle højttalere og amplifier wiring for secure connections and correct polarity. Verificere amplifier power and check for protection indicator lights. Consult ampmanual til lifter. Ensure correct speaker type and settings are selected in the DSP.
Forvrænget eller uklar lyd	Gain levels set too high on amplifier eller kildeenhed. Incorrect DSP equalization or crossover settings. Beskadigelse af højttalerkegle.	Reduce gain levels. Reset DSP settings to factory presets for BRV-S65C or re-tune carefully. Undersøg højttalerkeglerne for fysisk skade.
Lack of bass response	Incorrect crossover settings (high-pass filter too high). Phase issues. Løs højttalermontering.	Adjust high-pass filter settings in the DSP to a lower frequency. Check speaker polarity and phase settings in the DSP. Sørg for, at højttalerne er sikkert monteret.

6. Specifikationer

Feature	Detalje
Mærke	Alpine
Modelnummer	BRV-S65C
Højttaler type	Komponent
Højttaler størrelse	6.5 tommer
Højttaler Maksimal udgangseffekt	100 watt
Frekvensrespons	20 Hz (Lower limit, actual range depends on tuning)
Lydudgangstilstand	Stereoanlæg
Monteringstype	Flush Mount
Indkapslingsmateriale	Metal, Polypropylene
Antal enheder	1.0 Count (Refers to the set)
Audio driver størrelse	6.5 tommer
UPC	793276002341
Kompatibel køretøjstype	SUV'er, udvalgte biler, lastbil
Særlige funktioner	High Excursion Design Gathered Edge (H.E.D.G.E.) rubber surround, Unique lapel cone shape, OPTIM Sync Technology compatibility, Polypropylene and Mica Cone Material, Gun metal chemical topcoat.

7. Garanti og support

7.1 Producentens garanti

The Alpine BRV-S65C Component Speaker Set is covered by a 1 års producentgarantiDenne garanti dækker materiale- og fabrikationsfejl ved normal brug. Gem venligst din købsbevis i tilfælde af garantikrav.

For full details regarding warranty terms, conditions, and exclusions, please refer to the official Alpine warranty documentation included with your product or visit the Alpine webwebsted.

7.2 Kundesupport

For technical assistance, troubleshooting, or service inquiries, please contact Alpine customer support. You can find contact information on the official Alpine webhjemmeside eller gennem din autoriserede forhandler.

Online ressourcer: Besøg den officielle Alpine webwebsted for ofte stillede spørgsmål, produktregistrering og yderligere supportmaterialer.
