Temank PowMr MPPT Solar Charge Controller POW-RV1245A User Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Temank PowMr MPPT Solar Charge Controller POW-RV1245A. This advanced Maximum Power Point Tracking (MPPT) controller is designed to efficiently manage power from your solar panels to charge 12V/24V battery systems, including lead-acid and lithium batteries. It features high tracking efficiency and comprehensive protection mechanisms to ensure optimal performance and safety for off-grid systems, RVs, and small cabins.

2. Sikkerhedsoplysninger

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in personal injury, damage to the controller, or damage to other components in your system.

• Ensure all connections are correct and secure before applying power. Incorrect wiring can cause damage.
• Always disconnect the PV input before modifying any USER-mode charging parameters via the remote screen to prevent setting errors and ensure safe configuration.
• The controller is designed for indoor use in a well-ventilated area. Avoid exposure to direct sunlight, high temperatures, or moisture.
• Du må ikke selv adskille eller forsøge at reparere controlleren. Kontakt kvalificeret personale for service.
• Sørg for korrekt jordforbindelse af systemet i henhold til lokale el-forskrifter.
• Wear appropriate personal protective equipment (PPE) when working with electrical systems, including insulated gloves and eye protection.

3. Produktet er slutview

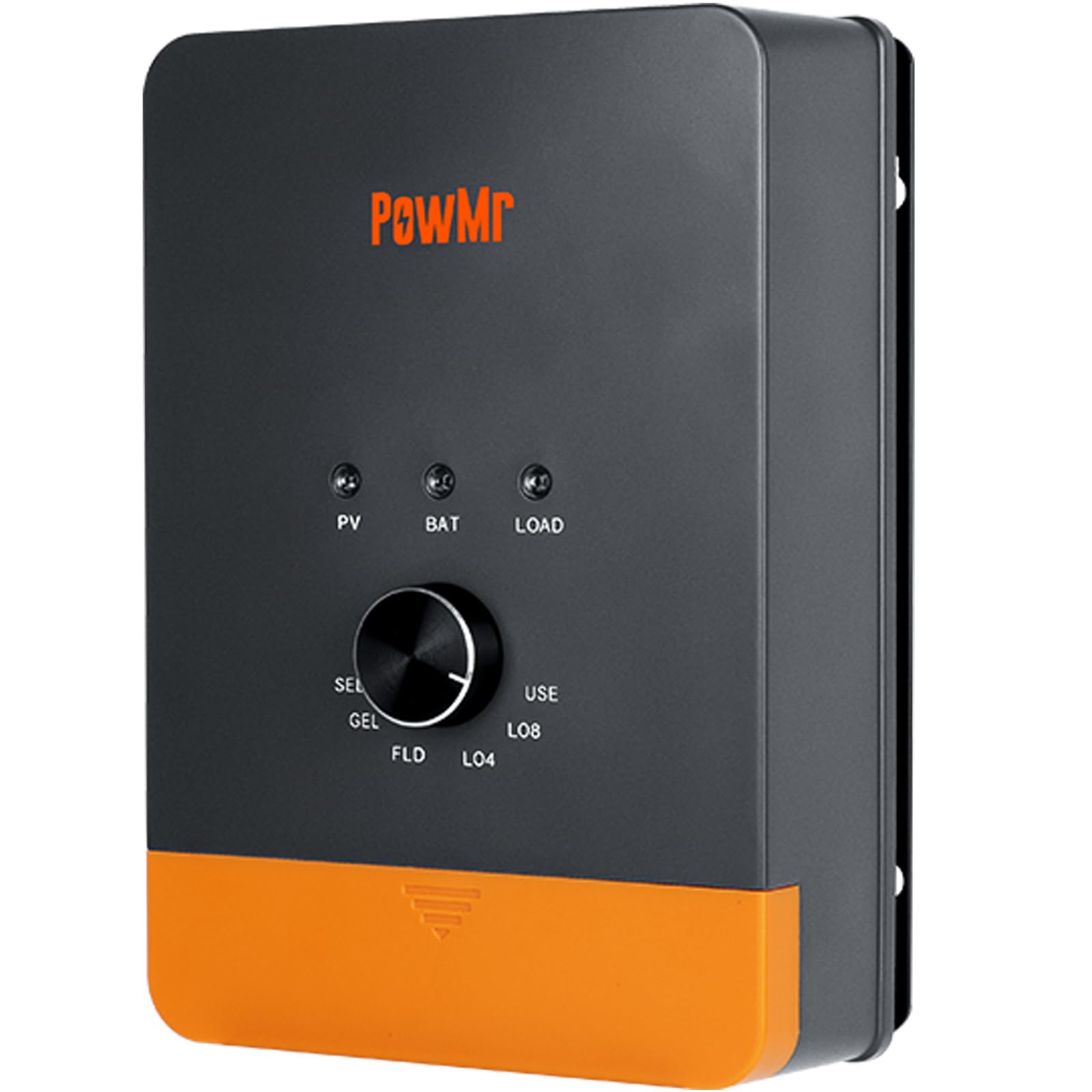

The Temank PowMr MPPT Solar Charge Controller POW-RV1245A is designed for efficient and reliable solar power management. Key features include:

• Avanceret MPPT-teknologi: Up to 99% tracking efficiency for optimal energy harvest.
• Intuitive Rotary Knob: Simplifies battery type selection (SEL, GEL, FLD, L04, L08, USER) without complex menu navigation.
• Bred kompatibilitet: Works with 12V/24V lead-acid and lithium batteries.
• Omfattende beskyttelse: Includes PV and battery reverse polarity, over-current, short-circuit, and over-temperature protection.
• Lydløs drift: Fanless design for natural heat dissipation.
• Optional Remote Monitoring: Supports an optional remote control screen (sold separately) for real-time data and parameter adjustment.

Figure 3.1: Temank PowMr MPPT Solar Charge Controller POW-RV1245A connected in a solar system setup.

4. Opsætning og installation

Follow these steps for proper installation of your solar charge controller.

4.1 Montering af controlleren

Mount the controller vertically on a non-flammable surface in a well-ventilated area. Ensure sufficient clearance around the unit for proper heat dissipation. Avoid mounting in direct sunlight or areas with high humidity.

4.2 Ledningsforbindelser

Connect the system components in the following order to ensure safety and proper operation:

1. Tilslut batteriet: First, connect the battery to the controller's battery terminals. Ensure correct polarity (positive to positive, negative to negative). The controller will automatically detect the system voltage (12V eller 24V).
2. Tilslut belastningen (valgfrit): If using the load output, connect your DC load to the controller's load terminals. Ensure correct polarity.
3. Tilslut PV-panelet: Finally, connect the solar panel array to the controller's PV terminals. Ensure correct polarity. The controller will begin charging.

Vigtig: Disconnect the system in the reverse order: PV array, then Load, then Battery.

Figure 4.1: Schematic wiring diagram for the solar charge controller. Connect battery first, then load, then PV. Disconnect in reverse order.

5. Betjeningsvejledning

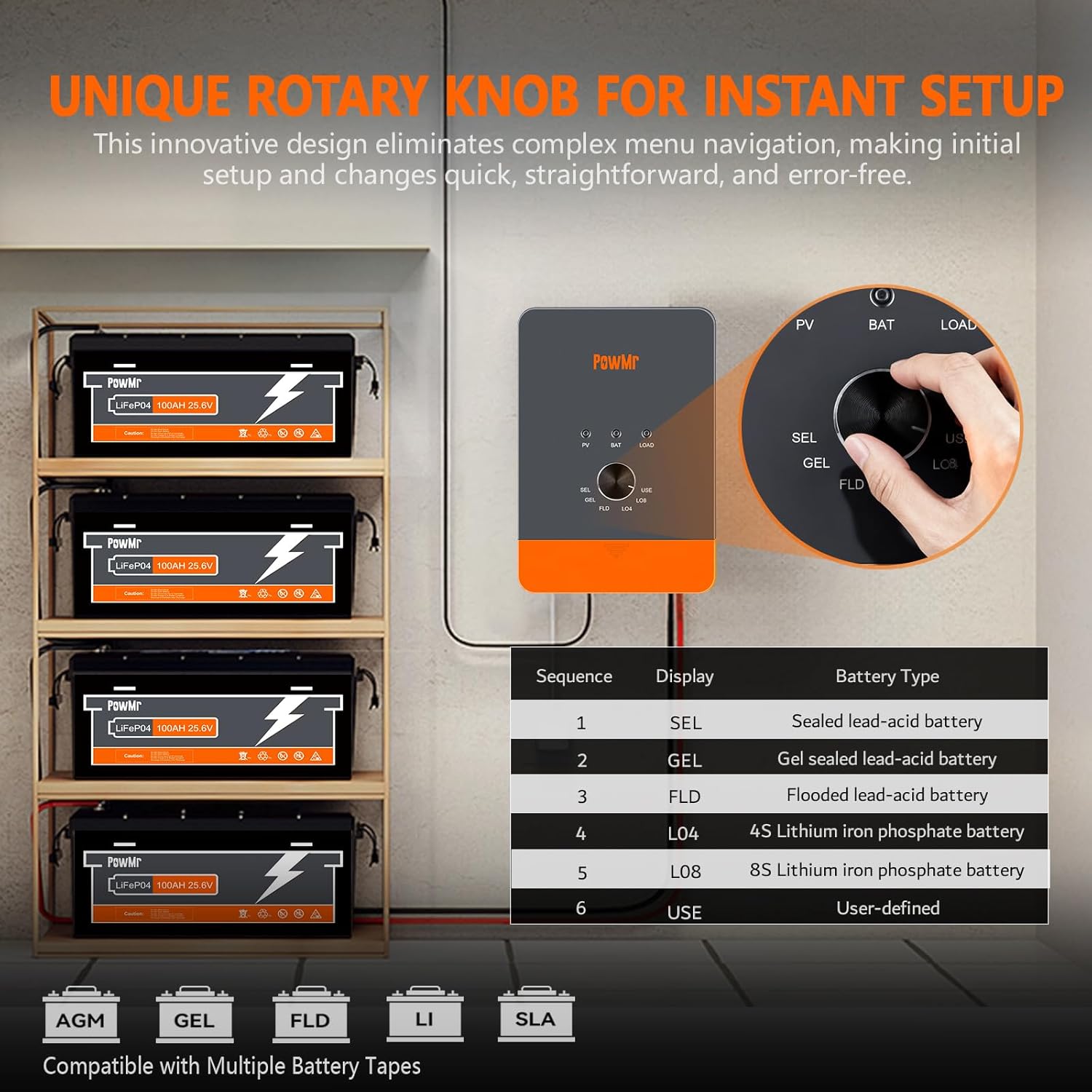

5.1 Valg af batteritype

The controller features a rotary knob for easy selection of battery types. Rotate the knob to select the appropriate battery chemistry for your system. The available options are:

• SEL: Forseglet bly-syre batteri
• GEL: Gel forseglet bly-syre batteri
• FLD: Oversvømmet bly-syre batteri
• L04: 4S Lithium iron phosphate battery (LiFePO4)
• L08: 8S Lithium iron phosphate battery (LiFePO4)
• BRUGER: User-defined settings (requires optional remote screen for adjustment)

Note: For 24V lead-acid or USER type systems, the actual charging voltage is double the display value (e.g., a 14.4V setting will result in 28.8V output).

Figure 5.1: Rotary knob for selecting battery type.

5.2 MPPT Charging Mode (Three-Stage opladning)

The controller utilizes a three-stage-opladningsalgoritme til optimering af batteriets levetid og ydeevne:

1. Bulkafgift: Charges the battery at its maximum current until the voltage når boost voltage.
2. Boost Charge: Maintains the boost voltage for a set period to ensure full charge.
3. Flydeafgift: Reducerer volumentage to a lower level to maintain the battery at full charge and prevent overcharging.

An equalization charge is performed once a month for compatible battery types to prevent sulfation and ensure cell balance.

Figur 5.2: Tre-stage opladning profile for prolonged battery lifecycle.

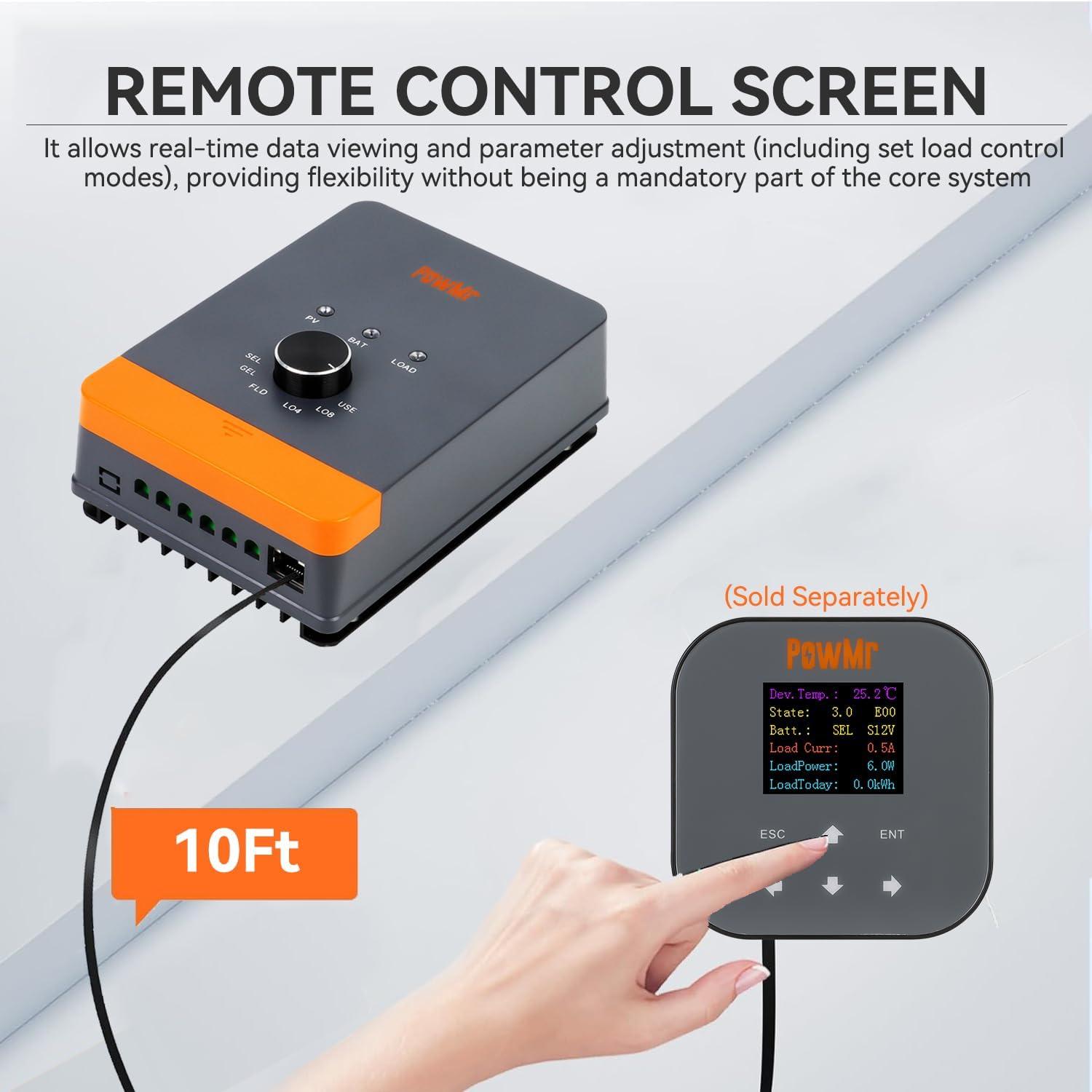

5.3 Optional Remote Control Screen

An optional remote control screen (sold separately) can be connected to the controller for advanced monitoring and parameter adjustment. This allows real-time data viewing and modification of settings, including load control modes, providing greater flexibility for your system.

Figure 5.3: Optional remote control screen for monitoring and parameter adjustment.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your solar charge controller and system.

• Undersøg forbindelser: Kontrollér regelmæssigt alle ledningsforbindelser for tæthed og korrosion. Løse forbindelser kan forårsage overophedning og strømtab.
• Rengør controlleren: Hold controlleren ren og fri for støv og snavs. Brug en tør klud til at tørre ydersiden af. Brug ikke flydende rengøringsmidler.
• Ventilation: Ensure that the area around the controller remains clear to allow for proper airflow and heat dissipation.
• Batteriinspektion: Regularly inspect your batteries for any signs of damage, leakage, or swelling. Ensure battery terminals are clean.

7. Fejlfinding

Dette afsnit indeholder løsninger på almindelige problemer, du kan støde på.

• Ingen strøm/display:
  • Kontroller batteriforbindelserne og sørg for korrekt polaritet.
  • Bekræft batteri voltage is within the operating range (12V/24V).
  • Sørg for, at batteriet ikke er helt afladet.
• Ingen opladning fra PV:
  • Kontrollér PV-panelernes tilslutninger og polaritet.
  • Sørg for, at der kommer tilstrækkeligt sollys til solpanelerne.
  • Verify PV open-circuit voltage is within the controller's specifications (Max. PV Input 100V for 45A model).
• Overtemperaturbeskyttelse:
  • Sørg for tilstrækkelig ventilation omkring controlleren.
  • Reduce load or PV input if operating in extremely hot environments.
• Batteri ikke fuldt opladet:
  • Confirm the correct battery type is selected using the rotary knob.
  • Check for sufficient PV input power and sunlight hours.
  • Inspect battery health and capacity.

For persistent issues, refer to the detailed specifications or contact customer support.

8. Specifikationer

Figure 8.1: Certified protections for the solar charge controller.

9. Garanti og support

Oplysninger vedrørende produktgaranti og kundesupport var ikke tilgængelige i de angivne produktdata. Se venligst produktemballagen eller producentens officielle website for details on warranty coverage and how to contact customer support for technical assistance or service.
