plplaaoo PC 321 W 500 TY WiFi Energy Meter User Manual

1. Introduktion

The plplaaoo PC 321 W 500 TY WiFi Energy Meter is designed for accurate real-time monitoring of electrical energy consumption in both home and industrial environments. Equipped with three 500A current sensors, this device provides detailed insights into your power usage, helping to optimize efficiency and prevent potential issues. This manual provides essential information for the safe and effective use of your energy meter.

2. Produktet er slutview

The plplaaoo PC 321 W 500 TY offers advanced features for comprehensive energy management:

• Accurate Electrical Monitoring: Features 3 high-precision 500A sensors for monitoring power consumption of various appliances, including air conditioners, stoves, water heaters, washing machines, and dryers. Provides real-time data for understanding energy usage patterns and optimizing efficiency.
• Real-Time Energy Tracking: Monitor electricity usage anytime, anywhere via a mobile app. Helps prevent costly repairs by alerting to unusual power surges and enables significant energy savings by identifying high-consumption devices.
• Multifunctional Performance: Foranstaltninger voltage, current, and power factor, offering comprehensive insights into your electrical system. An essential tool for both residential and commercial energy management.
• Seamless WiFi Connectivity: Supports 2.4 GHz WiFi for effortless synchronization with your mobile app, providing instant access to power data. Ensures a stable and secure connection for accurate information.
• Easy Installation and Use: Designed for convenience with simple clamp-on installation, eliminating the need for complex wiring. User-friendly interface and clear instructions make it accessible for professionals and DIY enthusiasts.

Figur 2.1: System overview showing the energy meter connecting to a mobile device.

3. Specifikationer

Figur 3.1: Produktdimensioner.

4. Pakkens indhold

Kontroller venligst, at alle varer er til stede i pakken:

• 1 x WiFi Energy Meter (Main Unit)
• 1 x Antenne
• 1 x Antenna Base
• 4 x Accessories (likely mounting hardware or connectors)
• 1 x Brugermanual (dette dokument)

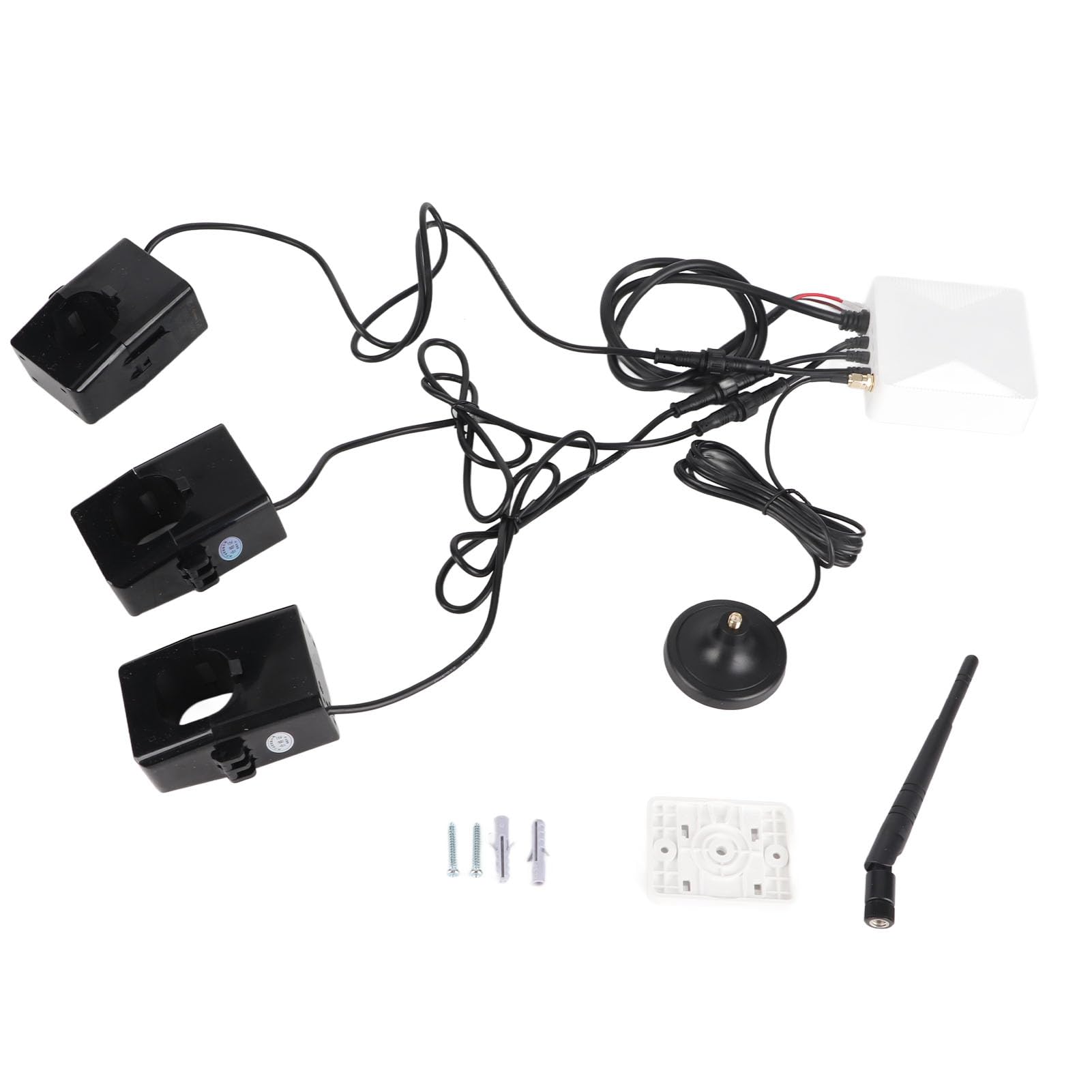

Figur 4.1: Pakkens indhold.

5. Opsætning og installation

Vigtig sikkerhedsmeddelelse: Before proceeding with installation, ensure the main power to your facility is completely turned off at the circuit breaker. Installation should only be performed by qualified personnel or with extreme caution by experienced DIY enthusiasts. Always follow local electrical codes and safety guidelines.

5.1 Wiring the Current Sensors (CTs)

The energy meter uses three 500A clamp-on current transformers (CTs) to measure current. These CTs must be clamped around the live wires of the circuits you wish to monitor. Ensure the direction of the current flow through the CTs is consistent (e.g., arrow on CT pointing towards the load).

Figure 5.1: Wiring diagram for 3-Phase and Single-Phase electricity.

1. Sluk: Disconnect all power to the electrical panel where the meter will be installed.
2. Mount the Meter: Securely mount the main WiFi Energy Meter unit in a suitable location within the electrical panel or an adjacent enclosure.
3. Connect Voltage ledninger: Tilslut voltage sensing wires from the meter to the appropriate live (L1, L2, L3) and neutral (N) terminals of your electrical system, as indicated in the wiring diagram (Figure 5.1). Ensure correct phase connection for accurate readings.
4. Install CTs: Open each current clamp and place it around one of the live wires (L1, L2, L3) you intend to monitor. Ensure the clamp is fully closed and secured. The arrows on the CTs should point in the direction of current flow towards the load.
5. Tilslut antenne: Attach the antenna to the main unit and position it for optimal WiFi signal reception.
6. Bekræft forbindelser: Dobbelttjek alle ledningsforbindelser for tæthed og korrekthed, før du genopretter strømmen.

5.2 Første opstart og WiFi-konfiguration

Once the physical installation is complete:

1. Gendan strøm: Turn on the main power supply to the electrical panel. The energy meter should power on.
2. Download app: Download the dedicated mobile application (e.g., "Smart Life" or "Tuya Smart" app, refer to packaging or quick start guide for specific app name) from your smartphone's app store.
3. Registrer/Log ind: Opret en konto eller log ind på appen.
4. Tilføj enhed: Follow the in-app instructions to add a new device. This typically involves putting the meter into pairing mode (often by pressing a button on the device or cycling power) and connecting your phone to the meter's temporary WiFi hotspot, then configuring it to connect to your home/industrial 2.4GHz WiFi network.
5. Omdøbning af enhed: Once connected, you can rename the device within the app for easy identification.

Figure 5.2: Meter connected and ready for app configuration.

6. Betjeningsvejledning

After successful setup, you can monitor your energy consumption through the mobile application.

1. Access Real-Time Data: Open the mobile app and select your plplaaoo Energy Meter. The app will display real-time data for voltage, current, power, and power factor for each monitored phase.
2. Historiske data: View historical energy consumption data, often presented in graphs or charts, allowing you to track daily, weekly, or monthly usage patterns.
3. Indstil advarsler: Configure custom alerts for high power consumption, unusual surges, or other anomalies to receive notifications on your smartphone.
4. Energy Analysis: Use the app's analysis features to identify energy-intensive appliances and areas where energy savings can be made.

Figure 6.1: Mobile application interface for energy monitoring.

7. Vedligeholdelse

The plplaaoo WiFi Energy Meter is designed for low maintenance. Follow these guidelines to ensure optimal performance:

• Rensning: Gently wipe the exterior of the device with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Miljøforhold: Ensure the device operates within the specified temperature and humidity ranges (-20°C to +55°C, 90% non-condensing humidity).
• Firmwareopdateringer: Periodically check the mobile application for available firmware updates for the energy meter. Updates can improve performance and add new features.
• Tilslutningskontrol: Occasionally verify that all wiring connections, especially the CT clamps, remain secure.

8. Fejlfinding

If you encounter issues with your plplaaoo WiFi Energy Meter, refer to the following common problems and solutions:

9. Garanti og support

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official plplaaoo webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.
