Mxmoonant 1HP 220V SPA Air Blower Instruction Manual

1. Introduktion

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Mxmoonant 1HP 220V SPA Air Blower. Please read these instructions thoroughly before use and retain them for future reference.

The Mxmoonant 1HP SPA Air Blower is designed to deliver a steady stream of air to create powerful, bubbling jets in spas and hot tubs, enhancing the therapeutic massage experience. It features a pure copper motor for durability and comes with an AMP plug for secure connections.

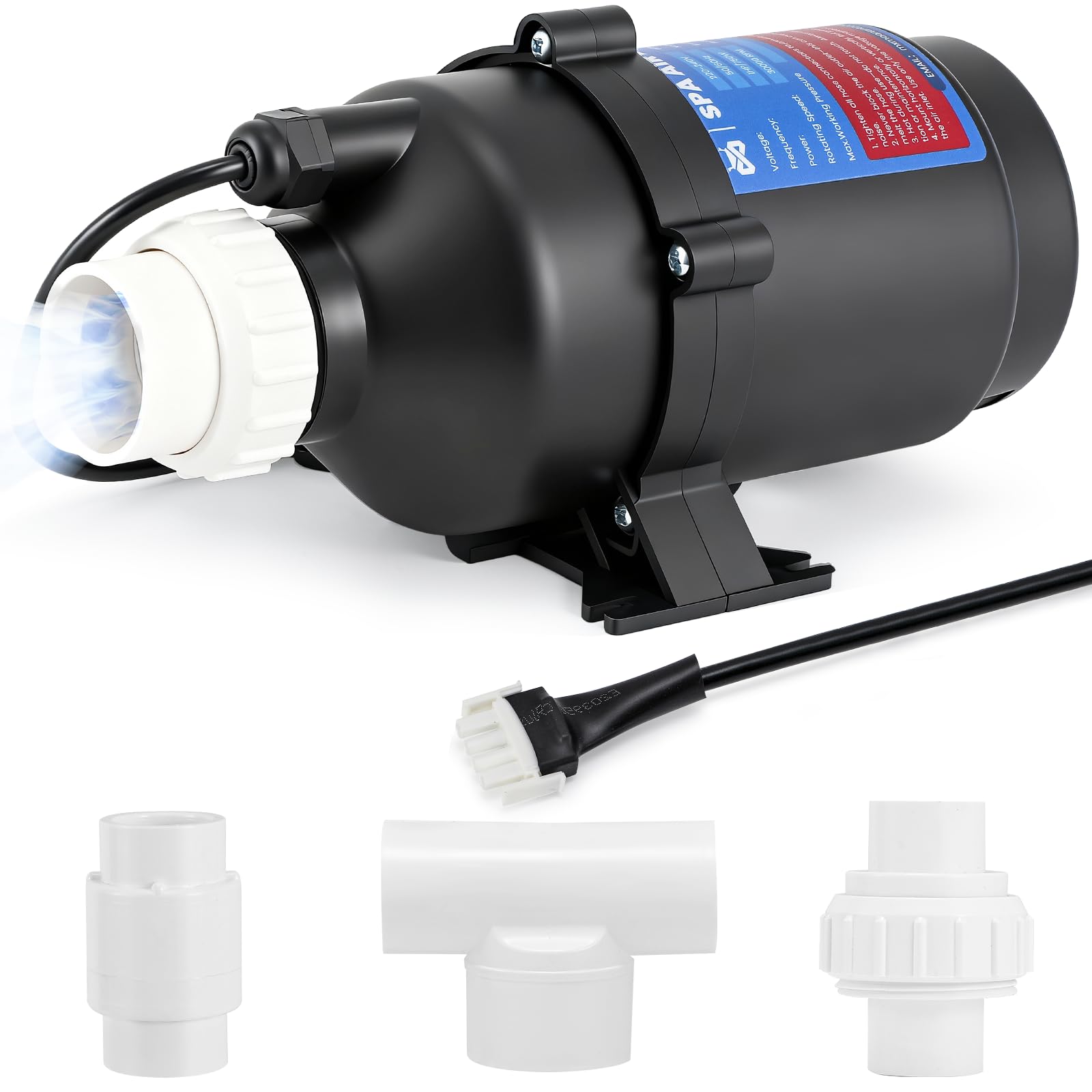

Billede: Hovedproduktet view of the Mxmoonant 1HP SPA Air Blower, showcasing its compact design and plumbing connection.

Image: An internal diagram of the Mxmoonant SPA Air Blower, illustrating the 1HP pure copper motor, 30,000 RPM high-speed rotation, and 55 km/h wind speed, contributing to powerful airflow.

2. Sikkerhedsoplysninger

• Elektrisk sikkerhed: Ensure the power supply matches the blower's voltage (220V). Always connect the blower to a properly grounded outlet. Disconnect power before performing any maintenance or installation.
• Vand og elektricitet: Never operate the blower if it or the power cord is damaged or wet. Keep all electrical connections dry.
• Installation: Installation should be performed by a qualified professional in accordance with local electrical and plumbing codes.
• Ventilation: Ensure adequate ventilation around the blower to prevent overheating.
• Børn: Keep children away from the blower during operation and maintenance.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Mxmoonant 1HP SPA Air Blower Unit
• 1" Check Valve
• Afløbsventil
• T-shirt
• 1.5" to 1" Adapter
• AMP Plug (pre-installed)

Billede: Detaljeret view of the Mxmoonant 1HP SPA Air Blower with its dimensions and a visual representation of the included plumbing parts: 1.5" PVC Fitting, 1.5" to 1" PVC Fitting, 1" Check Valve, 1" Drainage, and 1" T-Joint.

4. Opsætning og installation

Proper installation is crucial for the performance and longevity of your SPA air blower. Refer to the diagrams below for correct plumbing setup.

4.1 VVS-tilslutninger

1. Connect the blower to your spa's air intake line using the provided 1.5" to 1" adapter if necessary.
2. Install the 1" check valve in the air line to prevent water backflow into the blower.
3. Integrate the drain valve and tee as required by your specific spa plumbing configuration.
4. Sørg for, at alle forbindelser er sikre og vandtætte.

Image: An illustration showing the recommended installation of the SPA air blower with plumbing. It highlights the drainage, air distributor, and check valve, indicating the use of a 1.5-inch PVC pipe at least 20 inches long.

4.2 Correct Installation Practices

Observe the following guidelines for optimal performance and to avoid issues:

Image: A comparison diagram showing "Wrong" and "Right" plumbing configurations for the SPA air blower. The "Right" configuration demonstrates proper placement of the air distributor, drainage, and check valve, emphasizing the use of a 1.5-inch PVC pipe at least 20 inches long.

• Ensure the blower is installed in a location that allows for proper drainage and prevents water from entering the motor.
• Use a 1.5-inch PVC pipe that is at least 20 inches long for the main air line to ensure adequate airflow and prevent stress on the blower.
• De AMP plug provides a secure, waterproof electrical connection. Ensure it is properly seated.

5. Betjening

Once properly installed and connected to power, the Mxmoonant SPA Air Blower is ready for use.

1. Tænd: Activate the power switch for your spa's air blower system.
2. Luftstrøm: The blower will begin to deliver air, creating bubbles in your spa or hot tub.
3. Sluk: Deactivate the power switch when the desired bubbling effect is no longer needed.

The blower's pure copper motor ensures strong airflow and continuous bubble release for a firm massage experience.

Image: A side-by-side comparison showing a spa before and after the Mxmoonant SPA Air Blower is activated, demonstrating the increased bubbling and stronger massage effect.

6. Vedligeholdelse

Regular maintenance helps ensure the longevity and optimal performance of your SPA air blower.

• Rensning: Periodically wipe down the exterior of the blower with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the blower is unplugged before cleaning.
• Inspektion: Regularly inspect the power cord, AMP plug, and plumbing connections for any signs of wear, damage, or leaks. Address any issues promptly.
• Ventilation: Ensure the blower's air intake and exhaust vents are clear of obstructions to maintain proper airflow and prevent overheating.

7. Fejlfinding

If you encounter issues with your Mxmoonant SPA Air Blower, refer to the following common problems and solutions:

If troubleshooting steps do not resolve the issue, please contact Mxmoonant customer support.

8. Specifikationer

Detailed technical specifications for the Mxmoonant 1HP SPA Air Blower:

Image: A table displaying the technical specifications for both 1HP and 1.5HP models of the Mxmoonant SPA Air Blower, including Voltage, Frequency, Power, Rotating Speed, Wind Speed, Noise, Insulation Class, Protection Grade, and Max. Pressure.

9. Garanti og support

For warranty information, technical support, or service inquiries, please contact Mxmoonant customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can typically find support contact information on the official Mxmoonant webhjemmeside eller gennem den forhandler, hvor produktet blev købt.
