1. Produktet er slutview
The GALAX PRO 2.0Amp DC-20V Lithium-ion Battery Pack is designed to provide reliable power for compatible GALAX PRO 20V Max cordless power tools. This battery features a 2.0 Ah capacity and a 3-LED fuel gauge to indicate the charge status.

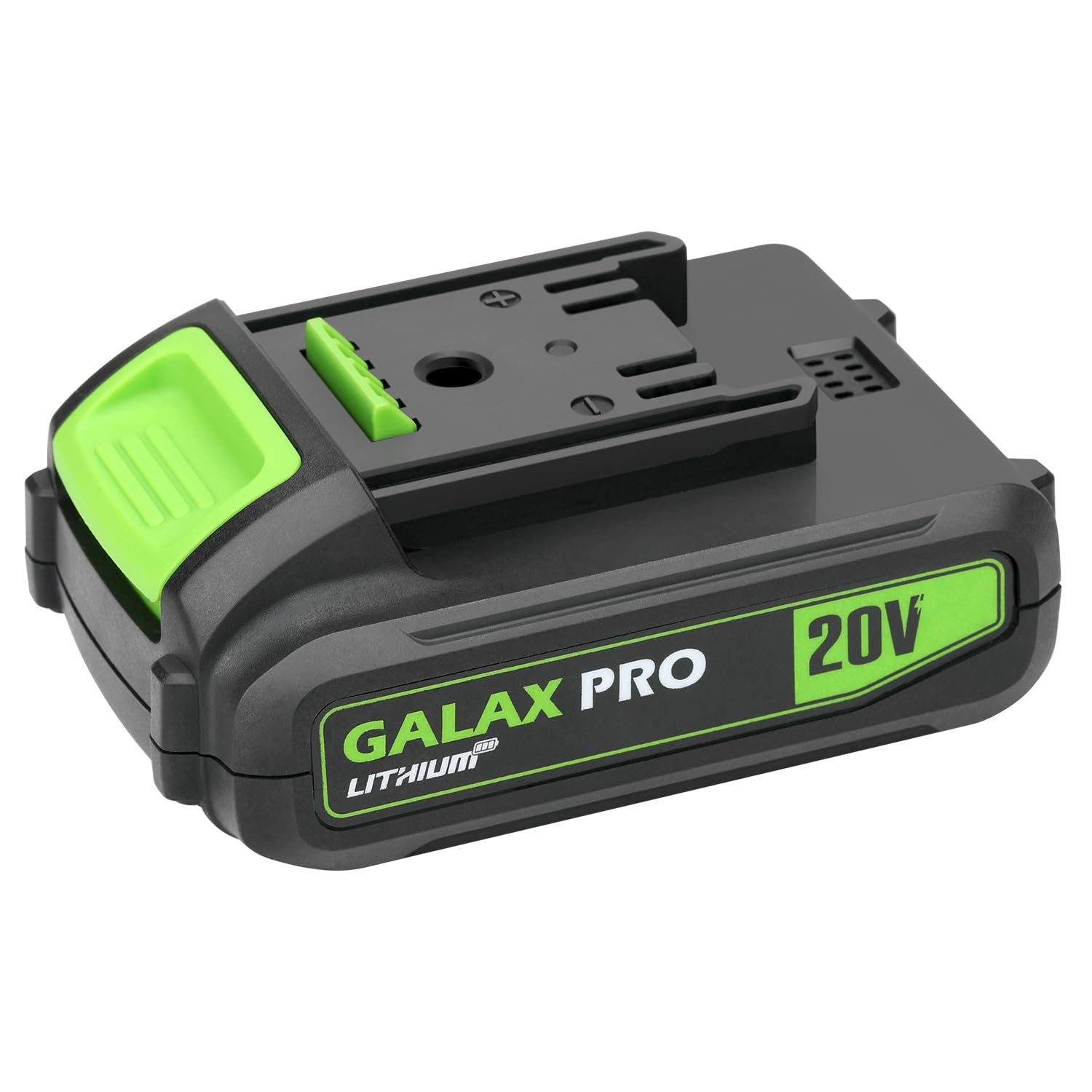

Image 1.1: The GALAX PRO 2.0Amp DC-20V Lithium-ion Battery Pack. This image shows the black and green battery pack with 'GALAX PRO LITHIUM' and '20V' branding clearly visible on its side. The top features the connection interface for power tools.
2. Vigtige sikkerhedsoplysninger
Read and understand all safety warnings and instructions before using this battery pack. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Opladning: Only use the battery pack with GALAX PRO 20V compatible chargers. Using any other charger may create a risk of fire.
- Opbevaring: Store the battery pack indoors in a cool, dry place, away from moisture and direct sunlight. Do not store where temperatures may exceed 122°F (50°C).
- Håndtering: Do not short-circuit the battery terminals. Do not immerse the battery pack in water or other liquids. Do not open, disassemble, or attempt to repair the battery pack.
- Bortskaffelse: Bortskaf batteripakker forsvarligt i henhold til lokale bestemmelser. Må ikke bortskaffes i husholdningsaffald eller ved forbrænding.
- Skade: Do not use a damaged or modified battery pack. Damaged batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.
3. Opsætning og første brug
3.1 Indledende opladning
The battery pack is shipped with a low charge to prevent power loss during transport. It is recommended to fully charge the battery pack before its first use to ensure optimal performance and lifespan.
3.2 Opladningsprocedure
- Sørg for, at batteripakken er ren og tør, før den oplades.
- Insert the battery pack into a compatible GALAX PRO 20V battery charger. Ensure it clicks securely into place.
- Sæt opladeren i en almindelig stikkontakt.
- Monitor the charger's indicator lights (refer to your charger's manual for specific light patterns) to confirm charging has begun.
- Når batteriet er fuldt opladet, skal det tages ud af opladeren.
Note: This battery pack is only suitable for GALAX PRO tools and chargers.
4. Betjening af batteripakken
4.1 Attaching to a Power Tool
- Align the battery pack with the battery port on your GALAX PRO 20V cordless power tool.
- Slide the battery pack firmly into the tool until it clicks into place. Ensure it is securely latched to prevent accidental detachment during operation.
4.2 Removing from a Power Tool
- Locate the battery release button(s) on the power tool.
- Press and hold the release button(s) while sliding the battery pack out of the tool.
4.3 Kontrol af opladningsstatus
The battery pack features a 3-LED fuel gauge. Press the small button next to the LEDs to activate the indicator:
- 3 lysdioder tændt: Approximately 67-100% charge remaining.
- 2 lysdioder tændt: Approximately 34-66% charge remaining.
- 1 LED tændt: Approximately 1-33% charge remaining. Recharge soon.
- No LEDs lit: Batteriet er helt afladet eller defekt.
5. Vedligeholdelse
Korrekt vedligeholdelse sikrer batteripakkens levetid og ydeevne.
- Rensning: Keep the battery pack's terminals and housing clean and free of debris. Use a dry cloth to wipe surfaces. Do not use solvents or harsh chemicals.
- Opbevaring: For long-term storage, store the battery pack in a cool, dry place, ideally with a partial charge (around 50%). Avoid storing in extreme temperatures (below 32°F / 0°C or above 104°F / 40°C).
- Opladningscyklusser: Avoid completely draining the battery before recharging, as this can reduce its overall lifespan. Recharge when the power level is low.
- Inspektion: Undersøg regelmæssigt batteripakken for tegn på skader, såsom revner, hævelse eller korrosion på polerne. Brug ikke en beskadiget batteripakke.
6. Fejlfinding
If you encounter issues with your battery pack, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Batteriet oplades ikke | Not properly seated in charger; Charger not plugged in; Faulty charger; Battery too hot/cold; Damaged battery. | Ensure battery is fully inserted; Check charger connection and power outlet; Try a different charger (if available); Allow battery to reach room temperature; Discontinue use if damaged. |
| Batteriet driver ikke værktøjet | Battery not fully charged; Not properly seated in tool; Tool malfunction; Damaged battery. | Charge battery fully; Ensure battery is securely latched; Test with another battery (if available) or tool; Discontinue use if damaged. |
| Reduceret køretid | Battery not fully charged; Battery nearing end of lifespan; Operating in extreme temperatures. | Ensure full charge; Battery may need replacement; Operate within recommended temperature range. |
If troubleshooting steps do not resolve the issue, contact GALAX PRO customer support.
7. Specifikationer
- Batteritype: Lithium-ion
- Voltage: 20 V
- Kapacitet: 2.0 Ah
- Vægt: 14.9 ounce (ca. 0.42 kg)
- Dimensioner (L x B x H): 4.84 x 3.19 x 2.48 tommer (ca. 12.3 x 8.1 x 6.3 cm)
- Brændstofmåler: 3-LED-indikator
- Kompatibilitet: GALAX PRO 20V Max cordless power tools and chargers
8. Garanti og support
For warranty information or technical support, please refer to the warranty card included with your product or visit the official GALAX PRO website. You may also contact GALAX PRO customer service directly for assistance with product inquiries, troubleshooting, or replacement parts.
Kontaktoplysninger: Please refer to your product packaging or the GALAX PRO official webhjemmeside for de seneste kontaktoplysninger.
