CREATE AIR FRYER DUAL STACK

CREATE AIR FRYER DUAL STACK 11.2L Instruction Manual

Model: AIR FRYER DUAL STACK (11.2L, Black)

Vigtige sikkerhedsinstruktioner

Læs alle instruktioner omhyggeligt, inden apparatet tages i brug, og gem dem til senere brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

  • Elektrisk sikkerhed: Sørg for, at voltage angivet på apparatet svarer til din lokale netspændingtage before connecting. Do not immerse the appliance, cord, or plug in water or other liquids. Do not operate with a damaged cord or plug.
  • Varme overflader: Apparatets overflader bliver varme under brug. Brug altid ovnhandsker, når du håndterer varme komponenter. Rør ikke direkte ved varme overflader.
  • Ventilation: Ensure adequate air circulation around the appliance during operation. Do not block any ventilation openings. Place the air fryer on a stable, heat-resistant surface, away from walls and other appliances.
  • Børn og udsatte personer: Dette apparat kan bruges af børn i alderen 8 år og derover og personer med nedsatte fysiske, sensoriske eller mentale evner eller manglende erfaring og viden, hvis de har fået tilsyn eller instruktion om brug af apparatet på en sikker måde og forstår de involverede farer. . Børn må ikke lege med apparatet. Rengøring og brugervedligeholdelse må kun foretages af børn, medmindre de er ældre end 8 år og overvåges.
  • Rensning: Always unplug the appliance and allow it to cool completely before cleaning. Refer to the "Maintenance" section for detailed cleaning instructions.
  • Tiltænkt brug: Dette apparat er kun til husholdningsbrug. Brug det ikke udendørs eller til kommercielle formål.

Produkt overview

The CREATE AIR FRYER DUAL STACK is designed for healthy, oil-free cooking using hot air circulation. It features two independent cooking baskets, allowing you to prepare different foods simultaneously.

CREATE AIR FRYER DUAL STACK 11.2L in black, shown on a kitchen counter with prepared food.

Figur 1: Forside view of the CREATE AIR FRYER DUAL STACK 11.2L in black, positioned on a kitchen counter with various dishes.

Nøglekomponenter:

  • Kontrolpanel: Digital touch screen for setting temperature, time, and selecting programs.
  • Dobbeltkurve (5.6 l hver): Two independent cooking compartments for versatile meal preparation.
  • Sprødere tallerkener: Removable plates for optimal air circulation and easy cleaning.
  • Håndtag: Integrated handles for safe removal of cooking baskets.
Close-up of the CREATE AIR FRYER DUAL STACK touch control panel.

Figur 2: Detaljeret view of the digital touch control panel, showing various cooking icons and settings.

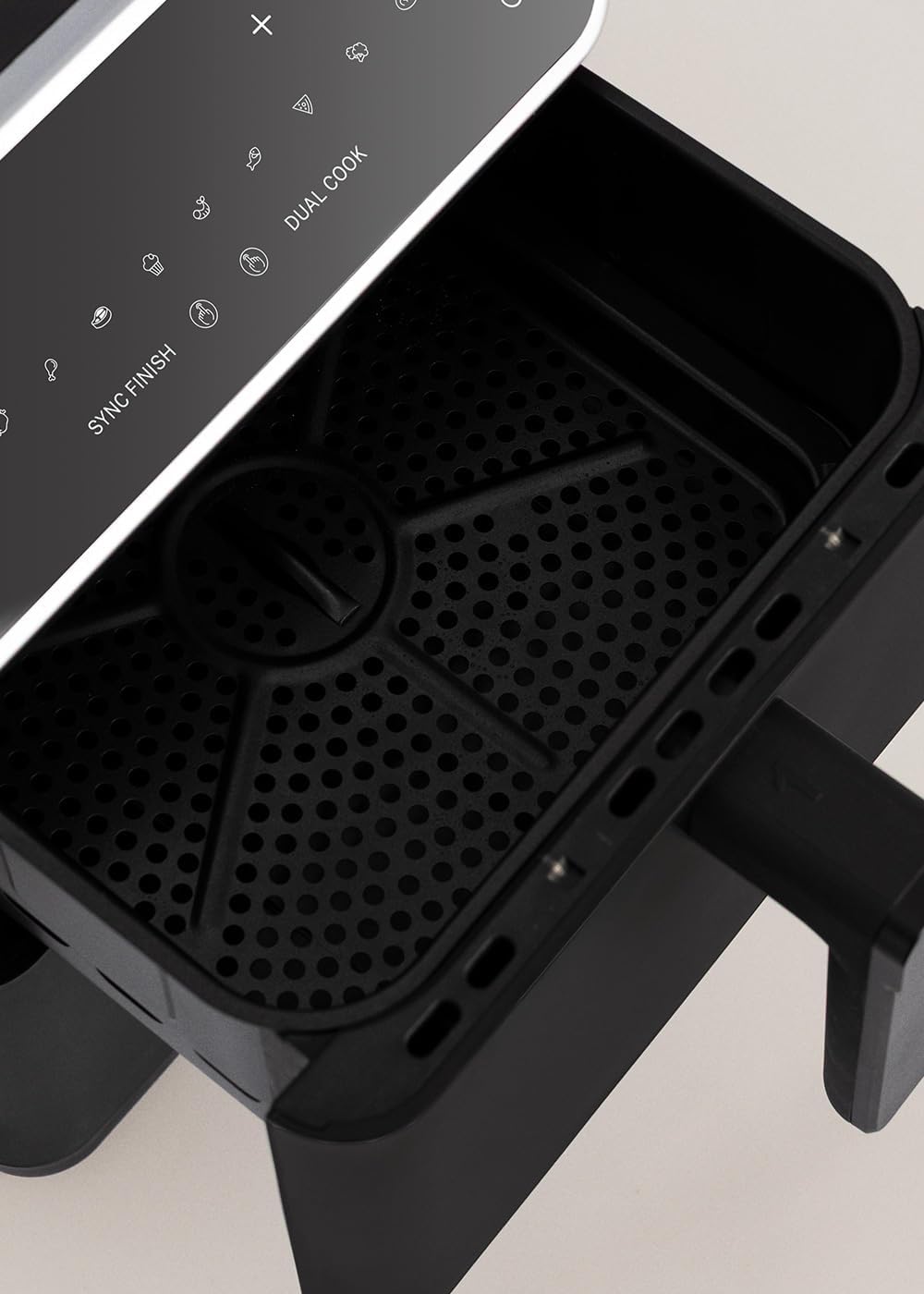

Close-up of an empty cooking basket with its crisper plate inside.

Figur 3: View inside an empty cooking basket, highlighting the removable crisper plate.

Opsætning og første brug

Udpakning:

  1. Fjern alle emballagematerialer, klistermærker og etiketter fra apparatet.
  2. Kontroller, at alle komponenter er til stede og ubeskadigede.

Rengøring før første brug:

  1. Aftør ydersiden af ​​apparatet med adamp klæde.
  2. Wash the cooking baskets and crisper plates with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely. These parts are dishwasher safe.
  3. Nedsænk ikke hovedenheden i vand.

Placering:

  • Placer airfryeren på en stabil, jævn og varmebestandig overflade.
  • Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance for proper ventilation.
  • Placer ikke apparatet i nærheden af ​​brandfarlige materialer eller varmekilder.

Indledende drift:

It is recommended to run the air fryer empty for about 10-15 minutes at 200°C before first use to eliminate any manufacturing odors. A slight smell or smoke may occur, which is normal.

Betjeningsvejledning

Tænder:

Plug the power cord into a grounded electrical outlet. The control panel will illuminate, and the appliance will be in standby mode.

Brug af kontrolpanelet:

A hand pressing a button on the CREATE AIR FRYER DUAL STACK control panel.

Figure 4: User interacting with the touch control panel to select settings.

  • Power knap: Tryk for at tænde eller slukke for apparatet.
  • Temperaturjustering (+/-): Adjust cooking temperature (50°C to 200°C).
  • Tidsjustering (+/-): Adjust cooking time (1 to 60 minutes).
  • Kurvvalg (1/2): Select which basket to control independently.
  • Forudindstillede programmer: Icons for 10 automatic programs (e.g., fries, steak, fish, shrimp, chicken, cake, chicken thighs, bread, pizza, reheat).
  • SYNKRONISERET AFSLUTNING: Synkroniserer tilberedningens sluttidspunkt for begge kurve.
  • DOBBELT TILBEREDNING: Anvender de samme tilberedningsindstillinger på begge kurve.

Grundlæggende tilberedningstrin:

  1. Place food in one or both cooking baskets. Ensure the crisper plates are inserted. Do not overfill.
  2. Insert the baskets firmly into the appliance.
  3. Tryk på Power-knappen.
  4. For Single Basket Cooking: Select basket 1 or 2, then adjust temperature and time using the +/- buttons. Press the Start/Pause button to begin.
  5. Brug af forudindstillede programmer: Select basket 1 or 2, then choose one of the 10 program icons. The appliance will automatically set the recommended temperature and time. You can adjust these settings manually if needed. Press Start/Pause.
  6. Dobbelt kogefunktion: Press the DUAL COOK button. Set the desired temperature and time for one basket; these settings will automatically apply to the other basket. Press Start/Pause.
  7. SYNC FINISH Function: This function allows two different foods to finish cooking at the same time.
    • Set temperature and time for Basket 1.
    • Vælg Kurv 2, og indstil dens temperatur og tid.
    • Press SYNC FINISH. The air fryer will automatically adjust the start times so both baskets finish simultaneously. Press Start/Pause.
  8. During cooking, you may shake the baskets for even cooking, especially for items like fries.
  9. When cooking is complete, the appliance will beep. Carefully pull out the baskets using the handles.
  10. Remove food using non-metallic utensils to avoid scratching the non-stick coating.

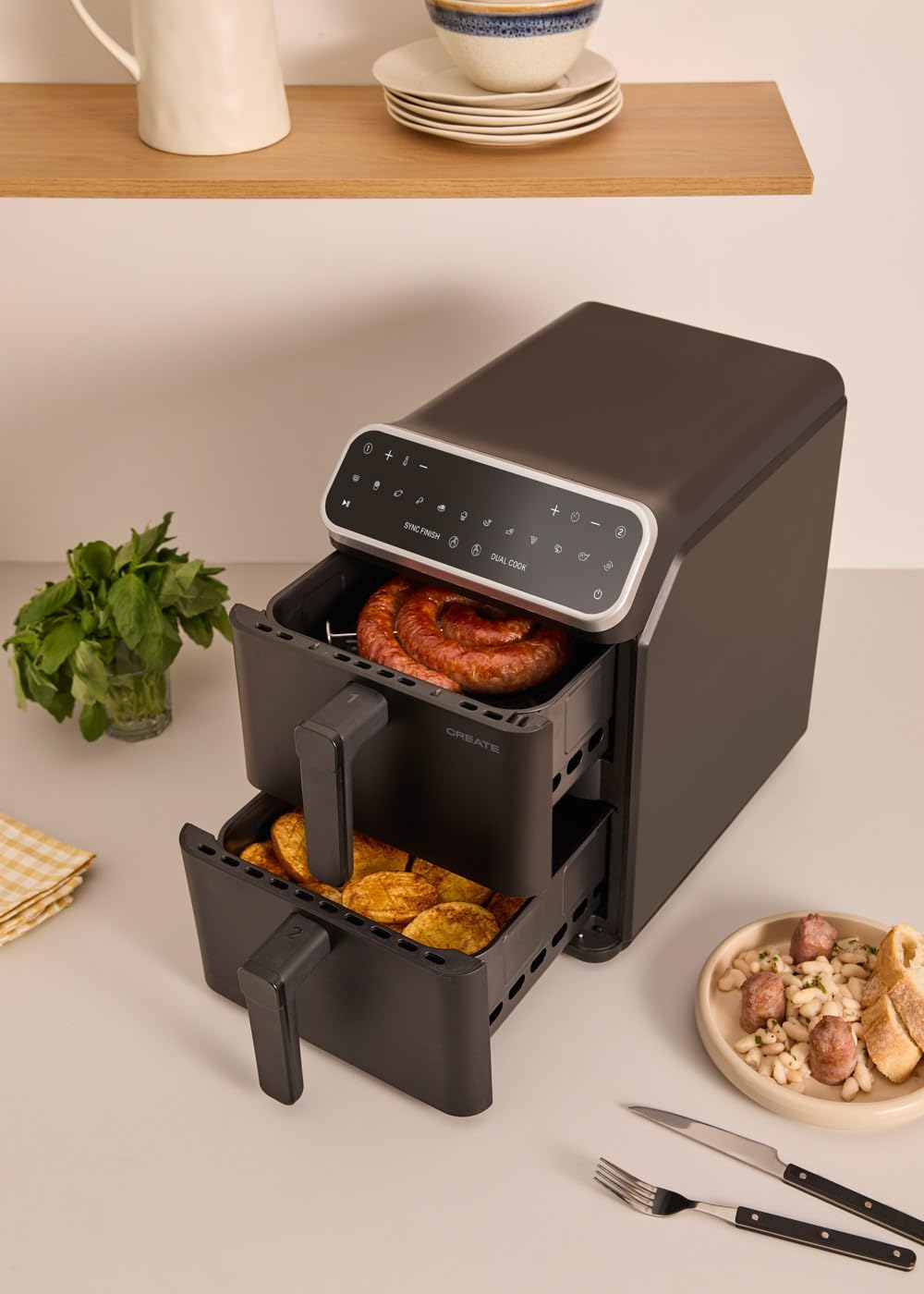

CREATE AIR FRYER DUAL STACK with both baskets open, showing sausages in the top basket and potato slices in the bottom.

Figure 5: The air fryer in use, demonstrating simultaneous cooking in both baskets.

Close-up of the bottom basket of the CREATE AIR FRYER DUAL STACK, filled with crispy potato slices.

Figure 6: A single basket filled with food, ready for or during the cooking process.

Vedligeholdelse og rengøring

Regelmæssig rengøring sikrer optimal ydeevne og forlænger levetiden på din airfryer.

  1. Før rengøring: Tag altid stikket ud af stikkontakten, og lad det køle helt af, inden du rengør det.
  2. Madkurve og grøntsagsplader:
    • These parts are dishwasher safe.
    • Alternatively, wash them in hot water with dish soap and a non-abrasive sponge.
    • For stubborn food residues, soak the baskets in hot water with dish soap for about 10 minutes before cleaning.
    • Ensure they are completely dry before reassembling or storing.
  3. Apparatets indre:
    • Tør indvendigt af med adamp klæde. Brug ikke slibende rengøringsmidler eller skuresvampe.
    • If necessary, use a small brush to clean the heating element, ensuring the appliance is unplugged and cool.
  4. Apparatets yderside:
    • Tør ydersiden af ​​med en blød, damp klæde.
    • Brug ikke skrappe kemikalier eller slibende materialer.
  5. Opbevaring: Sørg for, at apparatet er rent og tørt, inden det opbevares. Opbevar det et køligt og tørt sted.
CREATE AIR FRYER DUAL STACK with both baskets and crisper plates removed, showing the interior heating elements.

Figure 7: The air fryer with baskets and crisper plates removed, illustrating components for cleaning.

Fejlfinding

If you encounter any issues with your CREATE AIR FRYER DUAL STACK, please refer to the following common problems and solutions:

Problem Mulig årsag Løsning
Apparatet tændes ikke. Ikke tilsluttet; stikkontaktfejl; apparatfejl. Sørg for, at netledningen er sat ordentligt i en stikkontakt, der virker. Kontroller afbryderen.
Food is not cooked evenly or is undercooked. Baskets overloaded; incorrect temperature/time; food not shaken. Do not overload baskets. Adjust temperature and time as needed. Shake baskets halfway through cooking for even results.
Der kommer hvid røg fra apparatet. Fedtrester fra tidligere brug; fedtholdig mad under tilberedning. Clean the baskets and crisper plates thoroughly. For fatty foods, ensure excess oil is drained. This is usually harmless.
Apparatet afgiver en usædvanlig lugt under første brug. Afbrænding af produktionsrester. This is normal for first use. Run the air fryer empty for 10-15 minutes at 200°C in a well-ventilated area.
Baskets do not slide in smoothly. Obstruction; baskets not aligned correctly. Ensure no food or debris is blocking the runners. Align baskets properly before pushing them in.

If the problem persists after trying these solutions, please contact CREATE customer support for assistance.

Specifikationer

  • Modelnavn: AIR FRYER DUAL STACK
  • Modelnummer: 210517_580487
  • Mærke: SKABE
  • Kapacitet: 11.2 liter (2 x 5.6L uafhængige kurve)
  • Magt: 2600-3000 watt
  • Voltage: 240 volt
  • Temperaturområde: 50°C - 200°C
  • Kontrolmetode: Berøringspanel
  • Dimensioner (D x B x H): 39.8 cm x 27.7 cm x 43 cm
  • Materiale: Plastic (exterior), Metal (interior)
  • Særlige funktioner: Dual Zone Functions, 10 Pre-installed Programs, SYNC FINISH, DUAL COOK
  • Dele, der tåler opvaskemaskine: Kurve og grøntsagstallerkener

Garanti og support

This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official CREATE webwebsted.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact CREATE customer service. Contact information can typically be found on the manufacturer's webwebstedet eller i din købsdokumentation.

Online ressourcer: Du kan også finde yderligere support og ofte stillede spørgsmål på CREATE Brand Store on Amazon.
