ALTIUS W142-TK/AM Double Automatic Watch Winder Instruction Manual

1. Produktet er slutview

The ALTIUS W142-TK/AM Double Automatic Watch Winder is designed to keep your automatic watches precisely wound and ready to wear. Featuring a quiet motor, smart light-sensing technology, and individual controls for each watch, it offers convenience and protection for your valuable timepieces.

Image: The ALTIUS Double Automatic Watch Winder, showcasing its sleek grey finish and dual winding compartments.

2. Opsætning

2.1 Udpakning og medfølgende komponenter

Carefully unpack your ALTIUS Watch Winder. Ensure all components are present:

• Automatic Watch Winder Unit
• Strømadapter
• USB-DC Power Cord
• Rengøringsklud
• Instruktionsmanual (dette dokument)

Image: A visual representation of all items included in the ALTIUS Watch Winder package: the winder, adapter, USB cable, cleaning cloth, and user manual.

2.2 Strømtilslutning

1. Connect the USB-DC power cord to the DC 5V input port on the back of the watch winder.
2. Sæt strømadapteren i en almindelig stikkontakt.

Image: A diagram illustrating the three setup steps: connecting power, selecting rotation mode, and turning on the LED light.

2.3 Placing Your Watches

The winder features soft, elastic foam pillows designed to securely hold watches with dials up to 60mm and strap sizes from 6-8 inches (15-20cm).

1. Remove the elastic foam pillow from the turntable groove.
2. Attach your automatic watch securely around the pillow. For watches with shorter straps, place the watch in the direction shown in the diagram.
3. Place the pillow with the watch back into the turntable groove.

Image: Close-up of the elastic watch pillows, demonstrating how they adapt to different watch sizes and strap lengths.

3. Betjeningsvejledning

3.1 Rotation Modes and Independent Control

The ALTIUS watch winder offers two rotation modes and independent controls for each watch holder.

• Mode 1 (Clockwise): Rotates clockwise for 2 minutes, pauses for 6 minutes, then repeats the cycle.
• Mode 2 (Counter-clockwise): Rotates counter-clockwise for 2 minutes, pauses for 6 minutes, then repeats the cycle.

Each watch holder has its own control knob, allowing you to set different rotation modes simultaneously for multiple watches.

Image: A visual guide to the two rotation modes (clockwise and counter-clockwise) and the independent control knobs for each watch.

Image: Diagram showing the dual control system, enabling different modes for each watch simultaneously.

3.2 Smart Light-Sensing Technology

The winder features a light-sensitive sensor that automatically stops rotation in dark conditions to ensure zero noise at night. After 9 consecutive hours without light, it will resume operation to ensure sufficient winding.

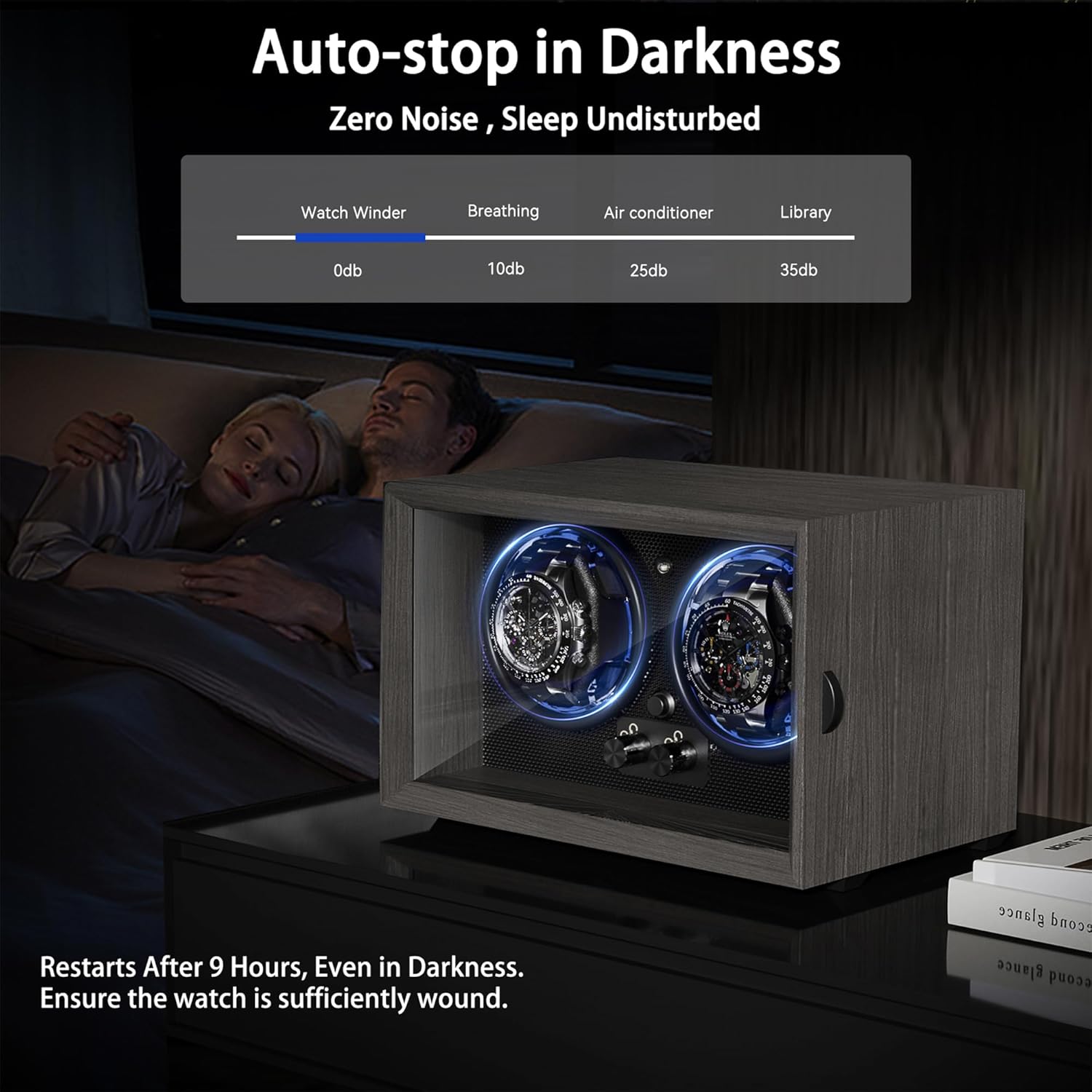

Image: Illustration of the watch winder's auto-stop feature in darkness, ensuring a quiet environment for sleep.

Image: Depiction of the winder's smart light-sensing technology, showing auto-start in light and auto-stop in darkness.

3.3 Lid Open/Close Function

For convenience and safety, the winders instantly pause when the lid is opened, preventing accidental damage and allowing easy access to your watches.

Billede: Et nærbillede view showing the watch winder pausing its rotation when the lid is opened, highlighting the safety sensor.

3.4 LED-lysstyring

The winder includes a blue LED light to illuminate your watches. To turn the LED light on or off, press the dedicated LED light button located on the control panel.

4. Vedligeholdelse

To maintain the pristine condition of your watch winder and watches:

• Use the provided cleaning cloth to gently wipe the exterior and interior surfaces.
• Undgå at bruge skrappe kemikalier eller slibende materialer.
• Keep the winder in a dry, dust-free environment.

5. Fejlfinding

Hvis du støder på problemer, bedes du følge følgende almindelige fejlfindingstrin:

• Q: Why doesn't the watch winder rotate?
  A: Please check if the power adapter is properly plugged into the watch winder's power port and ensures good contact. Confirm that the watch winder is set to the working position (not "OFF").
• Q: Why doesn't the watch winder stop after working for a few minutes?
  A: This is part of the IC program settings and does not indicate damage. Typically, the winder will automatically restart after 6 minutes. For external factors, please refer to Question 1 above.
• Q: Is there a battery compartment?
  A: No, this product is not equipped with a battery compartment. It is powered via the USB-DC power cable.
• Q: Why is the Active Quiet function working?
  A: The ALTIUS automatic watch winder has a light-sensitive sensor that automatically stops in the dark to avoid noise at night. However, after 9 consecutive hours without light, it will resume regardless of the environment to ensure that the watch is sufficiently wound.
• Q: How to properly place the watch on the pillows?
  A: Remove the pillow from the turntable groove, attach the watch to the pillow, then replace the pillow into the groove. For very short straps (e.g., some women's watches), you can secure the strap firmly to make it fit your watch in the maximum extent, or reposition the pillow as shown in the diagram below.

6. Specifikationer

7. Garanti og support

7.1 Garantioplysninger

This ALTIUS Watch Winder comes with a Limited Warranty. Please retain your proof of purchase for any warranty claims. For specific terms and conditions, refer to the warranty card included in your package or contact customer support.

7.2 Kundesupport

For further assistance, technical support, or to inquire about replacement parts, please contact ALTIUS customer service through the retailer's platform or visit the official ALTIUS website. Our dedicated support team is ready to help you.

8. Produktvideo

Watch this official product video for a quick introduction to the ALTIUS Active Mute Watch Winder's features and operation.
