Velkomst
Thank you for choosing the Ball & Cast Full Size Murphy Bed Wall Bed. This innovative and space-saving furniture piece is designed to provide a comfortable sleeping solution while maximizing your living area. This manual provides essential information for safe assembly, operation, and maintenance of your new murphy bed. Please read all instructions carefully before beginning assembly or use.
Vigtige sikkerhedsoplysninger
For at sikre sikker drift og forhindre personskade eller beskadigelse, bedes du følge følgende sikkerhedsretningslinjer:
- Carefully follow all assembly instructions to prevent instability or collapse of the unit.
- Do not load the bed with more than 600 pounds (272 kg). This includes the mattress and occupants.
- Exercise caution around all moving parts and edges to avoid pinching or injury.
- This product is not recommended for children under 12 years old without adult supervision.
- Ensure the unit is securely anchored to a wall stud according to assembly instructions to prevent tipping.
Produktegenskaber
Your Ball & Cast Murphy Bed is equipped with several features designed for convenience and efficiency:
- Multifunctional Space-Saving Solution: This versatile murphy bed converts effortlessly from a sleeping space to a living area with its vertical folding design.
- Smart Integrated Storage System: Features a top shelf, a side wardrobe, and two spacious drawers for organizing clothes, books, and other essentials.
- Flexible Customizable Layout: The wardrobe and drawer placement can be reversed to suit your room's layout and preferences.
- Pladseffektive dimensioner: Measures 107.5 inches in length when open (bed mode) and only 21.5 inches in width when closed (cabinet mode).
Produktspecifikationer
| Specifikation | Detalje |
|---|---|
| Størrelse | Fuld |
| Materiale | MDF+LVL |
| Produktdimensioner (lukket) | 58 cm B x 21.5 cm D x 72 cm H |
| Produktdimensioner (åben) | 107.5 cm L x 58 cm B x 72 cm H |
| Sengens vægtkapacitet | 600 lbs |
| Anbefalet madrastykkelse | 8-10 inches (Max 12 inches) |
| Farve | Grå |
| Montering påkrævet | Ja |
| Antal pakker | 4 |
Opsætning og montering
Assembly of your Ball & Cast Murphy Bed requires careful attention to detail. All necessary tools and detailed instructions are included with your product. Please ensure you have ample space and a second person to assist with assembly for safety and ease.
- Pak alle komponenter ud, og kontroller dem i forhold til delelisten i samlemanualen.
- Follow the step-by-step instructions for assembling the main cabinet structure.
- Securely attach the bed frame to the cabinet and ensure all hardware is tightened.
- Crucially, the unit must be securely anchored to a wall stud using the provided hardware to prevent tipping. Failure to do so can result in serious injury.
- Install the wardrobe and drawers according to your preferred left or right-side configuration.
Image: Dimensions of the Murphy Bed in its closed cabinet configuration, detailing measurements for the top shelves, main cabinet, and side storage unit.

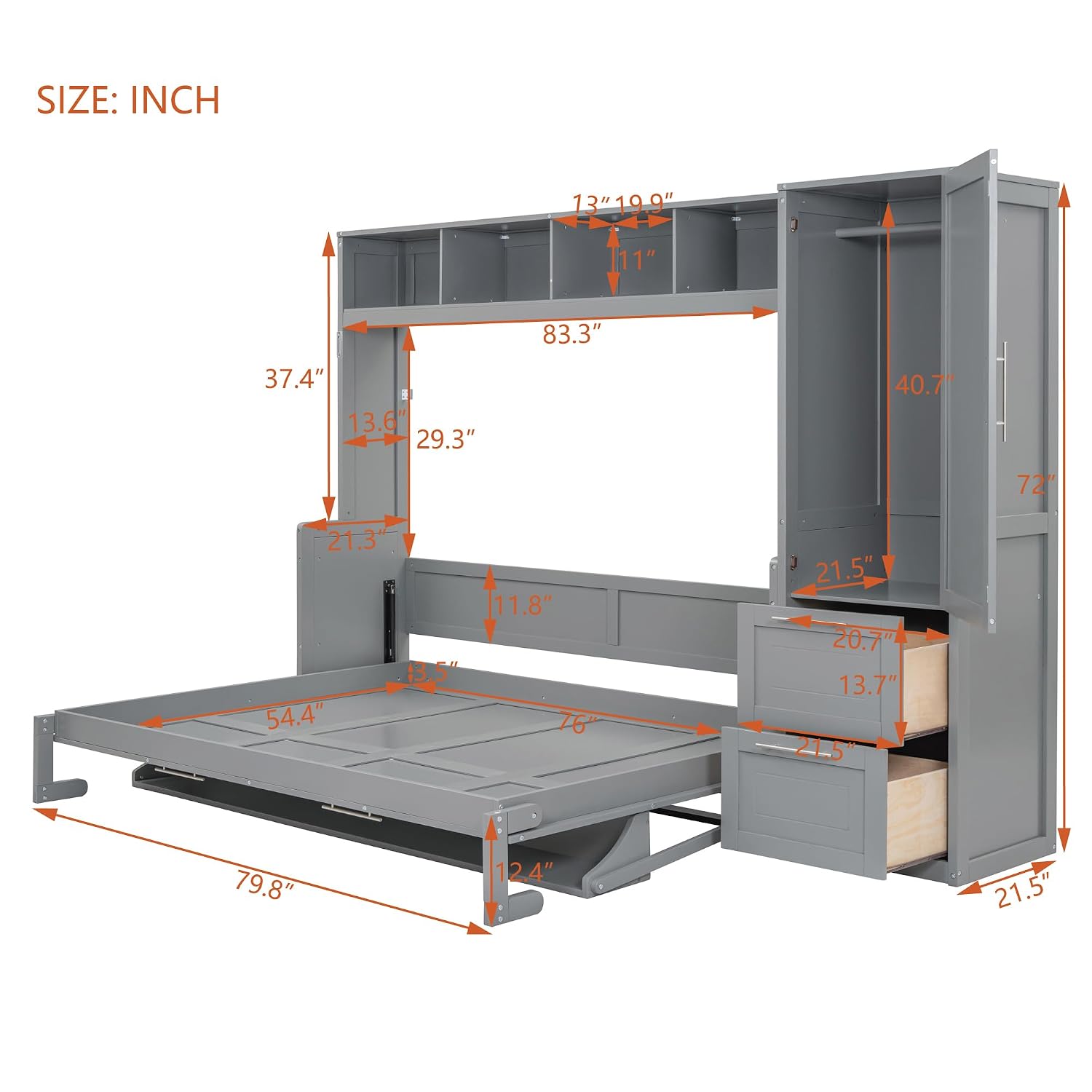

Image: Dimensions of the Murphy Bed when fully extended into bed mode, illustrating the total length and the size of the mattress platform.
Image: Detail of the bed's lifting mechanism, highlighting the hydraulic components for smooth operation.
Betjeningsvejledning
Operating your murphy bed is straightforward. Always ensure the area around the bed is clear before opening or closing.
- Sådan åbner du sengen: Gently pull the bed frame downwards from the top handle. The hydraulic mechanism will assist in lowering the bed smoothly to the floor. Ensure the support legs are fully extended and locked into place.
- To Close the Bed: Fold the support legs back into their stored position. Lift the bed frame upwards from the bottom. The hydraulic mechanism will assist in raising the bed back into the cabinet. Ensure it latches securely in the closed position.
- Brug af lagerplads: The top shelves, side wardrobe, and drawers can be accessed whether the bed is open or closed. The wardrobe features a hanging rod for clothes, and drawers provide enclosed storage.
Image: The Murphy Bed in its closed position, functioning as a cabinet with integrated shelving.
Image: The Murphy Bed fully open, showcasing the sleeping area and accessible storage.
Image: Detail of the open wardrobe section, showing the hanging space and internal drawers.
Image: Detail of an open storage drawer, illustrating its capacity and construction.
Pleje og vedligeholdelse
Proper care will extend the life and appearance of your murphy bed:
- Rensning: Tør overflader af med en blød, damp klud. Undgå skrappe kemikalier eller slibende rengøringsmidler, der kan beskadige overfladen.
- Hardwarekontrol: Kontrollér regelmæssigt alle skruer, bolte og forbindelser for at sikre, at de forbliver stramme. Efterspænd efter behov.
- Smøring af mekanisme: The hydraulic lifting mechanism is designed for long-term use. If you notice any stiffness, consult a professional or contact customer support for guidance on lubrication. Do not attempt to disassemble the mechanism yourself.
- Vægtfordeling: Always distribute weight evenly on the bed when in use.
Fejlfinding Guide
If you encounter any issues with your murphy bed, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Bed is difficult to open or close | Misaligned mechanism, loose hardware, or obstruction. | Check all connections and ensure no items are obstructing the movement. Verify the wall anchoring is secure and level. |
| Bed does not stay securely closed | Latching mechanism not engaged or damaged. | Ensure the bed is pushed fully into the cabinet until the latch engages. Inspect the latch for damage and contact support if necessary. |
| Drawers or wardrobe doors stick | Forkert justering eller snavs i sporene. | Check for loose screws on drawer slides or hinges. Clear any debris from tracks. |
If you are unable to resolve an issue using this guide, please contact customer support.
Garanti og kundesupport
Ball & Cast products are manufactured with quality and durability in mind. For specific warranty details regarding your Murphy Bed, please refer to the documentation included with your purchase or visit the official Ball & Cast webwebsted.
For any questions, concerns, or assistance with assembly, operation, or parts, please contact our customer support team. Contact information can typically be found on our webwebstedet eller på din købskvittering.
We are committed to providing you with a satisfactory experience with your Ball & Cast Murphy Bed.
