1. Introduktion

Thank you for choosing the Edvivi Motion Sensor Outdoor Wall Sconce. This fixture is designed to provide reliable outdoor lighting with enhanced security features. It combines functionality with a modern farmhouse aesthetic, featuring a matte black finish and clear water glass. This manual provides detailed instructions for safe installation, operation, and maintenance of your new outdoor lighting fixture.

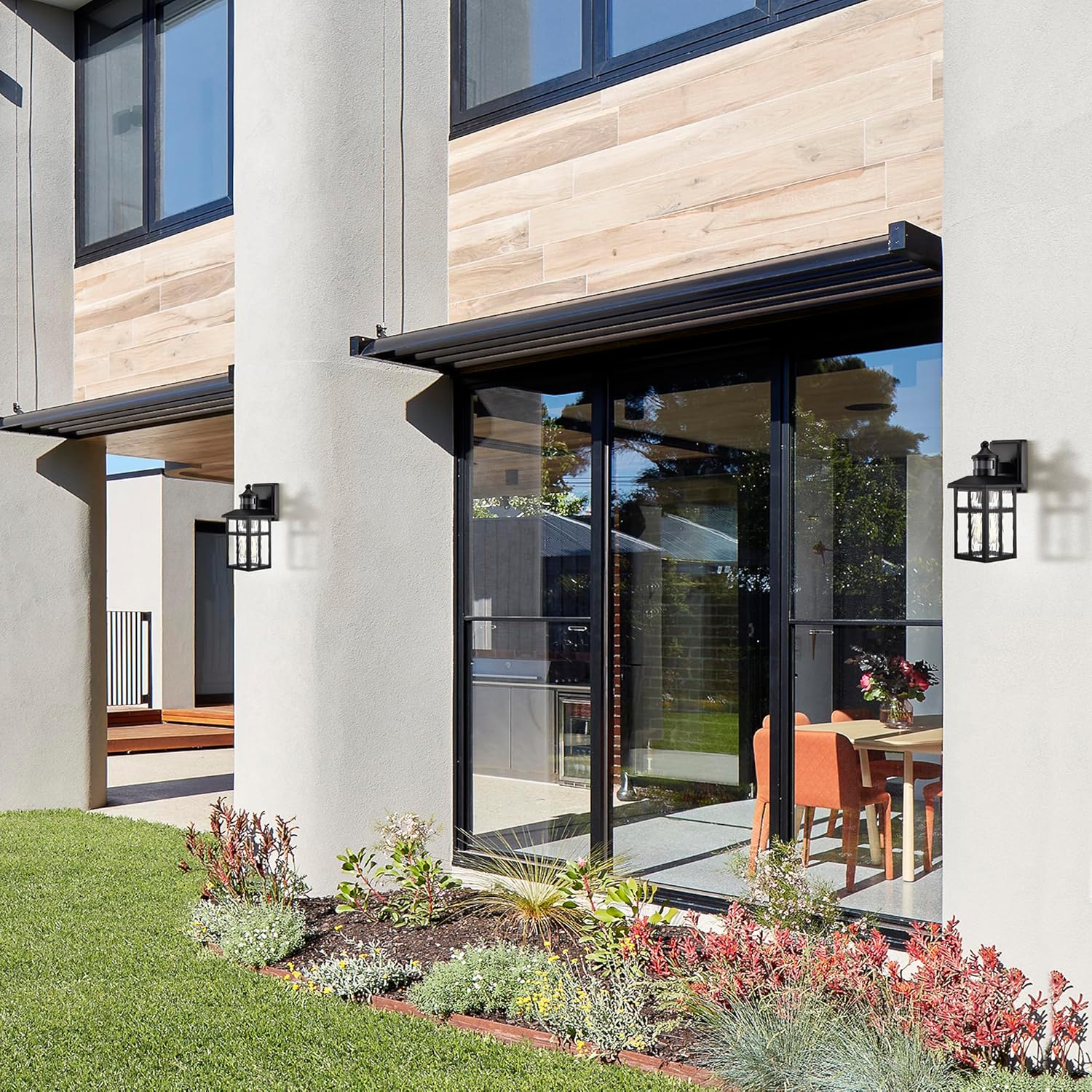

Edvivi Motion Sensor Outdoor Wall Sconce installed on a white wall next to a window.

Image 1.1: Edvivi Motion Sensor Outdoor Wall Sconce, showcasindens design og placering.

2. Sikkerhedsoplysninger

Læs og forstå alle instruktioner, før du påbegynder installationen. Undladelse af at gøre dette kan resultere i elektrisk stød, brand eller andre skader, der kan være farlige eller endda dødelige. Gem denne manual til senere brug.

  • ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen til sikringen eller strømafbryderen før installation eller servicering.
  • Alle elektriske forbindelser skal være i overensstemmelse med lokale forskrifter, forordninger eller National Electric Code (NEC). Kontakt en kvalificeret elektriker, hvis du ikke er bekendt med korrekt elektrisk ledningsføring.
  • This fixture is designed for outdoor use and is wet-rated. Ensure all connections are properly sealed to prevent water intrusion.
  • Overskrid ikke det maksimale wattage of 60 watts for the E26 medium base bulb.
  • Always wear safety glasses and appropriate protective gear during installation.
  • Håndter glaskomponenter forsigtigt for at forhindre brud.

3. Pakkens indhold

Pak forsigtigt dit armatur ud, og kontroller, at alle dele er inkluderet. Hvis der mangler eller er beskadigede dele, må du ikke forsøge at samle eller installere produktet. Kontakt kundeservice for at få hjælp.

  • Outdoor Wall Sconce Fixture (2 units for 2-pack model)
  • Monteringsudstyr (skruer, trådmøtrikker, monteringsplade)
  • Shade (pre-installed water glass panels)
  • Instruktionsmanual

4. Produktfunktioner

  • Bevægelsessensor: Detects movement up to 35 ft. distance and 180-degree range, activating light when needed.
  • Dusk to Dawn-sensor: Tænder automatisk lyset ved skumring og slukker ved daggry.
  • 4 lystilstande: High, Low, Dusk to Dawn (DTD), and Manual Override modes for versatile operation.
  • Holdbar konstruktion: Made of metal with clear water glass shade, designed to be anti-rust, waterproof, corrosion-resistant, and weatherproof.
  • Dæmpbar: Compatible with dimmer switches and dimmable E26 bulbs (not included).
  • Nem installation: Pre-assembled fixture with all necessary mounting hardware included.
Close-up of the motion sensor on the Edvivi outdoor wall sconce with icons for ON, OFF, and motion sensor.

Image 4.1: Detail of the integrated motion sensor and its functions.

5. Opsætning og installation

Professional installation is recommended for safety and proper function. Ensure power is OFF at the circuit breaker before proceeding.

  1. Forbered til installation: Turn off the main power supply at the circuit breaker or fuse box. Ensure the power is completely disconnected before touching any wires.
  2. Montering af monteringsbeslag: Attach the provided mounting bracket to the electrical junction box on your wall using the screws provided. Ensure the bracket is securely fastened.
  3. Ledningsforbindelser:
    • Tilslut sort ledningen fra armaturet til sort (spændingsførende) ledning fra samledåsen ved hjælp af en trådmøtrik.
    • Tilslut hvid ledningen fra armaturet til hvid (neutral) ledningen fra samledåsen ved hjælp af en trådmøtrik.
    • Tilslut jord ledningen fra armaturet til jord ledningen fra samledåsen (eller til den grønne jordskrue på monteringsbeslaget) ved hjælp af en trådmøtrik.
    • Stik forsigtigt alle ledninger ind i samledåsen.
  4. Fastgør armatur til monteringsbeslag: Align the fixture with the mounting bracket and secure it using the provided screws. Ensure the fixture is flush against the wall and stable.
  5. Installer pære: Insert one (1) max 60-watt E26 medium base bulb (not included) into the socket. LED bulbs are recommended for energy efficiency.
  6. Gendan strøm: Tænd for hovedstrømforsyningen igen ved afbryderen.

6. Operating Instructions: Lighting Modes

The fixture offers four distinct lighting modes, selectable via a switch located under the top round part of the fixture. Adjust the mode according to your preference and needs.

Comparison images of the Edvivi outdoor wall sconce in daylight and at night, demonstrating its dusk to dawn functionality.

Image 6.1: Visual representation of the light fixture operating during day and night.

  • Høj tilstand: The light stays on at 30% brightness throughout the night. When motion is detected, it brightens to 100% for 120 seconds, then returns to 30% brightness.
  • Lav tilstand: The light remains off at night when no motion is detected. Upon motion detection, it illuminates to 100% brightness for 120 seconds, then turns off.
  • DTD (Dusk to Dawn) Mode: The light automatically turns on at night and stays on at 100% brightness until the dusk-to-dawn sensor detects morning light, at which point it turns off.
  • Manuel tilsidesættelsestilstand: The light stays on at 100% brightness for 8 hours after activation at night. After 8 hours, it automatically turns off at dawn and reverts to the previously selected Auto High/Low Mode.

7. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your outdoor wall sconce.

  • Rensning: Sørg for, at strømmen er slukket for at rengøre armaturet. Tør af med en blød, tør klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige overfladen eller glasset.
  • Udskiftning af pære: Ensure power is off before replacing the bulb. Allow the old bulb to cool completely before removal. Use only E26 medium base bulbs, not exceeding 60 watts.
  • Inspektion: Periodically check for any loose connections, damaged wiring, or signs of wear. If any issues are found, disconnect power and consult a qualified electrician.
  • Vejrbestandighed: The fixture is designed to be waterproof and anti-rust. However, ensure that the mounting area remains sealed to prevent water from entering the electrical box.

8. Fejlfinding

Problem Mulig årsag Løsning
Lyset tændes ikke. No power, faulty bulb, incorrect wiring, sensor obstruction. Check circuit breaker. Replace bulb. Verify wiring connections. Ensure sensor is clear.
Lyset er tændt konstant. Sensor in DTD mode, continuous motion, sensor malfunction. Check mode setting. Ensure no constant motion in sensor range. Contact support if sensor is faulty.
Lyset flimrer eller dæmpes uventet. Loose connection, incompatible bulb (if dimming), power fluctuations. Check wiring. Use dimmable LED bulbs if using a dimmer. Consult electrician for power issues.
Bevægelsessensor registrerer ikke. Sensor obstructed, incorrect mode, range too small. Clear obstructions. Check mode setting. Ensure sensor is positioned correctly.

9. Specifikationer

Diagram showing the dimensions of the Edvivi outdoor wall sconce: 5.5 inches wide, 6.75 inches deep, and 12 inches high.

Image 9.1: Product dimensions for the Edvivi outdoor wall sconce.

  • Mærke: Edvivi
  • Modelnummer: EW671S-BK
  • Produktdimensioner: 6.75 cm L x 5.5 cm B x 12 cm H
  • Bagpladens dimensioner: 4.5"W x 1"E x 5.5"H
  • Materiale: Metal, glas
  • Udfør type: Mat sort
  • Skyggemateriale: Vand glas
  • Strømkilde: Elektrisk med ledning
  • Voltage: 120 volt
  • Wattage: Max 60 watt
  • Pære base: E26 medium
  • Lyskildetype: LED (anbefales)
  • Lysstyrke: 800 Lumens (with compatible bulb)
  • Indendørs/udendørs brug: Udendørs
  • Særlige funktioner: Anti-Rust, Dimmable, Motion Sensor, Dusk to Dawn
  • Vandmodstandsniveau: Water Resistant (Wet Rated)
  • Certificering: ETL opført

10. Garanti og support

This Edvivi product comes with a limited warranty. For specific details regarding the warranty period and coverage, please refer to the warranty card included with your purchase or contact Edvivi customer support.

For technical assistance, troubleshooting, or to inquire about replacement parts, please contact Edvivi customer service through the retailer where the product was purchased or visit the official Edvivi webwebsted.
