OPPO Pencil 2 Stylus User Manual

1. Introduktion

This manual provides detailed instructions for the use and maintenance of your OPPO Pencil 2 stylus. The OPPO Pencil 2 is designed to enhance your interaction with compatible OPPO Pad devices, offering precise control and a natural writing experience.

Kompatibilitet: The OPPO Pencil 2 is compatible with OPPO Pad 4 Pro, OPPO Pad 3 Pro, OPPO Pad 3, and OPPO Pad 2.

2. Pakkens indhold

Upon opening your OPPO Pencil 2 package, please ensure all the following items are present:

• 1 x OPPO Pencil 2 Stylus
• 1 x Replacement Stylus Tip
• 1 x brugsanvisning

Image: A table detailing product parameters, including the packing list for the OPPO Pencil 2 stylus.

3. Opsætning

3.1. Opladning af pennen

The OPPO Pencil 2 supports wireless charging. Simply attach the stylus magnetically to the designated charging area on your compatible OPPO Pad device. The device will indicate when charging is active.

3.2. Pairing with Your OPPO Pad

Once the stylus is magnetically attached to your OPPO Pad, it should automatically pair. If pairing does not occur, ensure Bluetooth is enabled on your OPPO Pad and check the stylus's charge level. Follow any on-screen prompts for initial setup.

4. Betjeningsvejledning

4.1. Genvejstaster

The OPPO Pencil 2 features physical shortcut keys on its body for quick access to common functions:

• Enkelt klik: Change brushes or tools within compatible applications.
• Langt tryk: Tag skærmbilleder.

Image: A close-up of the OPPO Pencil 2 stylus, highlighting the physical shortcut button on its side for one-click access to functions.

4.2. Writing and Drawing Experience

The stylus is engineered for a fluid and responsive experience:

• Ultra-lav latens: A self-developed stylus engine and 240 Hz sampling rate minimize lag, ensuring strokes appear instantly on screen.
• Trykfølsomhed: With 4096 levels of pressure sensitivity, the stylus accurately detects varying pressure, allowing for nuanced line thickness and shading. A light press produces clear writing, and details are richer with varied pressure.
• Realistic Nib Feel: The thick, soft rubber nib provides friction similar to a pen on paper, preventing slipping even without a paper-like screen protector.
• Haptisk feedback: An integrated linear motor provides a realistic writing sensation, mimicking the feel of traditional writing instruments.
• Pencil Sound Effect: The stylus supports a special sound effect for an enhanced sensory experience.

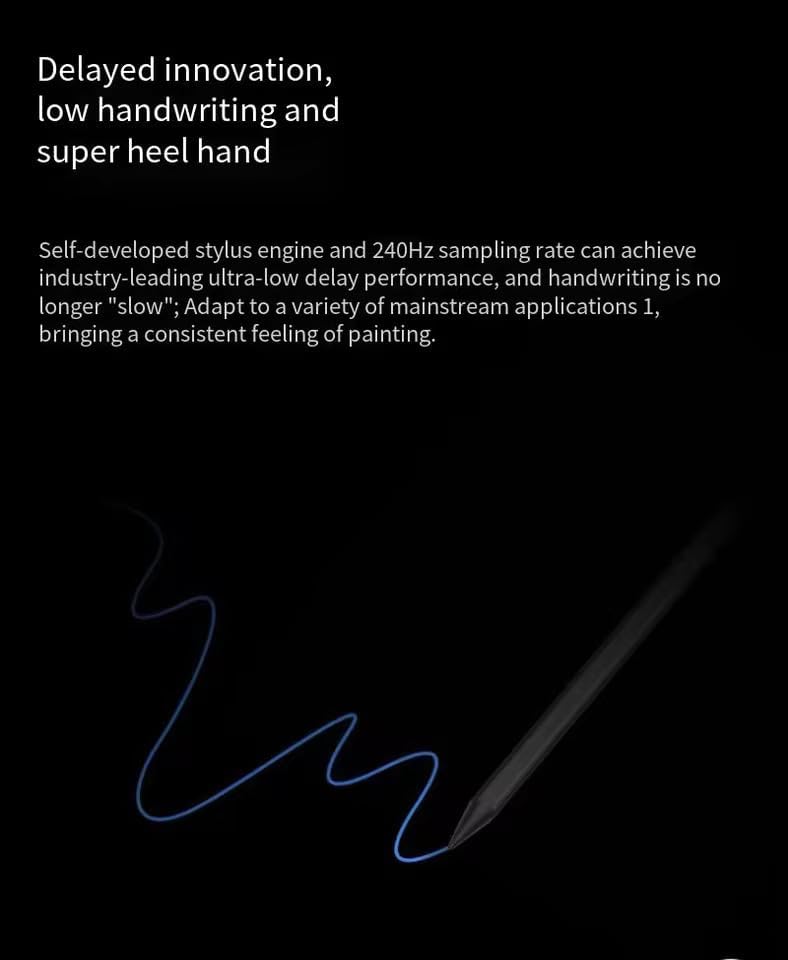

Image: A visual representation of the OPPO Pencil 2 stylus drawing a smooth, continuous line on a dark background, illustrating its ultra-low latency performance.

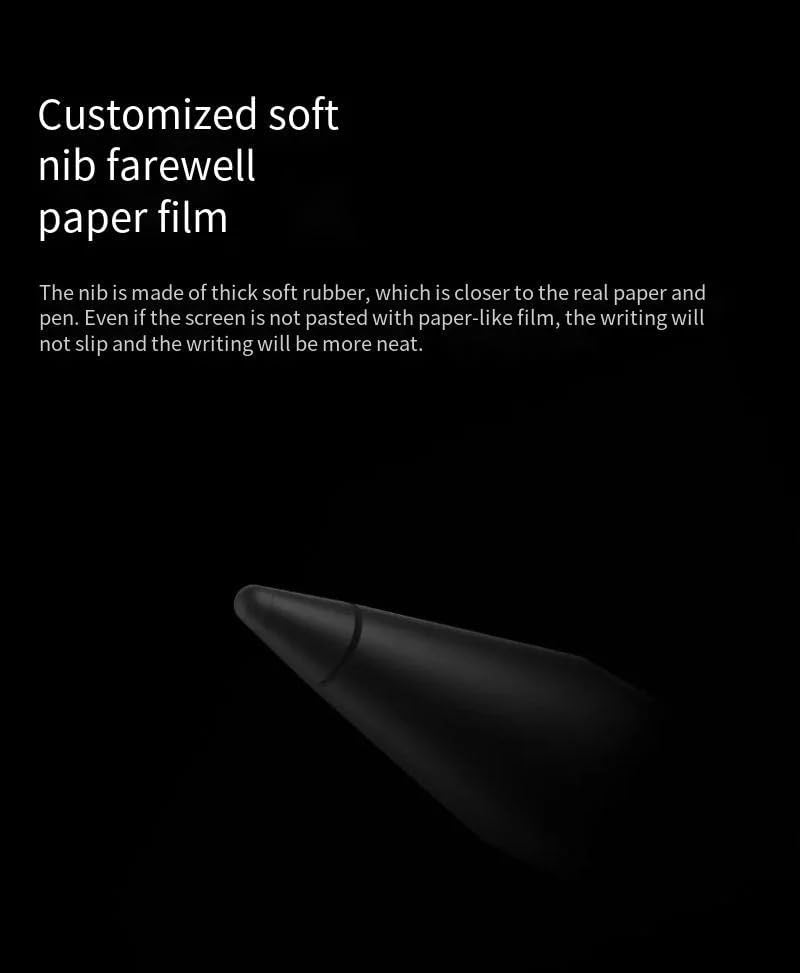

Billede: Et nærbillede view of the OPPO Pencil 2's soft rubber nib, emphasizing its texture designed for a natural writing feel.

Image: The OPPO Pencil 2 stylus actively writing on a tablet screen, displaying a recipe, to illustrate its precise and effortless ink flow.

4.3. Avancerede funktioner

Utilize these functions for enhanced productivity:

• Swipe for Floating Window: Swipe the pen tip inward from the upper right corner of the screen to open a floating window or a post-it note. You can also click on the comment after a screen capture.
• Screen Shorthand: When you pause the screen, you can quickly open a post-it note and record information.
• Automatic Text Conversion: Writing in an input box with the pen can be automatically converted into text.

Image: Three diagrams illustrating advanced functions of the OPPO Pencil 2: swiping from the corner for a floating window, using screen shorthand, and automatic text conversion when writing in an input box.

5. Funktioner overview (OPPO Pencil 2 vs. OPPO Pencil 2 Pro)

Below is a comparison of key features between the OPPO Pencil 2 and the OPPO Pencil 2 Pro:

Image: A side-by-side comparison table detailing the differences in features between the OPPO Pencil 2 and the OPPO Pencil 2 Pro, including pen body, pressure sensitivity, and additional functionalities.

6. Vedligeholdelse

6.1. Rengøring af pennen

To maintain optimal performance, gently wipe the stylus body with a soft, dry, lint-free cloth. Avoid using harsh chemicals or abrasive materials.

6.2. Replacing the Stylus Tip

Over time, the stylus tip may wear down. To replace it, gently pull the old tip straight out from the stylus body. Insert a new replacement tip firmly until it clicks into place. Ensure you use only official OPPO replacement tips.

Image: A vertical image of the OPPO Pencil 2 stylus tip, showing its design.

7. Fejlfinding

7.1. Stylus Not Responding

• Ensure the stylus is sufficiently charged. Place it on the charging area of your OPPO Pad.
• Check if Bluetooth is enabled on your OPPO Pad.
• Try re-pairing the stylus by detaching and reattaching it to the charging area.
• Restart your OPPO Pad device.

7.2. Inaccurate or Intermittent Strokes

• Sørg for, at stylusspidsen er ren og fri for snavs.
• Check if the stylus tip is securely attached. If worn, replace it with a new one.
• Ensure there are no strong magnetic fields or electronic interference near your device.

7.3. Opladningsproblemer

• Verify that the stylus is correctly aligned with the wireless charging area on your OPPO Pad.
• Ensure your OPPO Pad itself has sufficient power.
• Clean the charging contacts on both the stylus and the OPPO Pad.

8. Specifikationer

Detailed technical specifications for the OPPO Pencil 2:

Image: A table displaying the detailed product parameters for the OPPO Pencil 2, including dimensions, weight, color, power, and endurance.

9. Garanti og support

For warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official OPPO support webwebsted. Gem din købsbevis til garantikrav.
