Indledning
This manual provides essential information for the safe and effective operation, maintenance, and care of your ARRIS MN82T 1/12 RC Rock Crawler Climbing Truck. The MN82T is a 1/12 scale remote-controlled vehicle designed for off-road use, featuring a functional crane hook, enhanced LED lighting, and a 4WD drivetrain. Please read this manual thoroughly before first use to ensure proper handling and to maximize your experience.

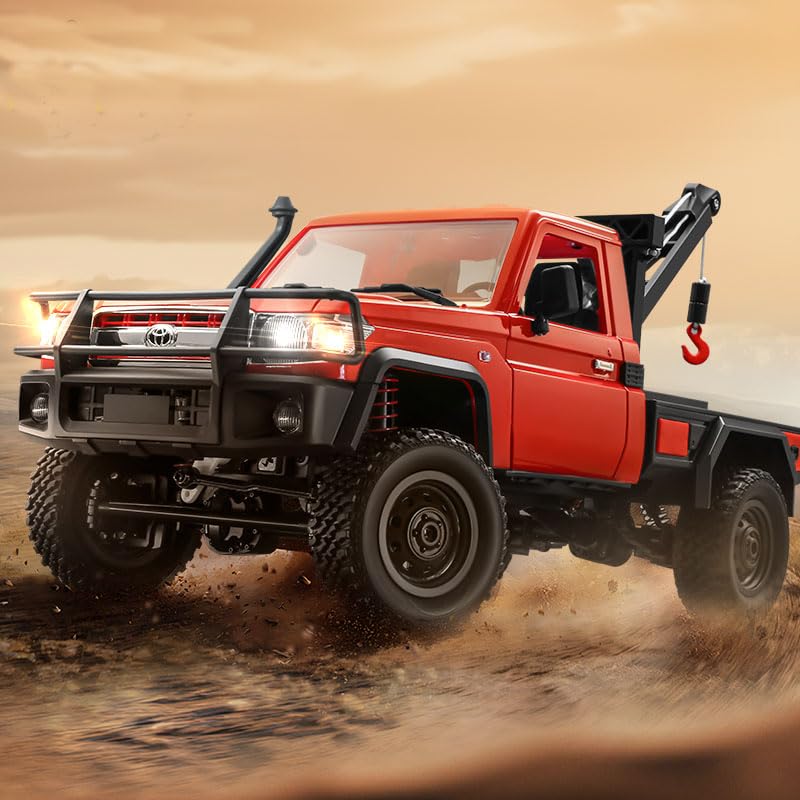

Image: The ARRIS MN82T RC Rock Crawler Climbing Truck in red, showcasindets overordnede design og funktioner.
Hvad er der i æsken
Ved udpakning skal du kontrollere, at alle nedenstående komponenter er til stede:
- ARRIS MN82T RC Rock Crawler Truck
- Fjernbetjening
- 7.4V 1200mAh batteri
- Ladekabel
- Produktmanual (dette dokument)
- Skruetrækker
Opsætning
1. Batteriinstallation og opladning
The vehicle comes with a 7.4V 1200mAh Lithium-Ion battery. Ensure the battery is fully charged before initial use.
- Find batterirummet på den fjernstyrede lastbil.
- Tilslut forsigtigt batteriet til køretøjets strømstik.
- Luk batterirummet forsvarligt.
- To charge, connect the battery to the provided charging cable, then connect the charging cable to a suitable USB power source (e.g., computer USB port, USB wall adapter).
- Monitor the charging indicator on the charging cable (if available) and disconnect once charging is complete.
Billede: En detaljeret view of the ARRIS MN82T with the hood open, illustrating the 7.4V 1200mAh battery placement and other internal components like the realistic interior and glossy paint finish.
2. Forberedelse af fjernbetjening
The remote control requires batteries (not specified in JSON, assuming standard AA/AAA, will omit specific type). Ensure fresh batteries are installed for optimal performance.
- Åbn batterirummet på bagsiden af fjernbetjeningen.
- Isæt de nødvendige batterier, og overhold den korrekte polaritet.
- Luk batterirummet.
Betjeningsvejledning
The ARRIS MN82T features 2.4GHz full proportional control and a two-speed mode for versatile driving.
1. Tænd/sluk
- Turn on the RC truck by pressing the power button located on the chassis.
- Turn on the remote control. The remote and truck should automatically pair.
- To power off, reverse the sequence: turn off the remote, then turn off the truck.
2. Kørekontroller
Use the remote control for precise steering and throttle input.
Image: The remote control unit, demonstrating the full-scale proportional control for steering and throttle, allowing for precise vehicle movement.
- Rat: Rotate left or right to steer the truck.
- Gashåndtag: Pull to move forward, push to brake or reverse.
- Two-Speed Mode: A button on the remote allows switching between low-speed crawling for technical terrain and high-speed driving for open areas. Refer to the remote control diagram for the exact button location.
3. Functional Crane Arm
The MN82T features a functional crane arm with a metal hook for realistic operations.
Image: An illustration of the upgraded crane system, showing the remote control buttons for lifting and lowering the metal hook with its extendable rope, and the adjustable boom lift mechanism.
- Use the designated buttons on the remote control to remotely lift, lower, and adjust the crane arm.
- The metal hook can be used to tow, pull, or lift light objects. Avoid overloading the crane to prevent damage.
4. LED-belysningssystem
The truck is equipped with an enhanced LED lighting system for realistic driving conditions.
Image: The ARRIS MN82T RC truck demonstrating its pre-installed lighting system, including headlights, front turn signals, side turn signals, rear turn signals, and reverse lights, active during off-road driving.
- The lighting system includes front headlights, brake lights, turn signals, reverse lights, and hazard lights.
- These lights are controllable via the remote control, enhancing realism during operation.
5. Ydeevne i terræn
The MN82T is designed for superior off-road capability with its upgraded suspension and 4WD drivetrain.
Image: The ARRIS MN82T RC truck showcasing its all-terrain design, capable of navigating diverse environments such as mountains, gravel, sand, grass, and mud.
- The reinforced chassis, improved suspension travel, and high-traction rubber tires provide excellent grip and stability on various surfaces.
- The 4WD system ensures power delivery to all wheels, enabling the truck to tackle steep inclines and challenging terrains.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your RC truck.
- Rensning: After each use, especially in dusty or muddy conditions, clean the truck with a soft brush or cloth. Avoid using water directly on electronic components.
- Batteripleje: Always fully charge the battery before storage and avoid over-discharging. Store the battery in a cool, dry place.
- Inspektioner: Periodically check for loose screws, damaged parts, or worn tires. Replace any damaged components promptly.
- Smøring: Apply a small amount of RC-safe lubricant to moving parts like gears and universal joints as needed.
Fejlfinding
Hvis du støder på problemer, kan du se følgende almindelige fejlfindingstrin:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Trucken reagerer ikke på fjernbetjeningen. | Low battery in truck or remote; truck/remote not paired; power switch off. | Charge truck battery; replace remote batteries; ensure both are powered on and paired. |
| Reduced performance or short run time. | Batteriet er ikke fuldt opladet; batteri er gammelt. | Ensure battery is fully charged; consider replacing old batteries. |
| Steering or throttle is erratic. | Interference; loose connections; damaged servo/motor. | Operate in an open area away from other 2.4GHz devices; check all connections; contact support if components are damaged. |
| Crane arm not functioning. | Obstruction; motor issue; control issue. | Check for any physical obstructions; ensure battery is charged; verify remote control input. |
Specifikationer
Key technical specifications for the ARRIS MN82T RC Rock Crawler:
Image: A detailed list of specifications for the ARRIS MN82T, including its 1:12 scale, 45-minute battery life, 6km/h speed, 3kg towing and load capacity, 4x4 mid-drive transmission, 280 magnetic motor, 17g waterproof servo, and 2.4G/50m signal distance.
- Skala: 1:12
- Climbing Performance: ≤45° Ramp
- Køre: 4x4 Mid-Drive Transmission
- Motor: 280 Magnetisk Motor
- Servo: 17g vandtæt servo
- Signalafstand: 2.4G / 50m
- Batteri: 7.4V 1200mAh
- Batterilevetid: Cirka 45 minutter
- Hastighed: Op til 6 km / h
- Bugseringskapacitet: 3 kg
- Belastningskapacitet: 3 kg
- Power & Steering: ≤30°
- Materiale: Plast
- Dimensioner: 8 x 12 x 7 tommer (L x B x H)
Image: Detailed tire specifications for the ARRIS MN82T, indicating a diameter of 62mm, width of 24mm, wheel hub diameter of 37mm, and an adapter size of 5mm.
Officiel produktvideo
Video: An official product video from ARRIS showcasing the MN82T 1/12 RC Rock Crawler Climbing Truck with its functional crane hook and various features in action.
Garanti og support
The ARRIS MN82T RC Rock Crawler is sold by ARRIS and fulfilled by Amazon. For any product-related issues or support, please contact the manufacturer directly or refer to Amazon's return policy.
- Returpolitik: This product is eligible for a 30-day refund/replacement return policy. Please refer to Amazon's official return policy for detailed terms and conditions.
- Producentsupport: For technical assistance, spare parts, or warranty claims, please contact ARRIS customer support. Contact information can typically be found on the product packaging or the official ARRIS webwebsted.
