Generic 54.6V XLR 3-Prong Charger User Manual

1. Introduktion

This manual provides essential instructions for the safe and efficient use of your Generic 54.6V XLR 3-Prong Charger. This charger is specifically designed for 48V Lithium-ion batteries found in compatible electric bikes, including the Smartravel ST201F Pro and Ebkarocy TDT102Z/CDC102Z models. Please read this manual thoroughly before first use to ensure proper operation and to prevent damage to the charger or your electric bike battery.

2. Sikkerhedsoplysninger

ADVARSEL: Manglende overholdelse af disse sikkerhedsinstruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

• This charger is exclusively for 48V Lithium-ion batteries with a 3-pin XLR connector. Do not attempt to charge Lead-Acid (SLA) batteries or any other battery types.
• Ensure the charger is connected to a power outlet within the specified input voltage range of AC 100V–240V.
• Brug ikke opladeren, hvis kablet eller stikket er beskadiget.
• Hold opladeren væk fra vand, fugt og ekstreme temperaturer.
• Do not disassemble or modify the charger. It contains built-in Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP) for safety.
• Always unplug the charger from the power outlet and the battery when not in use.
• Oplad i et godt ventileret område.

3. Produktet er slutview

The Generic 54.6V XLR 3-Prong Charger is a reliable power supply designed for specific electric bike models. It features a robust design and an LED indicator to show charging status.

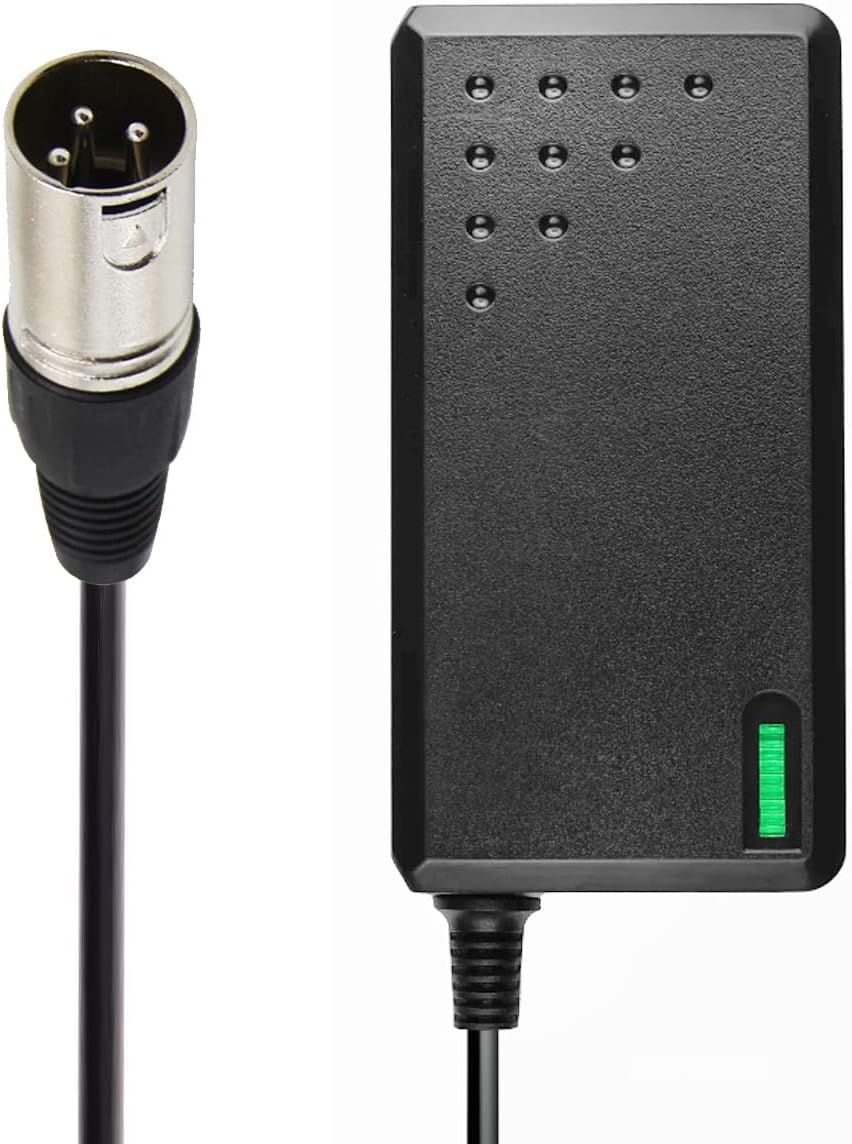

Figur 1: The main unit of the 54.6V charger, featuring the 3-prong XLR output connector.

Nøglefunktioner:

• Input bindtage: AC 100V–240V
• Udgang Voltage: DC 54.6V
• Udgangsstrøm: 2.5 Amps
• Connector Type: 3-pin XLR
• Speciel funktion: Opladningsindikator LED
• Sikkerhed: Built-in OVP, OCP, SCP Protections

4. Specifikationer

5. Kompatibilitet

This 54.6V XLR 3-Prong Charger is compatible with the following electric bike models and their respective 48V Lithium-ion batteries:

Smartravel Electric Bikes:

• Model: ST201F, ST201F Pro
• Motor: 1200W
• Batteri: 48V 20Ah lithium-ion
• Varenummer: LBC030480201
• Features a 3-Pin XLR Charger Port.

Figur 2: An image of the Smartravel ST201F Pro electric bike, which is compatible with this 54.6V charger.

Ebkarocy Electric Bikes:

• Model: TDT102Z, CDC102Z
• Størrelse: 14 tommer
• Motor: 400W / 750W
• Batteri: 48V 15Ah lithium-ion
• Compatible with Battery Pack: T/TCDZ0001-2019 TTCDZ00012019 Li-ion Battery Pack

Figur 3: An image of the Ebkarocy TDT102Z/CDC102Z electric bike, compatible with this 54.6V charger.

6. Opsætningsvejledning

Follow these steps to properly set up your charger:

1. Undersøg opladeren: Before each use, visually inspect the charger, cable, and XLR connector for any signs of damage. Do not use if damaged.
2. Tilslut til batteri: Locate the 3-pin XLR charging port on your electric bike's battery. Carefully align the charger's XLR connector with the port and push it in firmly until it is securely connected.
3. Tilslut til stikkontakten: Plug the AC power cord of the charger into a standard AC 100V–240V wall outlet.
4. Bekræft forbindelsen: The charger's LED indicator should illuminate, typically indicating the charging status (e.g., red for charging, green for fully charged). Refer to the 'Operating Instructions' section for LED indicator details.

7. Betjeningsvejledning

Once set up, the charger will automatically begin charging your electric bike battery.

Opladningsproces:

• After connecting the charger to both the battery and the power outlet, the charging process will start.
• The charger's LED indicator will display the current charging status.
• Charging time varies depending on the battery's capacity and its current charge level.
• The charger is designed to stop charging automatically once the battery reaches full capacity to prevent overcharging.

LED-indikatorstatus:

• Rød LED: Angiver, at batteriet oplades i øjeblikket.
• Grøn LED: Indicates the battery is fully charged or the charger is in standby mode (not connected to a battery or battery is full).

Frakobling af opladeren:

1. Once the LED indicator turns green, indicating a full charge, first unplug the charger from the wall outlet.
2. Then, carefully disconnect the XLR connector from the electric bike's battery charging port.

8. Vedligeholdelse

Korrekt vedligeholdelse sikrer din opladeres levetid og sikre drift.

• Rensning: Use a soft, dry cloth to clean the charger. Do not use liquid cleaners or solvents.
• Opbevaring: Opbevar opladeren et køligt, tørt sted væk fra direkte sollys og fugt, når den ikke er i brug.
• Kabelpleje: Avoid bending or crimping the power cable and connector excessively. Do not wrap the cable tightly around the charger.
• Inspektion: Periodically check the charger, cable, and connectors for any signs of wear or damage. Replace if necessary.

Figur 4: This diagram highlights the robust construction of the charger, emphasizing its long bend lifespan, use of high-quality materials, and durable power plug design for extended product life.

9. Fejlfinding

Hvis du støder på problemer med din oplader, kan du se følgende almindelige problemer og løsninger:

• Opladerens LED lyser ikke:
  • Sørg for, at opladeren er tilsluttet korrekt til en fungerende stikkontakt.
  • Verify the XLR connector is firmly attached to the bike's charging port.
  • Kontroller om stikkontakten fungerer ved at tilslutte en anden enhed.
• Battery is not charging (LED remains green when connected to battery):
  • The battery might already be fully charged.
  • Ensure the battery is properly connected and the XLR connector is fully inserted.
  • Confirm that your electric bike's battery is a 48V Lithium-ion type and compatible with this charger.
• Langsom opladning:
  • Ensure the charger is used in a well-ventilated area to prevent overheating, which can slow down charging.
  • Verify the charger's specifications match your battery's requirements.
• Charger feels hot during use:
  • It is normal for the charger to feel warm during operation. However, if it becomes excessively hot, disconnect it immediately and allow it to cool. Ensure adequate ventilation.

Hvis disse trin ikke løser problemet, bedes du kontakte kundesupport.

10. Garanti og support

For warranty information or technical support, please refer to the documentation provided at the point of purchase or contact the seller directly. Keep your purchase receipt as proof of purchase.
