Indledning
Thank you for choosing the CIRCLE JOY Manual Coffee Grinder. This manual provides essential information for the safe and efficient use of your new coffee grinder. Designed for precision and portability, this grinder features 40 external adjustable settings and durable ceramic conical burrs, ensuring a consistent grind for various brewing methods. Please read these instructions carefully before use and retain them for future reference.

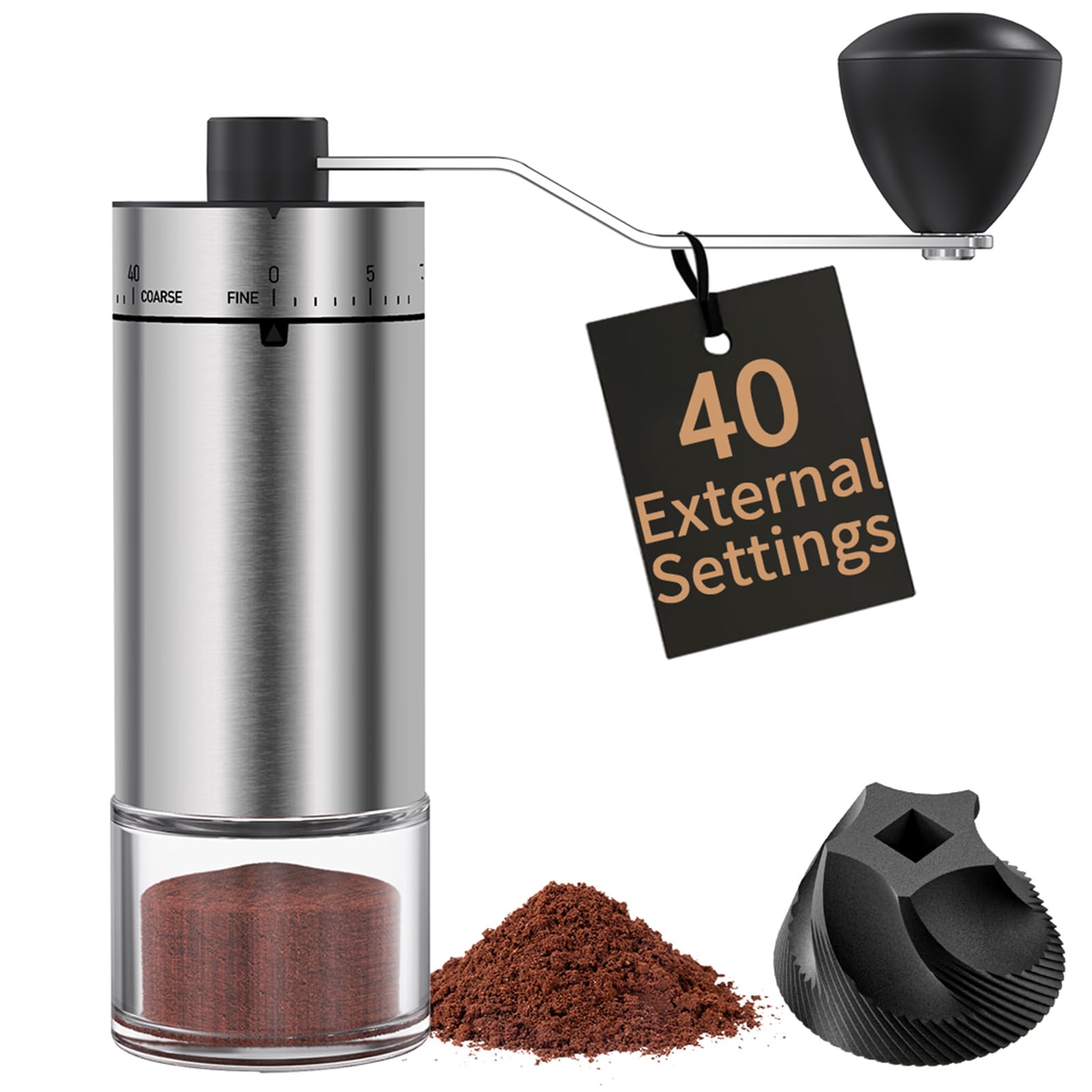

Image: The CIRCLE JOY Manual Coffee Grinder, a sleek stainless steel device with a clear glass bottom and a detachable crank handle.
Produkt overview
The CIRCLE JOY Manual Coffee Grinder is crafted from durable stainless steel and features high-quality ceramic conical burrs. Its compact design makes it ideal for travel, camping, or home use. Key features include:
- 40 External Grind Settings: Easily adjust the coarseness from extra-fine for espresso to coarse for French press.
- Ceramic Conical Burrs: Ensures even grinding with minimal heat generation, preserving coffee aroma and flavor.
- Rustfrit stålhus: Provides a premium look and enhanced durability.
- Ekstra langt håndtag: Designed for improved leverage and reduced hand fatigue during grinding.
- Clear Glass Grounds Hopper: Allows for easy monitoring of grind levels and prevents over-grinding.
- Bærbart design: Lightweight and space-saving, perfect for on-the-go coffee enthusiasts.
Image: Visual representation of the grinder's key features, including 40-point adjustable settings, external central axis, and effortless crank adjustment.
Image: Further features highlighted, such as the double-point double-fixed handle, glass powder container, and stainless steel body.
Komponenter
Familiarize yourself with the main components of your coffee grinder:
- Kværnhus: Det primære kabinet i rustfrit stål.
- Beholder: Top section where whole coffee beans are loaded.
- Justeringsknap for maling: Located on the top, allows selection of grind coarseness (0-40).
- Håndsving: Detachable handle used to operate the grinding mechanism.
- Ceramic Conical Burrs: Internal grinding mechanism.
- Glass Grounds Container: Detachable bottom container for collecting ground coffee.
Image: An exploded diagram showing the various parts of the coffee grinder, including the effortless crank handle, external adjustment, 30g bean capacity, ceramic conical burr, and glass powder container.
Opsætning
Before first use, ensure all components are clean and dry. The grinder comes pre-assembled, but the handle is detachable for storage.
- Pakker ud: Fjern forsigtigt alle dele fra emballagen.
- Ren: Wash the glass grounds container and the grinding mechanism (if disassembled for cleaning) with warm, soapy water. Rinse thoroughly and dry completely.
- Saml håndtaget: Attach the crank handle to the top shaft of the grinder.
Betjeningsvejledning
Følg disse trin for at male dine kaffebønner:
- Juster kværningsindstilling: Turn the external adjustment dial on the top of the grinder to your desired coarseness. A lower number indicates a finer grind (e.g., for espresso), while a higher number indicates a coarser grind (e.g., for French press). There are 40 settings available.
- Indlæs kaffebønner: Remove the crank handle and the top cover. Add up to 30 grams of whole coffee beans into the hopper. Replace the top cover and reattach the crank handle.
- Malet kaffe: Hold the grinder body firmly and turn the crank handle clockwise. Continue grinding until all beans have passed through the burrs and the grounds are collected in the glass container.
- Hent grunde: Unscrew the glass grounds container from the bottom of the grinder. Your freshly ground coffee is ready for brewing.
Image: A step-by-step guide illustrating how to adjust the grind setting, fill with coffee beans, turn the handle to grind, and transfer grounds for brewing.
Video: An official product video demonstrating the use of the CIRCLE JOY Portable Stainless Steel Manual Coffee Grinder, showing the adjustment of grind settings, adding beans, grinding, and collecting the fresh grounds.
Opretholdelse
Regelmæssig rengøring sikrer optimal ydeevne og levetid for din kværn.
- Demontering: Unscrew the grounds container. Remove the crank handle and the top cover. The internal burr assembly can be carefully disassembled for thorough cleaning.
- Rensning: Use the provided brush (if included) or a small brush to remove any residual coffee grounds from the burrs and internal components. The glass container can be washed with warm, soapy water. The stainless steel body can be wiped clean with a damp klæde.
- Tørring: Ensure all parts are completely dry before reassembly to prevent rust and maintain hygiene.
- Genmontering: Reassemble the burr mechanism, ensuring all parts are correctly aligned. Attach the top cover and crank handle.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kværnen er svær at dreje. | Grind setting is too fine; burrs are clogged. | Adjust to a coarser setting. Disassemble and clean burrs thoroughly. |
| Inkonsekvent slibning. | Burrs are dirty or damaged; adjustment dial not set correctly. | Clean burrs. Ensure adjustment dial is securely set. Check for burr damage. |
| Coffee beans not feeding. | Hopper is empty; beans are stuck. | Add more beans. Gently shake the grinder to dislodge stuck beans. |
Specifikationer
- Mærke: CIRKELGLÆDE
- Modelnummer: KMDJ-KCT-W2-SL
- Farve: Sølv
- Materiale: Stainless Steel, Ceramic, Acrylonitrile Butadiene Styrene (ABS)
- Varens vægt: 465 gram (1.03 pund)
- Slibeindstillinger: 40 External Adjustable Settings
- Burr Type: Ceramic Conical Burr
- Fabrikant: Zhuhai Kelitong Electronic Co., Ltd
Garanti & Support
CIRCLE JOY offers a Limited 12-Month Satisfaction Service for this product. If you have any questions or require assistance, please feel free to contact CIRCLE JOY customer service. We aim to provide professional service within 24 hours.
Image: Information regarding CIRCLE JOY's after-sales support, including 24-hour online fast response and 12-month satisfaction service.
