1. Introduktion
Thank you for choosing the xinwld H9 Wireless Earbuds. These earbuds are designed to provide a high-quality audio experience with advanced features for active lifestyles. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
2. Hvad er der i æsken
- xinwld H9 Wireless Earbuds (Left and Right)
- Opladningsetui
- USB-C ladekabel
- Silikone ørepropper (S/M/L størrelser)
- Brugermanual
3. Produktet er slutview
The xinwld H9 Wireless Earbuds feature Bluetooth 5.4 technology for stable connectivity and low latency. They are equipped with Environmental Noise Cancelling (ENC) microphones for clear calls and a 14.2mm dynamic driver for immersive sound. The ergonomic design with earhooks ensures a secure fit, and IP7 waterproofing provides protection against sweat and rain.

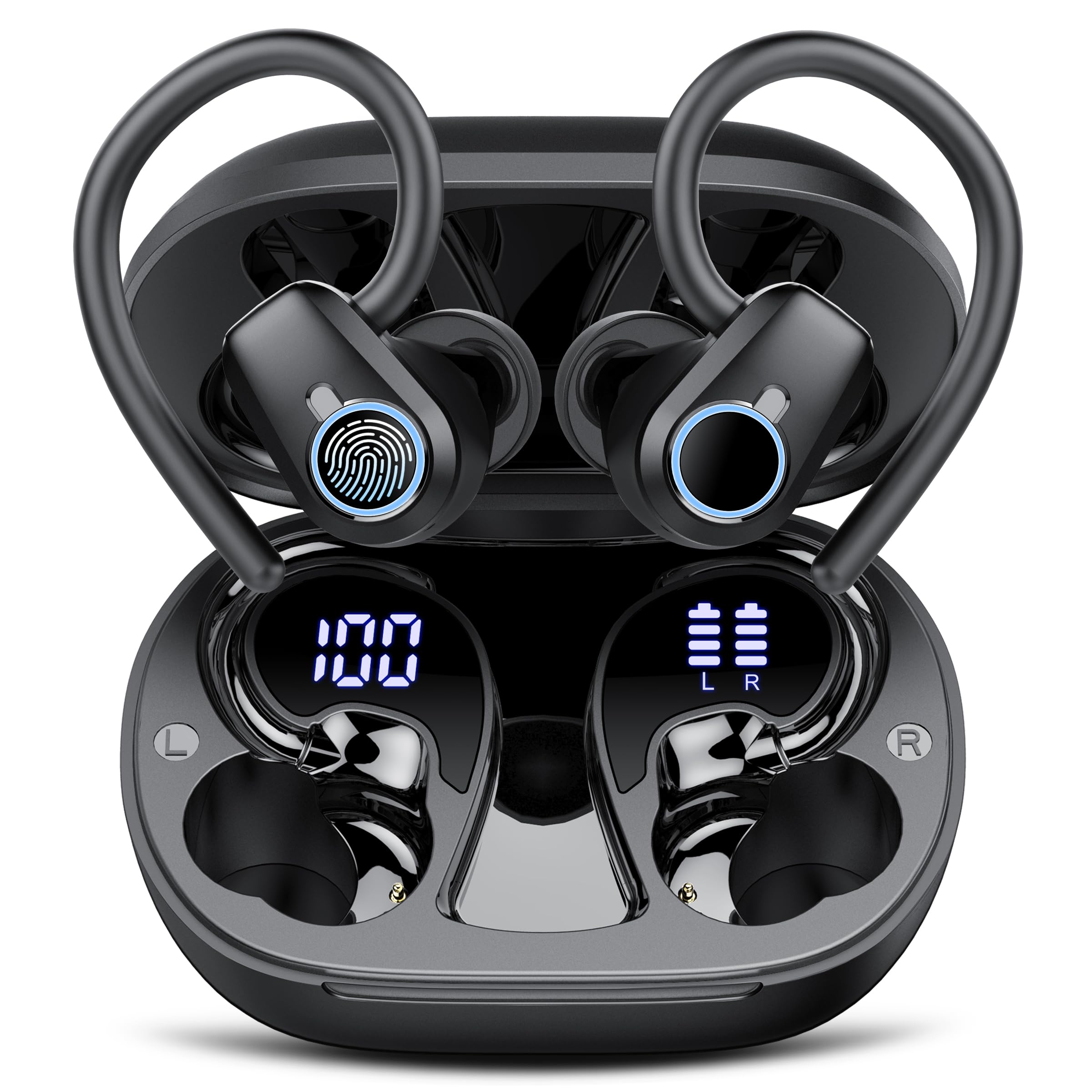

Image: xinwld H9 Wireless Earbuds and their charging case, showcasing det slanke sorte design.
4. Opsætning
4.1 Indledende opladning
Before first use, fully charge the earbuds and the charging case. Connect the provided USB-C cable to the charging port on the case and to a compatible USB power source. The dual LED display on the charging case will indicate the battery levels of both the case and the individual earbuds.
Billede: Opladningsetuiet med ørepropper indeni, der viser batteriprocenttages for the case and each earbud on its LED screen.
4.2 Ear Tip Selection and Fit
Select the ear tips (S/M/L) that provide the most comfortable and secure fit for your ears. The ergonomic design with 45° TPU elastic ear hooks ensures stability, especially during physical activity. Gently place the earbud into your ear canal and adjust the ear hook over your ear until it feels secure.
Image: Diagram illustrating the ergonomic design of the earbuds with earhooks and showing the three included sizes (S, M, L) of silicone ear tips.
5. Betjeningsvejledning
5.1 Tænd/sluk
Ørepropperne tændes automatisk, når de tages ud af opladningsetuiet, og slukkes, når de sættes tilbage i etuiet, og låget lukkes.
5.2 Bluetooth -parring
The earbuds feature one-step pairing. Open the charging case, and the earbuds will automatically enter pairing mode. On your device (smartphone, tablet, laptop), enable Bluetooth and select "xinwld H9" from the list of available devices. Once connected, the earbuds will automatically reconnect to the last paired device when removed from the case.
Image: A visual representation of the one-step pairing process, showing the open charging case with earbuds and a smartphone displaying Bluetooth connection options.
5.3 Smarte berøringskontroller
The earbuds are equipped with highly sensitive smart touch controls:
- Afspil/sæt musik på pause: Et enkelt tryk på begge øretelefoner.
- Juster lydstyrken: Tap and hold the right earbud to increase volume, tap and hold the left earbud to decrease volume.
- Besvar/afslut opkald: Et enkelt tryk på begge øretelefoner.
- Afvis opkald: Dobbelttryk på begge øretelefoner.
- Næste nummer: Tryk to gange på den højre øretelefon.
- Forrige nummer: Dobbelttryk på venstre øretelefon.
- Aktiver stemmeassistent: Tryk tre gange på en af øretelefonerne.
5.4 Environmental Noise Cancelling (ENC)
The 4-microphone array with advanced ENC technology effectively filters out background noise during calls, providing clear voice transmission comparable to face-to-face conversations.
5.5 IP7 vandtæthedsklassificering
The earbuds are IP7 waterproof, protecting them from sweat and rain splashes. This makes them suitable for sports and outdoor activities. Avoid submerging the earbuds in water for extended periods.
Image: The xinwld H9 earbuds shown with water droplets, illustrating their IP7 waterproof capability against rain and sweat.
6. Vedligeholdelse
- Rensning: Rengør regelmæssigt ørepropperne og opladningsetuiet med en blød, tør og fnugfri klud. Brug ikke skrappe kemikalier eller slibende materialer.
- Ørespidser: Fjern og rengør silikoneørepropperne med jævne mellemrum med mild sæbe og vand. Sørg for, at de er helt tørre, før du sætter dem på igen.
- Opbevaring: Opbevar ørepropperne i deres opladningsetui, når de ikke er i brug, for at beskytte dem og holde dem opladede. Undgå ekstreme temperaturer.
- Opladningsport: Hold USB-C-opladeporten fri for støv og snavs.
7. Fejlfinding
| Spørgsmål | Mulig løsning |
|---|---|
| Øretelefoner parrer ikke | Ensure earbuds are charged. Place them back in the case, close the lid, then open to re-enter pairing mode. Forget the device on your phone's Bluetooth settings and try pairing again. |
| Ingen lyd fra et ørepropp | Check battery level of both earbuds. Try resetting the earbuds (refer to specific reset instructions if available, otherwise re-pair). |
| Ladeetui oplader ikke | Kontroller, at USB-C-kablet er korrekt tilsluttet til både kabinettet og strømkilden. Prøv et andet kabel eller en anden strømadapter. |
| Dårlig lydkvalitet | Ensure ear tips provide a good seal. Clean earbuds to remove any debris blocking the speaker. Move closer to your paired device to avoid interference. |
| Ørepropperne falder let ud | Try different sizes of silicone ear tips. Adjust the ear hooks for a more secure fit. |
8. Specifikationer
- Mærke: xinwld
- Modelnummer: H9
- Forbindelse teknologi: Trådløs (Bluetooth 5.4)
- Bluetooth Range: 15 meter
- Øreplacering: In-Ear med ørekroge
- Støjkontrol: Miljømæssig støjreduktion (ENC)
- Lyddrivertype: Dynamisk driver (14.2 mm)
- Frekvensområde: 18Hz-25kHz
- Batterilevetid (øretelefoner): Op til 8 timer (kontinuerlig afspilning)
- Samlet spilletid (med opladningsetui): Op til 50 timer
- Batteriopladningstid: 2 timer (for etui og ørepropper)
- Vandmodstandsniveau: IP7 vandtæt
- Kompatible enheder: Smartphones, Tablets, Laptops, Gaming Consoles, Desktops (Android 4.4+, iOS 8.0+, Bluetooth 4.0+)
- Materiale: Silikone (ørepropper)
Image: Diagram illustrating Bluetooth technology, highlighting stable signal transmission and a 15-meter range.
Billede: Eksploderet view diagram of the earbud's internal components, emphasizing the 14.2mm dynamic driver for Hi-Fi stereo sound and bass performance.
9. Garanti og support
The product comes with a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact xinwld customer support. For technical assistance or further inquiries, please visit the official xinwld webwebsted eller kontakt deres kundeserviceteam.
Online support: Visit the xinwld Store on Amazon
