RATION 18V-Dc Motor Assembly #2303328

Indledning

This manual provides essential instructions for the proper installation, operation, and maintenance of your RATION 18V-Dc Motor Assembly, part number 2303328. This motor assembly is designed for compatibility with various Homelite and Ryobi 18V DC tools. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

Sikkerhedsoplysninger

WARNING: Always disconnect the power source (battery) from the tool before performing any installation, maintenance, or repair procedures.

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation and handling.
• Sørg for, at arbejdsområdet er rent, godt oplyst og fri for forhindringer.
• Handle the motor assembly with care to avoid damage to electrical contacts or mechanical components.
• Do not attempt to modify the motor assembly. Unauthorized modifications can lead to malfunction, injury, or void the warranty.
• Keep children and bystanders away from the work area during installation.

Pakkens indhold

• 1 x RATION 18V-Dc Motor Assembly (#2303328)

Opsætning og installation

This motor assembly is a replacement part. Installation typically involves disassembling the tool, removing the old motor, and installing the new one. Specific steps may vary depending on the tool model. Refer to your tool's original service manual for detailed disassembly and reassembly instructions.

1. Forberedelse: Ensure the tool's battery is removed. Gather necessary tools (e.g., screwdrivers, wrenches).
2. Demontering: Carefully open the tool casing to access the motor compartment. Note the orientation and connections of the existing motor.
3. Afmontering af motor: Disconnect any wires attached to the old motor. Remove mounting screws or clips securing the motor. Gently extract the old motor.
4. Ny motorinstallation: Insert the RATION 18V-Dc Motor Assembly into the designated slot, ensuring proper alignment with gears or other drive components.
5. Ledningsføring: Connect the motor wires to the tool's electrical system. Ensure correct polarity if applicable (positive to positive, negative to negative).
6. Sikker motor: Fasten the motor assembly using the original mounting screws or clips. Ensure it is securely seated and does not wobble.
7. Genmontering: Carefully close and secure the tool casing. Ensure all screws are tightened appropriately.
8. Prøve: Insert a fully charged battery and perform a brief test run to confirm proper function. Listen for unusual noises.

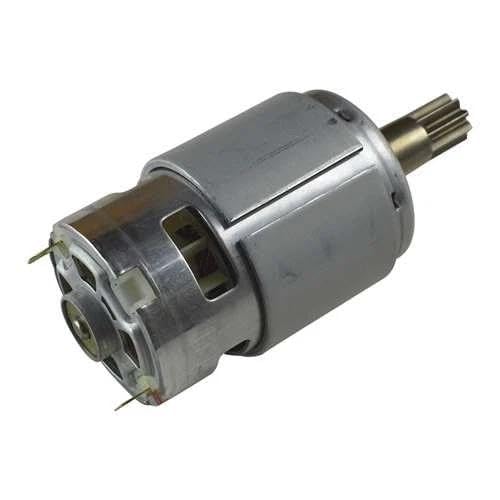

Figur 1: RATION 18V-Dc Motor Assembly #2303328. This image shows the compact cylindrical design of the motor with its output shaft and electrical terminals.

Betjeningsvejledning

Once installed, the RATION 18V-Dc Motor Assembly operates as an integral part of your Homelite or Ryobi 18V DC tool. Refer to your tool's original instruction manual for specific operating procedures, safety guidelines, and usage recommendations.

• Ensure the tool's battery is fully charged before use.
• Operate the tool within its specified voltage and load limits.
• Avoid prolonged operation under heavy load to prevent overheating.

Opretholdelse

Regular maintenance helps prolong the life and performance of your motor assembly and the tool it powers.

• Rensning: Periodically clean the exterior of the tool and ensure ventilation openings are free from dust and debris. Do not use solvents or harsh chemicals.
• Inspektion: Regularly inspect the motor assembly for any signs of wear, damage, or loose connections. Check for unusual noises or excessive heat during operation.
• Opbevaring: Store the tool with the motor assembly in a clean, dry place, away from extreme temperatures and humidity. Remove the battery during extended storage.

Fejlfinding

If you encounter issues after installing the motor assembly, consider the following:

If problems persist after following these steps, consult a qualified technician or contact RATION customer support.

Specifikationer

Garanti og support

For warranty information or technical support regarding your RATION 18V-Dc Motor Assembly, please refer to the documentation provided with your original purchase or contact RATION customer service directly. Keep your proof of purchase for warranty claims.
