1. Introduktion
Thank you for choosing the Reolink E1 Outdoor S 4K PTZ Security Camera. This manual provides essential information for the safe and efficient use of your camera. Please read it thoroughly before installation and operation, and keep it for future reference.

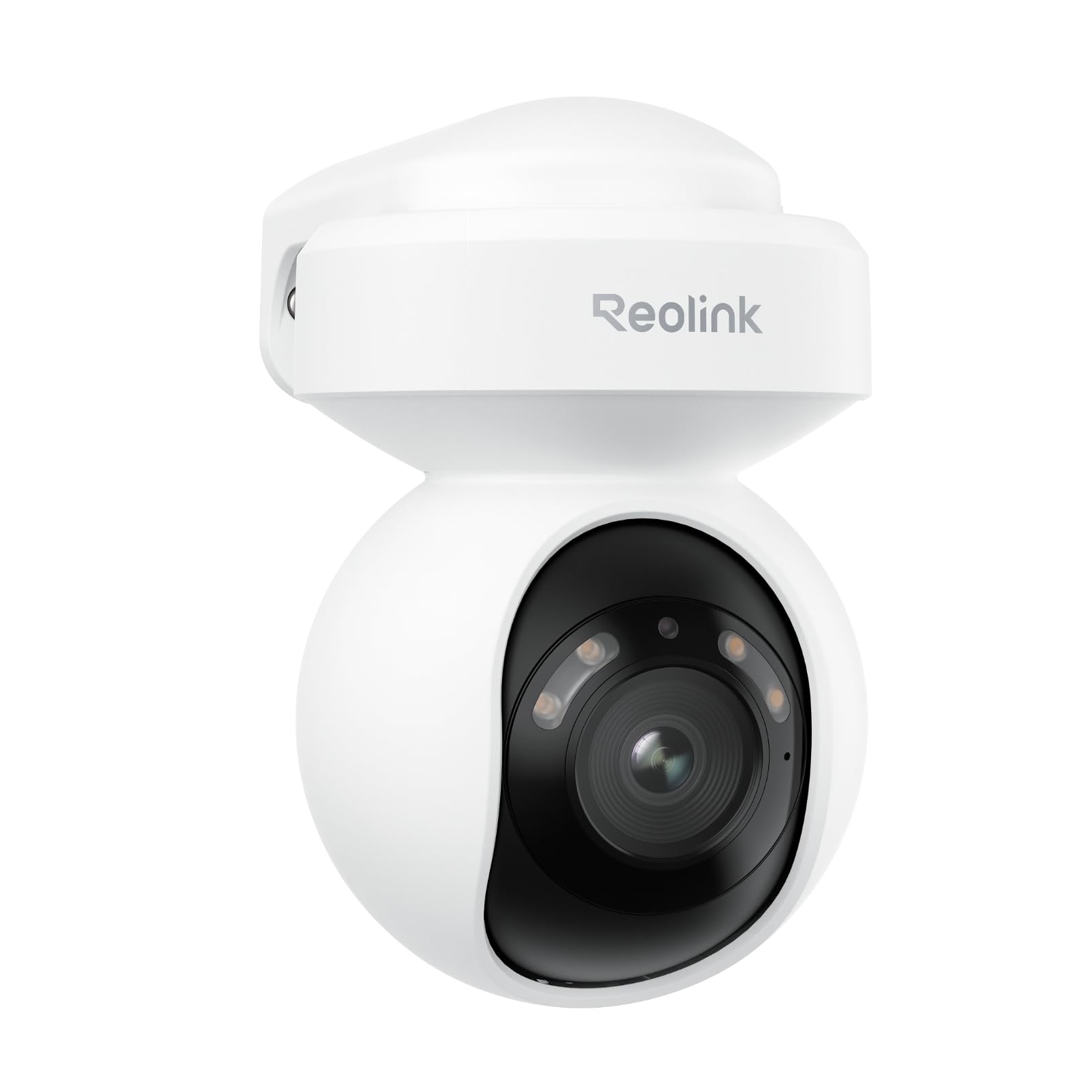

Image 1.1: Reolink E1 Outdoor S Camera Overview
2. Produktet er slutview
2.1 Nøglefunktioner
- Ultra HD 4K Clarity: Captures rich details with 8MP resolution, even in low-light conditions, thanks to its F1.6 large aperture lens.
- Dual-Band Wi-Fi 6 Connectivity: Experience faster and more stable streaming with next-generation Wi-Fi 6, supporting both 2.4GHz for reliable coverage and 5GHz for quicker data transfer.
- Smart Detection (Person/Vehicle/Pet): Advanced AI technology accurately detects people, vehicles, and pets, reducing false alerts. Customizable detection zones and sensitivity are available without monthly subscriptions.
- Two-Way Audio & Integrated Alerts: Built-in spotlights and a siren can be triggered to deter intruders. Receive real-time notifications and emails, and communicate effectively via two-way audio.
- 355° Pan & 50° Tilt with Auto Tracking: Monitor a wide area with flexible pan and tilt capabilities, and automatically track detected objects to keep them in view.
- Farve Night Vision: See vivid details in color even in darkness.
2.2 Pakkens indhold
- Reolink E1 Outdoor S Camera x1
- Power Adapter (12V 1A) with 140cm cable
- 6m (19ft) Power Extension Cable
- 1m (3ft) Network Cable
- Monteringsskabelon
- Monteringsskruer
- Hurtig startvejledning
2.3 Kameradiagram
Image 2.1: E1 Outdoor S Component Diagram. Labels include microSD card slot (up to 512GB, not included), Aluminum Alloy Casing, Spotlights, Lens, Microphone, Reset Button, Power Cable, Network Cable (for initial setup only, PoE not supported), and IR LED.
3. Opsætning
3.1 Indledende konfiguration
Follow these steps for the initial setup of your Reolink E1 Outdoor S camera:
- Connect the camera to your router using the provided Ethernet cable.
- Download the Reolink App from your device's app store.
- Open the app and follow the on-screen instructions to add your camera and configure Wi-Fi settings.
- Once Wi-Fi is configured and the camera is connected, you may disconnect the Ethernet cable.
Image 3.1: Initial setup process showing connecting the camera to a router, configuring Wi-Fi via the Reolink app, and disconnecting the Ethernet cable.
3.2 Montering af kameraet
The E1 Outdoor S camera can be mounted on a wall or ceiling. Choose a location that provides the desired viewvinkel og er inden for rækkevidde af dit Wi-Fi-netværk og en stikkontakt.
- Use the mounting template to mark screw positions.
- Bor huller og isæt vægankre om nødvendigt.
- Secure the camera bracket with screws.
- Attach the camera to the bracket and adjust its angle.
Image 3.2: Flexible installation options for the E1 Outdoor S, including wall and ceiling mounting, and its weather-resistant design.
4. Betjeningsvejledning
4.1 Reolink App Usage
The Reolink App is the primary interface for controlling and monitoring your camera. It allows you to view live feeds, adjust settings, and receive alerts.
- Levende View: Access real-time video from your camera.
- Afspilning: Review optaget footage stored on the microSD card or NVR.
- Indstillinger: Configure motion detection, night vision, audio, and other camera parameters.
Image 4.1: Remote access to the camera feed via the Reolink app on a smartphone and laptop.
4.2 Panorering, vipning og zoom (PTZ)
Use the Reolink App to remotely control the camera's pan (horizontal rotation up to 355°) and tilt (vertical movement up to 50°) functions. The camera also supports digital zoom.
Image 4.2: The camera's auto-tracking feature following a person, illustrating its 355° pan and 50° tilt capabilities.
4.3 Smart detektion og advarsler
The camera's AI can differentiate between people, vehicles, and pets. Configure detection zones and sensitivity in the app to receive precise alerts.
Image 4.3: The camera's AI detection accurately identifying a person, a vehicle, and a pet in a garden setting.
4.4 Tovejslyd
Utilize the built-in microphone and speaker for two-way communication. You can speak to visitors or warn off intruders directly through the Reolink App.
Image 4.4: A delivery person interacting with someone via the camera's two-way audio feature.
4.5 Optagelsesmuligheder
The camera supports local storage via a microSD card (up to 512GB, not included) for continuous or motion-triggered recording. It also supports integration with Network Attached Storage (NAS) and FTP for extended storage solutions.
Image 4.5: The camera's microSD card slot for local storage and options for NAS/FTP integration.
4.6 Nattesyn
The E1 Outdoor S features advanced night vision capabilities, including full-color night vision in low-light conditions and traditional black-and-white infrared night vision when light is minimal.
Image 4.6: Comparison showing vibrant color night vision versus standard black and white night vision.
5. Vedligeholdelse
- Rensning: Rengør kameralinsen regelmæssigt med en blød, tør klud for at sikre en klar billedkvalitet. Brug ikke skrappe kemikalier.
- Firmwareopdateringer: Check for and install firmware updates via the Reolink App to ensure optimal performance and access to new features.
- Miljøhensyn: Ensure the camera is installed in a location that protects it from extreme weather conditions beyond its IP rating.
6. Fejlfinding
6.1 Almindelige problemer og løsninger
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Kamera offline/Kan ikke oprette forbindelse | Weak Wi-Fi signal, incorrect Wi-Fi password, network issues. | Ensure camera is within Wi-Fi range. Verify Wi-Fi password. Restart router and camera. Try initial setup with Ethernet cable again. |
| Dårlig billedkvalitet | Beskidt objektiv, svagt lys, netværksbåndbredde. | Clean the lens. Ensure adequate lighting for optimal night vision. Check network speed. |
| Falske bevægelsesvarsler | High sensitivity, environmental factors (e.g., moving branches). | Adjust motion detection sensitivity and configure detection zones in the Reolink App. |
| Ingen optagelse på SD-kort | SD card full, faulty, or not inserted correctly. Recording schedule not set. | Check SD card status in the app. Format or replace the SD card. Ensure recording schedule is enabled. |
7. Specifikationer
| Feature | Detalje |
|---|---|
| Produkt model | E1 Udendørs S |
| Billedsensor | 8 megapixel (4K UHD) |
| Videoformat | MP4 |
| Forbindelse | Wi-Fi (2.4GHz/5GHz), Wired (Ethernet) |
| Strømkilde | AC Power (Plug-in) |
| Pan/tilt rækkevidde | Panorer 355°, vip 50° |
| Opbevaring | MicroSD card (up to 512GB), NAS, FTP |
| Lyd | To-vejs lyd |
| Særlige funktioner | Smart Person/Vehicle/Pet Detection, Auto Tracking, Color Night Vision, Spotlights, Siren |
| Brugsmiljø | Udendørs |
| Dimensioner | 9 x 9 x 10 cm |
8. Garanti og support
Reolink products come with a limited warranty. For detailed warranty information, please refer to the official Reolink webwebstedet eller garantikortet, der følger med din pakke.
For technical support, troubleshooting assistance, or any product-related inquiries, please visit the official Reolink support page at reolink.com/support. You can also find FAQs, firmware updates, and user forums there.
9. Produktvideo overview
Se denne officielle video for et visuelt overblikview of the Reolink E1 Outdoor S camera's features and capabilities.
Video 9.1: Official Reolink E1 Outdoor S Product Overview. This video highlights features such as 4K resolution, Wi-Fi 6 connectivity, 360° coverage with auto-tracking, and smart detection for people, animals, and vehicles.
