Naifay Android Car Radio User Manual for Toyota Prius 2004-2009 (Model A)

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your Naifay Android Car Radio, designed specifically for Toyota Prius models from 2004 to 2009 (Model A: Not Fit Big Screen & J.B.L Version). Please read this manual thoroughly before use to ensure proper functionality and safety.

Vigtig bemærkning: If your Toyota Prius has a large screen or supports the J.B.L sound system, this unit is not compatible. Please refer to ASIN: B0FPG2RRXJ for compatible models. For any compatibility concerns, please send your car's model, year, and a dashboard picture to Naifay customer support via Amazon chat.

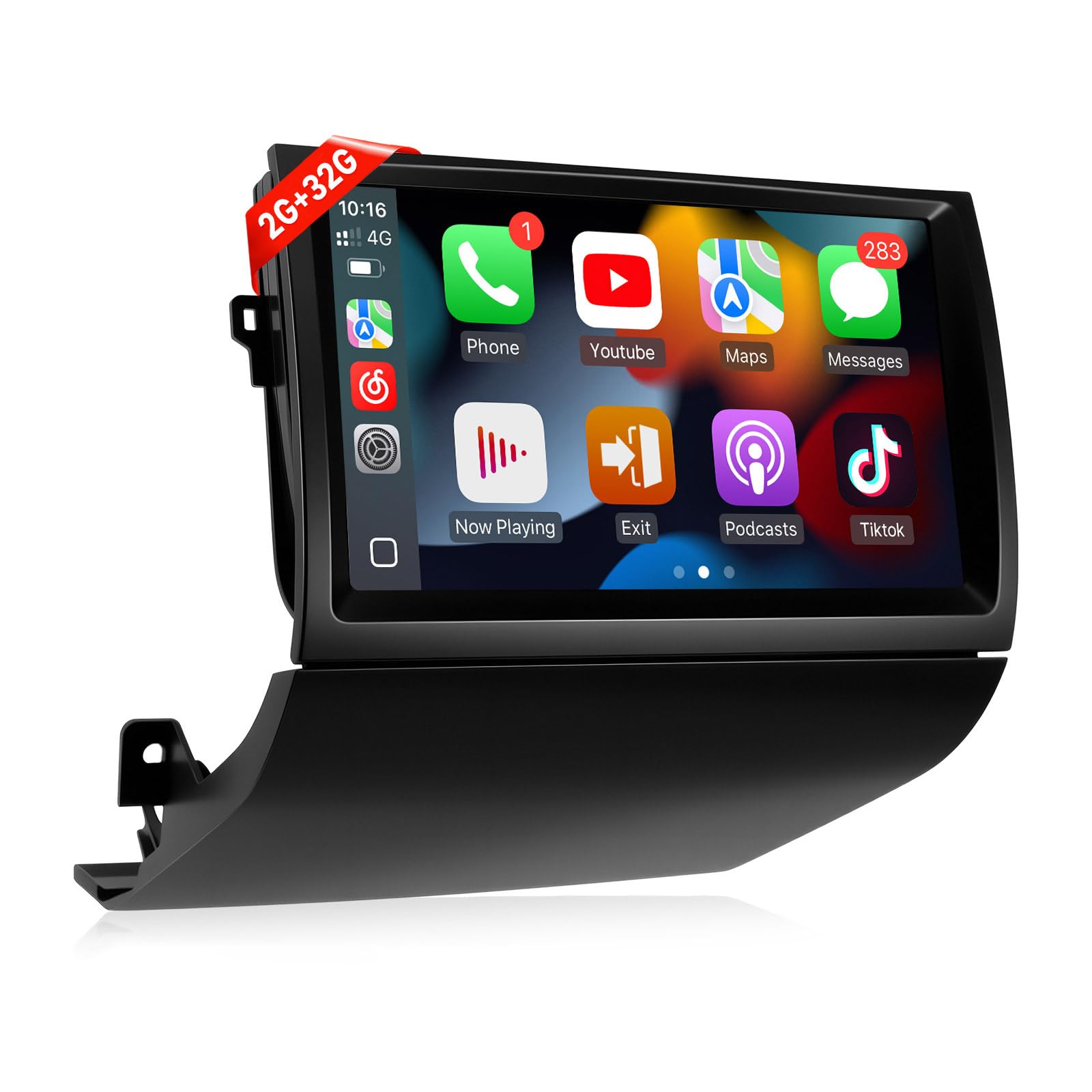

Figure 1: Naifay Android Car Radio Unit

Opsætning og installation

Proper installation is crucial for the optimal performance of your new car radio. This section guides you through the necessary steps.

1. Kontrol før installation

• Sørg for, at dit køretøj er slukket, og at parkeringsbremsen er aktiveret.
• Before removing the old radio, eject all CDs to prevent them from being stuck.
• Confirm compatibility with your Toyota Prius model (2004-2009, non-JBL, non-large screen).

2. Fjernelse af den gamle enhed

Carefully remove the existing car radio unit and surrounding trim. Use appropriate tools to avoid damage.

Figure 2: Visual comparison of the dashboard before and after installation, highlighting compatible and incompatible setups.

The video below provides a detailed walkthrough of the installation process for the Toyota Prius 2004-2009.

3. Wiring the New Screen

Connect the provided wiring harness to the new unit and the vehicle's existing connectors. Ensure all connections are secure. The black connector should be plugged into the designated port on the new unit. The CANBUS box is connected to the main wiring harness.

• Tilslut antennekablet.
• Tilslut GPS-antennen.
• Connect the 4G antenna (can be taped anywhere in the back panel).
• Connect the backup camera wire (brownish wire).

Figure 3: Diagram illustrating the wiring for the reversing camera, showing connections for power and video signal.

4. Initial Power On and Testing

Before fully securing the unit, perform a quick power-on test to ensure the screen powers on and audio is working. This helps identify any immediate wiring issues.

5. Programming Steering Wheel Controls

To utilize your vehicle's steering wheel controls with the new unit, you will need to program them. Navigate to Settings > General > Steering Wheel Study. Long-press the desired button on your steering wheel, then select the corresponding function on the screen. Repeat for all desired controls.

Betjeningsvejledning

Your Naifay Android Car Radio offers a variety of features for an enhanced driving experience.

1. Trådløs CarPlay og Android Auto

Connect your iPhone or Android phone wirelessly to access navigation, music, calls, and more directly on the car radio screen. This feature allows for hands-free operation via voice assistants like Siri or Google Assistant.

Figure 4: Display showing the Wireless CarPlay and Android Auto interfaces, enabling seamless smartphone integration.

2. Wireless MirrorLink

Mirror your iOS or Android phone screen onto the car radio display. Connect via Bluetooth and Wi-Fi for wireless mirroring, or use a USB cable for wired mirroring.

3. GPS-navigation

The unit supports both offline and online GPS navigation. Connect to Wi-Fi or a mobile hotspot to download offline maps or use real-time online navigation. You can also download your preferred navigation apps from the app store.

Figure 5: Screenshot of the GPS navigation interface, showing online and offline map options, alongside the Wi-Fi connection status.

4. Wi-Fi-forbindelse

Connect to a Wi-Fi network or your phone's mobile hotspot to access online features, download apps, and stream content. Note that with 2GB RAM, it is recommended to limit the number of running applications to avoid freezing.

5. Bluetooth & FM Radio

Enjoy hands-free calling, phonebook access, and audio streaming via Bluetooth. The FM radio features high-quality stereo, automatic and semi-automatic channel search, and unlimited preset stations.

Figur 6: Overview of various features including Bluetooth for calls and music, FM radio, AHD backup camera display, steering wheel control interface, and split-screen functionality.

6. Sound Equalizer (DSP)

Customize your audio experience using the built-in Digital Sound Processor (DSP). Access the equalizer settings to adjust bass, treble, and other audio parameters to your preference. You can select from preset modes like Rock, Soft, Popular, or create a custom profile.

7. Split Screen-funktionalitet

Multitask efficiently with the split-screen feature, allowing you to run two applications simultaneously on the 9-inch IPS touch screen.

8. AHD Backup Camera

The unit supports AHD backup cameras, providing a clear view of your surroundings when reversing. Ensure the camera is properly wired during installation.

Opretholdelse

To ensure the longevity and optimal performance of your Naifay Android Car Radio, follow these maintenance guidelines:

• Rengøring af skærm: Brug en blød, fnugfri klud til forsigtigt at tørre berøringsskærmen af. Undgå slibende rengøringsmidler eller stærke kemikalier, der kan beskadige skærmen.
• Softwareopdateringer: Periodically check for software updates to ensure your unit has the latest features and security patches. Follow the on-screen instructions for any available updates.
• Kabelforbindelser: Ensure all cables remain securely connected. Loose connections can lead to intermittent functionality or poor performance.
• Miljøforhold: Undgå at udsætte enheden for ekstreme temperaturer, direkte sollys i længere perioder eller for høj fugtighed.

Fejlfinding

If you encounter any issues with your Naifay Android Car Radio, refer to the following common troubleshooting steps:

• Ingen strøm:
  • Kontrollér alle strømforbindelser for at sikre, at de er sikre.
  • Kontroller bilens sikring, der er relateret til bilradioen.
• Ingen lyd:
  • Sørg for, at lydstyrken ikke er slået fra eller indstillet for lavt.
  • Kontroller højttalerledningernes forbindelser.
  • Verify the sound equalizer settings (DSP) are configured correctly.
• Ratbetjening virker ikke:
  • Re-program the steering wheel controls via Settings > General > Steering Wheel Study.
  • Ensure the CANBUS box is correctly connected.
• Problemer med GPS-signal:
  • Sørg for, at GPS-antennen er korrekt installeret og har en klar view af himlen.
  • Check Wi-Fi or mobile hotspot connection for online maps.
• Wireless CarPlay/Android Auto Connection Problems:
  • Ensure Bluetooth and Wi-Fi are enabled on both the car radio and your smartphone.
  • Forget and re-pair the device in Bluetooth settings.
  • Refer to the "How To Connect Wireless CarPlay & Android Auto" video for detailed steps.
• Enheden fryser eller bliver langsommere:
  • Luk unødvendige baggrundsapplikationer.
  • Genstart enheden.
  • Overvej at udføre en fabriksnulstilling (bemærk: dette vil slette alle brugerdata og indstillinger).

For further assistance, please contact Naifay customer support.

Specifikationer

Garanti og support

Naifay is committed to providing excellent products and superior customer service. Your product comes with the following support and warranty:

• Hurtigt svar: 24-timers svartid på forespørgsler.
• Returpolitik: 60 dages bekymringsfri returperiode.
• Udskiftning: 12-month replacement available.
• Teknisk support: Livstids eftersalgsrådgivning og teknisk support.

If you have any questions or require assistance, please contact Naifay customer service via Amazon chat. You can find the "Sold by Naifay" link on the product page and click "Ask a question" to reach support.
