LUNDERG Bell Clamp Instruktionsmanual

Indledning

The Lunderg Bell Clamp is an advanced ergonomic device designed to manage male urinary incontinence. It features a unique bell-shaped frame and anatomical cutouts to provide comfort and reduce movement, allowing for extended wear. This manual provides essential information for the proper use and care of your Bell Clamp.

Produkt overview

Nøglefunktioner

• Ergonomic Bell-Shaped Frame: Designed to center the male member and minimize side-to-side movement.
• Anatomical Cutouts: Strategically placed cutouts on the top pad allow main blood vessels to flow freely, enhancing comfort during prolonged use.
• Three Adjustable Sizes: Includes small, medium, and large interchangeable top silicone pads for a customized fit.
• Metal-Free Design: Safe for MRI scans and airport security.
• Materialer af medicinsk kvalitet: Constructed from ultra-soft, medical-grade silicone for safety and comfort.

Komponenter

• 1 Lunderg Bell Clamp ramme
• 3 Interchangeable Top Silicone Pads (Small, Medium, Large)
• 1 bæretaske
• Instruktionsmanual (dette dokument)

Image showing the Lunderg Bell Clamp frame, three interchangeable top silicone pads (Small, Medium, Large), and a carrying pouch. Each pad is clearly marked with its size.

Opsætning

Choosing Your Top Pad Size

Select the top silicone pad that provides the most comfortable fit. Each pad is marked with its size (S, M, L).

Image illustrating the three interchangeable top silicone pads (Small, Medium, Large) and their size markings. The pads are designed to fit into the upper arm of the clamp.

Attaching the Top Pad

The upper arm of the Bell Clamp has longer and shorter stabilizers. The silicone pad also has corresponding longer and shorter holes.

1. Align the longer hole on the silicone pad with the longer pad stabilizer on the upper arm.
2. Align the shorter hole on the silicone pad with the shorter pad stabilizer.
3. Ensure the pad size marking is closest to the ladder lock for secure placement.

Close-up image demonstrating how to attach the silicone top pad to the upper arm of the Bell Clamp, aligning the holes with the stabilizers.

Betjeningsvejledning

Korrekt placering

With the male member in a relaxed, flaccid state, position the clamp approximately 1/4 to 1/2 way down the shaft from the abdomen. The ladder lock should be positioned to the right.

Aligning Blood Vessels

Inden du lukker clamp, ensure your blood vessels are aligned with the anatomical cutouts on the upper arm pad.

• The dorsal blood vessel (at 12 o'clock) should sit in the first cutout.
• The vessel at 4 o'clock should be in the second cutout.
• If possible, the vessel at 9 o'clock can sit in the third cutout (this is less critical).

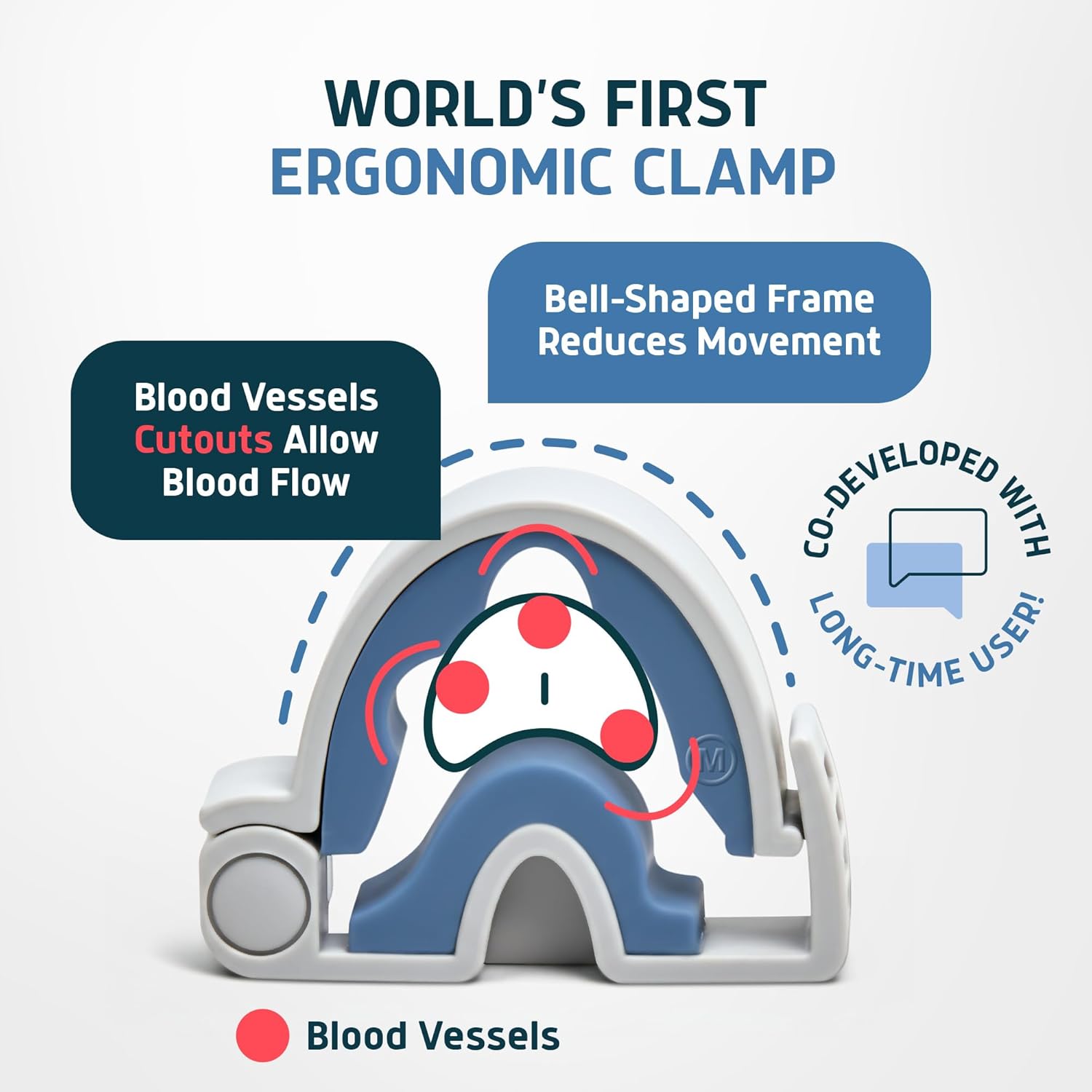

Diagram showing the internal structure of the Bell Clamp with anatomical cutouts and indicating the optimal placement for blood vessels to ensure proper circulation and comfort.

Justering af Clamp

Gently close the lower arm onto the male member and lock it into place using the ladder lock. Adjust the ladder lock to the minimum pressure required to control leakage. Avoid over-tightening.

Regular Repositioning

Every 1.5 to 2 hours, release the clamp to urinate. After urination, slightly reposition the clamp on the shaft (a bit higher or lower than before) to maintain blood flow and prevent irritation.

Opretholdelse

Rengøringsvejledning

Cleaning the Bell Clamp is simple. Wash it with soap and warm water, then allow it to air dry completely before next use.

Vigtige overvejelser

Generelle tips

• The Bell Clamp contains no metal components, making it safe for use during MRI scans and when passing through metal detectors.
• Undgå clamping on wet skin.
• Lightly trim hair in the clamping area if needed for extra comfort and to prevent pinching.
• For optimal performance and hygiene, replace your Lunderg Bell Clamp hver 4-6 måned.

Specifikationer

Produktdetaljer

Materialer

• Frame: Durable, lightweight plastic (metal-free)
• Pads: Medical-grade silicone

Garanti og support

Privacy & Perfect Fit Guarantee

Lunderg is committed to your satisfaction. The Bell Clamp is shipped in discreet packaging and includes a travel bag. If the device does not meet your needs or condition, please contact Lunderg customer support.

Kontaktoplysninger

For any questions or issues, please contact Lunderg customer support. We aim to respond within 24 hours.

• E-mail: question@lunderg.com
• Telefon: (800) 652-4905 (Request a call back)

Image showing the Lunderg Bell Clamp in its discreet packaging, alongside the included green travel pouch, emphasizing privacy and portability.
