PET LAYSON Pumpless Cat Water Fountain Instruction Manual

1. Introduktion

The PET LAYSON Pumpless Cat Water Fountain is designed to provide a continuous supply of fresh, filtered water for your pets. Its innovative cordless and pumpless design ensures quiet operation, easy cleaning, and flexible placement anywhere in your home. With a 3.6L capacity and smart hydration modes, it promotes healthier drinking habits for both cats and dogs.

Image: The PET LAYSON Pumpless Cat Water Fountain in pink, with two cats observing it. The fountain features a sleek design and a visible water flow.

2. Opsætningsvejledning

2.1. Udpakning og første rengøring

Before first use, thoroughly clean all components of the fountain to ensure hygiene for your pet.

1. Fjern forsigtigt alle dele fra emballagen.
2. Wash the water tank, stainless steel tray, and all other detachable parts with mild soap and water. Rinse thoroughly.
3. Use the provided cleaning brush to clean the internal tube to prevent any residue buildup.

Image: Disassembled components of the PET LAYSON water fountain, including the main body, stainless steel tray, and internal parts, highlighting its easy-to-clean design.

2.2. Filterforberedelse

The 4-layer filtration system ensures clean and oxygen-rich water. Proper preparation of the filter is crucial for optimal performance.

1. Remove the filter from its sealed packaging.
2. Soak the filter in a bowl of clean water for 5 minutes before placing it in the fountain. This activates the filter media.
3. Rinse the soaked filter under running water to remove any loose carbon particles.

Image: A detailed diagram illustrating the upgraded 4-layer filtration system, showing layers for non-woven fabric, ion exchange resin, activated carbon, and sponge.

2.3. Assembly and Filling

Follow these steps to assemble and fill your fountain.

1. Place the prepared filter into its designated slot in the main unit. Ensure the curved side of the filter aligns with the curved base of the slot.
2. Insert the Maglev Valve component into the base of the fountain, ensuring it fits securely.
3. Attach the water tube to the Maglev Valve.
4. Place the stainless steel tray on top of the main unit, aligning it with the water tube and the Maglev Valve.
5. Fill the water tank with clean water up to the maximum fill line. The fountain has a 3.6L (122oz) capacity.
6. Ensure the battery is charged. The fountain features a 5,000mAh rechargeable battery for long-lasting operation.

Billede: Et nærbillede view of the Maglev Valve Technology, showing the UVC light component that helps keep the water clear.

Image: The water fountain with an overlay indicating its 5000mAh battery capacity, suggesting long-lasting power.

3. Driftstilstande

The PET LAYSON water fountain offers three smart hydration modes to suit your pet's needs.

• Bevægelsessensortilstand: When the device detects a pet passing by, it immediately dispenses water for 45 seconds to keep the pet hydrated. This mode conserves battery life.
• Timertilstand: Dispenses water for 60 seconds every 2 minutes. This mode extends the life of the water pump and ensures fresh water throughout the day.
• Kontinuerlig tilstand: Provides a steady flow of water when the fountain is plugged in. This mode is ideal for multi-pet households or when continuous water access is desired.

To switch between modes, briefly press the power button. The indicator lights on the top panel will show the current mode and status.

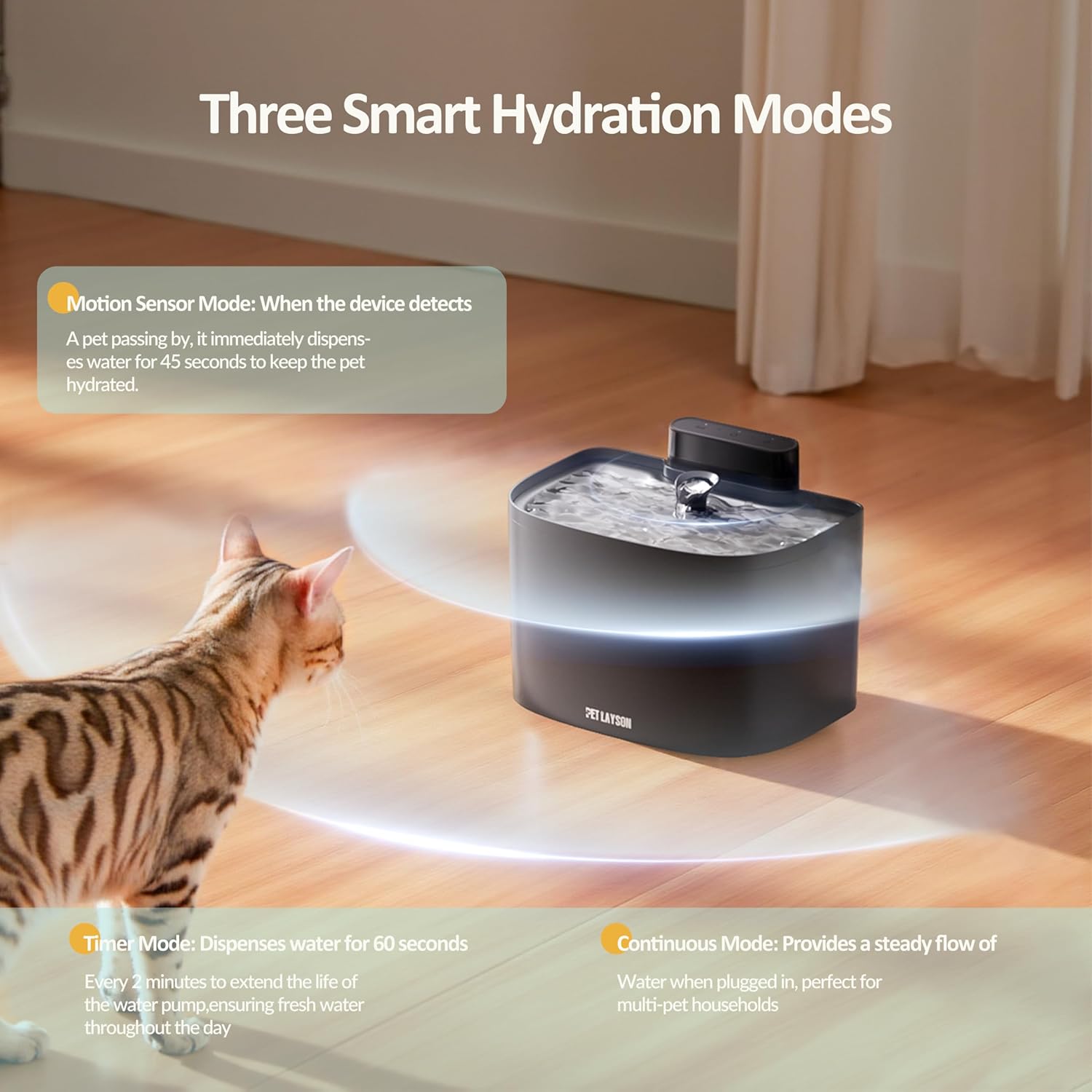

Image: The water fountain with text overlays explaining the three smart hydration modes: Motion Sensor Mode, Timer Mode, and Continuous Mode.

Image: A close-up of the fountain's control panel, showing indicator lights for water level and battery status, along with the function buttons.

4. Vedligeholdelse

4.1. Rensning

Regular cleaning is essential to maintain water quality and prolong the life of your fountain. The pumpless design makes cleaning exceptionally easy.

• Disassemble all detachable parts (stainless steel tray, water tube, Maglev Valve, filter).
• Wash all parts with mild soap and water. For hard-to-reach areas, use the provided cleaning brush.
• Skyl alle komponenter grundigt for at fjerne eventuelle sæberester.
• Wipe the main unit and base with a damp klæde. Nedsænk ikke hovedenheden i vand.
• Reassemble the fountain once all parts are dry.

Image: The pumpless design of the water fountain, emphasizing its ease of cleaning and lack of hidden spots for dirt accumulation.

4.2. Udskiftning af filter

Replace the filter every 2 to 4 weeks, or as indicated by the filter replacement light, to ensure optimal filtration.

1. Turn off the fountain and remove the stainless steel tray.
2. Remove the old filter by pulling the tab. Dispose of the used filter.
3. Prepare a new filter by soaking and rinsing it as described in the Setup Guide.
4. Insert the new filter into the slot, ensuring it is pushed down firmly.
5. Press and hold the filter timer reset button (middle button) for 3 seconds until the white light flashes, indicating the filter timer has been reset.

4.3. Batteriopladning

The fountain's built-in 5,000mAh rechargeable battery provides extended use. Charge the battery when the battery indicator light shows low power (flashing red).

• Connect the charging cable to the fountain's charging port and a suitable power adapter.
• The battery indicator light will show breathing green during charging.
• Once fully charged, the light will turn solid green.
• The removable battery allows for easy recharging.

5. Fejlfinding

Se tabellen nedenfor for almindelige problemer og deres løsninger.

6. Specifikationer

Key technical details of the PET LAYSON Pumpless Cat Water Fountain.

7. Garanti og support

For warranty information or technical support, please refer to the product packaging or contact PETLAYSON customer service directly. Keep your purchase receipt for any warranty claims.
